Can the Prima Supercharger Kit for E46 M3 run without an intercooler?

Yes. The Prima Supercharger Kit for E46 M3 is a non-intercooled system by design. Active Autowerke says its development and tuning work on the S54, which runs 11.5:1 compression, allows the stock engine to run the kit safely at 5.8 psi with the supplied Alpha N software.

Is the Prima kit reversible?

Yes. The Prima is a full bolt-on system that needs no custom fabrication, and Active Autowerke describes it as completely reversible. With no front-mount intercooler to plumb, the hoses and clamps arrive pre-assembled and the car can be returned to its factory intake later.

Does it work with SMG?

Yes. Active Autowerke offers the Prima in two versions at the same price, 12-021S for SMG cars and 12-021 for the 6-speed manual. Choose the transmission when ordering, because the kit is matched to the car it is going on.

How much power does the base Prima make?

On a Dynojet chassis dyno, Active Autowerke measured 395 wheel horsepower at 8150 rpm and 297.99 lb-ft at 7200 rpm from 5.8 psi, against 285.4 wheel horsepower and 232.36 lb-ft for the same E46 M3 before the kit was fitted.

Can the kit be upgraded later?

Yes. Active Autowerke built the Prima to be upgraded through its Level 1 and Level 2 options, and the Prima PLUS upgrade kit adds a trunk-mounted water/methanol system with matched software that raises boost to 9.5 psi on 93 octane fuel.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Active Autowerke Prima Supercharger Kit for E46 BMW M3

Active Autowerke’s Prima Supercharger Kit for E46 BMW M3 is the plainest way into boost for the S54: a Rotrex C38-92 with no intercooler, bolted on without fabrication and fully reversible, developed with Frank Smith of TuningTechFS. On a Dynojet the base kit lifted an E46 M3 from 285.4 to 395 wheel horsepower at just 5.8 psi, with the power arriving high in the rev range where the S54 already lives. It suits the owner who wants a large, linear gain at the lowest entry cost and room to grow; anyone wanting the water/methanol version from the start should look at the Prima PLUS Supercharger Kit.

Design and Performance

Boosting the S54 without an intercooler was once thought reckless because of its 11.5:1 compression ratio. Active Autowerke says years of development and tuning on this engine let the Prima hardware and Alpha N software run the stock motor safely at modest boost, which keeps front-mount plumbing out of the bumper and the install simple to undo.

Features

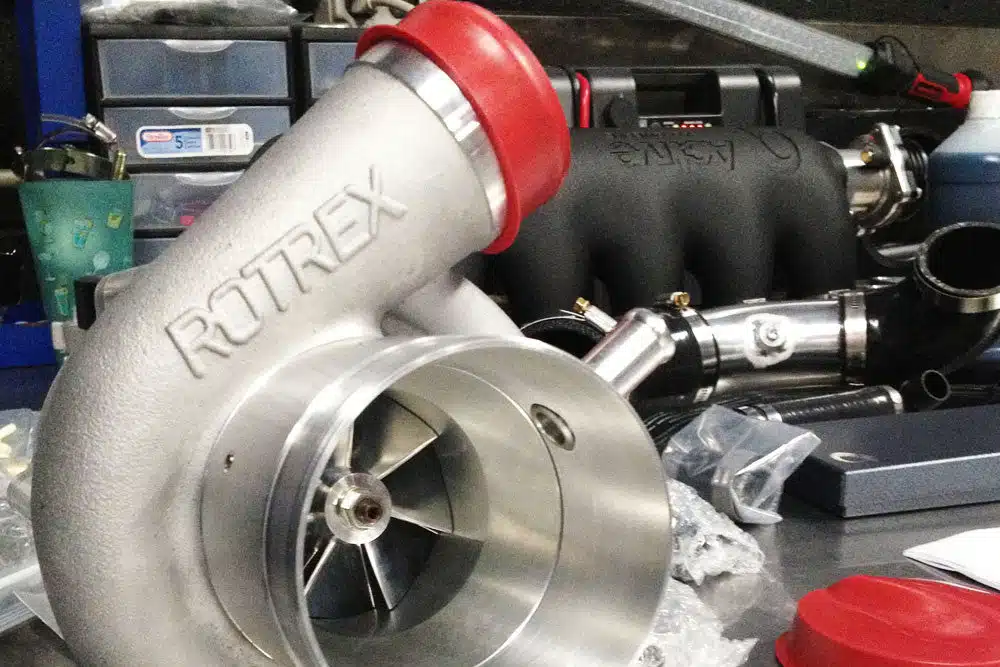

Rotrex C38-92 supercharger with a dedicated oil cooling system
Active Autowerke Gen 9 intake manifold plenum
Double blow-off valve arrangement
Active Autowerke green filter with its own filter cover
Alpha N software tune with the SIMON 4 interface included
High-capacity fuel injectors and colder heat range spark plugs
Hoses and clamps supplied pre-assembled

Specifications

Boost: 5.8 psi
Output before the kit: 285.4 whp at 7500 rpm
Torque before the kit: 232.36 lb-ft at 5250 rpm
Output with the kit: 395 whp at 8150 rpm
Torque with the kit: 297.99 lb-ft at 7200 rpm

Applications

BMW M3: E46 | 2001-2006 | 3.2L S54

Notes

Active Autowerke recorded the Prima Supercharger Kit for E46 M3 figures at the rear wheels on a Dynojet chassis dyno
Choose the SMG or 6-speed manual version to match the car
Active Autowerke designed the Prima to accept its Level 1 and Level 2 upgrades, and the Prima PLUS Supercharger Upgrade Kit adds water/methanol injection and 9.5 psi to an installed Prima
Allow up to 6 weeks for shipping, which Active Autowerke attributes to supercharger availability

Frequently Asked Questions

Can the Prima Supercharger Kit for E46 M3 run without an intercooler? Yes. The Prima Supercharger Kit for E46 M3 is a non-intercooled system by design. Active Autowerke says its development and tuning work on the S54, which runs 11.5:1 compression, allows the stock engine to run the kit safely at 5.8 psi with the supplied Alpha N software.
Is the Prima kit reversible? Yes. The Prima is a full bolt-on system that needs no custom fabrication, and Active Autowerke describes it as completely reversible. With no front-mount intercooler to plumb, the hoses and clamps arrive pre-assembled and the car can be returned to its factory intake later.
Does it work with SMG? Yes. Active Autowerke offers the Prima in two versions at the same price, 12-021S for SMG cars and 12-021 for the 6-speed manual. Choose the transmission when ordering, because the kit is matched to the car it is going on.
How much power does the base Prima make? On a Dynojet chassis dyno, Active Autowerke measured 395 wheel horsepower at 8150 rpm and 297.99 lb-ft at 7200 rpm from 5.8 psi, against 285.4 wheel horsepower and 232.36 lb-ft for the same E46 M3 before the kit was fitted.
Can the kit be upgraded later? Yes. Active Autowerke built the Prima to be upgraded through its Level 1 and Level 2 options, and the Prima PLUS upgrade kit adds a trunk-mounted water/methanol system with matched software that raises boost to 9.5 psi on 93 octane fuel.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
