Does the Prima PLUS Supercharger Upgrade Kit include a supercharger?

No. The Prima PLUS Supercharger Upgrade Kit adds the water/methanol system, wiring and matched software to an E46 M3 that already runs the Active Autowerke Prima supercharger kit. A car without a Prima needs the base Prima kit first, or the complete Prima PLUS kit for SMG cars.

How much power does the upgrade add?

Active Autowerke measured the base Prima at 395 rear-wheel horsepower and the Prima PLUS at 465+ on a stock-engine E46 M3 running 93 octane with headers, a section 1 and a rear exhaust fitted. It quotes the PLUS at 550+ horsepower at the engine.

Is an intercooler needed with the PLUS upgrade?

No. The Prima stays non-intercooled, and the PLUS relies on water/methanol injection with precise tuning to manage charge temperature at 9.5 psi. If the fluid runs low or excessive detonation appears, the fail-safe returns the system to 6.0 psi to protect the S54.

Where does the water/methanol tank go?

The tank mounts in the trunk of the E46 M3 on its own dedicated holding base. Active Autowerke designed the mounting to be non-intrusive so the existing factory trunk space is kept, with the exception of convertible models, where the tank does take up some of the trunk.

Which version should I order?

Active Autowerke sells the upgrade in two versions at the same price: 12-022S for cars with the SMG transmission and 12-022 for cars with the 6-speed manual. Choose the version that matches the transmission fitted to the car when ordering the upgrade kit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Active Autowerke Prima PLUS Supercharger Upgrade Kit for E46 BMW M3

Active Autowerke’s Prima PLUS Supercharger Upgrade Kit for E46 BMW M3 converts an installed Prima system to PLUS specification, adding a trunk-mounted water/methanol system and software matched to 9.0 and 9.5 psi. It does not include a supercharger. Active Autowerke worked the calibration up with Frank Smith of Tuning Tech FS, logging every dyno pull and checking air/fuel ratios, and its figures put the Prima at 395 wheel horsepower and the PLUS at 465+ on 93 octane. For a Prima owner wanting the extra 70 at the wheels, this is far cheaper than starting again; a car with no supercharger needs the complete Prima PLUS Supercharger Kit.

How It Works

Rather than adding an intercooler, the PLUS cools the charge with a spray of water and methanol. Flipping the switch arms the system and the 9.5 psi setting, and if fluid runs low or detonation becomes excessive the fail-safe returns the supercharger to 6.0 psi on its own.

Features

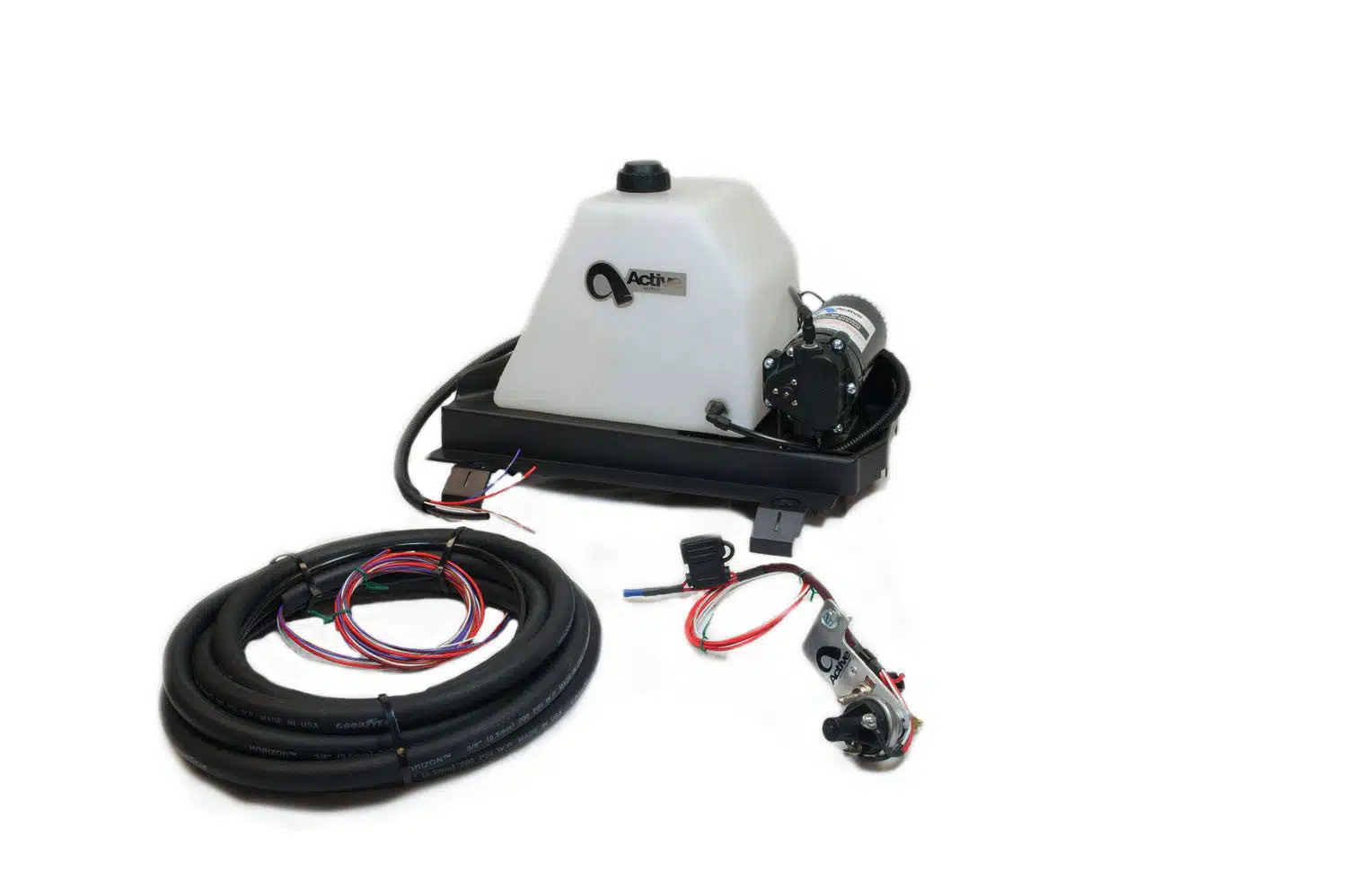

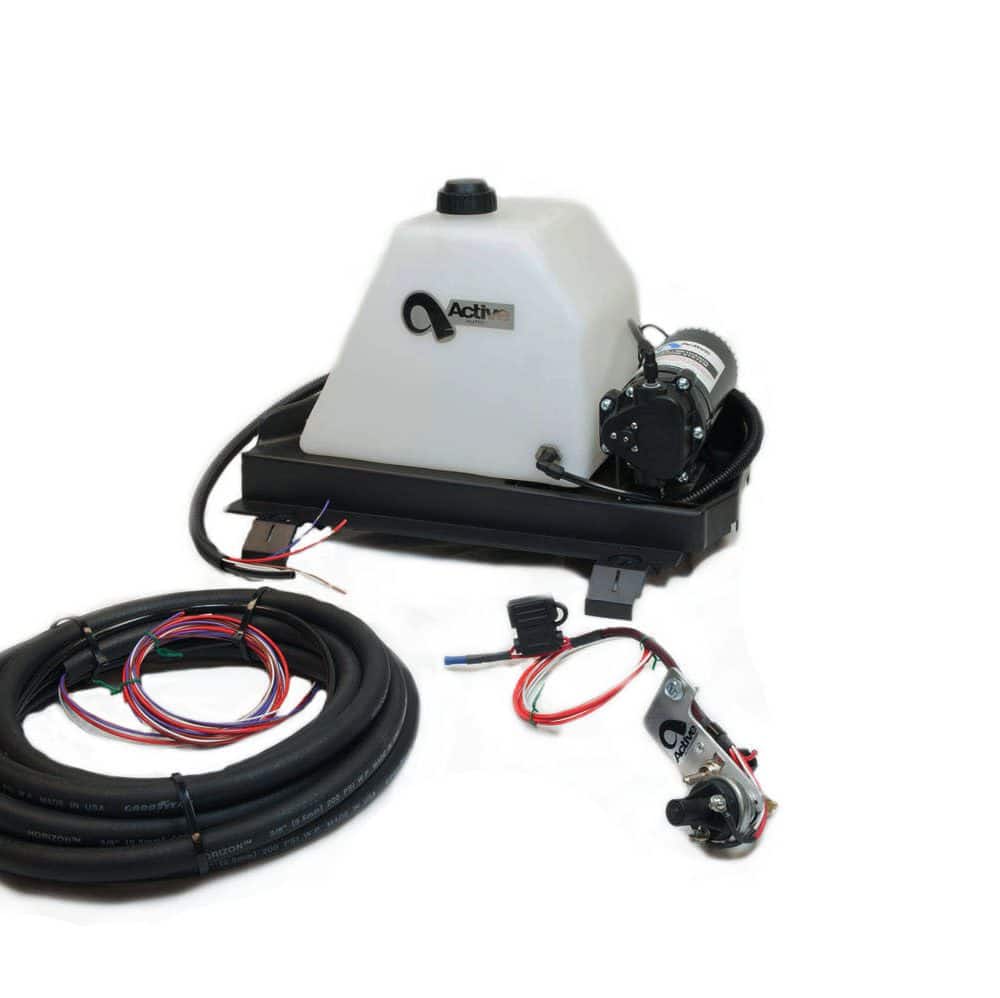

Complete water/methanol system for the existing Prima installation
Water/methanol pump with internal seals and nozzles built to handle methanol
Trunk-mounted reservoir on a dedicated holding base, placed to preserve factory trunk space
Integrated wiring with fail-safe features
Precise software tuning for the designated boost levels
Operates on 93 octane pump fuel
Detailed step-by-step instructions

Specifications

Boost settings: 9.0 and 9.5 psi
Fail-safe boost: 6.0 psi
Measured output: 465+ whp
Quoted engine output: 550+ hp at 8100 rpm
Quoted torque: 393 lb-ft at 8100 rpm

Applications

BMW M3: E46 | 2001-2006 | 3.2L S54

Notes

The Prima PLUS Supercharger Upgrade Kit requires an installed Prima Supercharger Kit for E46 M3 and does not include the supercharger; SMG cars starting from stock can buy the complete Prima PLUS Supercharger Kit
Active Autowerke recorded 465+ wheel horsepower on a stock-engine E46 M3 running 93 octane with headers, a section 1 and a rear exhaust, and lists 550+ horsepower as engine output
Convertibles lose some trunk space to the reservoir
Offered for SMG and 6-speed manual cars; choose the version that matches the transmission

Frequently Asked Questions

Does the Prima PLUS Supercharger Upgrade Kit include a supercharger? No. The Prima PLUS Supercharger Upgrade Kit adds the water/methanol system, wiring and matched software to an E46 M3 that already runs the Active Autowerke Prima supercharger kit. A car without a Prima needs the base Prima kit first, or the complete Prima PLUS kit for SMG cars.
How much power does the upgrade add? Active Autowerke measured the base Prima at 395 rear-wheel horsepower and the Prima PLUS at 465+ on a stock-engine E46 M3 running 93 octane with headers, a section 1 and a rear exhaust fitted. It quotes the PLUS at 550+ horsepower at the engine.
Is an intercooler needed with the PLUS upgrade? No. The Prima stays non-intercooled, and the PLUS relies on water/methanol injection with precise tuning to manage charge temperature at 9.5 psi. If the fluid runs low or excessive detonation appears, the fail-safe returns the system to 6.0 psi to protect the S54.
Where does the water/methanol tank go? The tank mounts in the trunk of the E46 M3 on its own dedicated holding base. Active Autowerke designed the mounting to be non-intrusive so the existing factory trunk space is kept, with the exception of convertible models, where the tank does take up some of the trunk.
Which version should I order? Active Autowerke sells the upgrade in two versions at the same price: 12-022S for cars with the SMG transmission and 12-022 for cars with the 6-speed manual. Choose the version that matches the transmission fitted to the car when ordering the upgrade kit.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
