Do the GESI Catted Downpipes for S63 and N63 models need a tune?

No. Active Autowerke states that the GESI Catted Downpipes for S63 / N63 BMW models run without a performance tune. Most buyers choose the GESI version because a tune is planned, since its converters are rated from 500 to 850 horsepower.

Will the GESI converters set a check engine light?

Active Autowerke states that these GESI converters will not set a catalyst efficiency code. They reach working efficiency within 9 seconds of a cold start, and GESI applies its own precious metal loading to the 400 cell substrate to keep emissions low.

Which version fits my vehicle?

Active Autowerke offers three versions. The 2010-2012 option suits the earlier E70 and E71 vehicles, the 2014 and newer option suits the F-chassis vehicles, and the G-chassis option is its own design for G-body N63 models. Supply the VIN so the shop can confirm.

Is the GESI set worth it over the AFlow set?

Yes, for a tuned S63. The GESI converters carry a 500 to 850 horsepower rating against 800 for the AFlow units. For a stock N63 vehicle, the pipework is identical and the AFlow set adds a two-year code guarantee at a lower price.

Do they fit the F10 M5 or M6?

No. The F10 M5 and the F12 and F13 M6 take a dedicated S63 downpipe that Active Autowerke sells separately in AFlow and GESI form. This set is for the X5 M, X6 M, X5, X6, 550i and 650i, in three versions.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

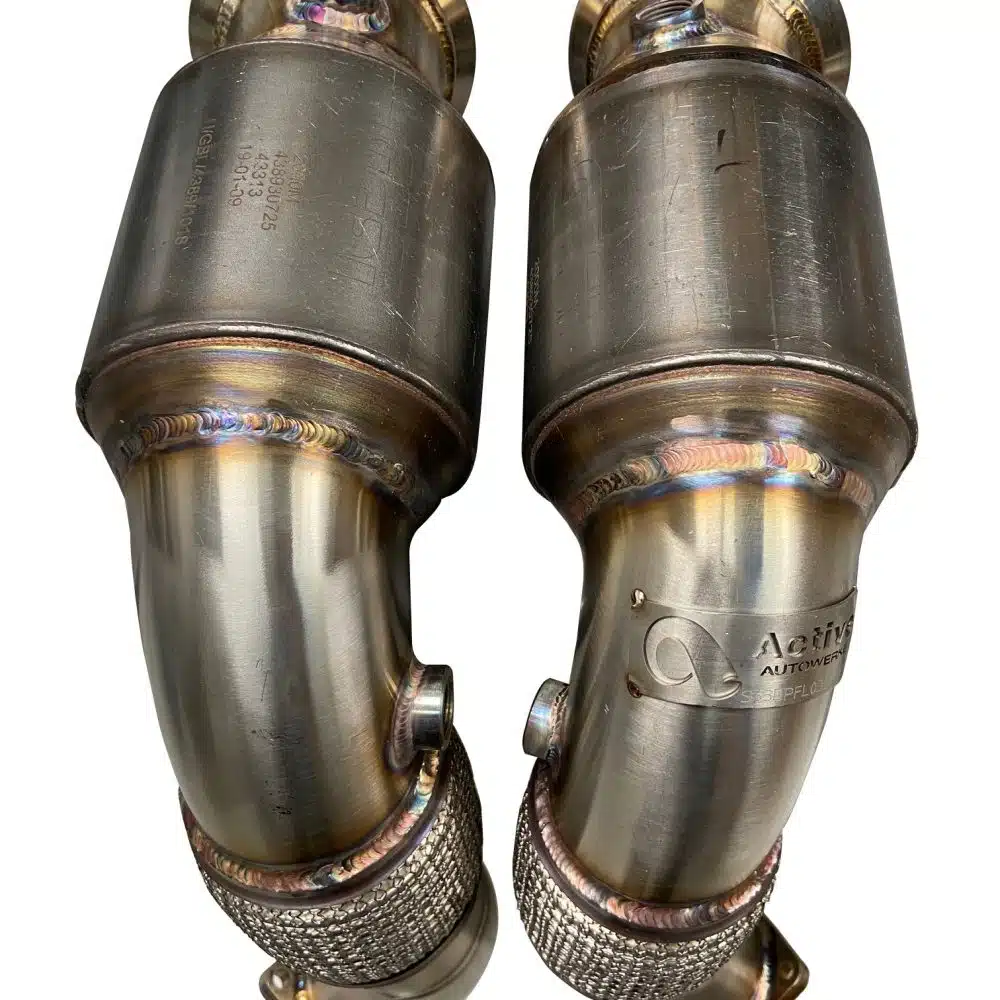

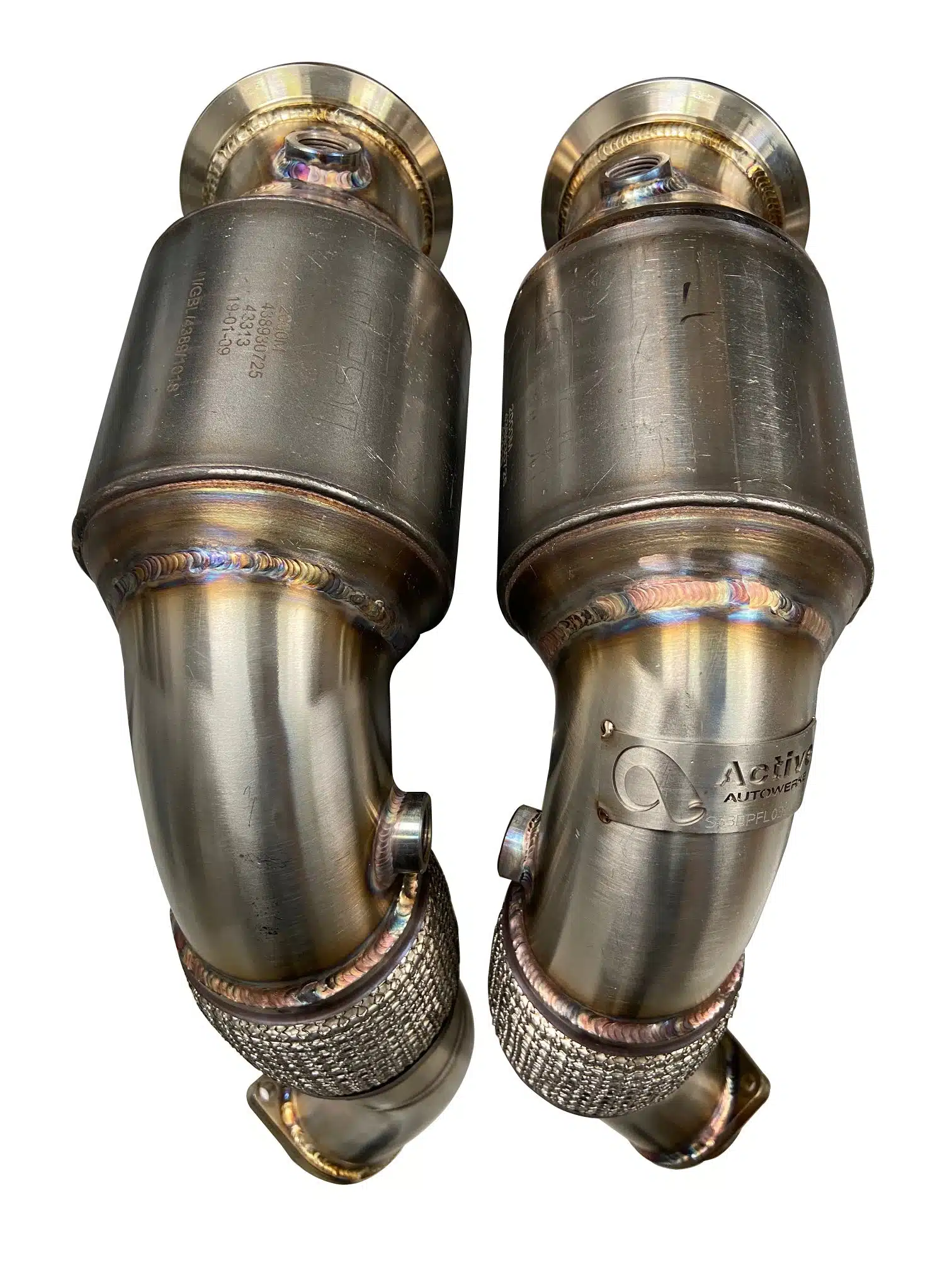

Active Autowerke GESI Catted Downpipes for S63 / N63 BMW X5 M, X6 M, X5, X6, 550i and 650i

Active Autowerke’s GESI Catted Downpipes for S63 / N63 BMW X5 M, X6 M, X5, X6, 550i and 650i are the high-output choice for the twin-turbo 4.4 liter V8, fitting a GESI G-Sport converter rated from 500 to 850 horsepower into each 3 inch stainless downpipe. Every pair is welded by hand in Miami, in three versions matched to model year and chassis. Buy this set for an S63 X5 M or X6 M that is already tuned or about to be, where the converter rating matters. On a stock 550i or X5 the AFlow Catted Downpipes for S63 / N63 do the same job for less.

Features

Pair of GESI G-Sport ultra high output converters with a 304 stainless substrate furnace brazed to the mantle
EPA registered, OBD2 compliant GESI converters
Built to run without catalyst efficiency check engine lights
Constant 3 inch bore with as few bends as the hot-vee layout allows
Cast stainless upper V-band at each turbo
Hand-built from TIG welded 304 stainless in Miami, Florida, with no cutting or welding at install

Specifications

Piping diameter: 3 in
Converter diameter: 4.5 in
Catalyst cell density: 400 cpsi
Converter rating: 500 to 850 hp
Temperature limit: 1500F
Converter light-off: Within 9 seconds of startup

What’s Included

Catted downpipes with GESI converters (x2)

Applications

BMW 550i: F10 | 2011-2016 | 4.4L N63
BMW 650i: F12 / F13 | 2012-2018 | 4.4L N63
BMW X5: E70 / F15 | 2011-2018 | 4.4L N63
BMW X5: G05 | 2019-2023 | 4.4L N63
BMW X5 M: E70 / F85 | 2010-2018 | 4.4L S63
BMW X6: E71 / F16 | 2010-2019 | 4.4L N63
BMW X6: G06 | 2020-2023 | 4.4L N63
BMW X6 M: E71 / F86 | 2010-2019 | 4.4L S63

Notes

Pick 2010-2012 Models, 2014 and Newer Models or G-Chassis Models to match the vehicle. G-body N63 vehicles need the G-Chassis version, and Active Autowerke asks for the VIN to confirm.
The GESI Catted Downpipes for S63 / N63 are not for the F10 M5 or F12 / F13 M6; those cars take the GESI Catted Downpipes for F10
On the F10 550i, Active Autowerke also offers the Signature Rear Exhaust for F10 550i
Covered for 5 years or 50,000 miles on shells and 2 years or 25,000 miles on catalytic cores, original purchaser only; burble beyond stock voids it

Frequently Asked Questions

Do the GESI Catted Downpipes for S63 and N63 models need a tune? No. Active Autowerke states that the GESI Catted Downpipes for S63 / N63 BMW models run without a performance tune. Most buyers choose the GESI version because a tune is planned, since its converters are rated from 500 to 850 horsepower.
Will the GESI converters set a check engine light? Active Autowerke states that these GESI converters will not set a catalyst efficiency code. They reach working efficiency within 9 seconds of a cold start, and GESI applies its own precious metal loading to the 400 cell substrate to keep emissions low.
Which version fits my vehicle? Active Autowerke offers three versions. The 2010-2012 option suits the earlier E70 and E71 vehicles, the 2014 and newer option suits the F-chassis vehicles, and the G-chassis option is its own design for G-body N63 models. Supply the VIN so the shop can confirm.
Is the GESI set worth it over the AFlow set? Yes, for a tuned S63. The GESI converters carry a 500 to 850 horsepower rating against 800 for the AFlow units. For a stock N63 vehicle, the pipework is identical and the AFlow set adds a two-year code guarantee at a lower price.
Do they fit the F10 M5 or M6? No. The F10 M5 and the F12 and F13 M6 take a dedicated S63 downpipe that Active Autowerke sells separately in AFlow and GESI form. This set is for the X5 M, X6 M, X5, X6, 550i and 650i, in three versions.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
