Do the AFlow Catted Downpipes for S63 and N63 vehicles need a tune?

No. Active Autowerke sells the AFlow Catted Downpipes for S63 / N63 BMW models as a no-tune part, and the two-year guarantee against catalyst efficiency codes holds on factory software. A tune will make more of the extra flow but is optional.

Which version do I need?

Choose by vehicle. The 2010-2012 option covers the earlier E70 and E71 vehicles, the 2014 and newer option covers the F-chassis vehicles, and the G-chassis option is a separate design for G-body N63 models. Active Autowerke asks for the VIN to confirm before it builds the set.

Will they trigger a check engine light?

Active Autowerke guarantees its AFlow converters against catalyst efficiency codes for the first two years of ownership, replacing them in full if one appears. The converters reach working efficiency within 9 seconds of a cold start, which keeps the rear oxygen sensors satisfied.

Do these fit the F10 M5 or M6?

No. The F10 M5 and the F12 and F13 M6 use a different S63 downpipe, which Active Autowerke sells as its own set in AFlow and GESI versions. This set is designed for the X5 M, X6 M, X5, X6, 550i and 650i only.

How do the AFlow and GESI versions compare?

Both use the same hand-welded 3 inch pipework. The AFlow version runs Active AFlow converters rated up to 800 horsepower with a two-year code guarantee. The GESI version runs GESI G-Sport converters rated from 500 to 850 horsepower and costs more, so it suits a heavily tuned engine.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

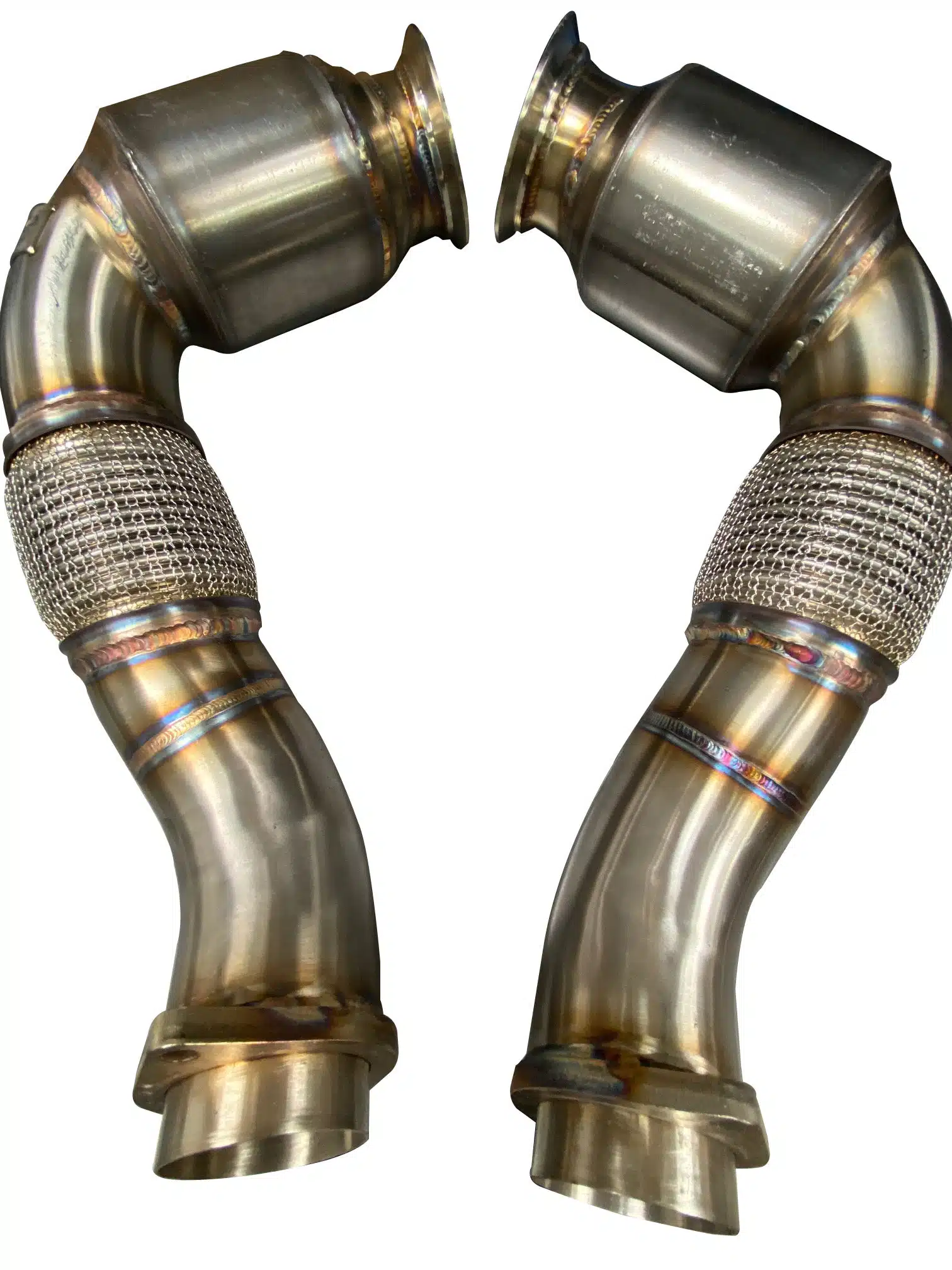

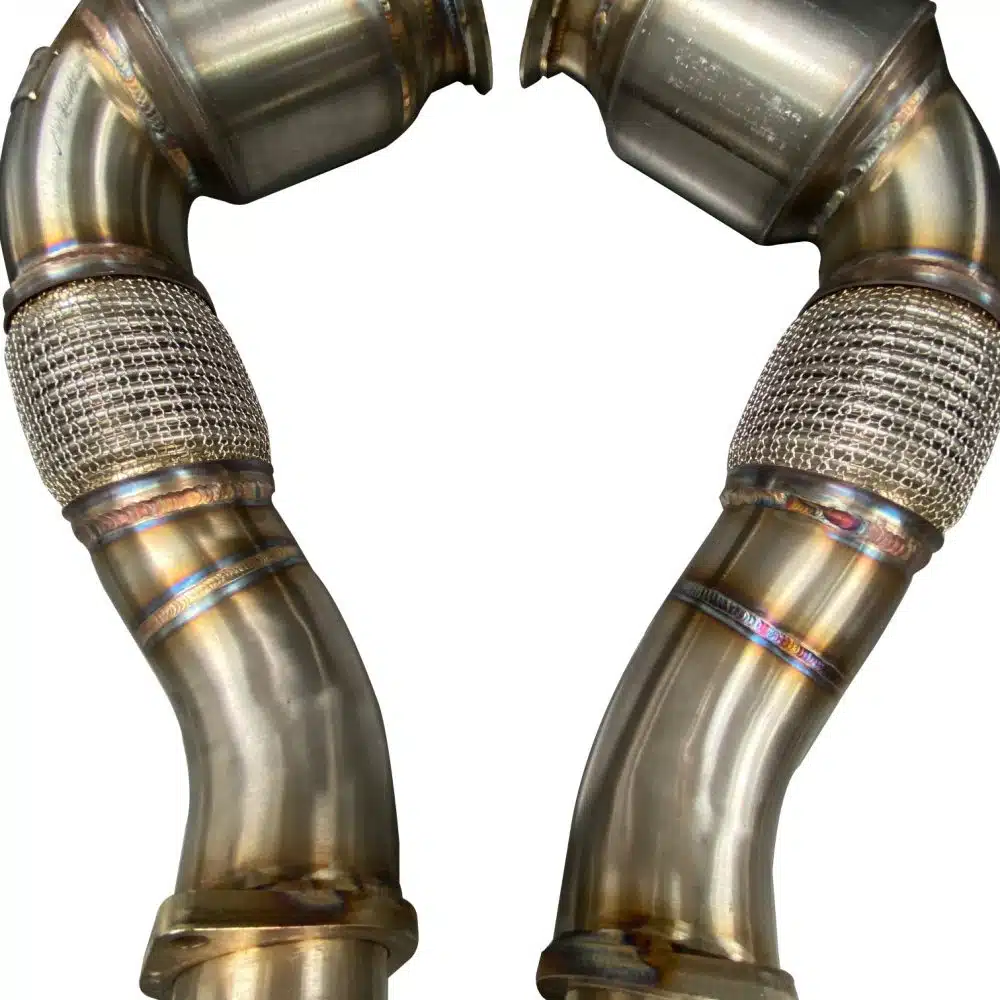

Active Autowerke AFlow Catted Downpipes for S63 / N63 BMW X5M, X6M, X5, X6, 550i and 650i

Active Autowerke’s AFlow Catted Downpipes for S63 / N63 BMW X5M, X6M, X5, X6, 550i and 650i cover the twin-turbo 4.4 liter V8 from the 2010 E70 X5 M through the G-chassis N63 vehicles, with a version cut for each. Every pair is hand-welded in Miami from 304 stainless, holds a constant 3 inch bore with the fewest bends the hot-vee layout permits, and carries a 4.5 inch Active AFlow converter in each bank. Less back pressure behind the turbines means quicker spool. On a stock or lightly modified vehicle the AFlow set is the right buy; the GESI Catted Downpipes for S63 / N63 suit a heavily tuned X5 M or X6 M.

Features

Two Active AFlow converters on an all-stainless substrate furnace brazed to the mantle
EPA registered and OBD2 compliant converters
Two-year catalyst efficiency guarantee with full converter replacement
TIG welded 304 stainless steel, made by hand in Miami, Florida
Bolts on with no cutting or welding
Cast stainless V-band flange seating each pipe at its turbo

Specifications

Piping diameter: 3 in
Converter diameter: 4.5 in
Catalyst cell density: 400 cpsi
Converter rating: Up to 800 hp
Temperature limit: 1500F
Converter light-off: Within 9 seconds of startup

What’s Included

Catted downpipes with Active AFlow converters (x2)

Applications

BMW 550i: F10 | 2011-2016 | 4.4L N63
BMW 650i: F12 / F13 | 2012-2018 | 4.4L N63
BMW X5: E70 / F15 | 2011-2018 | 4.4L N63
BMW X5: G05 | 2019-2023 | 4.4L N63
BMW X5 M: E70 / F85 | 2010-2018 | 4.4L S63
BMW X6: E71 / F16 | 2010-2019 | 4.4L N63
BMW X6: G06 | 2020-2023 | 4.4L N63
BMW X6 M: E71 / F86 | 2010-2019 | 4.4L S63

Notes

Three versions are offered: 2010-2012 Models, 2014 and Newer Models and G-Chassis Models. Supply your VIN so Active Autowerke can confirm the right one before building.
The AFlow Catted Downpipes for S63 / N63 do not fit the F10 M5 or F12 / F13 M6, which take the AFlow Catted Downpipes for F10
F10 550i owners can continue the system with the Signature Rear Exhaust for F10 550i
Warranty is 5 years or 50,000 miles on shells and 2 years or 25,000 miles on cores, original purchaser only, void with more burble than stock

Frequently Asked Questions

Do the AFlow Catted Downpipes for S63 and N63 vehicles need a tune? No. Active Autowerke sells the AFlow Catted Downpipes for S63 / N63 BMW models as a no-tune part, and the two-year guarantee against catalyst efficiency codes holds on factory software. A tune will make more of the extra flow but is optional.
Which version do I need? Choose by vehicle. The 2010-2012 option covers the earlier E70 and E71 vehicles, the 2014 and newer option covers the F-chassis vehicles, and the G-chassis option is a separate design for G-body N63 models. Active Autowerke asks for the VIN to confirm before it builds the set.
Will they trigger a check engine light? Active Autowerke guarantees its AFlow converters against catalyst efficiency codes for the first two years of ownership, replacing them in full if one appears. The converters reach working efficiency within 9 seconds of a cold start, which keeps the rear oxygen sensors satisfied.
Do these fit the F10 M5 or M6? No. The F10 M5 and the F12 and F13 M6 use a different S63 downpipe, which Active Autowerke sells as its own set in AFlow and GESI versions. This set is designed for the X5 M, X6 M, X5, X6, 550i and 650i only.
How do the AFlow and GESI versions compare? Both use the same hand-welded 3 inch pipework. The AFlow version runs Active AFlow converters rated up to 800 horsepower with a two-year code guarantee. The GESI version runs GESI G-Sport converters rated from 500 to 850 horsepower and costs more, so it suits a heavily tuned engine.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
