Does the Generation 9.5 Level 1 Supercharger Kit use an intercooler?

Yes. The Generation 9.5 Level 1 Supercharger Kit pairs its Rotrex 92 trim supercharger with a front-mount air-to-air intercooler, which is the main difference from the non-intercooled Prima kits. Active Autowerke relies on the intercooler, not water/methanol injection, to control charge temperature at 7 to 8 psi.

How does it compare with the Prima kit?

The Prima runs a Rotrex C38-92 at 5.8 psi with no intercooler and the Gen 9 plenum, and costs less. The Generation 9.5 Level 1 adds a front-mount intercooler and the Generation 7 intake manifold with dual bypass valves, at 7 to 8 psi. Active Autowerke measured the two on different dynos, so their figures are not directly comparable.

How much power does the kit make?

Active Autowerke quotes 440 horsepower at 7650 rpm and 280 lb-ft at 5400 rpm at the engine. On its Mustang chassis dyno, in temperatures above 94F and humidity over 60 percent, it recorded repeatable runs above 365 wheel horsepower, and expects more in cooler air.

Is the kit available for SMG cars?

Yes. Active Autowerke offers the kit in two versions at the same price: 12-023S for E46 M3s with the SMG transmission and 12-023 for cars with the 6-speed manual. Both versions are offered on this listing, so choose the transmission fitted to the car when ordering.

Yes. Active Autowerke high performance software comes with the kit, along with larger fuel injectors and colder heat range spark plugs to suit the added boost. All mounting hardware, plumbing, hoses, clamps and installation instructions are included, and the kit carries a one-year limited warranty.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

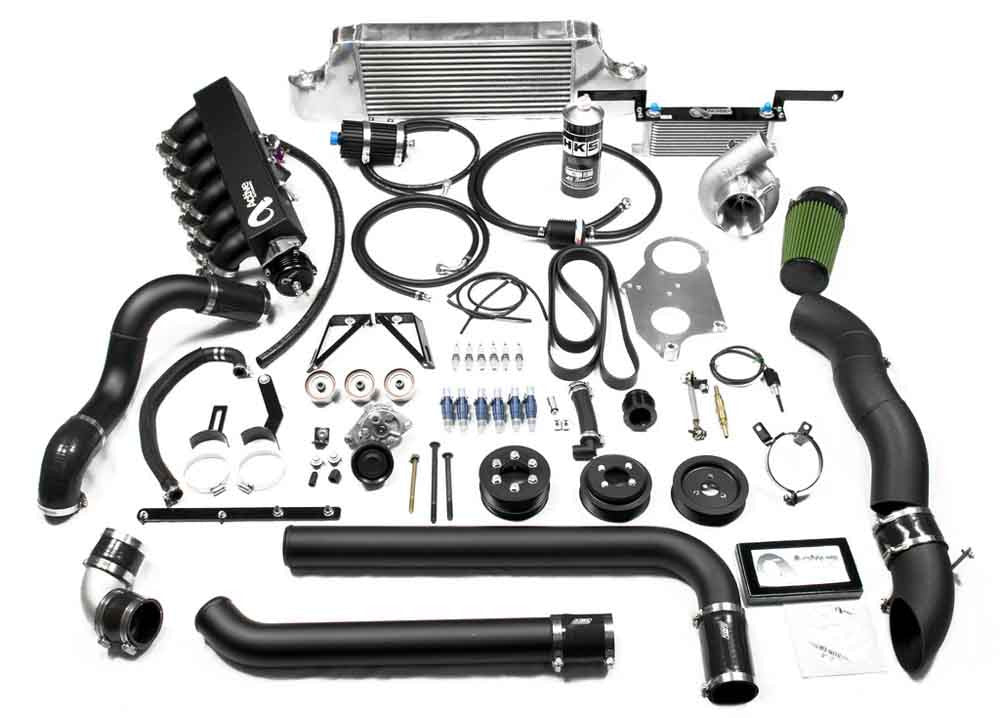

Active Autowerke Generation 9.5 Level 1 Supercharger Kit for E46 BMW M3

Active Autowerke’s Generation 9.5 Level 1 Supercharger Kit for E46 BMW M3 is the intercooled answer to the Prima, pairing a Rotrex 92 trim supercharger with a front-mount air-to-air intercooler and Active Autowerke’s Generation 7 intake manifold with dual bypass valves. Active Autowerke tested it on its own Mustang chassis dyno at above 94F with humidity over 60 percent, and recorded repeatable runs above 365 wheel horsepower. That hot-day testing is the point of the kit: it suits an S54 owner in a warm climate who wants consistent output without a methanol tank to refill, where the non-intercooled Prima Supercharger Kit costs less to buy.

Design and Performance

Active Autowerke chose the 92 trim Rotrex for its high adiabatic efficiency, meaning the compressor adds comparatively little heat to the air as it builds pressure. The front-mount intercooler then takes more heat out before the charge reaches the Generation 7 manifold, and boost stays at a modest 7 to 8 psi.

Features

Rotrex 92 trim supercharger with its own oil cooler
Active Autowerke Generation 7 intake manifold with dual bypass valves
Front-mount air-to-air intercooler
Larger fuel injectors and colder heat range spark plugs
Active Autowerke spec green filter
Active Autowerke high performance software
All mounting hardware, plumbing, hoses and clamps, plus installation instructions

Specifications

Boost: 7-8 psi
Quoted engine output: 440 hp at 7650 rpm
Quoted torque: 280 lb-ft at 5400 rpm
Measured output: over 365 whp
Test conditions: 94F+ ambient, 60%+ humidity

Applications

BMW M3: E46 | 2001-2006 | 3.2L S54

Notes

Active Autowerke measured the Generation 9.5 Level 1 Supercharger Kit on its Mustang chassis dyno in hot, humid conditions and expects higher figures in cooler, denser air
Active Autowerke recommends pairing the kit with its E46 M3 Signature Exhaust for maximum power output
Offered for SMG and 6-speed manual cars; order the version that matches the transmission
Covered by a one-year limited warranty from Active Autowerke
Allow up to 6 weeks for shipping, which Active Autowerke attributes to supercharger availability

Frequently Asked Questions

Does the Generation 9.5 Level 1 Supercharger Kit use an intercooler? Yes. The Generation 9.5 Level 1 Supercharger Kit pairs its Rotrex 92 trim supercharger with a front-mount air-to-air intercooler, which is the main difference from the non-intercooled Prima kits. Active Autowerke relies on the intercooler, not water/methanol injection, to control charge temperature at 7 to 8 psi.
How does it compare with the Prima kit? The Prima runs a Rotrex C38-92 at 5.8 psi with no intercooler and the Gen 9 plenum, and costs less. The Generation 9.5 Level 1 adds a front-mount intercooler and the Generation 7 intake manifold with dual bypass valves, at 7 to 8 psi. Active Autowerke measured the two on different dynos, so their figures are not directly comparable.
How much power does the kit make? Active Autowerke quotes 440 horsepower at 7650 rpm and 280 lb-ft at 5400 rpm at the engine. On its Mustang chassis dyno, in temperatures above 94F and humidity over 60 percent, it recorded repeatable runs above 365 wheel horsepower, and expects more in cooler air.
Is the kit available for SMG cars? Yes. Active Autowerke offers the kit in two versions at the same price: 12-023S for E46 M3s with the SMG transmission and 12-023 for cars with the 6-speed manual. Both versions are offered on this listing, so choose the transmission fitted to the car when ordering.
Is a tune included? Yes. Active Autowerke high performance software comes with the kit, along with larger fuel injectors and colder heat range spark plugs to suit the added boost. All mounting hardware, plumbing, hoses, clamps and installation instructions are included, and the kit carries a one-year limited warranty.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
