Is a tune included with the Level 3 Supercharger Kit for E90 / E92 / E93 M3?

Yes. The Level 3 Supercharger Kit for E90 / E92 / E93 M3 includes Active Autowerke software for the MSS60 engine computer, calibrated for 93 or 91 octane pump fuel, plus eight Bosch Motorsport injectors and a custom-calibrated water/methanol system. Race fuel calibrations are also offered.

Why does the Level 3 kit use water/methanol injection?

Active Autowerke fits water/methanol injection to lower intake air temperature and to resist detonation. On the Level 3 it works alongside the front-mount intercooler and an upgraded pulley, which take the Rotrex C38-92 from the 8 psi of the Level 2 kit to 9 psi.

Do I need to address the S65 rod bearings first?

Yes. Active Autowerke recommends that the rod bearing condition on the S65 engine be addressed before any modification. An E9X M3 whose bearings have never been serviced should be inspected before a supercharger raises the load on the bottom end.

What exhaust should run with the kit?

Active Autowerke recommends a high-flow catted mid-section with its E9X supercharger kits in place of the factory section. Its own AFlow and GESI catted X-pipes for the E9X M3 are built for that role, and both keep catalytic converters in the exhaust system.

How is the kit installed and warranted?

Installation by an approved Active Autowerke dealer is required to keep the warranty, which covers supercharger kit components for one year with unlimited mileage. Plumbing, hardware and a step-by-step manual come in the box, and Active Autowerke allows up to six weeks to build each kit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

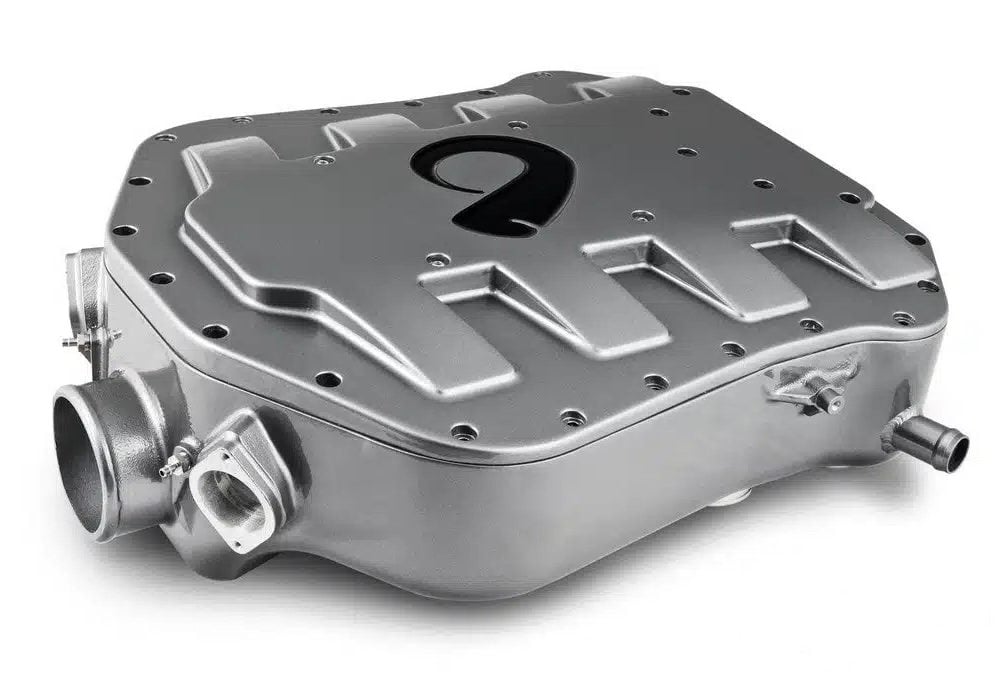

Active Autowerke Gen 2 Level 3 Supercharger Kit for E90 / E92 / E93 BMW M3

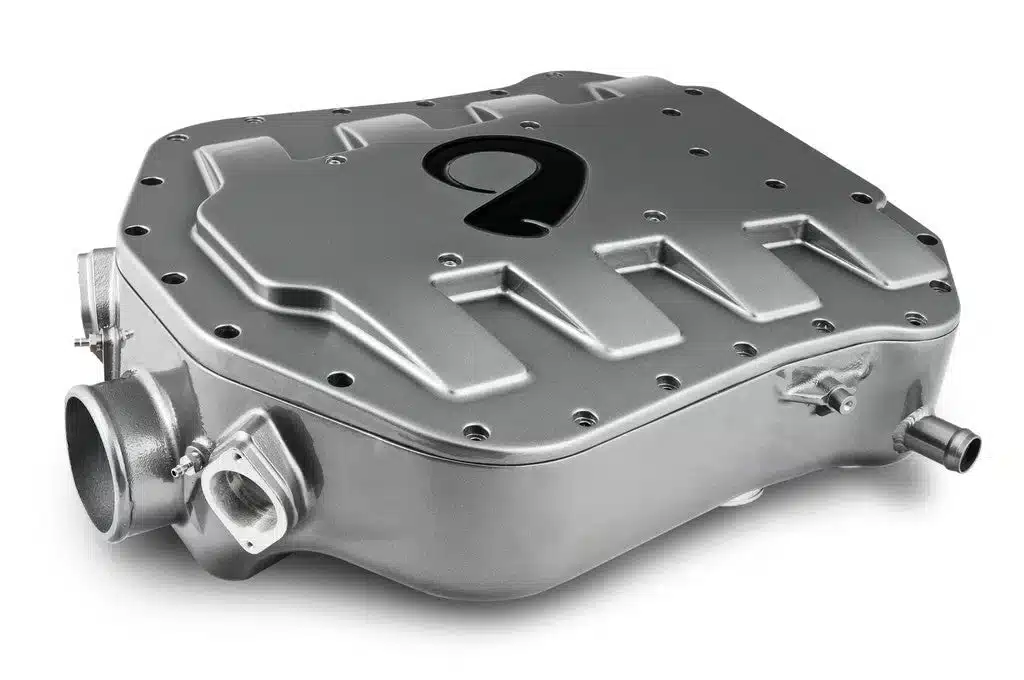

Active Autowerke’s Gen 2 Level 3 Supercharger Kit for E90 / E92 / E93 BMW M3 runs a Rotrex C38-92 at 9 psi and backs it with water/methanol injection, an upgraded pulley and custom software, which Active Autowerke uses to keep charge temperature down on the high-compression S65 V8. A plenum with eight velocity stacks sits where the factory airbox was. Choose it over the Gen 2 Level 2 for the methanol safeguard and a little more boost, and step to the Gen 2 Level 4 only if you want the larger C38-92R at 12 psi.

Design and Performance

Pressurized air leaves the Rotrex through 3 inch piping, crosses a front-mount air-to-air intercooler and meets the water/methanol spray before the plenum. A dedicated eight-rib belt drives the supercharger, and its own oil system, with longlife traction fluid and a separate cooler, stays apart from the engine oil.

Features

Rotrex C38-92 supercharger mounted on CNC-machined, hard-anodized brackets
Water/methanol injection calibrated by Active Autowerke, with an upgraded pulley
MSS60 performance software that keeps to the factory OBDII parameters
Active Autowerke blow-off valves and bypass valve
Plenum finished in matte wrinkle black for a factory look
Cold air intake box, spec filter and oil breather system
AN-fitted oil line, spark plugs, all plumbing and hardware, and an installation manual

Specifications

Boost: 9 psi
Quoted output: over 500 hp
Quoted torque: 480 lb-ft
Fuel injectors: 8 Bosch Motorsport
Velocity stacks: 8

Applications

BMW M3: E90 | 2008-2011 | 4.0L S65
BMW M3: E92 | 2008-2013 | 4.0L S65
BMW M3: E93 | 2008-2013 | 4.0L S65

Notes

Output for the Level 3 Supercharger Kit for E90 / E92 / E93 M3 is quoted by Active Autowerke without stating crank or wheel measurement, and varies with weather and conditions
Pump fuel calibrations cover 93 octane (98 RON) and 91 octane, with race fuel versions available
Pair it with a high-flow catted mid-section as Active Autowerke recommends, such as the AFlow Catted X-Pipe for the E9X M3 or the GESI Catted X-Pipe
Have the S65 rod bearings checked or addressed first, as Active Autowerke recommends
Warranties depend on installation by an approved Active Autowerke dealer and cover kit components for one year with unlimited mileage. Each kit is built to order in up to 6 weeks.

Frequently Asked Questions

Is a tune included with the Level 3 Supercharger Kit for E90 / E92 / E93 M3? Yes. The Level 3 Supercharger Kit for E90 / E92 / E93 M3 includes Active Autowerke software for the MSS60 engine computer, calibrated for 93 or 91 octane pump fuel, plus eight Bosch Motorsport injectors and a custom-calibrated water/methanol system. Race fuel calibrations are also offered.
Why does the Level 3 kit use water/methanol injection? Active Autowerke fits water/methanol injection to lower intake air temperature and to resist detonation. On the Level 3 it works alongside the front-mount intercooler and an upgraded pulley, which take the Rotrex C38-92 from the 8 psi of the Level 2 kit to 9 psi.
Do I need to address the S65 rod bearings first? Yes. Active Autowerke recommends that the rod bearing condition on the S65 engine be addressed before any modification. An E9X M3 whose bearings have never been serviced should be inspected before a supercharger raises the load on the bottom end.
What exhaust should run with the kit? Active Autowerke recommends a high-flow catted mid-section with its E9X supercharger kits in place of the factory section. Its own AFlow and GESI catted X-pipes for the E9X M3 are built for that role, and both keep catalytic converters in the exhaust system.
How is the kit installed and warranted? Installation by an approved Active Autowerke dealer is required to keep the warranty, which covers supercharger kit components for one year with unlimited mileage. Plumbing, hardware and a step-by-step manual come in the box, and Active Autowerke allows up to six weeks to build each kit.

About Active Autowerke

Active Autowerke was founded in Miami, Florida in 1981 by brothers Mike and Karl Hugh as a BMW service shop, and turned to performance in late 1995 when Karl, a University of Miami engineering graduate, led its first M3 and 325i turbo kits. Supercharger kits for the E36, E46 and E9X followed, and its Signature Equal Length mid-pipe is protected by US Patent 11248511 and European and UK Patent 3882441.
