Wagner Tuning Burnished Head Stud Set for FK8 Honda Civic Type R

The Wagner Tuning Burnished Head Stud Set for the FK8 Honda Civic Type R is designed to deliver the clamping force required for high-output and high-boost applications where factory head bolts can become a limitation. This kit replaces the OEM cylinder head bolts with Wagner Tuning Pro-Series 18.8 high-strength stud bolts, rated at an exceptional tensile strength of 1850 N/mm², effectively preventing bolt stretch and cylinder head lift under increased performance demands. Featuring a black oxide Burnished finish for durable corrosion protection and long-term reliability, these reusable studs do not require replacement after disassembly, making them a dependable solution for serious performance builds focused on strength, durability, and serviceability.

High-Quality Materials and Production

• Wagner Tuning manufactures its Pro-Series 18.8 stud kits in Germany using specially engineered high-strength steel. After heat treatment, the studs achieve a tensile strength exceeding 1850 N/mm². All threads are roll-formed rather than cut, increasing thread flank strength by approximately 30 percent. Each Pro-Series fastener is finished with a black oxide burnished coating that provides long-lasting corrosion resistance, even under extreme operating conditions.

Easy Installation and Durability

• Wagner Tuning designs the Pro-Series stud bolts with an internal hex drive on the head side for precise and controlled installation. A conical support section on the engine block side ensures clamping force is transferred against the bore instead of the thread flanks when the nuts are tightened, helping protect engine block threads during repeated assembly, particularly in motorsport applications. Each kit is supplied with matching high-strength nuts and, where required, washers that meet the same 1850 N/mm² tensile strength rating, offering a clear durability advantage over many alternative fastener solutions.

Features

• Pro-Series 18.8 high-strength head stud design
• Burnished finish
• Manufactured in Germany from specially developed steel
• Rolled threads for approximately 30% greater thread flank strength
• Internal hex socket drive
• Conical seating design
• Designed to prevent cylinder head lift under high load
• Reusable studs that do not require replacement after disassembly
• Includes matching high-strength nuts and washers rated at 1850 N/mm²
• Engineered for high-performance and racing engine applications
• Set of 10 head studs
• Made in Germany

Specifications

• Construction: Pro-Series 18.8 steel
• Tensile Strength: 1850+ N/mm² (270,000+ PSI)
• Finish: Burnished (black oxide)

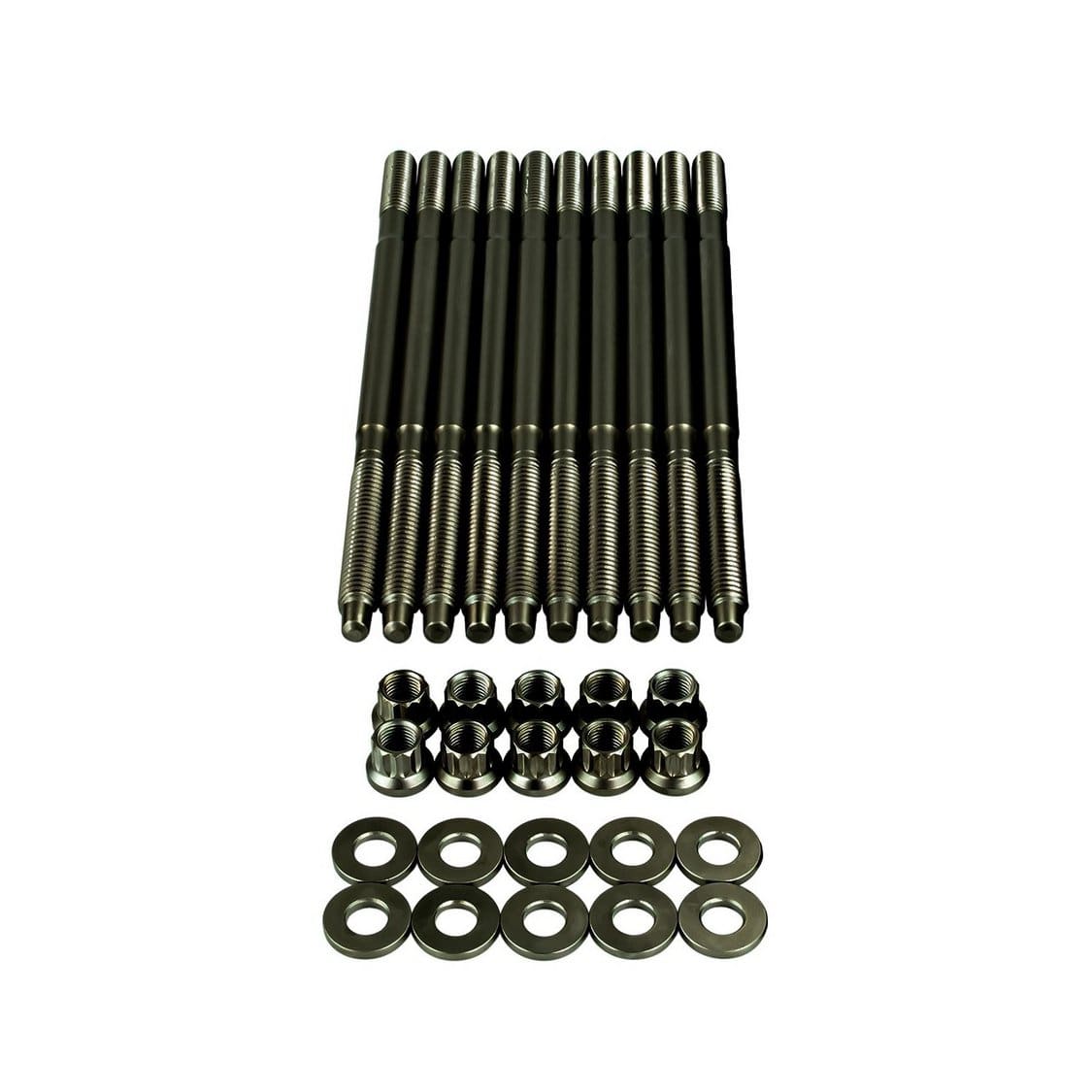

What’s Included

• M11 stud bolts (10)
• M11 nuts (10)
• Washers (10)
• Lubricant for assembly
• Assembly instructions

Applications

• Honda Civic Type R: FK8 | 2017-2021 | K20 2.0L I4 turbo

Notes

• Also available in a nickel-plated finish here
