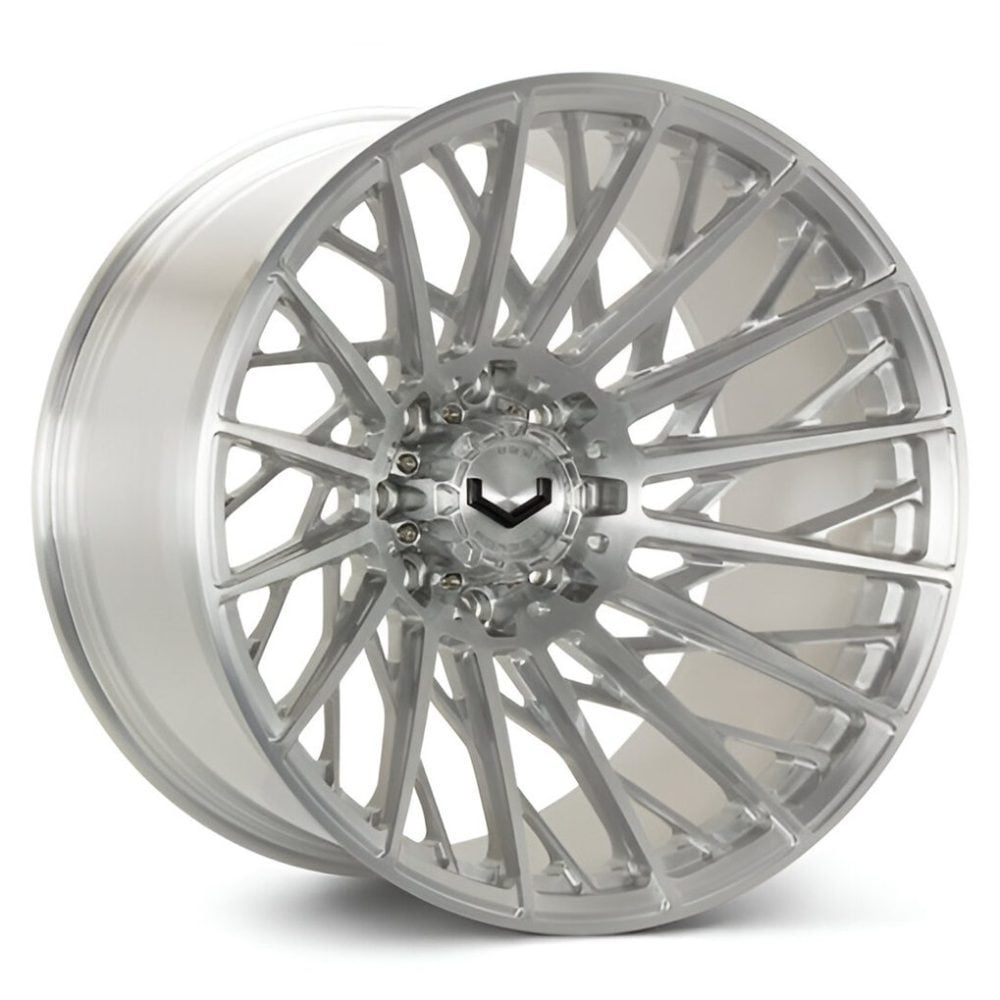

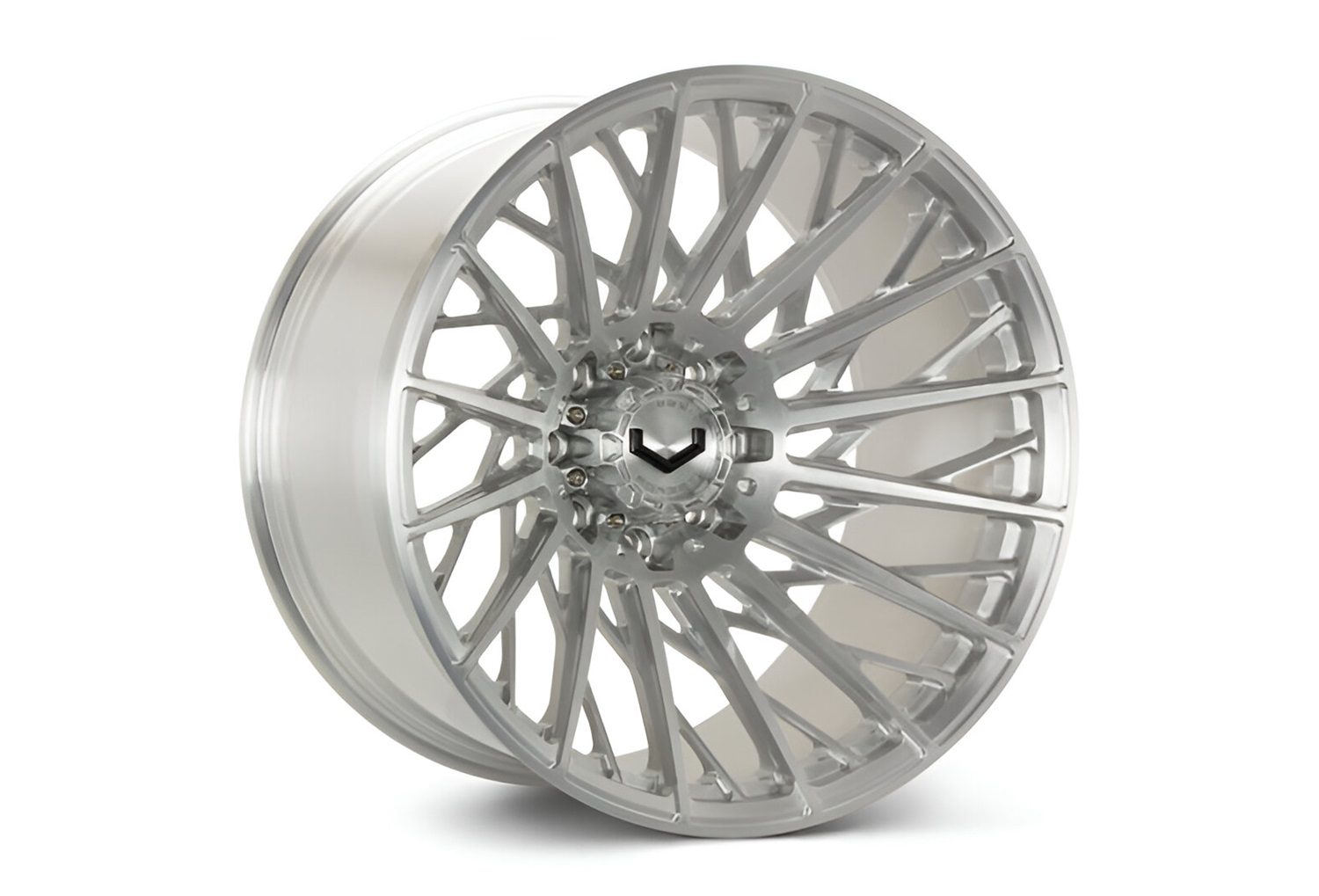

Vossen Forged VFX Series VFX-02T Monoblock Wheel

Vossen Forged VFX Series VFX-02T Monoblock Wheel

The Vossen VFX Series blends years of bold aesthetics with a new platform for rugged spoke designs. Engineered for an aggressive look and feel, Vossen’s VFX Series exemplifies renowned precision engineering, providing unmatched performance on and off-road. It is exclusively designed for offroad 5-lug, 6-lug, and 8-lug platforms.

The Factory

• Vossen is among the few global companies that manufacture forged wheels entirely in-house. Based in Miami, Florida, Vossen’s state-of-the-art, TUV Verified facility is equipped with a wide range of advanced machinery.

Manufacturing

• Vossen Forged wheels undergo a rigorous manufacturing process to ensure they meet the highest standards of design and quality.

Engineered Art

• Vossen bridges the gap between the precision of custom forged wheels and the affordability of cast wheels. The company offers custom CNC machining to fit nearly any bolt pattern, center bore, and offset with unparalleled precision and efficiency.

Design

• Vossen ensures precise fitments by measuring over 100 data points on each vehicle. Each wheel is custom-made for specific vehicle makes and models.

Concave Profile Flexibility

• All Vossen Forged wheels are machined using Vossen’s proprietary forging design. This design allows for the creation of wheels with an efficient spoke profile, adding extra material on the face to support profiles ranging from flat to super deep concave. This innovative method enables the production of an 8.5” wide wheel with the maximum concavity of a 12.5” wheel.

Finishing

• Vossen’s in-house finishing facility uses advanced equipment to achieve the highest quality finishes. From ceramic polishing to powder coating, Vossen Forged wheels maintain industry-leading quality by meticulously overseeing every step of the process.
  • Hand Prep: Step 1 – Each wheel is hand-sanded and deburred after machining to achieve premium finishes. Wheels receiving a brushed finish undergo an extensive hand-sanding process, taking up to five hours each, to ensure an even, brushed surface throughout.
  • Brushing & Polishing: Step 2 – The most labor-intensive yet rewarding part of the finishing process is brushing and polishing. Brushed wheels highlight the beauty of the forged aluminum grain, while full ceramic polishing creates a mirror-like finish. Combining brushing and polishing provides the best of both worlds.
  • Pre-Treatment: Step 3 – After hand prep, all wheels undergo a seven-stage pre-treatment cleansing process to remove impurities before powder coating. This pretreatment ensures a stronger and more consistent finish once powder coated.
  • Powder Coating: Step 4 – Vossen’s in-house powder coating facility, designed specifically for wheels, uses state-of-the-art components and the highest quality powders to produce a uniform finish that lasts.
  • Final Visual Inspection: Step 5 – After powder coating, a final inspection is conducted to check the quality and consistency of the finish’s appearance using a film thickness gauge to ensure uniformity. Once inspected, each wheel is cleaned and packaged for shipment to the customer.
• Solid Colors: Vossen Forged wheels are available in solid colors as a standard option, with finishes including gloss, matte, satin, and textured options.
  • Battleship Grey
  • Black
  • Bronze
  • Butterscotch
  • Charcoal
  • Denim Blue
  • Espresso
  • Fire Red
  • Gunmetal
  • Gold
  • Heritage Gold
  • Miami White
  • Pewter
  • Silver
  • Finish Options:
    • Gloss
    • Matte
    • Satin
    • Textured
• Transparent Colors: Hand-polished and / or brushed Vossen Forged wheels are finished with transparent powder coats, allowing the meticulous hand finishing to show through various shades.
  • Amber Tone
  • Biscayne Blue
  • Brickell Bronze
  • Champagne
  • Clear
  • Copper Penny
  • Dark Smoke
  • Deco Teal
  • Flamingo Pink
  • Fountain Blue
  • Honeycomb
  • Imperial Gold
  • Light Smoke
  • Merlot
  • Midnight Smoke
  • Patina Gold
  • Platinum
  • Scarlet Red
  • Space Grey
  • Stealth Grey
  • Vintage Rosé
  • Vossen Red
  • Finish Options:
    • Brushed (+)
    • Marbled (+)
    • Marbled w/ brushed face (+)
    • Marbled w/ brushed barrel (+)
    • Marbled w/ brushed face and barrel (+)
    • Polished (+)
    • Polished w/ brushed face (+)
    • Polished w/ brushed barrel (+)
    • Polished w/ brushed face and barrel (+)

VFX Series Center Caps

• Vossen’s center caps for their VFX Series wheels are meticulously crafted from a single piece of forged billet, ensuring both strength and aesthetic cohesion by being color-matched to the wheel itself. Each purchase of the VFX Series wheels includes these high-quality center caps, complete with a forged billet V insert, providing a seamless and polished look. Standard finishes are included at no extra cost, while custom colors are available for an additional fee. For those who prefer a more raw, unadorned finish, an option without any finish is available.
• Forged Billet “V” Insert Finishes:
  • Brushed Gloss Clear
  • Brushed Vossen Red
  • Gloss Black
  • Satin Black
  • Custom (solid or transparent) (+)
  • Raw (no finish) (+)

Wheel Options

• Lightening Pockets: Weight reducing pockets milled into the back pad of the wheel (+)
• Personalized Engraving: Personalized note on the inner lip (+)
• Vehicle Tailored Engineering: Vehicle specific concave profile and FEA weight optimization (+)
• OEM Center Cap Fitment: Machine cap detail for use with OEM center cap (+)
• OEM Lug Bolts / Nuts Fitment: Machine lug holes for use with OEM lug fasteners (+)

Specifications

• Series: VFX Series
• Wheel: VFX-02T
• Configuration: Monoblock (1-piece)
• Diameters: 20″  |  22″  |  24″
• Widths: 9″  |  9.5″  |  10″  |  12″  |  14″
• Concave Profiles: Deep  |  Super deep  |  Ultra deep  |  Mega deep
• Offsets: -75mm thru 35mm
• Bolt Patterns: 5-lug  |  6-lug  |  8-lug

Sizing Availability

• 20×9:
  • Offset: 18mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 20×9.5: Option 1
  • Offset: 15mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 20×9.5: Option 2
  • Offset: 30mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 20×10:
  • Offset: -18mm
  • Concave Profile: Super deep
  • Bolt Patterns: 5-lug, 6-lug, 8-lug
• 22×9.5: Option 1
  • Offset: 20mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 22×9.5: Option 2
  • Offset: 30mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 22×10:
  • Offset: -18mm
  • Concave Profile: Super deep
  • Bolt Patterns: 5-lug, 6-lug, 8-lug
• 22×12:
  • Offset: -44mm
  • Concave Profile: Ultra deep
  • Bolt Patterns: 5-lug, 6-lug, 8-lug
• 24×10: Option 1
  • Offset: 15mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug, 8-lug
• 24×10: Option 2
  • Offset: 25mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 24×10: Option 3
  • Offset: 35mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 24×12:
  • Offset: -44mm
  • Concave Profile: Ultra deep
  • Bolt Patterns: 5-lug, 6-lug, 8-lug
• 24×14:
  • Offset: -75mm
  • Concave Profile: Mega deep
  • Bolt Patterns: 5-lug, 6-lug, 8-lug

Other VFX Series Wheels

• VFX-01
• VFX-03
• VFX-04

Notes

• Sold as a single wheel
• All Vossen wheels are individually crafted from the finest materials to your individual spec. There are no “off the shelf” Vossen wheels and as such, a lead time of a few weeks is to be expected once your spec has been finalized. The Bulletproof Team will serve as your concierge throughout the entire process to ensure you get the perfect wheel for your application.

The Bulletproof Custom Wheel Experience

• Every custom wheel order comes with our professional guidance on precise sizing and fitment. Leveraging our two decades of experience collaborating with top wheel manufacturers and satisfying countless customers, we are committed to assisting you in determining the perfect wheel specifications for your vehicle’s vision. We assure that our recommendations will seamlessly integrate with your vehicle, ensuring a plug-and-play experience.

About Vossen

Vossen is a leading manufacturer of high-performance forged wheels, renowned for their exceptional quality, innovative designs, and commitment to excellence. With a rich heritage and a reputation for precision craftsmanship, Vossen offers a diverse range of wheel options, including the Forged GEN Series, which features timeless designs and modern functionality. Their wheels are meticulously hand-polished, brushed, and finished using advanced techniques to ensure unparalleled durability and aesthetic appeal. Vossen’s dedication to pushing the boundaries of automotive design and performance has made them a preferred choice among automotive enthusiasts and professionals worldwide, solidifying their position as an industry leader.
