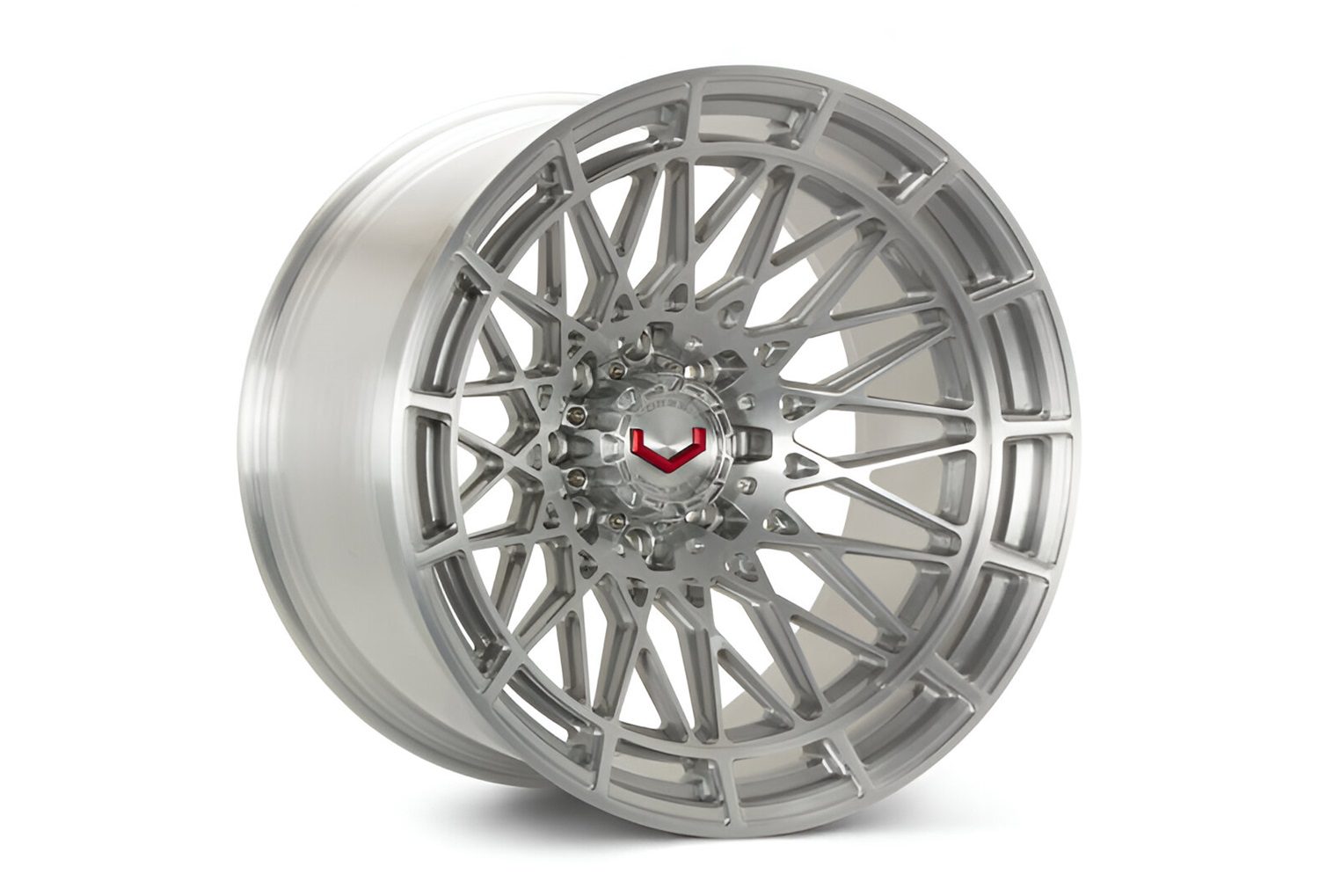

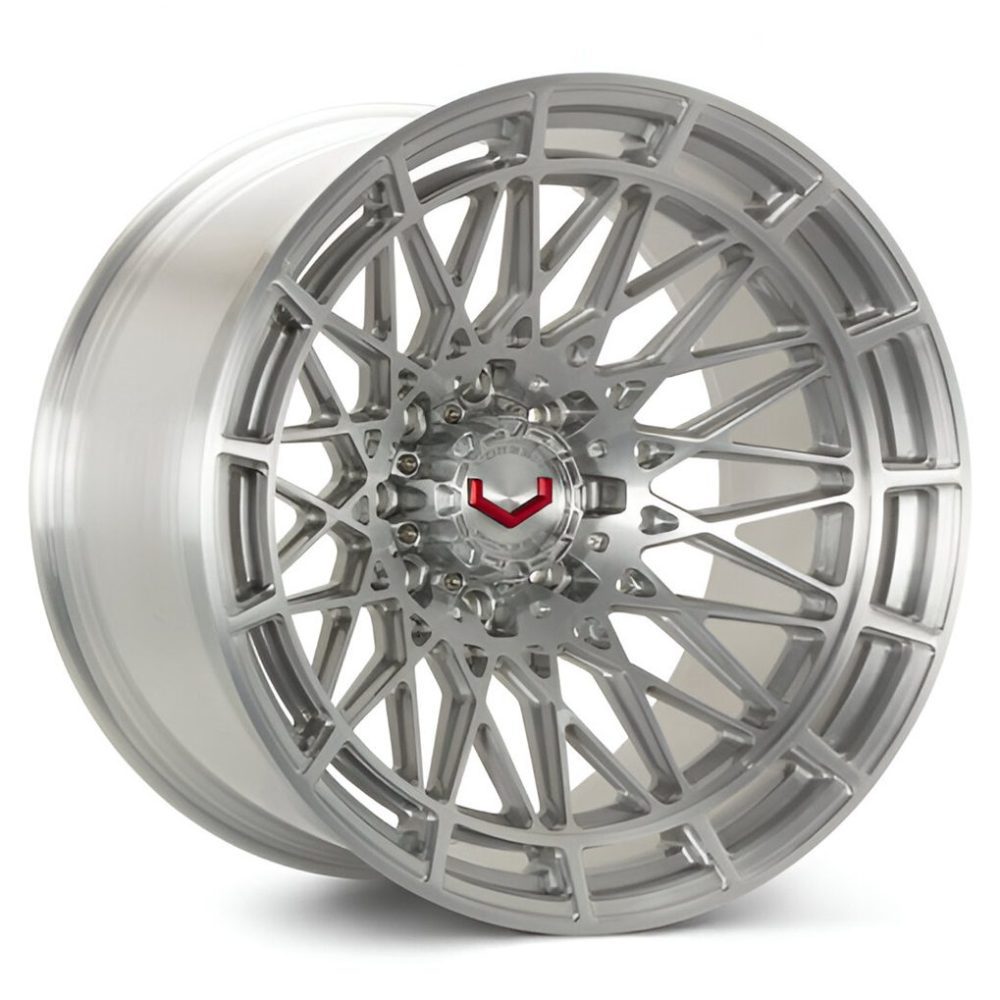

Vossen Forged LCX Series LCX-03 Monoblock Wheel

Vossen Forged LCX Series LCX-03 Monoblock Wheel

The Vossen LCX Series enhances the success of Vossen’s LC2 and LC3 forged wheels, incorporating new designs into the Vossen Forged lineup. Developed alongside the VFX Series, the LCX collection features signature lip-pocketing and the most aggressive concave profile to date, specifically tailored for off-road 5-lug, 6-lug, and 8-lug platforms.

The Factory

• Vossen is one of the few companies globally that manufacture forged wheels entirely in-house. Located in Miami, Florida, Vossen’s advanced, TUV Verified facility is equipped with cutting-edge machinery.

Manufacturing

• Vossen Forged wheels are subjected to a rigorous manufacturing process to ensure the highest standards of design and quality.

Engineered Art

• Vossen seamlessly combines the precision of custom forged wheels with the affordability of cast wheels. The company offers custom CNC machining to fit nearly any bolt pattern, center bore, and offset with unmatched precision and efficiency.

Design

• Vossen achieves precise fitments by measuring over 100 data points on each vehicle. Each wheel is custom-made for specific vehicle makes and models.

Concave Profile Flexibility

• All Vossen Forged wheels are machined using Vossen’s proprietary forging design, allowing the creation of wheels with an efficient spoke profile and extra material on the face to support profiles ranging from flat to super deep concave. This innovative approach enables the production of an 8.5” width wheel with maximum concavity equivalent to a 12.5” wheel.

Finishing

• Vossen’s in-house finishing facility employs advanced equipment to achieve the highest quality finishes. From ceramic polishing to powder coating, Vossen Forged wheels maintain industry-leading quality by meticulously overseeing every step of the process.
  • Hand Prep: Step 1 – To achieve premium finishes, each wheel is hand-sanded and deburred after machining. Wheels receiving a brushed finish undergo an extensive hand-sanding process, taking up to five hours each, to ensure an even, brushed surface throughout.
  • Brushing & Polishing: Step 2 – The most labor-intensive yet rewarding part of the finishing process is brushing and polishing. Offered as upgrade options in every Vossen Forged line, brushed wheels showcase the beauty of the forged aluminum grain, while full ceramic polishing creates a mirror-like finish. Combining brushing and polishing provides the best of both worlds.
  • Pre-Treatment: Step 3 – After hand prep, all wheels undergo a seven-stage pre-treatment cleansing process to remove impurities before powder coating. This pretreatment ensures a stronger and more consistent finish once powder coated.
  • Powder Coating: Step 4 – Vossen’s in-house powder coating facility, designed specifically for wheels, uses state-of-the-art components and the highest quality powders to produce a uniform finish that lasts.
  • Final Visual Inspection: Step 5 – After powder coating, a final inspection is conducted to check the quality and consistency of the finish’s appearance, using a film thickness gauge to ensure uniformity. Once inspected, each wheel is cleaned and packaged for shipment to the customer.
• Solid Colors: Vossen Forged wheels are available in solid colors as a standard option, with finishes including gloss, matte, satin, and textured options.
  • Battleship Grey
  • Black
  • Bronze
  • Butterscotch
  • Charcoal
  • Denim Blue
  • Espresso
  • Fire Red
  • Gunmetal
  • Gold
  • Heritage Gold
  • Miami White
  • Pewter
  • Silver
  • Finish Options:
    • Gloss
    • Matte
    • Satin
    • Textured
• Transparent Colors: Hand-polished and / or brushed Vossen Forged wheels are finished with transparent powder coats, allowing the meticulous hand finishing to show through various shades.
  • Amber Tone
  • Biscayne Blue
  • Brickell Bronze
  • Champagne
  • Clear
  • Copper Penny
  • Dark Smoke
  • Deco Teal
  • Flamingo Pink
  • Fountain Blue
  • Honeycomb
  • Imperial Gold
  • Light Smoke
  • Merlot
  • Midnight Smoke
  • Patina Gold
  • Platinum
  • Scarlet Red
  • Space Grey
  • Stealth Grey
  • Vintage Rosé
  • Vossen Red
  • Finish Options:
    • Brushed (+)
    • Marbled (+)
    • Marbled w/ brushed face (+)
    • Marbled w/ brushed barrel (+)
    • Marbled w/ brushed face and barrel (+)
    • Polished (+)
    • Polished w/ brushed face (+)
    • Polished w/ brushed barrel (+)
    • Polished w/ brushed face and barrel (+)

LCX Series Center Caps

• Vossen’s center caps for their LCX Series wheels are crafted from a single piece of forged billet, ensuring strength and aesthetic cohesion by being color-matched to the wheel itself. Each purchase of the LCX Series wheels includes these high-quality center caps, complete with a forged billet V insert, providing a seamless and polished look. Standard finishes are included at no extra cost, while custom colors are available for an additional fee. An option without any finish is also available for those who prefer a more raw, unadorned look.
• Forged Billet “V” Insert Finishes:
  • Brushed Gloss Clear
  • Brushed Vossen Red
  • Gloss Black
  • Satin Black
  • Custom (solid or transparent) (+)
  • Raw (no finish) (+)

Wheel Options

• Lightening Pockets: Weight reducing pockets milled into the back pad of the wheel (+)
• Personalized Engraving: Personalized note on the inner lip (+)
• Vehicle Tailored Engineering: Vehicle specific concave profile and FEA weight optimization (+)
• OEM Center Cap Fitment: Machine cap detail for use with OEM center cap (+)
• OEM Lug Bolts / Nuts Fitment: Machine lug holes for use with OEM lug fasteners (+)

Specifications

• Series: LCX Series
• Wheel: LCX-03
• Configuration: Monoblock (1-piece)
• Diameters: 20″  |  22″  |  24″
• Widths: 9″  |  9.5″  |  10″  |  12″  |  14″
• Concave Profiles: Deep  |  Super deep  |  Ultra deep  |  Mega deep
• Offsets: -75mm thru 35mm
• Bolt Patterns: 5-lug  |  6-lug  |  8-lug

Sizing Availability

• 20×9:
  • Offset: 18mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 20×9.5: Option 1
  • Offset: 15mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 20×9.5: Option 2
  • Offset: 30mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 20×10:
  • Offset: -18mm
  • Concave Profile: Super deep
  • Bolt Patterns: 5-lug, 6-lug, 8-lug
• 22×9.5: Option 1
  • Offset: 20mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 22×9.5: Option 2
  • Offset: 30mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 22×10:
  • Offset: -18mm
  • Concave Profile: Super deep
  • Bolt Patterns: 5-lug, 6-lug, 8-lug
• 22×12:
  • Offset: -44mm
  • Concave Profile: Ultra deep
  • Bolt Patterns: 5-lug, 6-lug, 8-lug
• 24×10: Option 1
  • Offset: 15mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug, 8-lug
• 24×10: Option 2
  • Offset: 25mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 24×10: Option 3
  • Offset: 35mm
  • Concave Profile: Deep
  • Bolt Patterns: 5-lug, 6-lug
• 24×12:
  • Offset: -44mm
  • Concave Profile: Ultra deep
  • Bolt Patterns: 5-lug, 6-lug, 8-lug
• 24×14:
  • Offset: -75mm
  • Concave Profile: Mega deep
  • Bolt Patterns: 5-lug, 6-lug, 8-lug

Other LCX Series Wheels

• LCX-01
• LCX-02
• LCX-04

Notes

• Sold as a single wheel
• All Vossen wheels are individually crafted from the finest materials to your individual spec. There are no “off the shelf” Vossen wheels and as such, a lead time of a few weeks is to be expected once your spec has been finalized. The Bulletproof Team will serve as your concierge throughout the entire process to ensure you get the perfect wheel for your application.

The Bulletproof Custom Wheel Experience

• Every custom wheel order comes with our professional guidance on precise sizing and fitment. Leveraging our two decades of experience collaborating with top wheel manufacturers and satisfying countless customers, we are committed to assisting you in determining the perfect wheel specifications for your vehicle’s vision. We assure that our recommendations will seamlessly integrate with your vehicle, ensuring a plug-and-play experience.
