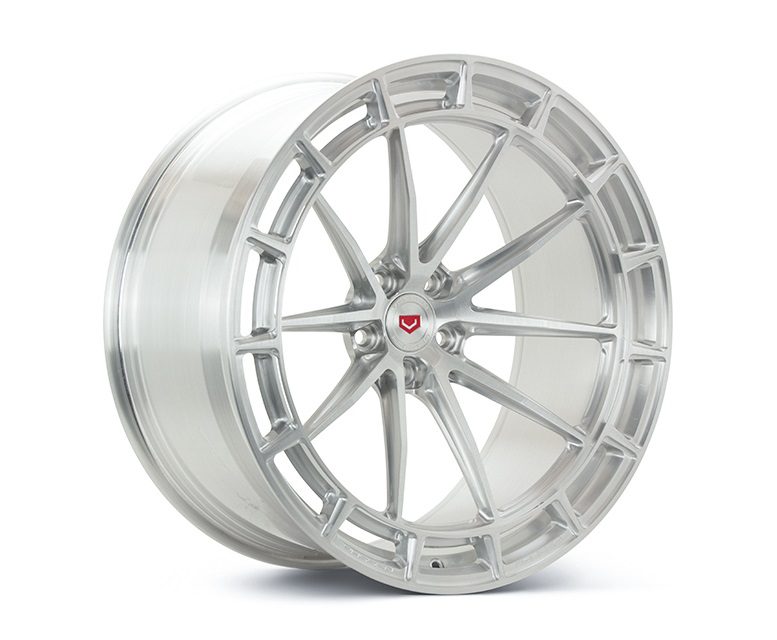

Vossen Forged LC3 Series LC3-04 Monoblock Wheel

Vossen Forged LC3 Series LC3-04 Monoblock Wheel

The LC3 Series forged wheels from Vossen reflect the brand’s dedication to forward-thinking design and exceptional craftsmanship, building upon the legacy of their industry-leading LC2 models. Characterized by a detailed pocketed design, the LC3 wheels are offered in both standard 5-lug and floating center-cap variants.

The Factory

• Vossen is among a select group of manufacturers that produce forged wheels entirely in-house. Based in Miami, Florida, its TUV Verified, state-of-the-art facility houses a full suite of cutting-edge machinery dedicated to precision wheel production.

Manufacturing

• Each Vossen Forged wheel is crafted through a detailed and controlled process, ensuring every unit meets the brand’s rigorous standards for quality, strength, and design integrity.

Engineered Art

• By merging the precision of forged construction with the accessibility of cast wheel pricing, Vossen delivers value without compromise. Through custom CNC machining, wheels are tailored to virtually any bolt pattern, center bore, and offset with exceptional accuracy.

Design

• To achieve exact vehicle-specific fitment, Vossen collects over 100 precise measurements per vehicle. This data-driven approach allows each wheel to be custom-built for optimal compatibility with the target make and model.

Concave Profile Flexibility

• All Vossen Forged wheels are manufactured using the brand’s proprietary forging method, which enhances spoke design and adds structural material to support a wide range of concave profiles. This technique makes it possible for narrower wheels—such as 8.5 inches wide—to deliver a level of concavity typically associated with 12.5-inch designs.

Finishing

• Vossen’s in-house finishing facility uses advanced equipment to achieve the highest quality finishes. From ceramic polishing to powder coating, Vossen Forged wheels maintain industry-leading quality by meticulously overseeing every step of the process.
  • Hand Prep: Step 1 – Each wheel is hand-sanded and deburred after machining to achieve premium finishes. Wheels receiving a brushed finish undergo an extensive hand-sanding process, taking up to five hours each, to ensure an even, brushed surface throughout.
  • Brushing & Polishing: Step 2 – The most labor-intensive yet rewarding part of the finishing process is brushing and polishing. Offered as upgrade options in every Vossen Forged line, brushed wheels showcase the beauty of the forged aluminum grain, while full ceramic polishing creates a mirror-like finish. Combining brushing and polishing provides the best of both worlds.
  • Pre-Treatment: Step 3 – After hand prep, all wheels undergo a seven-stage pre-treatment cleansing process to remove impurities before powder coating. This pretreatment ensures a stronger and more consistent finish once powder coated.
  • Powder Coating: Step 4 – Vossen’s in-house powder coating facility, designed specifically for wheels, uses state-of-the-art components and the highest quality powders to produce a uniform finish that lasts.
  • Final Visual Inspection: Step 5 – After powder coating, a final inspection is conducted to check the quality and consistency of the finish’s appearance, using a film thickness gauge to ensure uniformity. Once inspected, each wheel is cleaned and packaged for shipment to the customer.
• Solid Colors: Vossen Forged wheels are available in solid colors as a standard option, with finishes including gloss, matte, satin, and textured options.
  • Battleship Grey
  • Black
  • Bronze
  • Butterscotch
  • Charcoal
  • Denim Blue
  • Espresso
  • Fire Red
  • Gunmetal
  • Gold
  • Heritage Gold
  • Miami White
  • Pewter
  • Silver
  • Finish Options:
    • Gloss
    • Matte
    • Satin
    • Textured
• Transparent Colors: Hand-polished and / or brushed Vossen Forged wheels are finished with transparent powder coats, allowing the meticulous hand finishing to show through various shades.
  • Amber Tone
  • Biscayne Blue
  • Brickell Bronze
  • Champagne
  • Clear
  • Copper Penny
  • Dark Smoke
  • Deco Teal
  • Flamingo Pink
  • Fountain Blue
  • Honeycomb
  • Imperial Gold
  • Light Smoke
  • Merlot
  • Midnight Smoke
  • Patina Gold
  • Platinum
  • Scarlet Red
  • Space Grey
  • Stealth Grey
  • Vintage Rosé
  • Vossen Red
  • Finish Options:
    • Brushed (+)
    • Marbled (+)
    • Marbled w/ brushed face (+)
    • Marbled w/ brushed barrel (+)
    • Marbled w/ brushed face and barrel (+)
    • Polished (+)
    • Polished w/ brushed face (+)
    • Polished w/ brushed barrel (+)
    • Polished w/ brushed face and barrel (+)

Center Caps

• Vossen’s center caps are expertly designed to emphasize durability and cohesive aesthetics. Offered in polished or brushed finishes, these caps feature a standard red “V” shield. Standard finishes are included at no extra cost, with an option for color matching to the wheel available for an additional charge. For a premium touch, Vossen offers Forged Billet Caps with exclusive “V” inserts. Additionally, a floating cap option is available, which can also be specified for Rolls Royce vehicles (must select a “plate” option for floating caps).
  • Standard Cap Options:
    • Brushed
    • Polished
    • Color match to wheel (+)
  • Forged Billet Cap Options:
    • Brushed (+)
    • Polished (+)
    • Color match to wheel (+)
    • Raw cap & raw “V” shield (+)
  • Forged Billet Center Cap ‘V’ Insert Options:
    • Custom (any solid or transparent) (+)
    • Raw aluminum (+)
    • Standard red powder coated aluminum (+)
  • Vossen Floating Cap Options:
    • Black trim (+)
    • Chrome trim (+)
  • Forged Billet Plate Options:
    • Color match to wheel (+)
    • Custom (any solid or transparent) (+)
    • Raw (+)

Monoblock Wheel Options

• Lightening Pockets: Weight reducing pockets milled into the back pad of the wheel (+)
• Centerlock Fitment: Wheel design modified for centerlock application (requires lightening pockets) (+)
• Personalized Engraving: Personalized note on the inner lip (+)
• Vehicle Tailored Engineering: Vehicle specific concave profile and FEA weight optimization (+)
• OEM Lug Bolts / Nuts Fitment: Machine lug holes for use with OEM lug fasteners (+)
• OEM Center Cap Fitment: Machine cap detail for use with OEM center cap (+)

Specifications

• Series: LC3 Series
• Wheel: LC3-04
• Configuration: Monoblock (1-piece)
• Diameters: 19″  |  20″  |  21″  |  22″ | 23″ | 24″
• Widths: 8.5″  |  9″  |  9.5″  |  10″  |  10.5″  |  11″  |  11.5″  |  12″  |  12.5″  |  13″
• Offsets: Custom
• Bolt Patterns: Custom

Other LC3 Series Wheels

• LC3-01
• LC3-02
• LC3-03T
• LC3-05
• LC3-06
• LC3-11
• LC3-11T
• LC3-12
• LC3-13T

Notes

• Sold as a single wheel
• All Vossen wheels are individually crafted from the finest materials to your individual spec. There are no “off the shelf” Vossen wheels and as such, a lead time of a few weeks is to be expected once your spec has been finalized. The Bulletproof Team will serve as your concierge throughout the entire process to ensure you get the perfect wheel for your application.

The Bulletproof Custom Wheel Experience

• Every custom wheel order comes with our professional guidance on precise sizing and fitment. Leveraging our two decades of experience collaborating with top wheel manufacturers and satisfying countless customers, we are committed to assisting you in determining the perfect wheel specifications for your vehicle’s vision. We assure that our recommendations will seamlessly integrate with your vehicle, ensuring a plug-and-play experience.

About Vossen

Vossen is a leading manufacturer of high-performance forged wheels, renowned for their exceptional quality, innovative designs, and commitment to excellence. With a rich heritage and a reputation for precision craftsmanship, Vossen offers a diverse range of wheel options, including the Forged GEN Series, which features timeless designs and modern functionality. Their wheels are meticulously hand-polished, brushed, and finished using advanced techniques to ensure unparalleled durability and aesthetic appeal. Vossen’s dedication to pushing the boundaries of automotive design and performance has made them a preferred choice among automotive enthusiasts and professionals worldwide, solidifying their position as an industry leader.
