What vehicle does the Voltex ZD8/ZN8 Type 12 Swan Neck fit?

The Voltex ZD8/ZN8 Type 12 Swan Neck is configured for the Subaru BRZ (ZD8) and Toyota GR86 (ZN8), 2022-Present, using Voltex's ZD8/ZN8-specific brackets to determine fitment. Confirm your car is a ZD8 or ZN8 chassis before ordering.

What stand heights are available for the Voltex ZD8/ZN8 Type 12 Swan Neck?

The Voltex ZD8/ZN8 Type 12 Swan Neck offers five stand heights (80mm, 195mm, 225mm, 245mm, 275mm). Stand height sets the wing height and angle of attack, letting you match the wing to your car and downforce needs. Select your stand height before ordering.

What is the Voltex ZD8/ZN8 Type 12 Swan Neck made of?

The Voltex ZD8/ZN8 Type 12 Swan Neck is made of carbon, combining lightweight strength with a finished carbon-weave appearance across the 215mm airfoil.

How is the Voltex ZD8/ZN8 Type 12 Swan Neck sold?

The Voltex ZD8/ZN8 Type 12 Swan Neck is sold as a single configured wing: you select stand height at purchase. ZD8/ZN8-specific brackets are available where required for your application.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

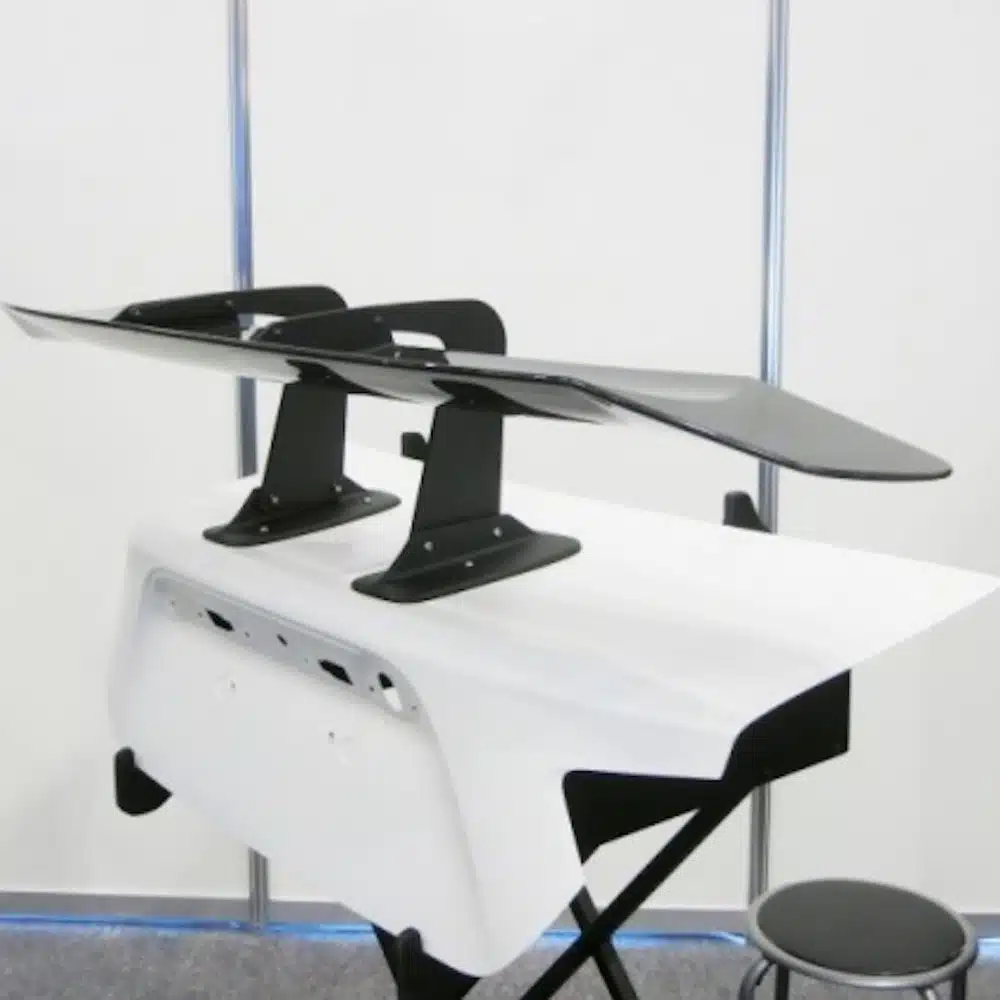

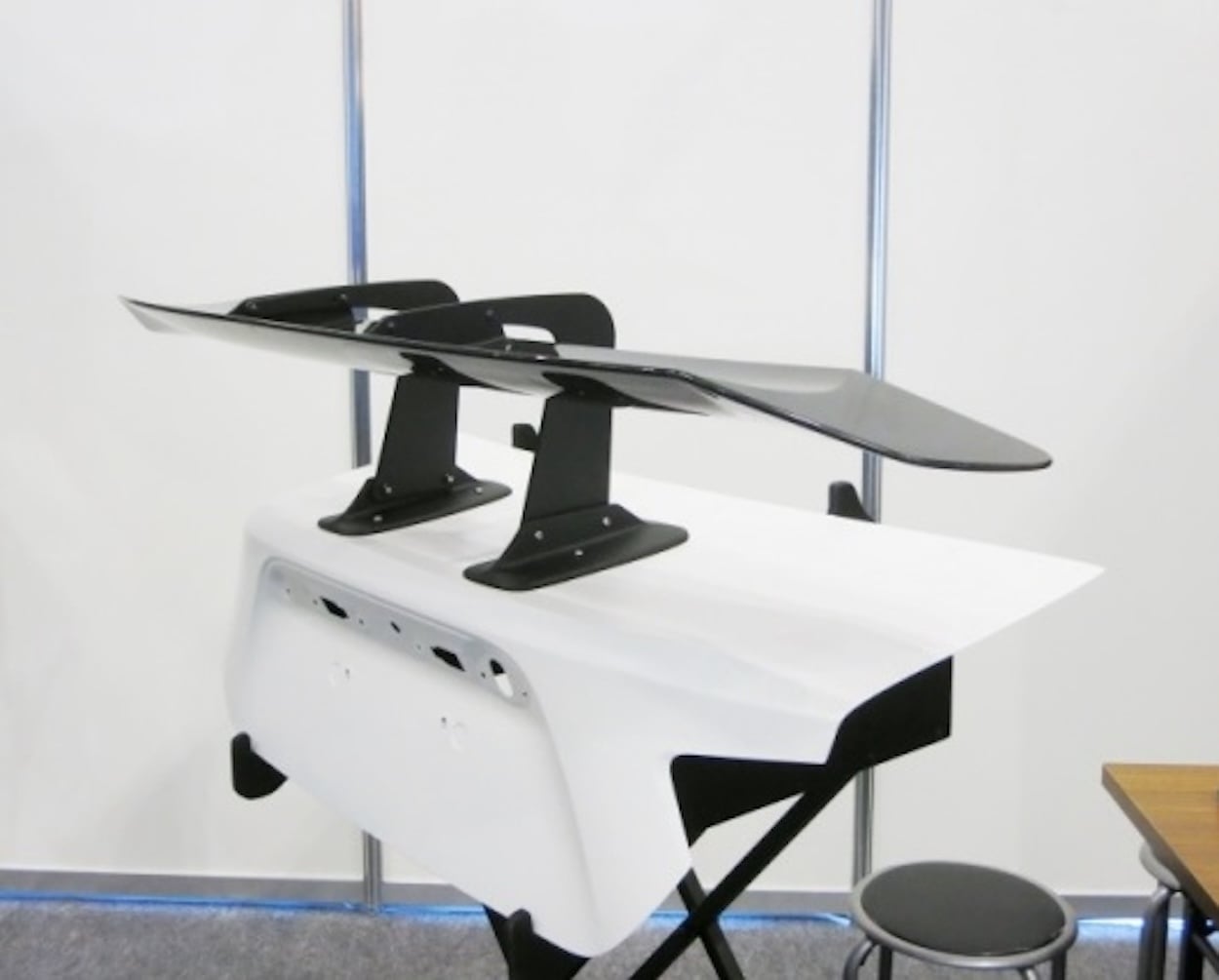

Voltex 1400mm Type 12 Swan Neck Mount GT Wing for ZD8 Subaru BRZ / ZN8 Toyota GR86

The Voltex ZD8/ZN8 Type 12 GT Wing is a swan-neck-mount carbon GT wing built around the 215mm-deep Type 12 airfoil, configured to order for the Subaru BRZ (ZD8) and Toyota GR86 (ZN8). Voltex hangs the low-profile Type 12 airfoil from curved swan-neck brackets that mount over the top of the deck rather than underneath, keeping the high-pressure underside of the wing clean for more efficient airflow and downforce. The wing attaches through ZD8/ZN8-specific brackets with a choice of stand heights, so it can be set to the car and the intended angle of attack.

Features

Swan-neck mount setup for clean underwing airflow
215mm airfoil depth
1400mm width
Carbon construction
Choice of 80mm, 195mm, 225mm, 245mm, or 275mm stand height

Specifications

Type: Type 12
Depth: 215mm
Width: 1400mm
Stand height options: 80mm, 195mm, 225mm, 245mm, 275mm
Material: Carbon
Mounting: Swan-neck mount setup

Applications

Subaru BRZ: ZD8 | 2022-Present
Toyota GR86: ZN8 | 2022-Present

Notes

More Voltex products for the BRZ / GR86 available here

Frequently Asked Questions

What vehicle does the Voltex ZD8/ZN8 Type 12 Swan Neck fit? The Voltex ZD8/ZN8 Type 12 Swan Neck is configured for the Subaru BRZ (ZD8) and Toyota GR86 (ZN8), 2022-Present, using Voltex’s ZD8/ZN8-specific brackets to determine fitment. Confirm your car is a ZD8 or ZN8 chassis before ordering.
What is a swan neck GT wing? A swan neck GT wing mounts to the top of the airfoil via curved brackets rather than underneath it, keeping the high-pressure underside of the wing clean for more efficient airflow and downforce. The Voltex ZD8/ZN8 Type 12 Swan Neck uses this swan-neck setup with the low-profile 215mm-deep Type 12 airfoil.
What stand heights are available for the Voltex ZD8/ZN8 Type 12 Swan Neck? The Voltex ZD8/ZN8 Type 12 Swan Neck offers five stand heights (80mm, 195mm, 225mm, 245mm, 275mm). Stand height sets the wing height and angle of attack, letting you match the wing to your car and downforce needs. Select your stand height before ordering.
What is the Voltex ZD8/ZN8 Type 12 Swan Neck made of? The Voltex ZD8/ZN8 Type 12 Swan Neck is made of carbon, combining lightweight strength with a finished carbon-weave appearance across the 215mm airfoil.
How is the Voltex ZD8/ZN8 Type 12 Swan Neck sold? The Voltex ZD8/ZN8 Type 12 Swan Neck is sold as a single configured wing: you select stand height at purchase. ZD8/ZN8-specific brackets are available where required for your application.

About Voltex

Voltex Racing is a Suzuka, Japan-based specialty manufacturer focused on high-performance aerodynamic components, including GT wings, spoilers, and diffusers developed for time attack and circuit racing. Voltex parts are engineered and validated on record-setting time attack cars in Japan and internationally, and Bulletproof Automotive carries the Voltex Racing North America catalog for the US market.
