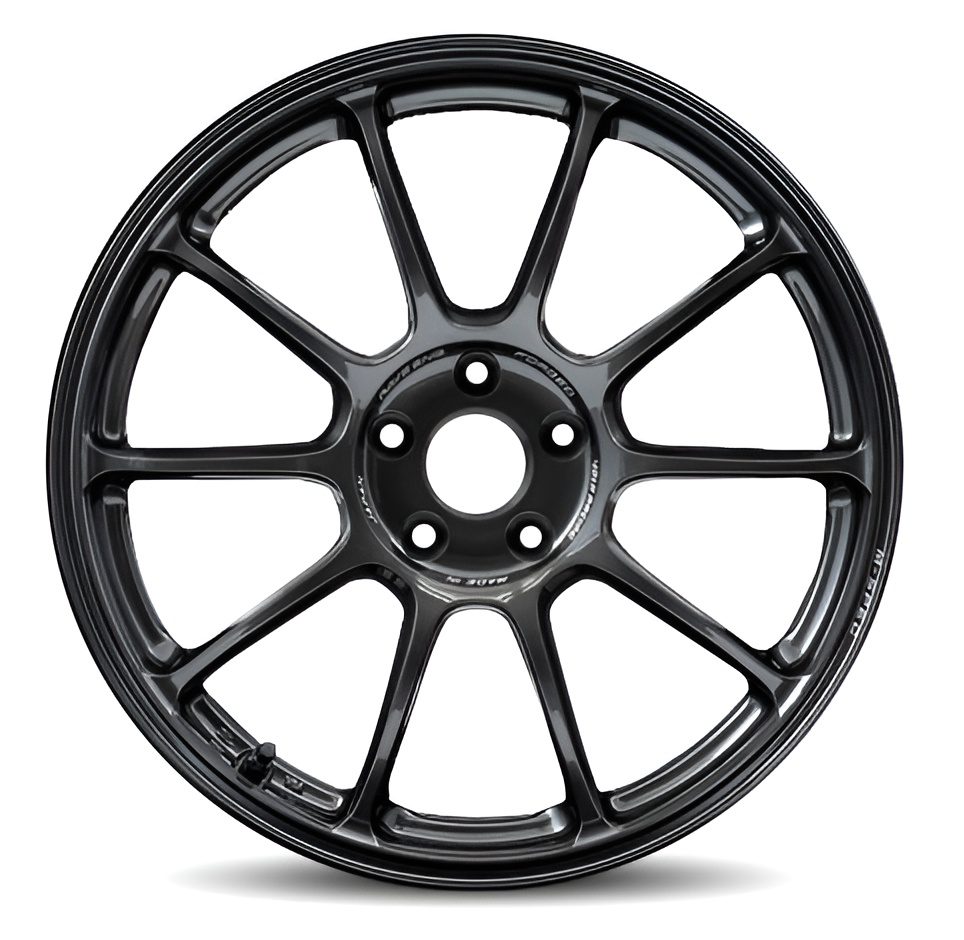

Volk Racing ZE40 M-Spec Wheel (19-inch)

RAYS introduces the ZE40 M-Spec as a fusion of structure and aesthetic purpose. As the latest ultra-high-grip tires approach S-tire levels of traction, transmitting increasingly high loads, Volk Racing adopts a 10-spoke design engineered to optimize load dispersion around a 5-lug hub. Iterative structural analysis and carefully honed spoke profiles result in a form that balances rigidity with lightweight performance — a true representation of function-led design.

‘M-Spec’ Machining Letters

• To signify the ZE40 M-Spec, RAYS uses its proprietary A.M.T. (advanced machining technology) to etch the ‘M-Spec’ designation into the rim flange.

Center Cliff Design

• The overhanging perimeter near the bolt holes enhances central rigidity while minimizing weight. This also casts a shadow that gives the illusion of added center depth, and excess material is removed to ensure sufficient clearance for a lug nut wrench.

Spoke Cross Section Born from Analysis

• Stress dispersion is handled through dedicated mated mold interfaces unique to the ZE40. Low-stress regions are aggressively lightened, while the inner rim is reinforced to improve stiffness — design measures made possible by RAYS’ advanced structural analysis.

Bronze (almite) Finish

• Bronze (aka almite) is a signature motorsport color developed by RAYS. As traditional paint can add 80-120g, this anodized finish — though challenging to apply on mold-forged wheels — was chosen to avoid unnecessary weight gain.

Standard, Special, Hyper, and Shining Colors

• The ZE40 M-Spec is available in a wide variety of colors, with Diamond Dark Gunmetal and Bronze (almite) serving as core finishes. For those seeking a more personalized look, Volk Racing also offers special edition colors, a range of hyper finishes, and richly reflective hues to create a premium, standout appearance.
  • Standard Colors:
    • Bronze
    • Diamond Dark Gunmetal
  • Special Colors:
    • Black
    • Blast Bronze
    • Dark Gunmetal
    • Dash White
    • Diamond Black
    • Diamond Silver
    • Gold
    • Gunmetal
    • MAG Blue
    • Matte Black
    • Matte Blue Gunmetal
    • Red
  • Hyper Colors:
    • Hyper Blue
    • Hyper Red
    • Metallic Red
    • Racing Green
  • Shining Colors:
    • Shining Black Metal
    • Shining Bronze Metal
    • Shining Light Metal

Features

• One-piece forged construction
• 10-spoke architecture optimized to disperse stress around hub
• Integrated, structure-driven design
• Precision mold mating unique to ZE40
• Targeted lightening by RAYS advanced analysis
• Overhung bolt-hole perimeter increases center rigidity while reducing mass
• Shadowed center effect for deeper visual depth
• Thickened inner rim
• Knurling finish on the bead seat to prevent tire slippage
• M-Spec certification with A.M.T. (advanced machining technology) rim-flange engraving
• Exceeds Japan’s JWL and VIA safety standards with RAYS’ own JWL+R Spec-2 rating
• Offered with standard, special, hyper, and shining finishes
• Sold as a single wheel

Specifications

• Construction: Forged 1pc
• RAYS Original Test: JWL+R Spec-2
• Included: Black air valve
• Sizing:
  • 19×8.5
  • 19×9.5
  • 19×10.5
• Offsets: 15mm – 38mm
• Bolt Pattern: 5-114.3

Other Sizes

• 18-inch

Notes

• Center caps not included, but are optional
• Sold as a single wheel

About RAYS / Volk Racing

Established in 1973, RAYS is a Japanese manufacturer and one of the world’s leading producers of high-quality, high-performance aluminum alloy wheels for both motorsports and street use. The company is best known for its flagship brand, Volk Racing, which has become synonymous with forged wheels designed for racing applications. With a strong commitment to engineering excellence and innovation, RAYS uses cutting-edge technology, such as its patented Advanced Machining Technology (A.M.T.), to create wheels that are not only lightweight and incredibly strong but also aesthetically striking. The company’s focus on durability, safety, and performance has earned them a prestigious reputation and a dominant presence in the global motorsports arena, from Formula 1 to the World Endurance Championship.
