Does the UCW Rear Wing Kit for VA STI use hidden mounting hardware?

Yes. The uprights attach to sculpted 6061-T6 aluminum trunk mounts through hidden hardware, so the fasteners stay out of sight once the UCW Rear Wing Kit for VA STI is installed. Verus Engineering includes a drill template, trunk load transfer hardware and double-sided tape, and publishes an install manual and video for the STI.

What angle of attack range does the STI UCW wing offer?

The element adjusts from 0 to 15 degrees angle of attack. Lower settings suit a car with a moderate front package, while steeper settings add rear load for an STI running a large splitter. Verus Engineering rates the assembly to generate and withstand more than 500 lb of downforce across that range.

Who is the UCW wing designed for on a VA STI?

Verus Engineering built it for the STI owner who tracks the car and wants more rear downforce than the Verus high-efficiency wing provides. It is part of the Ventus 3 aero kit, which Verus developed to cut lap times and raise corner speed. For a street car with an untouched front end, it is more rear wing than the chassis needs.

How did Verus develop the UCW airfoil?

Verus Engineering started from in-house scan data of the car for a near-OEM fit, then optimized the airfoil within a build volume taken from its V1X wing using the ANSYS adjoint solver. CFD confirmed the element receives adequate airflow once installed, and Verus reports that its real-world testing correlated well with the simulations.

What does the Carbon Endplates option change?

Every kit includes a pair of rear wing endplates. Choosing Included under the carbon endplates option means the pair supplied is carbon fiber, matching the pre-preg element. Choosing Not Included keeps the standard endplates; the element, uprights, trunk mounts and hardware are identical.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering UCW Rear Wing Kit for VA Subaru WRX STI

Verus Engineering’s UCW Rear Wing Kit for VA Subaru WRX STI stands on trunk mounts sculpted from 6061-T6 aluminum that bolt on in the manner of factory parts, with the upright hardware hidden from view. Above them sits a 250mm curved-chord element in autoclave-cured pre-preg carbon, which Verus designed to out-produce its swan neck high-efficiency wing and rates beyond 500 lb of downforce. It belongs on an STI whose front end already runs a serious splitter setup and needs matching load at the rear.

Engineering

The airfoil fills a build volume Verus took from its V1X wing and was refined with the ANSYS adjoint solver for lift-to-drag efficiency. CFD confirmed useful airflow above the STI deck lid, and Verus reports that its real-world testing correlated with those results.

Features

Trunk mounts sculpted from 6061-T6 aluminum, bolting on like factory parts
Hidden hardware secures the uprights to the mounts
Pre-preg 2×2 twill carbon element in an automotive high-gloss clear
Billet uprights machined to match the mounts
Load-transferring trunk system and stainless hardware throughout

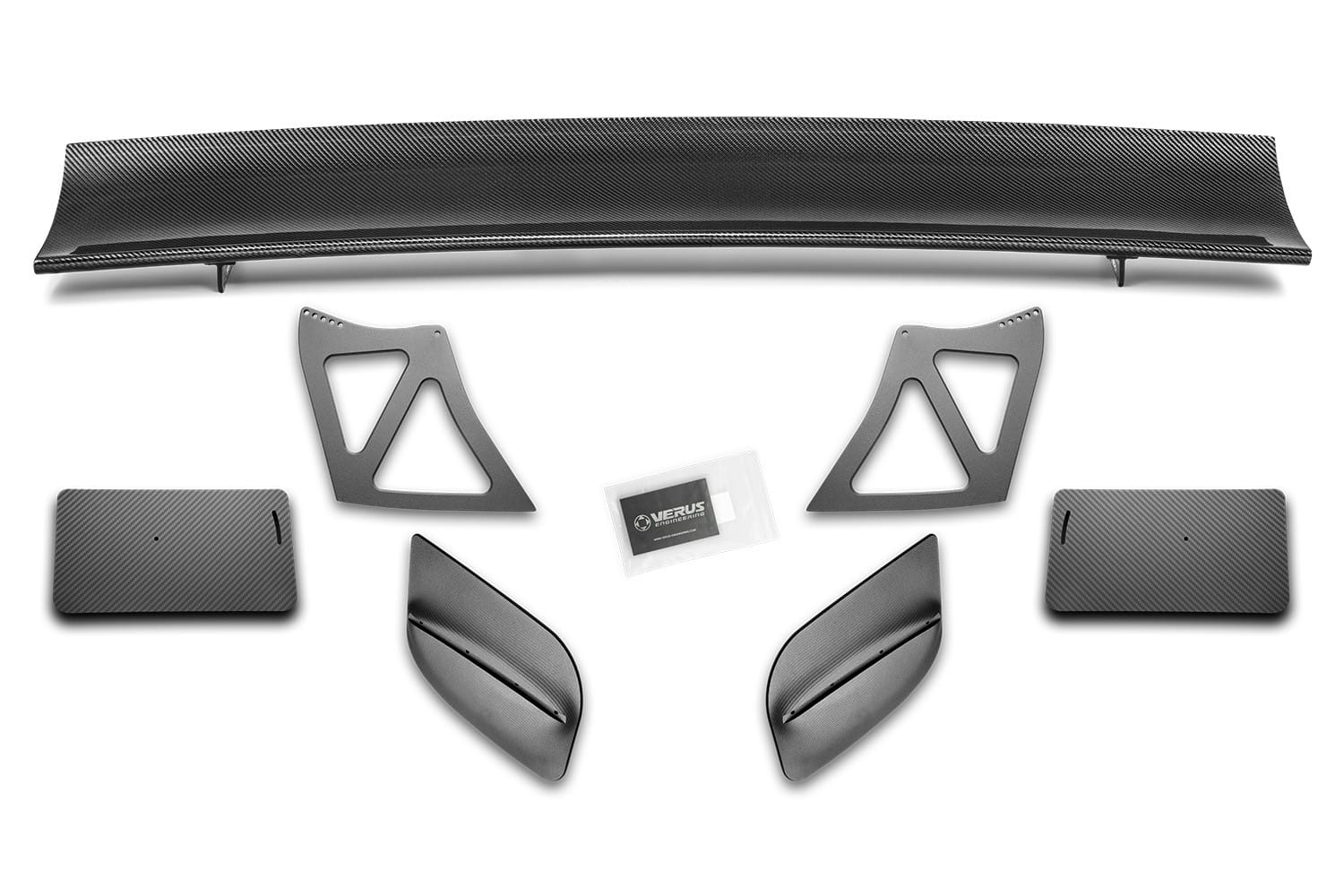

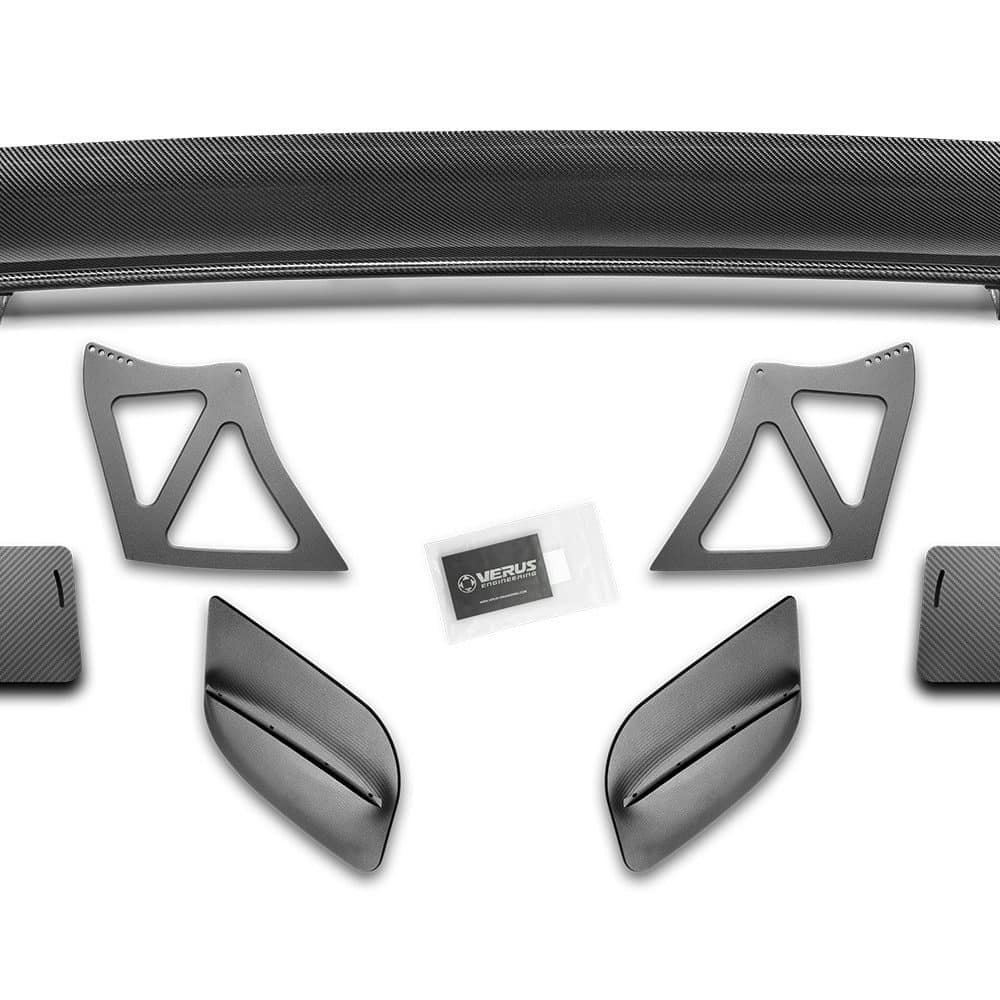

What’s Included

Carbon fiber wing element, assembled
Machined aluminum rear wing uprights (x2)
Sculpted 6061-T6 trunk mounts (x2)
Endplates (x2)
Trunk load transfer hardware and double-sided tape
Drill template
Complete hardware kit

Applications

Subaru WRX STI: VA | 2015-2021

Notes

A drill template comes in the kit, and Verus publishes an informative packet, install manual and install video for the STI version
Choose Included under Carbon Endplates to receive carbon fiber endplates in place of the standard pair
This UCW Rear Wing Kit for VA STI is specific to the STI; the VA WRX takes the Verus Engineering UCW Rear Wing Kit for VA Subaru WRX
The wing is the rear element of the Verus Ventus 3 package; for front load on the VA chassis, Verus builds the Two-Piece Front Splitter for VA Subaru WRX and WRX STI
See every Verus Engineering part for the VA Subaru WRX STI
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Does the UCW Rear Wing Kit for VA STI use hidden mounting hardware? Yes. The uprights attach to sculpted 6061-T6 aluminum trunk mounts through hidden hardware, so the fasteners stay out of sight once the UCW Rear Wing Kit for VA STI is installed. Verus Engineering includes a drill template, trunk load transfer hardware and double-sided tape, and publishes an install manual and video for the STI.
What angle of attack range does the STI UCW wing offer? The element adjusts from 0 to 15 degrees angle of attack. Lower settings suit a car with a moderate front package, while steeper settings add rear load for an STI running a large splitter. Verus Engineering rates the assembly to generate and withstand more than 500 lb of downforce across that range.
Who is the UCW wing designed for on a VA STI? Verus Engineering built it for the STI owner who tracks the car and wants more rear downforce than the Verus high-efficiency wing provides. It is part of the Ventus 3 aero kit, which Verus developed to cut lap times and raise corner speed. For a street car with an untouched front end, it is more rear wing than the chassis needs.
How did Verus develop the UCW airfoil? Verus Engineering started from in-house scan data of the car for a near-OEM fit, then optimized the airfoil within a build volume taken from its V1X wing using the ANSYS adjoint solver. CFD confirmed the element receives adequate airflow once installed, and Verus reports that its real-world testing correlated well with the simulations.
What does the Carbon Endplates option change? Every kit includes a pair of rear wing endplates. Choosing Included under the carbon endplates option means the pair supplied is carbon fiber, matching the pre-preg element. Choosing Not Included keeps the standard endplates; the element, uprights, trunk mounts and hardware are identical.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
