Will the UCW Rear Wing Kit for GV fit a replacement or aftermarket trunk lid?

No. Verus Engineering states that the UCW Rear Wing Kit for GV requires the factory STI trunk for compatibility. A car fitted with a different deck lid, aftermarket or from another model, falls outside that requirement, so confirm the original STI trunk is in place before ordering.

Does the GV wing kit fit the GR hatchback STI?

No. Verus Engineering lists this UCW wing for the GV sedan, the 2011 to 2014 STI with a conventional trunk lid, and the kit depends on the factory STI trunk for its mounting. The GR hatchback closes with a rear hatch instead of a trunk lid, so it is not covered by this kit or by its trunk mounts.

How much downforce is the GV STI UCW wing rated for?

Verus Engineering rates the GV STI UCW wing to generate and withstand more than 500 lb of downforce. That is what the airfoil and mounts can handle; the load at any moment depends on speed and on the 0 to 15 degree angle of attack, and Verus publishes no figure at a specific speed.

What should I pair with a big rear wing on a GV STI?

A front splitter is the natural partner. Verus Engineering lists its GR and GV front splitter kit in the Ventus 2 package, and the UCW wing builds on that in Ventus 3. The wing adjusts from 0 to 15 degrees, so the rear load can be set against the splitter until the car feels neutral at speed.

What hardware comes with the GV UCW kit?

The kit includes the carbon wing element, two machined aluminum uprights, two machined aluminum trunk mounts and two endplates, plus endplate washers and O-rings, trunk double-sided tape and a hardware kit with every part needed for the install. Verus Engineering assembles each wing to order and ships within 5 business days.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering UCW Rear Wing Kit for GV Subaru WRX STI

Verus Engineering’s UCW Rear Wing Kit for GV Subaru WRX STI is a carbon wing for the 2011 to 2014 STI sedan that must be mounted on the factory STI trunk lid. The 250mm curved-chord element sits between the Verus high-efficiency wing and the 300mm V1X in size, produces more downforce than the former, and Verus rates the whole assembly beyond 500 lb. Fit it to a GV that already carries a front splitter; without one, the rear would overpower the front.

Development

Inside a volume borrowed from the V1X design, the ANSYS adjoint solver shaped the airfoil; CFD then confirmed clean airflow above the GV trunk, and track testing correlated with those simulations.

Features

Airfoil refined with the ANSYS adjoint solver for an improved lift-to-drag ratio
2×2 twill pre-preg carbon element, autoclave cured and clear coated in high gloss
Billet aluminum uprights on machined billet trunk mounts
Endplate washers and O-rings supplied
Stainless steel fasteners across the kit

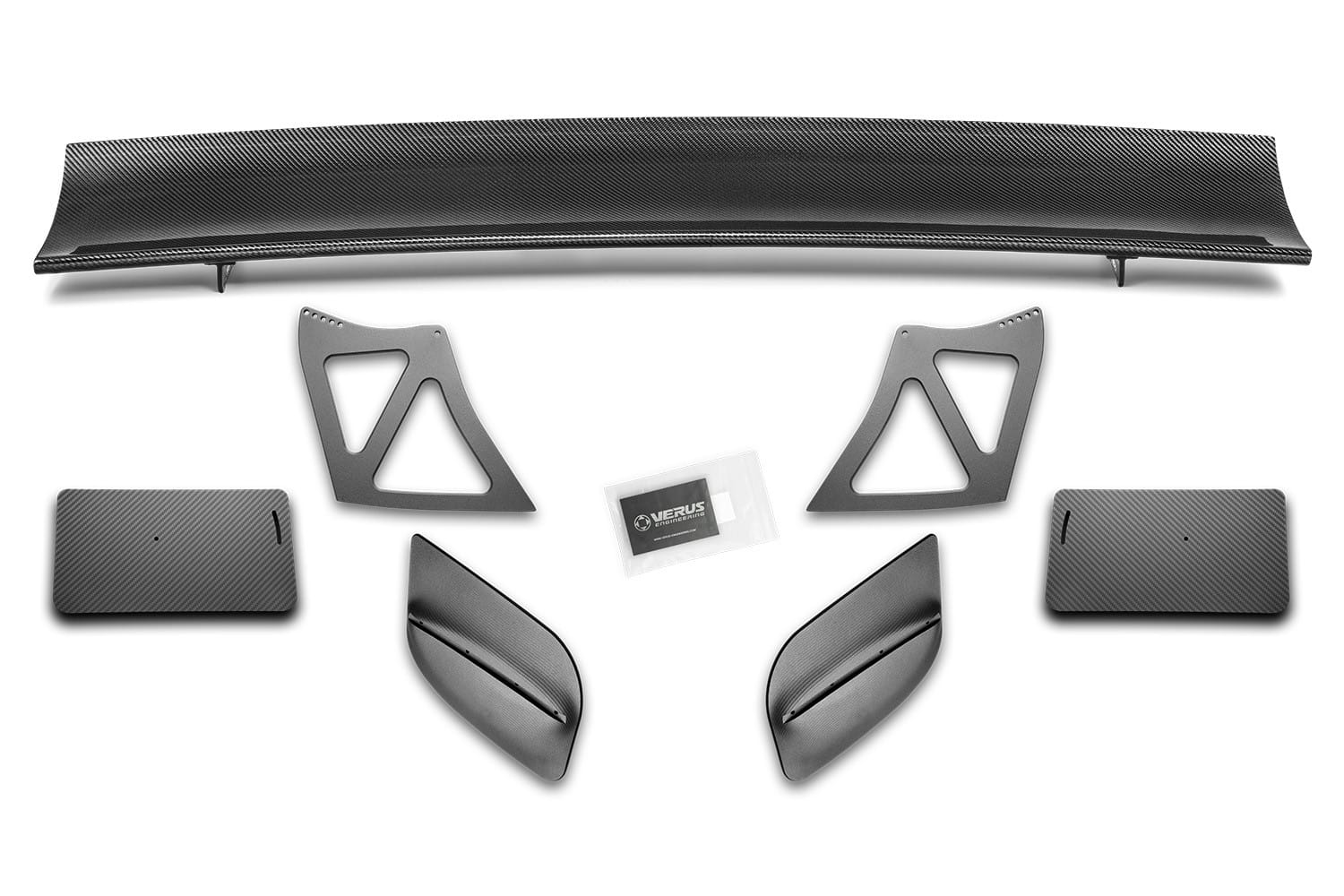

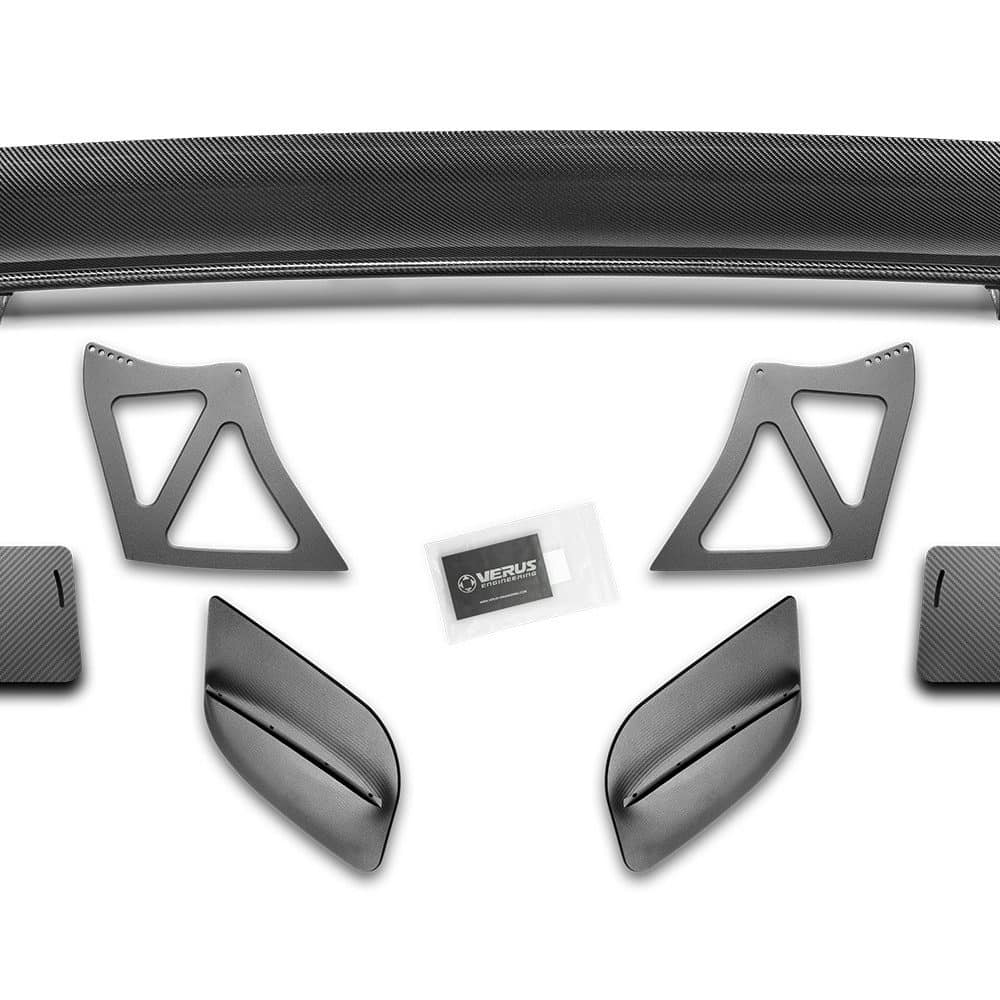

What’s Included

Carbon rear wing element assembly
Billet aluminum uprights, machined (x2)
Billet aluminum trunk mounts, machined (x2)
Rear wing endplates (x2)
Endplate washers and O-rings
Trunk double-sided tape
Hardware kit for the complete install

Applications

Subaru WRX STI: GV sedan | 2011-2014

Notes

Requires the factory STI trunk lid; Verus lists the kit for the GV sedan, not the GR hatchback
The UCW Rear Wing Kit for GV is assembled to order and leaves Verus within 5 business days unless Verus states otherwise
Both versions include two endplates; select Included under Carbon Endplates for carbon fiber
Verus provides an informative packet and an install video for the GV wing
Balance the front with the Verus Engineering Front Splitter Kit for GR / GV Subaru WRX STI, the splitter in the Verus Ventus 2 package for this chassis
See every Verus Engineering part for the GV Subaru WRX STI
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Will the UCW Rear Wing Kit for GV fit a replacement or aftermarket trunk lid? No. Verus Engineering states that the UCW Rear Wing Kit for GV requires the factory STI trunk for compatibility. A car fitted with a different deck lid, aftermarket or from another model, falls outside that requirement, so confirm the original STI trunk is in place before ordering.
Does the GV wing kit fit the GR hatchback STI? No. Verus Engineering lists this UCW wing for the GV sedan, the 2011 to 2014 STI with a conventional trunk lid, and the kit depends on the factory STI trunk for its mounting. The GR hatchback closes with a rear hatch instead of a trunk lid, so it is not covered by this kit or by its trunk mounts.
How much downforce is the GV STI UCW wing rated for? Verus Engineering rates the GV STI UCW wing to generate and withstand more than 500 lb of downforce. That is what the airfoil and mounts can handle; the load at any moment depends on speed and on the 0 to 15 degree angle of attack, and Verus publishes no figure at a specific speed.
What should I pair with a big rear wing on a GV STI? A front splitter is the natural partner. Verus Engineering lists its GR and GV front splitter kit in the Ventus 2 package, and the UCW wing builds on that in Ventus 3. The wing adjusts from 0 to 15 degrees, so the rear load can be set against the splitter until the car feels neutral at speed.
What hardware comes with the GV UCW kit? The kit includes the carbon wing element, two machined aluminum uprights, two machined aluminum trunk mounts and two endplates, plus endplate washers and O-rings, trunk double-sided tape and a hardware kit with every part needed for the install. Verus Engineering assembles each wing to order and ships within 5 business days.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
