Does the Rear Diffuser for Toyota GR Corolla need permanent modifications?

No. The Rear Diffuser for Toyota GR Corolla bolts to the car using ten aluminum brackets in four styles, and Verus Engineering states it needs no permanent modifications. The hardware kit covers every fastener, and Verus publishes an install manual and an install video, so the car can go back to stock later if the owner wishes.

How does the diffuser create downforce?

The diffuser lowers the pressure beneath the tail of the GR Corolla, which cuts lift, and its strakes shed vortices that hold the flow against the diffuser surface. Verus Engineering reports that the design also reduces drag on the GR Corolla, improving overall aerodynamic efficiency, and found higher straight-line and corner speeds in its own track testing.

What should go on the front of a GR Corolla running this diffuser?

Verus Engineering pairs this diffuser with front dive planes in its Ventus 1 kit for the GR Corolla, because the planes add front downforce to offset the low-pressure zone the diffuser builds at the rear. Verus calls the result a well-proportioned setup, and drivers who want more downforce can step up to Ventus 2 with the front splitter.

Which exhausts has Verus confirmed with the GR Corolla diffuser?

Verus Engineering has not published an exhaust compatibility list for this diffuser, unlike some of its other platforms. The diffuser was designed around the factory GR Corolla rear end from in-house scan data, so owners running an aftermarket exhaust should confirm clearance with Verus before ordering.

Is the diffuser strong enough for regular track use?

Yes. Verus Engineering built it to retain significant strength while staying a simple bolt-on, using 5052-H32 aluminum sheet, laser cut, press brake formed and powder coated in textured black, with ten brackets holding it to the car. The strakes join the main plane through the Verus strake-to-mainplane construction, and stainless hardware secures every joint.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Rear Diffuser for Toyota GR Corolla

Verus Engineering’s Rear Diffuser for Toyota GR Corolla lowers both lift and drag at the back of the hatch. In Verus testing on track it brought quicker laps along with higher speeds on the straights and through corners. The design came from in-house scan data and CFD, with strakes that create vortices to hold the airflow against the diffuser surface. It installs as a bolt-on with no permanent modifications, so the GR Corolla can return to stock later, yet Verus built it to keep significant strength.

Construction and Balance

Verus laser cuts the diffuser from 5052-H32 sheet aluminum, forms it on a CNC press brake and finishes it in low-gloss textured black powder coat, joining strakes and main plane with its own construction method. Paired with front dive planes that offset its rear load, it makes up the Verus Ventus 1 kit for the GR Corolla, which Verus calls a well-proportioned aero balance; Ventus 2 adds more downforce for drivers who want it.

Features

Less lift and less drag from one bolt-on part
CFD-optimized strakes that keep flow attached
Ten aluminum brackets locate it to the car
No permanent modifications to the GR Corolla
Made in the U.S.A. with stainless fasteners

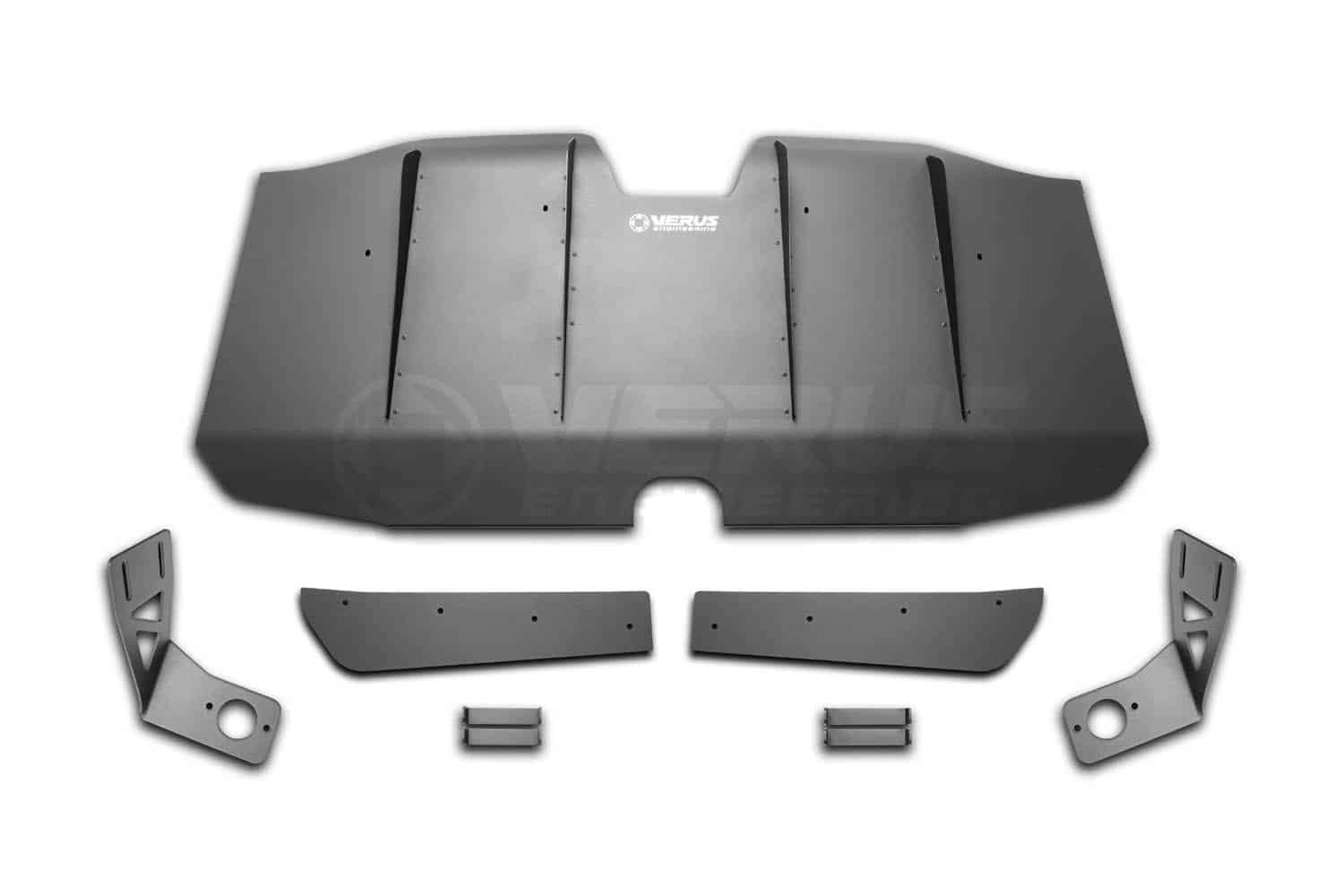

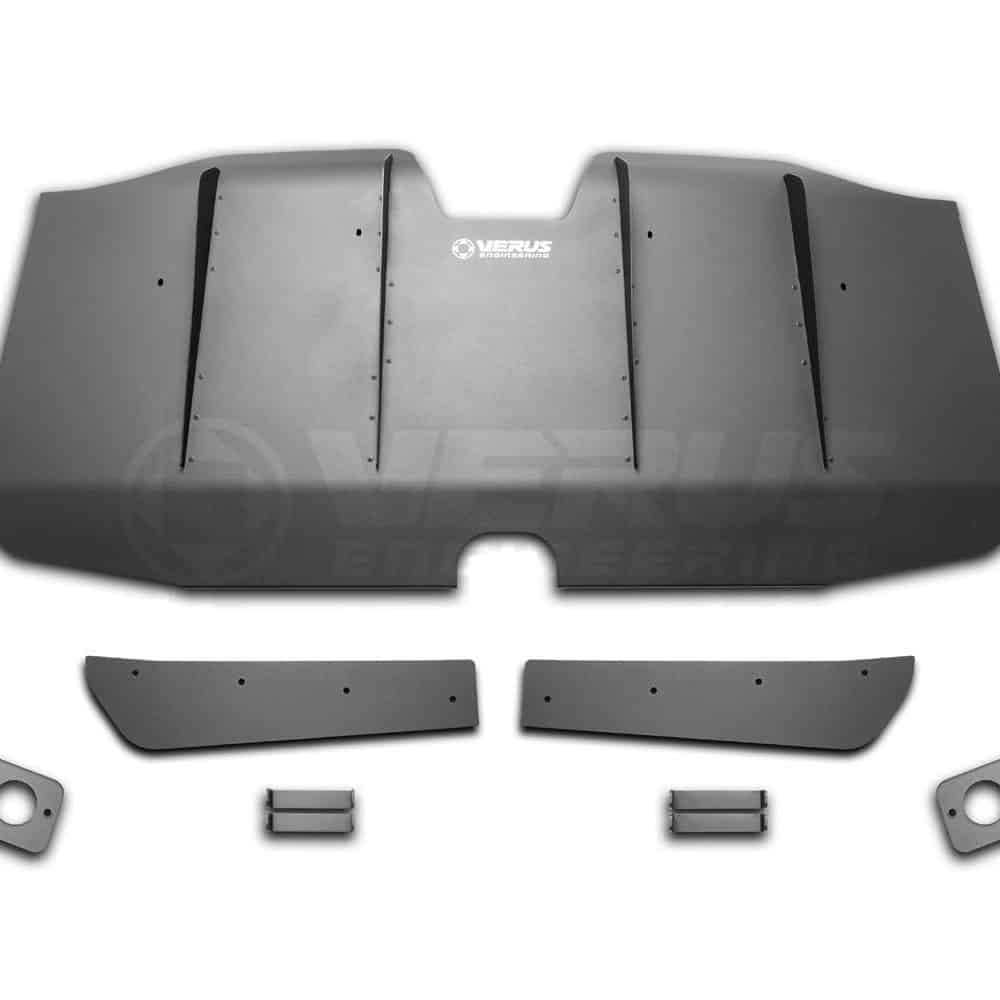

What’s Included

Rear diffuser
Front brackets (x2)
Front U brackets (x2)
Side brackets (x2)
Rear brackets (x4)
Hardware kit with all components for the install

Applications

Toyota GR Corolla | 2023-present

Notes

Verus pairs the Rear Diffuser for Toyota GR Corolla with its GR Corolla dive plane kit, sold separately, as its Ventus 1 setup
For more front load, Verus places the Verus Engineering Front Splitter and Air Dam Kit for Toyota GR Corolla in its Ventus 2 package
Exhaust compatibility for the GR Corolla diffuser is not listed by Verus; ask Verus about clearance before pairing it with an aftermarket system
The diffuser install is documented in a Verus manual and video, with an informative packet
See every Verus Engineering part for the Toyota GR Corolla
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Does the Rear Diffuser for Toyota GR Corolla need permanent modifications? No. The Rear Diffuser for Toyota GR Corolla bolts to the car using ten aluminum brackets in four styles, and Verus Engineering states it needs no permanent modifications. The hardware kit covers every fastener, and Verus publishes an install manual and an install video, so the car can go back to stock later if the owner wishes.
How does the diffuser create downforce? The diffuser lowers the pressure beneath the tail of the GR Corolla, which cuts lift, and its strakes shed vortices that hold the flow against the diffuser surface. Verus Engineering reports that the design also reduces drag on the GR Corolla, improving overall aerodynamic efficiency, and found higher straight-line and corner speeds in its own track testing.
What should go on the front of a GR Corolla running this diffuser? Verus Engineering pairs this diffuser with front dive planes in its Ventus 1 kit for the GR Corolla, because the planes add front downforce to offset the low-pressure zone the diffuser builds at the rear. Verus calls the result a well-proportioned setup, and drivers who want more downforce can step up to Ventus 2 with the front splitter.
Which exhausts has Verus confirmed with the GR Corolla diffuser? Verus Engineering has not published an exhaust compatibility list for this diffuser, unlike some of its other platforms. The diffuser was designed around the factory GR Corolla rear end from in-house scan data, so owners running an aftermarket exhaust should confirm clearance with Verus before ordering.
Is the diffuser strong enough for regular track use? Yes. Verus Engineering built it to retain significant strength while staying a simple bolt-on, using 5052-H32 aluminum sheet, laser cut, press brake formed and powder coated in textured black, with ten brackets holding it to the car. The strakes join the main plane through the Verus strake-to-mainplane construction, and stainless hardware secures every joint.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
