Why start a C8 aero build with the Rear Diffuser for C8?

Verus Engineering calls the Rear Diffuser for C8 an ideal starting point because a well-designed diffuser is efficient: it adds downforce by creating low pressure under the car and lowers drag by shrinking the wake behind it. That improves the lift to drag ratio over the stock Stingray before any wing or splitter goes on.

Does the diffuser require drilling or cutting?

No. The diffuser bolts to the rear exhaust hanger chassis locations on the C8 Stingray through powder-coated aluminum brackets, and Verus Engineering states that no drilling or fabrication is required. The kit includes inner and outer brackets, two outer strakes and stainless hardware.

What is the difference between the aluminum and carbon Verus diffusers?

The aluminum diffuser is laser cut from 5052 sheet, press brake bent and powder coated black, with separate outer strakes. The carbon diffuser is 2x2 twill pre-preg carbon, autoclave cured and clear coated, and Verus Engineering says it reaches a higher peak performance. The aluminum version costs less.

Which exhausts does the Verus C8 diffuser fit?

Verus Engineering has not published a list of compatible aftermarket exhausts for the C8 diffuser. Because the brackets attach at the rear exhaust hanger chassis locations, an exhaust that moves the hangers or the tips could affect fitment, so check with the exhaust maker before ordering.

What front aero pairs with the rear diffuser?

Verus Engineering pairs the diffuser with its Dual Element Dive Plane Kit in the Ventus 1 package, where the dive planes add enough front downforce to balance it while keeping the car easy to live with on the street. The diffuser carries on into the larger Ventus packages with the splitters and wings.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Rear Diffuser for C8 Chevrolet Corvette Stingray

Verus Engineering’s Rear Diffuser for C8 Chevrolet Corvette Stingray is where Verus suggests any Stingray aero program should start, because a well-designed diffuser adds downforce and cuts drag at once. It builds low pressure under the rear of the car and shrinks the wake behind it. The body is 5052 aluminum sheet, CNC laser cut, press brake bent and powder coated black, and it bolts to the rear exhaust hanger chassis locations with no drilling. Choose it for function at a lower cost; the carbon version adds peak performance and a carbon finish.

Design and Performance

Verus developed the shape from scan data, CAD and OpenFOAM CFD analysis to match the Stingray design language, then validated it in real-world testing. As the cornerstone of the Verus Ventus packages, it improves the lift-to-drag ratio over the stock C8.

Features

Raises downforce and lowers drag together
5052 aluminum, CNC laser cut and press brake bent
Black powder coat on the diffuser, strakes and brackets
Bolts to the rear exhaust hanger chassis points
Stainless hardware throughout

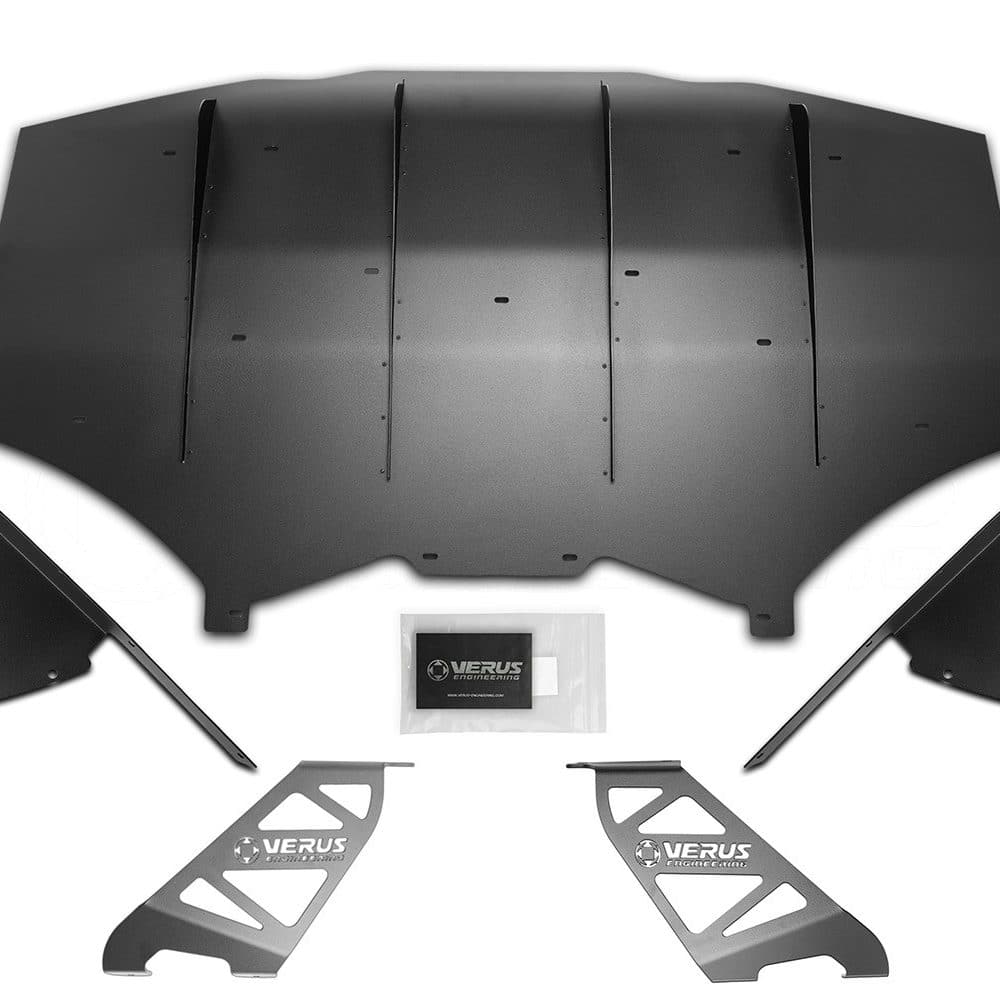

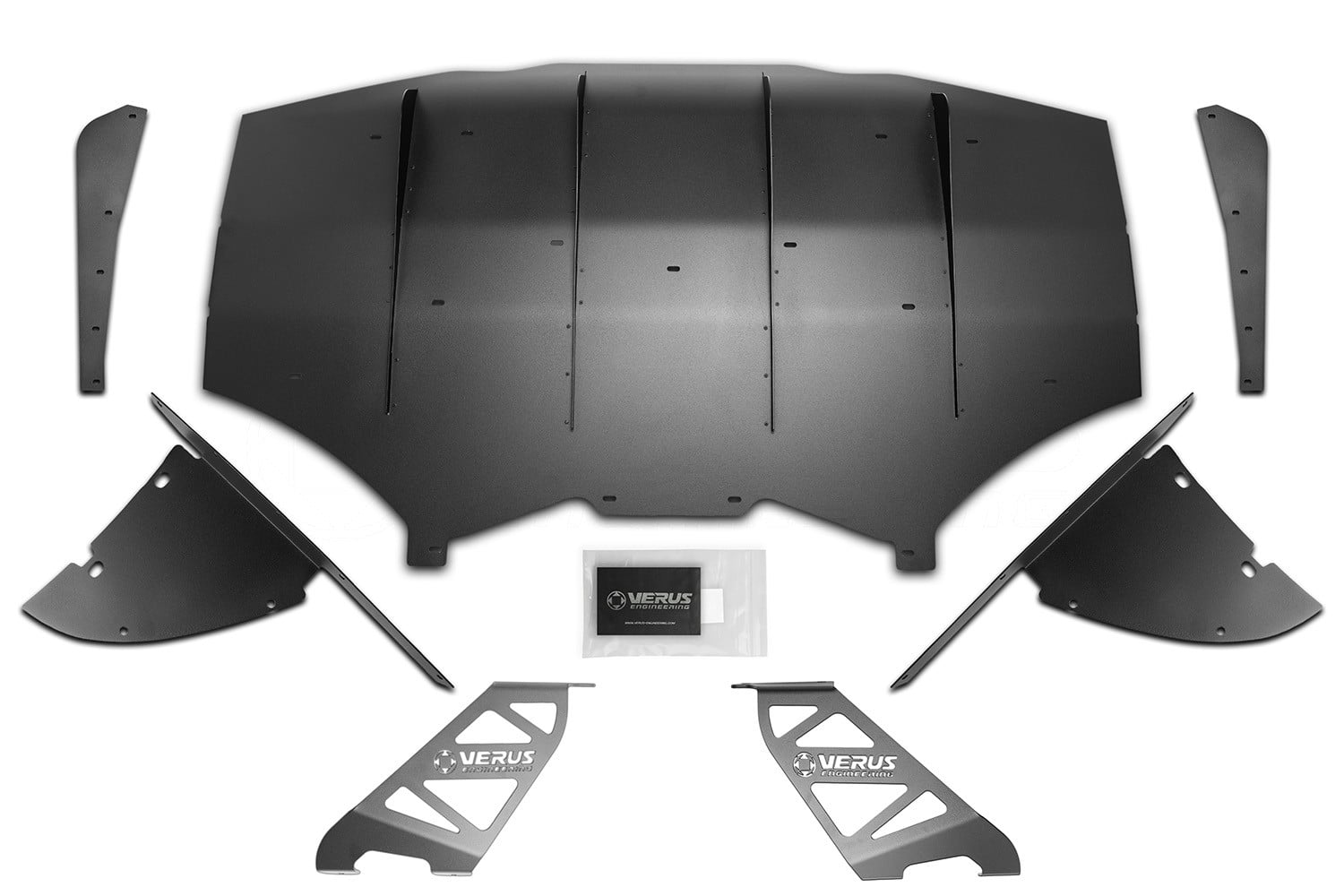

What’s Included

Powder-coated aluminum rear diffuser
Powder-coated aluminum inner mounting brackets (x2)
Powder-coated aluminum outer mounting brackets (x2)
Powder-coated aluminum outer strakes (x2)
Hardware kit with all hardware needed for the install

Applications

Chevrolet Corvette Stingray: C8 | 2020-present

Notes

The Rear Diffuser for C8 installs with no drilling or fabrication, and Verus supports it with a written install manual and a video
Verus has not published fitment with aftermarket exhausts, so confirm clearance at the exhaust hanger locations with the exhaust maker
The Carbon Rear Diffuser uses autoclave-cured carbon and reaches a higher peak performance, according to Verus
Balance it at the front with the Dual Element Dive Plane Kit, the Verus Ventus 1 pairing
See every Verus Engineering part for the C8 Chevrolet Corvette Stingray
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Why start a C8 aero build with the Rear Diffuser for C8? Verus Engineering calls the Rear Diffuser for C8 an ideal starting point because a well-designed diffuser is efficient: it adds downforce by creating low pressure under the car and lowers drag by shrinking the wake behind it. That improves the lift to drag ratio over the stock Stingray before any wing or splitter goes on.
Does the diffuser require drilling or cutting? No. The diffuser bolts to the rear exhaust hanger chassis locations on the C8 Stingray through powder-coated aluminum brackets, and Verus Engineering states that no drilling or fabrication is required. The kit includes inner and outer brackets, two outer strakes and stainless hardware.
What is the difference between the aluminum and carbon Verus diffusers? The aluminum diffuser is laser cut from 5052 sheet, press brake bent and powder coated black, with separate outer strakes. The carbon diffuser is 2×2 twill pre-preg carbon, autoclave cured and clear coated, and Verus Engineering says it reaches a higher peak performance. The aluminum version costs less.
Which exhausts does the Verus C8 diffuser fit? Verus Engineering has not published a list of compatible aftermarket exhausts for the C8 diffuser. Because the brackets attach at the rear exhaust hanger chassis locations, an exhaust that moves the hangers or the tips could affect fitment, so check with the exhaust maker before ordering.
What front aero pairs with the rear diffuser? Verus Engineering pairs the diffuser with its Dual Element Dive Plane Kit in the Ventus 1 package, where the dive planes add enough front downforce to balance it while keeping the car easy to live with on the street. The diffuser carries on into the larger Ventus packages with the splitters and wings.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
