Does the Rear Diffuser for 987 fit both the 987.1 and 987.2?

Yes. Verus Engineering developed the Rear Diffuser for 987 Porsche Cayman for both the 987.1 and the 987.2, using scan data and ANSYS Fluent analysis. It bolts to chassis locations through five CNC laser cut and bent aluminum brackets, and Verus states that no drilling or fabrication is needed for the install.

What is the 987 diffuser made from?

The three main planes are 1.5mm carbon fiber in a 2x2 twill, autoclave cured, with lightweight bonded carbon sections on top that keep each plane rigid. The four strakes are hard polyurethane chosen for longevity, and the brackets are CNC laser cut and bent 5052 aluminum. Verus Engineering uses stainless hardware throughout the assembly.

What is the Verus Ventus 1 package for the 987?

Ventus 1 is the Verus Engineering entry package for the 987 Cayman: this carbon rear diffuser, the flat underbody cover kit and the front dive plane kit. Verus says the combination gives a solid bump in downforce with minimal drag increase. Ventus 2 adds a front splitter and rear wing for a significant further increase.

Does a rear diffuser help on a street driven Cayman?

Yes, mostly at speed. A diffuser lowers the pressure beneath the rear of the car, and because aerodynamic load rises with the square of road speed, the effect is strongest on a fast road or a circuit. Verus Engineering shaped this unit to follow the factory bumper lines of the 987, so it suits a car that also sees the street.

Can I replace a damaged strake?

Yes. Verus Engineering designed the strakes as separate, replaceable hard polyurethane pieces for longevity, so contact with a curb or ramp need not mean replacing the carbon main planes. The kit includes four strakes and three main planes, and its modular design also accepts the Verus flat underbody cover kit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

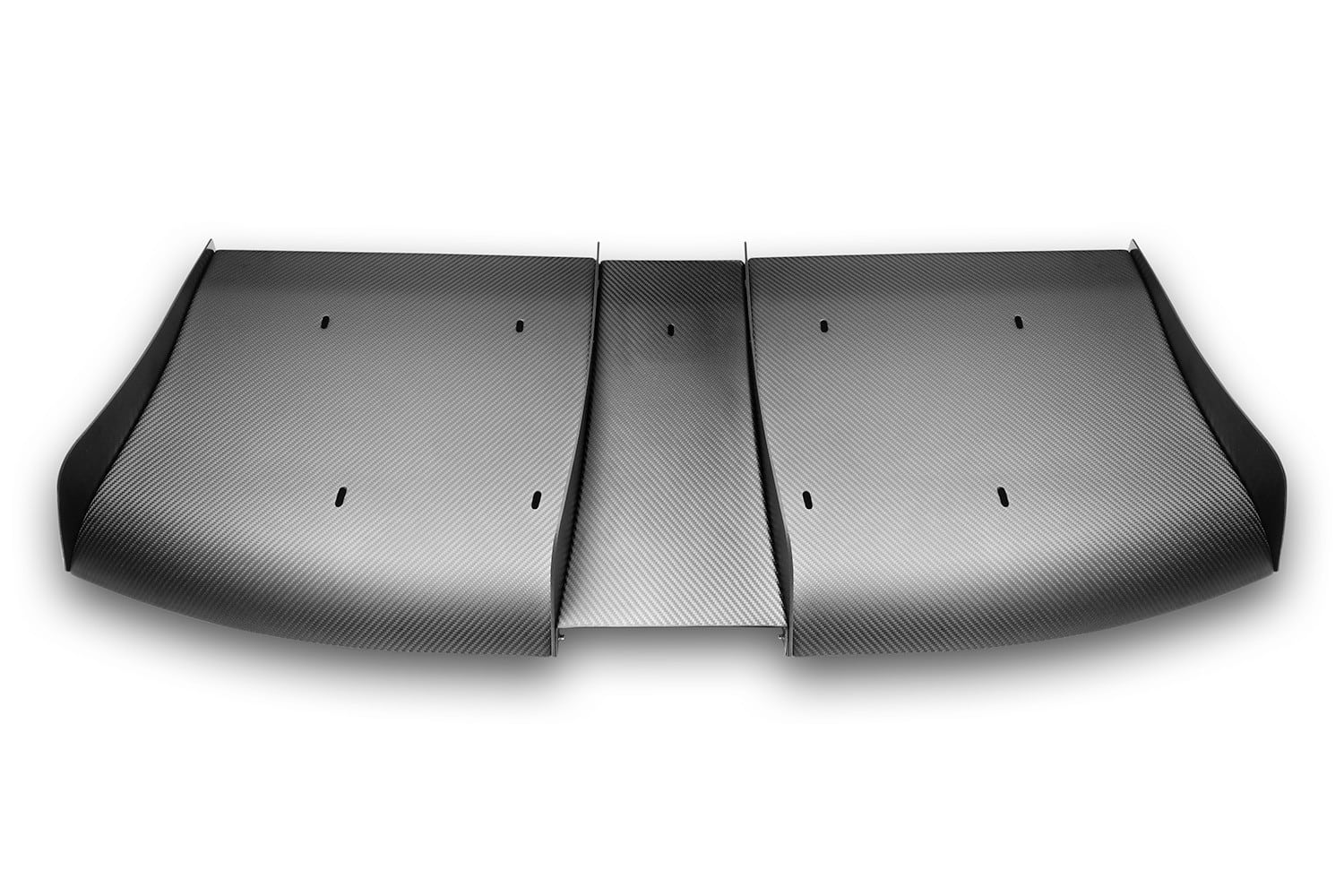

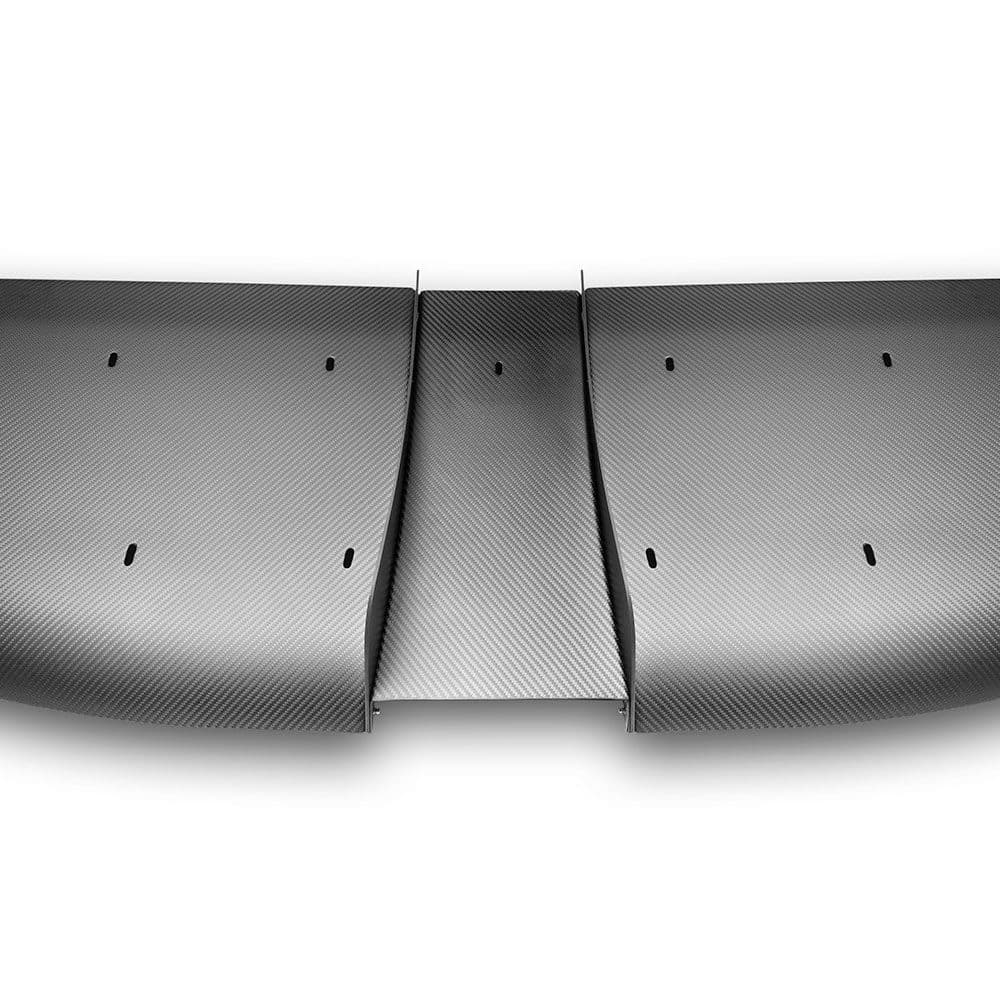

Verus Engineering Carbon Rear Diffuser for 987 Porsche Cayman

Verus Engineering’s Carbon Rear Diffuser for 987 Porsche Cayman gives both the 987.1 and the 987.2 a working diffuser, built from three autoclave-cured 2×2 twill carbon main planes and four hard polyurethane strakes that can be replaced if they take a hit. Verus shaped it from its own scan data in ANSYS Fluent to raise downforce and lower drag together, and it mounts to the chassis on five aluminum brackets without any drilling or fabrication. The diffuser and the flat underbody cover were designed as a pair, so plan on fitting both.

Features

Three 1.5mm carbon main planes, 2×2 twill and autoclave cured
Bonded carbon reinforcements keep each main plane rigid
Replaceable hard polyurethane strakes
Follows the factory bumper lines
Stainless mounting hardware

What’s Included

Diffuser main planes: left-hand, center and right-hand
Brackets (x5)
Strakes, hard rubber (x4)
Mounting hardware kit

Applications

Porsche Cayman: 987.1 | 2006-2008
Porsche Cayman: 987.2 | 2009-2012

Notes

The Rear Diffuser for 987 fits the 987.1 and 987.2 and bolts to chassis locations with no drilling or fabrication
Verus covers the install with a manual, a video and an informative packet
Add the Flat Underbody Cover Kit for 987 Porsche Cayman and the Dive Plane Kit for the Verus Ventus 1 package; Ventus 2 adds the Front Splitter Kit for 987.2 and a rear wing such as the UCW Rear Wing Kit
See every Verus Engineering part for the 987 Porsche Cayman
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Does the Rear Diffuser for 987 fit both the 987.1 and 987.2? Yes. Verus Engineering developed the Rear Diffuser for 987 Porsche Cayman for both the 987.1 and the 987.2, using scan data and ANSYS Fluent analysis. It bolts to chassis locations through five CNC laser cut and bent aluminum brackets, and Verus states that no drilling or fabrication is needed for the install.
What is the 987 diffuser made from? The three main planes are 1.5mm carbon fiber in a 2×2 twill, autoclave cured, with lightweight bonded carbon sections on top that keep each plane rigid. The four strakes are hard polyurethane chosen for longevity, and the brackets are CNC laser cut and bent 5052 aluminum. Verus Engineering uses stainless hardware throughout the assembly.
What is the Verus Ventus 1 package for the 987? Ventus 1 is the Verus Engineering entry package for the 987 Cayman: this carbon rear diffuser, the flat underbody cover kit and the front dive plane kit. Verus says the combination gives a solid bump in downforce with minimal drag increase. Ventus 2 adds a front splitter and rear wing for a significant further increase.
Does a rear diffuser help on a street driven Cayman? Yes, mostly at speed. A diffuser lowers the pressure beneath the rear of the car, and because aerodynamic load rises with the square of road speed, the effect is strongest on a fast road or a circuit. Verus Engineering shaped this unit to follow the factory bumper lines of the 987, so it suits a car that also sees the street.
Can I replace a damaged strake? Yes. Verus Engineering designed the strakes as separate, replaceable hard polyurethane pieces for longevity, so contact with a curb or ramp need not mean replacing the carbon main planes. The kit includes four strakes and three main planes, and its modular design also accepts the Verus flat underbody cover kit.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
