Do I have to remove the washer fluid reservoir to fit the Brake Cooling Kit for ZN6?

Yes. The Brake Cooling Kit for ZN6 needs the space taken by the factory washer fluid reservoir, so the reservoir comes out during installation. Verus Engineering offers a smaller replacement reservoir, sold separately as its Washer Fluid Reservoir Kit, which lets owners run the brake ducts and keep working windshield washers.

Where does the brake cooling kit get its air?

It uses the factory fog light location as the inlet, which sits in a high-pressure zone at the front bumper. A 3D printed carbon nylon inlet duct collects the air, and Verus Engineering supplies separate foglight duct brackets for the 2013-2016 and 2017 and later bumpers, so one kit covers every first-generation 86, FR-S and BRZ.

How much does the kit reduce brake temperatures?

Verus Engineering states that the kit dramatically reduces rotor temperatures on track, though it publishes no figure for the 86, FR-S or BRZ. Cooler rotors improve pad and rotor wear and help the brakes keep doing their job through a session, because the air arrives at the center of the rotor through a stainless backing plate duct.

How hard is the brake cooling kit to install?

Verus Engineering describes it as an OEM-type install that takes a few hours with minimal hand tools and know-how. Every hose comes pre-cut, all clamps and hardware are supplied, and Verus publishes an install manual and an install video. Plan for the washer fluid reservoir removal and the included steering rack limiter as part of the job.

What materials are used in the brake ducts?

The backing plates are stainless steel with riveted 316L stainless ducts made by 3D printing, the fender pancake ducts are hard plastic and the inlet duct is 3D printed carbon nylon. Hose is pre-cut 3 inch neoprene and 2.5 inch high-temperature silicone, joined with stainless clamps, and Verus Engineering makes the kit in the U.S.A.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Brake Cooling Kit for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ

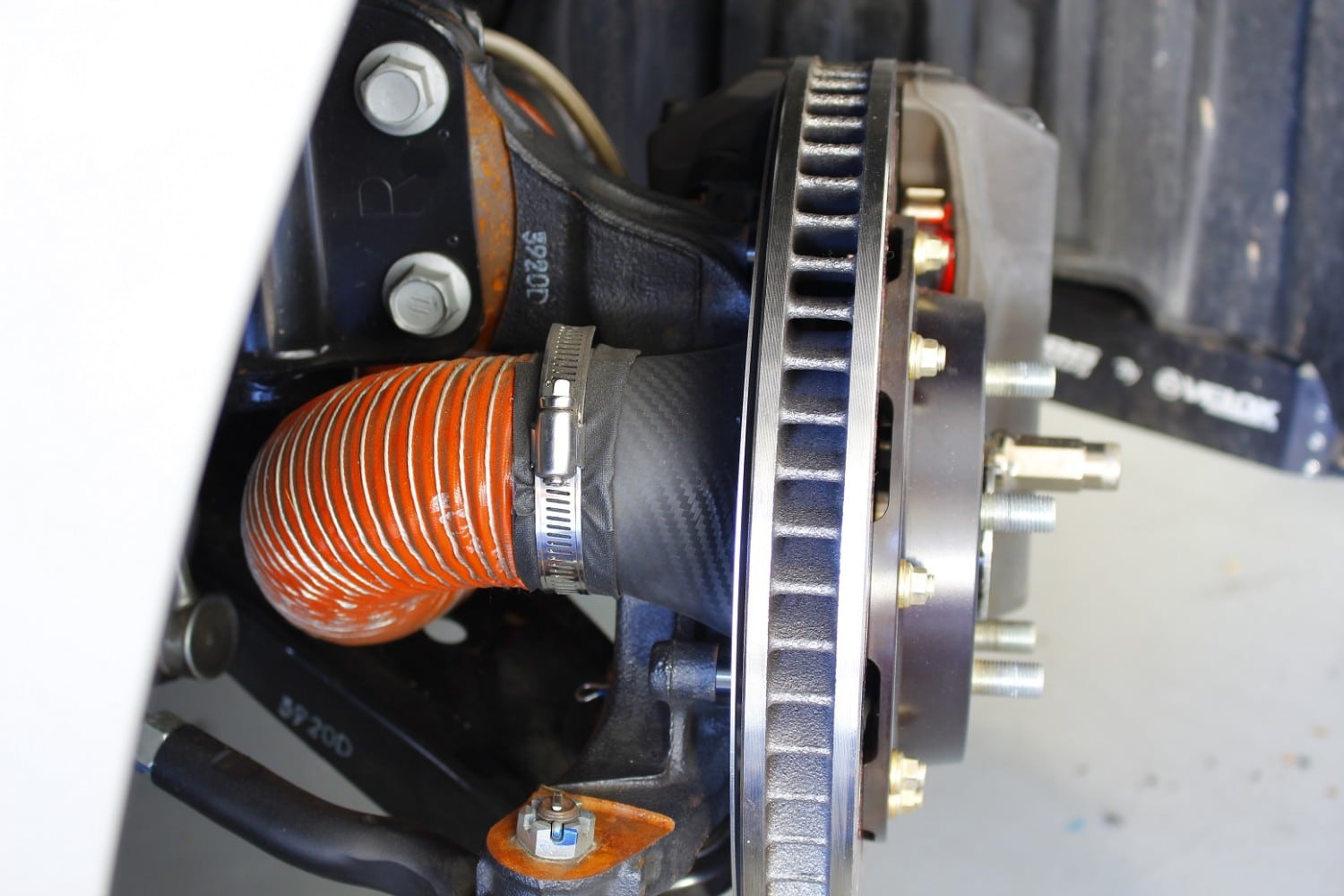

Verus Engineering’s Brake Cooling Kit for ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ takes air from the factory fog light location, a high-pressure zone in the front bumper, and sends it by the shortest practical route to the center of each rotor. Verus reports that it dramatically lowers rotor temperatures on track, which improves pad and rotor wear. The ducting follows an OEM-style layout developed from in-house scan data and 3D printing, and a stainless backing plate adds more airflow at the rotor. It suits the track day owner who sees brake fade; a street-only car does not need it, especially since it requires removing the washer fluid reservoir.

Features

Feeds air directly into the center of the rotor
Pulls air from the high-pressure zone in the front bumper
Keeps the duct route short to maximize cooling
Fits in a few hours with minimal hand tools and know-how
Steering rack limiter kit supplied in the box

What’s Included

Backing plates with riveted 316L 3D printed stainless ducts (L/R)
Fender pancake ducts (x2)
Fender pancake duct brackets (x2)
Foglight ducts (x2)
Foglight duct brackets for 2013-2016 cars (x2) and 2017 and later cars (x2)
2.5 inch pre-cut high-temperature silicone brake hose (x2)
3.0 inch pre-cut neoprene brake hose (x2)
Stainless hose clamps, 3.0 inch (x4) and 2.5 inch (x4)
Steering rack limiter kit
Hardware kit

Applications

Scion FR-S: ZN6 | 2013-2016
Subaru BRZ: ZC6 | 2013-2020
Toyota 86: ZN6 | 2017-2020

Notes

Installing the Brake Cooling Kit for ZN6 requires removing the factory washer fluid reservoir
To keep washer fluid, Verus sells a smaller Washer Fluid Reservoir Kit separately
Foglight duct brackets for both the 2013-2016 and 2017-2020 bumpers come in the kit
Verus publishes an install manual and an install video for the ducts
See every Verus Engineering part for the ZN6 Toyota 86, Scion FR-S and ZC6 Subaru BRZ
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Do I have to remove the washer fluid reservoir to fit the Brake Cooling Kit for ZN6? Yes. The Brake Cooling Kit for ZN6 needs the space taken by the factory washer fluid reservoir, so the reservoir comes out during installation. Verus Engineering offers a smaller replacement reservoir, sold separately as its Washer Fluid Reservoir Kit, which lets owners run the brake ducts and keep working windshield washers.
Where does the brake cooling kit get its air? It uses the factory fog light location as the inlet, which sits in a high-pressure zone at the front bumper. A 3D printed carbon nylon inlet duct collects the air, and Verus Engineering supplies separate foglight duct brackets for the 2013-2016 and 2017 and later bumpers, so one kit covers every first-generation 86, FR-S and BRZ.
How much does the kit reduce brake temperatures? Verus Engineering states that the kit dramatically reduces rotor temperatures on track, though it publishes no figure for the 86, FR-S or BRZ. Cooler rotors improve pad and rotor wear and help the brakes keep doing their job through a session, because the air arrives at the center of the rotor through a stainless backing plate duct.
How hard is the brake cooling kit to install? Verus Engineering describes it as an OEM-type install that takes a few hours with minimal hand tools and know-how. Every hose comes pre-cut, all clamps and hardware are supplied, and Verus publishes an install manual and an install video. Plan for the washer fluid reservoir removal and the included steering rack limiter as part of the job.
What materials are used in the brake ducts? The backing plates are stainless steel with riveted 316L stainless ducts made by 3D printing, the fender pancake ducts are hard plastic and the inlet duct is 3D printed carbon nylon. Hose is pre-cut 3 inch neoprene and 2.5 inch high-temperature silicone, joined with stainless clamps, and Verus Engineering makes the kit in the U.S.A.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
