Why does the Brake Cooling Kit for A90 include a steering rack limiter?

The Brake Cooling Kit for A90 routes ducting through the wheel well, and the steering rack limiter Verus Engineering includes stops the wheels turning far enough to touch it at full lock. It also protects the ducts on cars with very wide wheels. Verus states one limiter per side widens the turning circle by about 1.5 feet.

Does the Verus brake cooling kit work with aftermarket brakes?

Yes. Verus Engineering states the kit increases the cooling capacity of both factory and aftermarket brake systems on the Mk5 Supra, because it feeds air to the rotor center through a new stainless backing plate. Verus has not published clearance data for specific big brake kits, so confirm the fit with the brake kit maker first.

How long does the Supra brake cooling kit take to install?

Verus Engineering says the kit installs in a few hours with minimal hand tools and know-how, because it follows an OEM-style layout and arrives with pre-cut silicone hose, stainless clamps and all the hardware needed. Verus publishes an install video for the ducts and a separate one for the steering rack limiter.

Do I need brake cooling for track days in my GR Supra?

Yes, if the pedal goes long or the brakes fade late in a session. Verus Engineering built the kit to reduce brake fade on the Mk5 Supra by feeding the high-pressure air at the factory brake inlet straight into the rotor center. Cooler rotors and pads hold their friction for longer on a hot track.

What is the brake cooling kit made from?

The fender transition ducts are 2x2 twill carbon fiber, autoclave cured, and the hose is 2.5 inch high-temperature silicone, cut to length. The backing plates are stainless steel carrying 316L stainless ducts that Verus Engineering 3D prints and rivets in place, with an integrated ball joint shield and stainless clamps.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Brake Cooling Kit for A90 Toyota GR Supra

Verus Engineering’s Brake Cooling Kit for A90 Toyota GR Supra attacks brake fade at its source, taking the high-pressure air already reaching the factory brake inlet and driving it into the center of the rotor by the shortest route the chassis allows. Laid out OEM-style from Verus scan data and CFD, it raises the cooling capacity of factory and aftermarket brakes alike, for the owner who has felt the pedal soften late in a hard session.

Construction

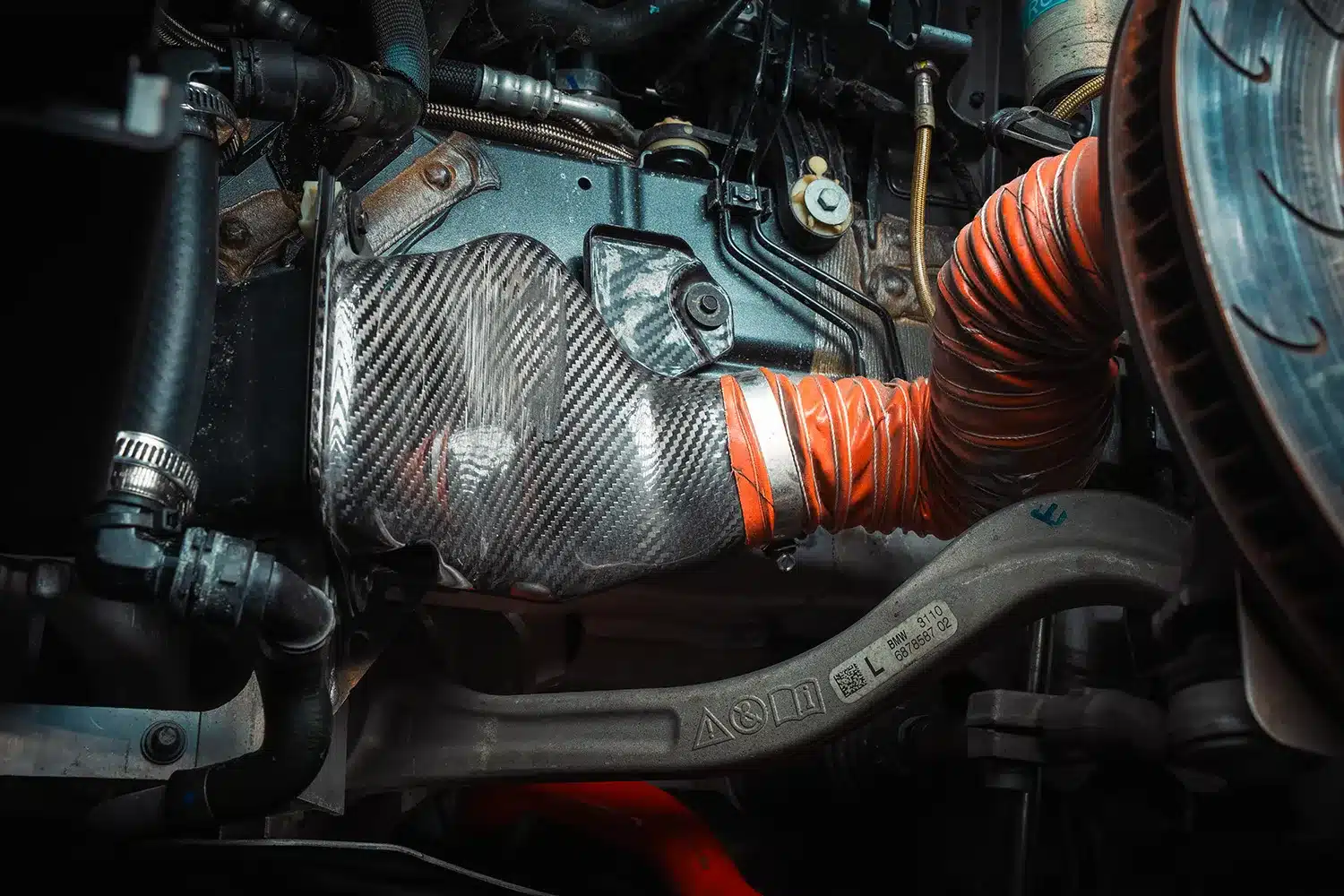

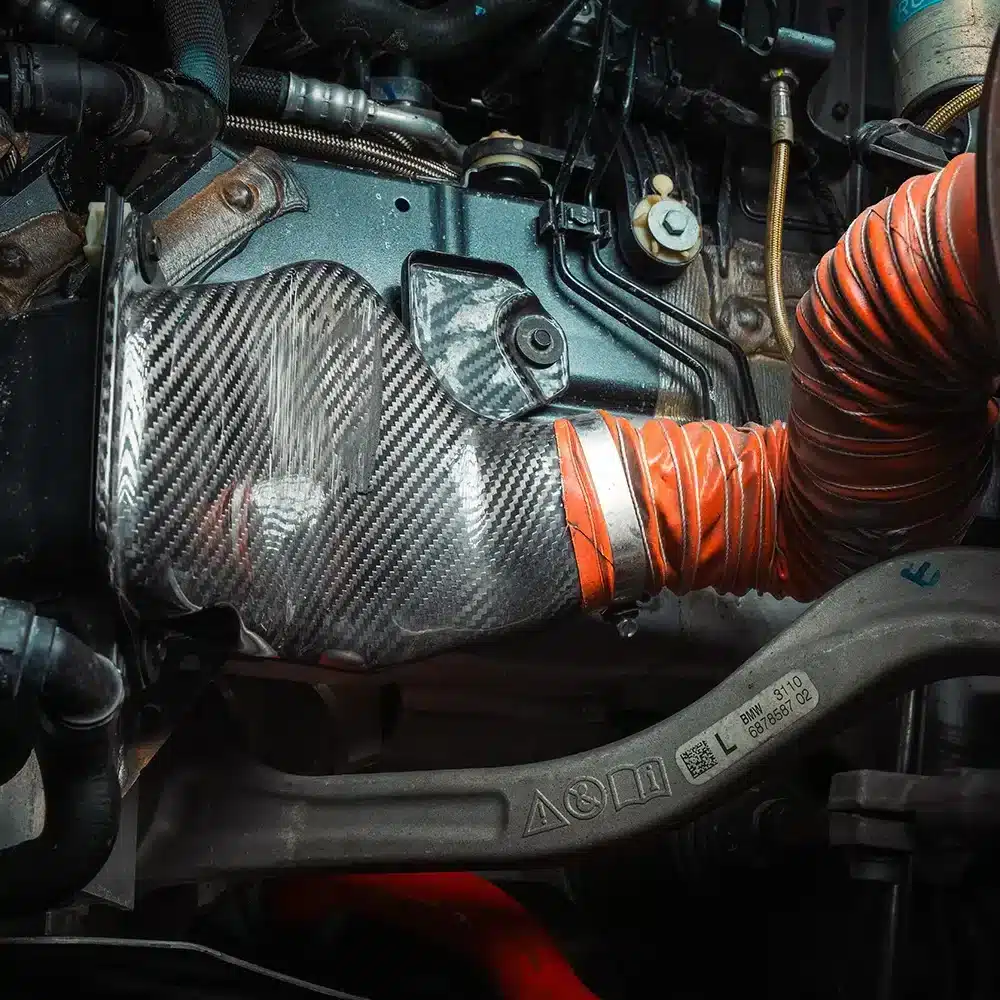

A carbon fender transition duct, 2×2 twill and autoclave cured, holds a constant cross-section so the airflow is not choked, and its pancake profile clears the wheel. Pre-cut 2.5 inch silicone hose feeds a stainless backing plate, where a riveted, 3D printed 316L stainless duct aims air at the rotor center. The plate carries an integrated ball joint shield.

Features

Short routing for maximum cooling efficiency
Installs in a few hours with minimal hand tools
Steering rack limiter kit included for clearance at full lock
Pre-cut high-temperature hose, stainless clamps and all hardware supplied

What’s Included

Backing plates with riveted 316L 3D printed stainless ducts (L/R)
Carbon fiber fender transition ducts (L/R)
2.5 inch silicone hose, cut to size (x2)
Stainless hose clamps (x4)
Zip ties (x2)
Steering rack limiter kit

Applications

Toyota GR Supra: A90 | 2020-2026

Notes

The included steering rack limiter reduces steering angle so tires and ducting keep clearance at full lock; Verus states one limiter per side widens the turning circle by about 1.5 ft
Verus publishes install videos for the Brake Cooling Kit for A90 and for the steering rack limiter
Verus has not published fitment data for specific big brake kits; confirm clearance with the brake kit maker
See every Verus Engineering part for the A90 Toyota GR Supra
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Why does the Brake Cooling Kit for A90 include a steering rack limiter? The Brake Cooling Kit for A90 routes ducting through the wheel well, and the steering rack limiter Verus Engineering includes stops the wheels turning far enough to touch it at full lock. It also protects the ducts on cars with very wide wheels. Verus states one limiter per side widens the turning circle by about 1.5 feet.
Does the Verus brake cooling kit work with aftermarket brakes? Yes. Verus Engineering states the kit increases the cooling capacity of both factory and aftermarket brake systems on the Mk5 Supra, because it feeds air to the rotor center through a new stainless backing plate. Verus has not published clearance data for specific big brake kits, so confirm the fit with the brake kit maker first.
How long does the Supra brake cooling kit take to install? Verus Engineering says the kit installs in a few hours with minimal hand tools and know-how, because it follows an OEM-style layout and arrives with pre-cut silicone hose, stainless clamps and all the hardware needed. Verus publishes an install video for the ducts and a separate one for the steering rack limiter.
Do I need brake cooling for track days in my GR Supra? Yes, if the pedal goes long or the brakes fade late in a session. Verus Engineering built the kit to reduce brake fade on the Mk5 Supra by feeding the high-pressure air at the factory brake inlet straight into the rotor center. Cooler rotors and pads hold their friction for longer on a hot track.
What is the brake cooling kit made from? The fender transition ducts are 2×2 twill carbon fiber, autoclave cured, and the hose is 2.5 inch high-temperature silicone, cut to length. The backing plates are stainless steel carrying 316L stainless ducts that Verus Engineering 3D prints and rivets in place, with an integrated ball joint shield and stainless clamps.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
