How is the Bottom Mount UCW Rear Wing Kit for VB different from the swan neck kit?

The Bottom Mount UCW Rear Wing Kit for VB supports the element from below on broad 5-axis machined 6061-T6 mounts shaped to the curves of the VB, while the swan neck kit hangs it from above with styling taken from the Nurburgring 24 Hours WRX. Both adjust from 0 to 15 degrees, and Verus Engineering has published a video explaining the differences.

Was the bottom mount UCW wing tested in a wind tunnel?

Yes. Verus Engineering optimized the airfoil with the ANSYS adjoint solver, refined it using wind tunnel testing and shaped it further through CFD analysis for a better lift-to-drag ratio. Verus reports that its CFD results and real-world testing correlate closely, and the VB version is rated to generate and withstand more than 500 lb of downforce.

Does the VB WRX need a front splitter with this wing?

Yes, for a balanced car on track. Verus Engineering designed the UCW to balance significant front aero, naming its own VB front splitter as an example. Fitting the wing to a WRX with a stock nose adds rear grip without matching front grip, which leaves the car pushing wide at high speed.

How are the bottom mount trunk mounts made?

Verus Engineering machines the mounts in-house from 6061-T6 aluminum on 5-axis CNC machines. They spread across a large surface area of the VB trunk, and their shape complements the natural curves of the car. Stainless hardware is used throughout, and Verus supplies every template needed to position the mounts during the install.

When does a Verus bottom mount wing ship?

Verus Engineering assembles every bottom mount UCW wing for the VB to order and ships it within 5 business days of receiving the order unless a different lead time is stated. Both versions include a pair of endplates and a hardware kit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Bottom Mount UCW Rear Wing Kit for VB Subaru WRX

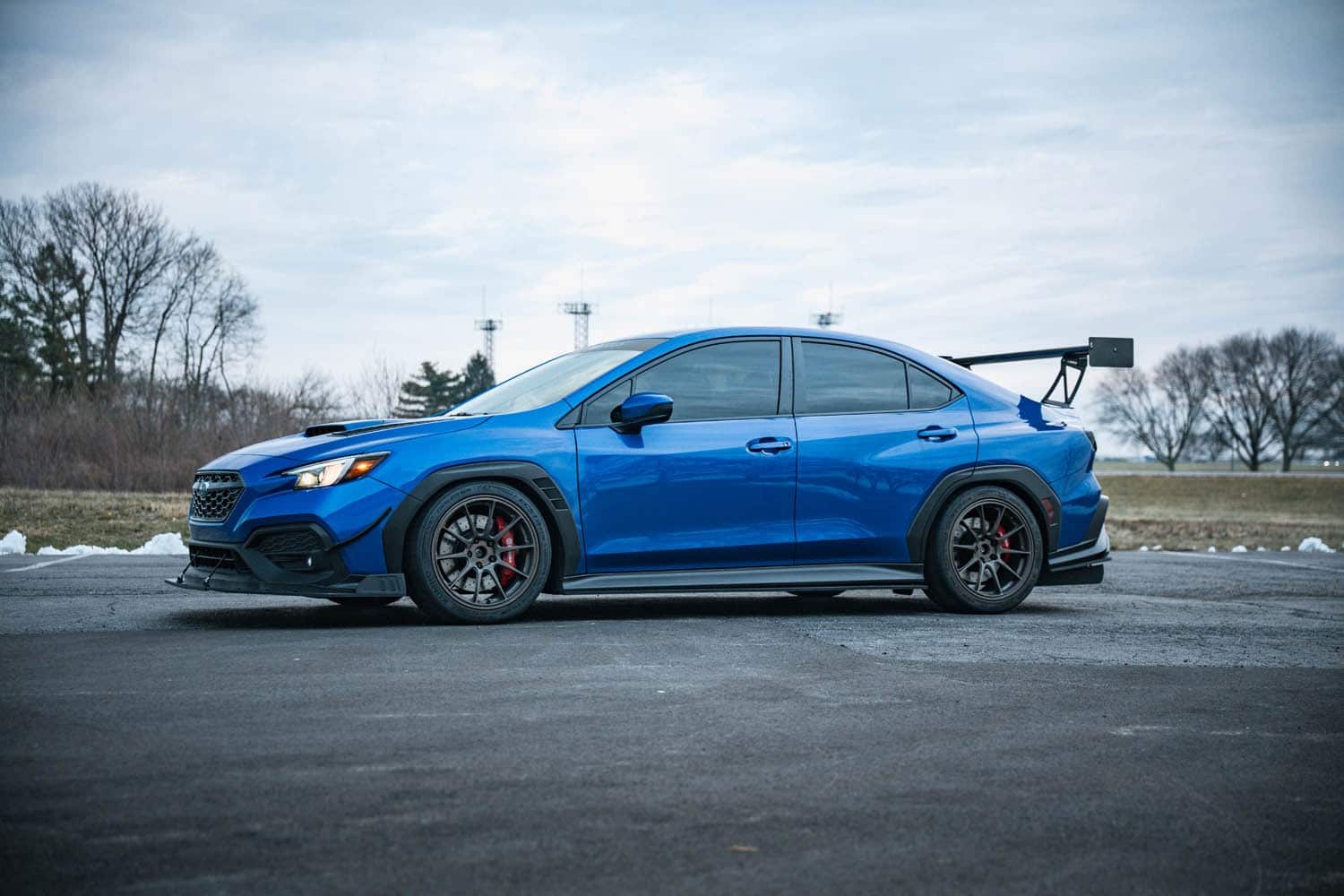

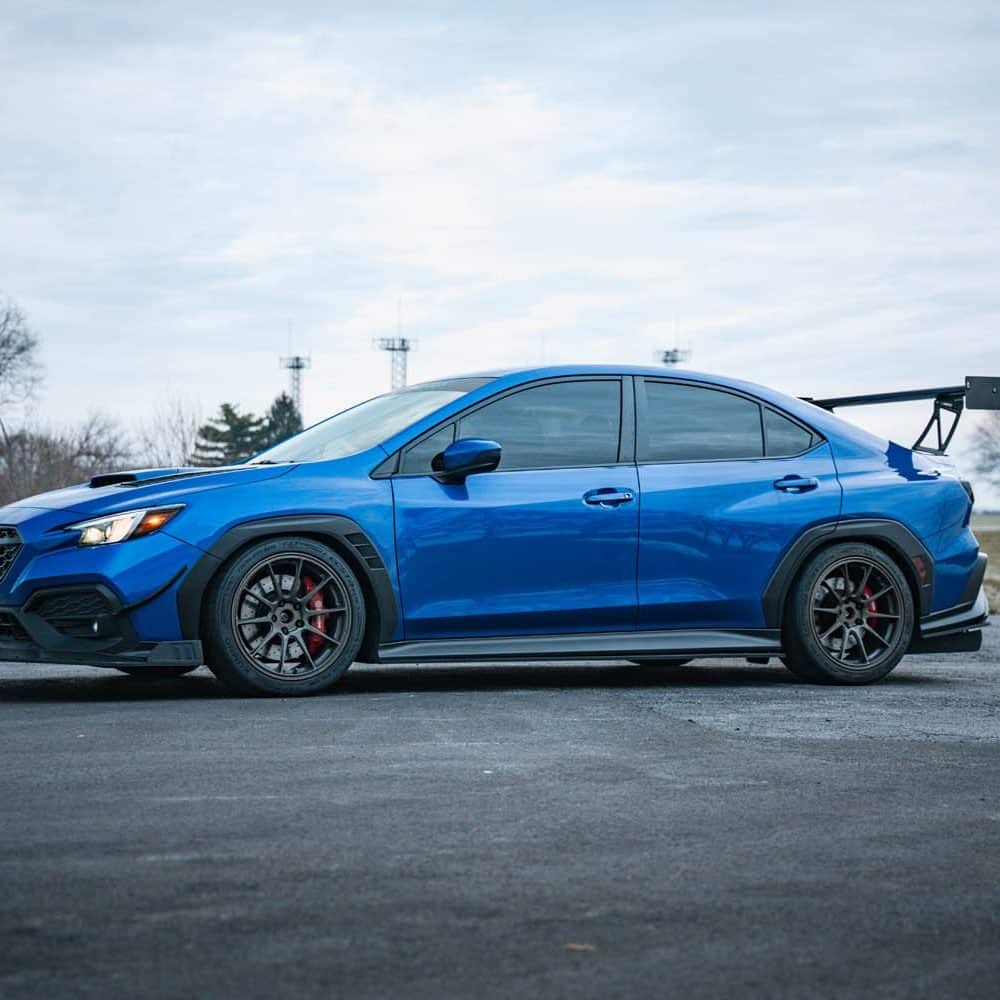

Verus Engineering’s Bottom Mount UCW Rear Wing Kit for VB Subaru WRX supports its carbon element from underneath, on 6061-T6 mounts that Verus machines in-house on 5-axis CNC equipment. The shape of those mounts follows the curves of the 2022 and later WRX, so the wing reads as part of the car. The airfoil was optimized with the ANSYS adjoint solver and refined in wind tunnel testing, and Verus rates the assembly to make and withstand more than 500 lb of downforce.

Choosing This Wing

Verus aims the bottom mount UCW at track drivers who need a large step in rear downforce to balance a significant front package, such as the Verus Front Splitter for VB Subaru WRX. Both UCW versions adjust from 0 to 15 degrees and form the rear of the Ventus 3 kit; a street WRX without front aero does not need this much wing.

Features

Airfoil optimized with the ANSYS adjoint solver and refined in wind tunnel testing
6061-T6 mounts machined in-house on 5-axis CNC machines
Trunk mounts span a large surface area of the deck lid
Stainless hardware with every template needed for the install

What’s Included

Carbon fiber rear wing assembly
Rear wing uprights, machined aluminum (x2)
Rear wing trunk mounts, machined aluminum (x2)
Rear wing endplates (x2)
Hardware kit, complete

Applications

Subaru WRX: VB | 2022-present

Notes

The Bottom Mount UCW Rear Wing Kit for VB is assembled to order and ships within 5 business days unless Verus states otherwise
Two endplates come with every kit; the Included option under Carbon Endplates makes them carbon fiber
Verus supplies the templates needed for the install and publishes an informative packet, install manual and install video
For swan neck uprights styled after the Nurburgring 24 Hours WRX, see the Verus Engineering UCW Rear Wing Kit for VB Subaru WRX
See every Verus Engineering part for the VB Subaru WRX
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

How is the Bottom Mount UCW Rear Wing Kit for VB different from the swan neck kit? The Bottom Mount UCW Rear Wing Kit for VB supports the element from below on broad 5-axis machined 6061-T6 mounts shaped to the curves of the VB, while the swan neck kit hangs it from above with styling taken from the Nurburgring 24 Hours WRX. Both adjust from 0 to 15 degrees, and Verus Engineering has published a video explaining the differences.
Was the bottom mount UCW wing tested in a wind tunnel? Yes. Verus Engineering optimized the airfoil with the ANSYS adjoint solver, refined it using wind tunnel testing and shaped it further through CFD analysis for a better lift-to-drag ratio. Verus reports that its CFD results and real-world testing correlate closely, and the VB version is rated to generate and withstand more than 500 lb of downforce.
Does the VB WRX need a front splitter with this wing? Yes, for a balanced car on track. Verus Engineering designed the UCW to balance significant front aero, naming its own VB front splitter as an example. Fitting the wing to a WRX with a stock nose adds rear grip without matching front grip, which leaves the car pushing wide at high speed.
How are the bottom mount trunk mounts made? Verus Engineering machines the mounts in-house from 6061-T6 aluminum on 5-axis CNC machines. They spread across a large surface area of the VB trunk, and their shape complements the natural curves of the car. Stainless hardware is used throughout, and Verus supplies every template needed to position the mounts during the install.
When does a Verus bottom mount wing ship? Verus Engineering assembles every bottom mount UCW wing for the VB to order and ships it within 5 business days of receiving the order unless a different lead time is stated. Both versions include a pair of endplates and a hardware kit.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
