Does the Air Oil Separator for ZN8 include a drain valve?

No. The Air Oil Separator for ZN8 ships with the assembled can, four coalescent filters, a mounting bracket, 1/2 inch and 5/8 inch rubber hose and a hardware bag, but no drain valve. Verus Engineering machined the base of the can to accept a Subaru Fumoto valve for quick, clean draining.

Will the Verus AOS fit a right-hand-drive GR86 or BRZ?

No. Verus Engineering supplies a sheet aluminum bracket made for left-hand-drive BRZ and GR86 models only, so the kit as sold suits North American cars and other left-hand-drive markets. Owners of right-hand-drive cars should contact BA before ordering, because the bracket is not made for their engine bay layout.

Why does a GR86 or BRZ need an air oil separator?

Crankcase ventilation returns blow-by gases, carrying oil mist, to the intake. Verus Engineering explains that oil in the intake reduces octane, which can lead to detonation, reduced power and carbon build-up. The AOS strips that oil out first with four 5 micron coalescent filters, internal baffles and stainless mesh.

What optional kits are available for the Verus AOS?

Verus Engineering offers two add-ons, sold separately: an AOS drain back kit and an AOS coolant add-on kit, which tailor the separator to how the car is used. Neither is needed for installation; the standard kit has everything required to mount and plumb the can in a left-hand-drive car.

Will the anodized color fade?

Yes, gradually. Verus Engineering notes that engine bay heat can fade anodized parts over time, in any of the three colors. The change is cosmetic: the body is CNC machined 6061-T6 aluminum with Mil-Spec O-ring bosses, and the anodizing also protects it against corrosion.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

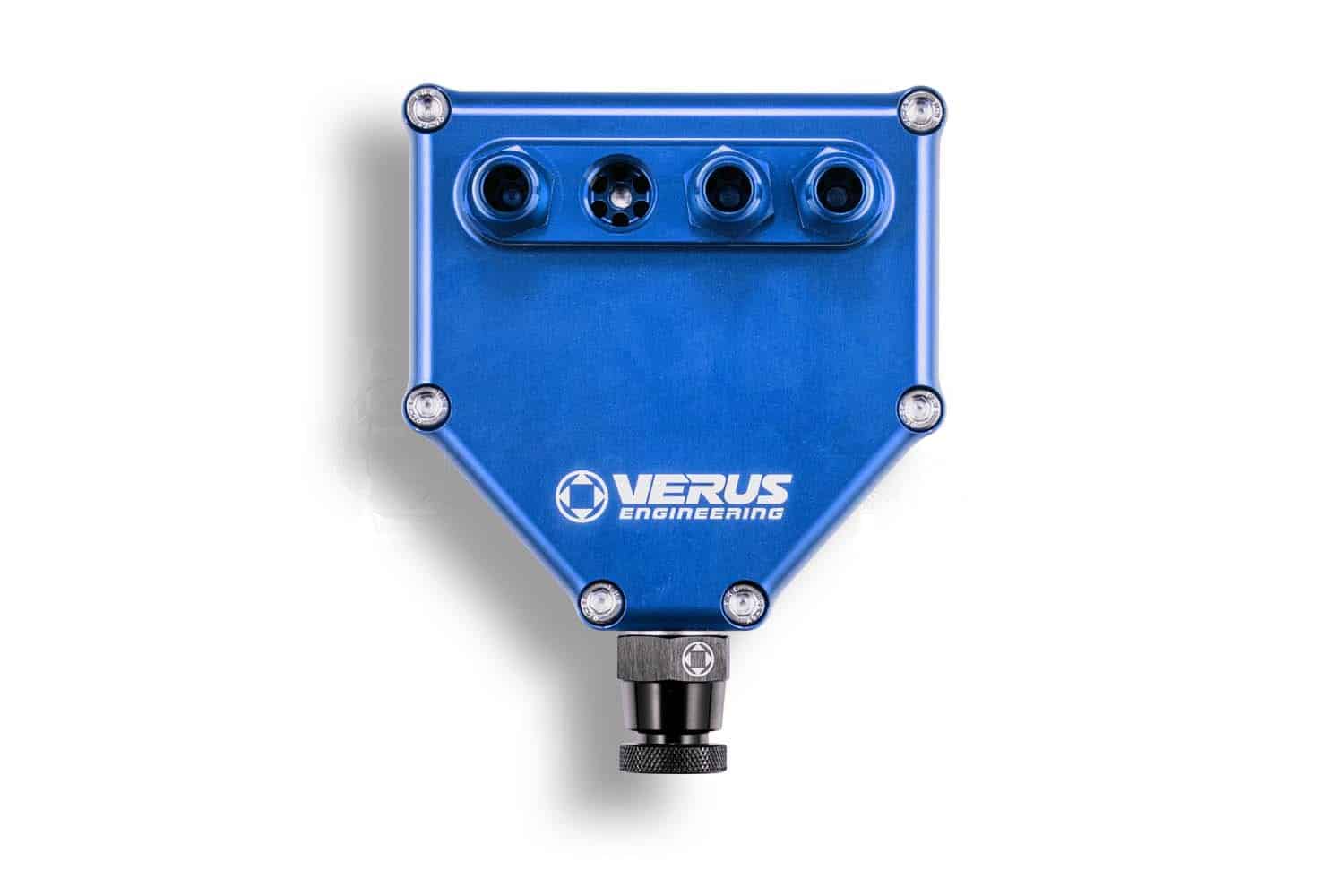

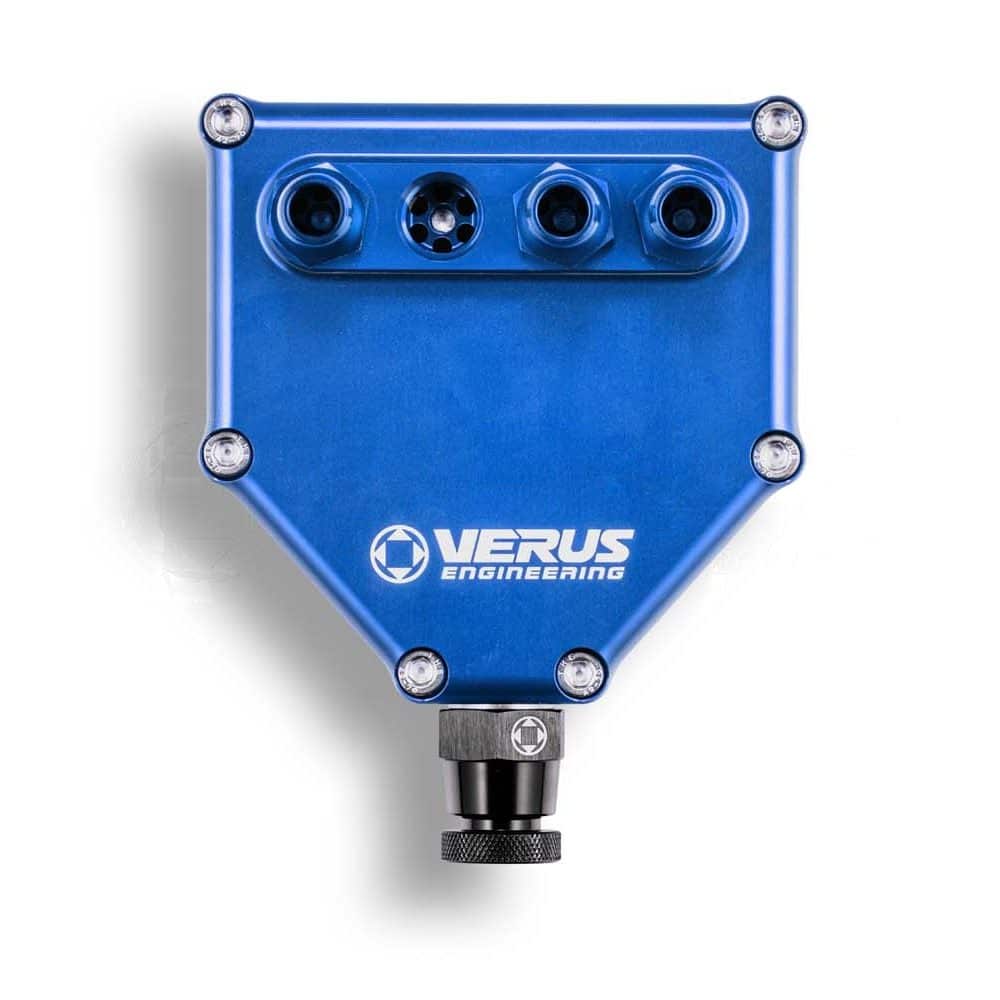

Verus Engineering Air Oil Separator for ZN8 Toyota GR86 and ZD8 Subaru BRZ

Verus Engineering’s Air Oil Separator for ZN8 Toyota GR86 and ZD8 Subaru BRZ catches the oil carried in crankcase blow-by before it reaches the intake, where it lowers octane and invites detonation, lost power and carbon deposits. Four 5 micron coalescent filters, one on each inlet and outlet, work with internal baffles and stainless mesh. Optional drain back and coolant add-on kits let it grow with a dedicated track car, while the base kit suits a car shared between road and circuit.

Fit and Options

The body is CNC machined from 6061-T6 aluminum with Mil-Spec O-ring bosses, anodized against corrosion, laser engraved and made in the U.S.A. A sheet aluminum bracket mounts it in left-hand-drive engine bays, and the base of the can accepts a Subaru Fumoto drain valve for quick emptying.

Features

Four 5 micron coalescent filters, one on each inlet and outlet
Internal baffling and stainless mesh for further oil separation
CNC machined 6061-T6 body with Mil-Spec O-ring bosses
Anodized in blue, black or red, then CNC laser engraved

What’s Included

Assembled AOS with internal baffling and stainless mesh
Coalescent filters (x4)
Sheet aluminum mounting bracket for left-hand-drive BRZ and GR86
1/2 inch rubber hose
5/8 inch rubber hose
Hardware bag with every part needed for the install

Applications

Subaru BRZ: ZD8 | 2022-present
Toyota GR86: ZN8 | 2022-present

Notes

The supplied bracket fits left-hand-drive cars only
No drain valve is included; the base of the can accepts a Subaru Fumoto drain valve
Verus sells an AOS drain back kit and an AOS coolant add-on kit separately as optional extras
Anodized finishes can fade over time from engine bay heat
Verus publishes an install manual for the Air Oil Separator for ZN8, plus its own install video and one from Driven Media
See every Verus Engineering part for the ZN8 Toyota GR86 and ZD8 Subaru BRZ
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Does the Air Oil Separator for ZN8 include a drain valve? No. The Air Oil Separator for ZN8 ships with the assembled can, four coalescent filters, a mounting bracket, 1/2 inch and 5/8 inch rubber hose and a hardware bag, but no drain valve. Verus Engineering machined the base of the can to accept a Subaru Fumoto valve for quick, clean draining.
Will the Verus AOS fit a right-hand-drive GR86 or BRZ? No. Verus Engineering supplies a sheet aluminum bracket made for left-hand-drive BRZ and GR86 models only, so the kit as sold suits North American cars and other left-hand-drive markets. Owners of right-hand-drive cars should contact BA before ordering, because the bracket is not made for their engine bay layout.
Why does a GR86 or BRZ need an air oil separator? Crankcase ventilation returns blow-by gases, carrying oil mist, to the intake. Verus Engineering explains that oil in the intake reduces octane, which can lead to detonation, reduced power and carbon build-up. The AOS strips that oil out first with four 5 micron coalescent filters, internal baffles and stainless mesh.
What optional kits are available for the Verus AOS? Verus Engineering offers two add-ons, sold separately: an AOS drain back kit and an AOS coolant add-on kit, which tailor the separator to how the car is used. Neither is needed for installation; the standard kit has everything required to mount and plumb the can in a left-hand-drive car.
Will the anodized color fade? Yes, gradually. Verus Engineering notes that engine bay heat can fade anodized parts over time, in any of the three colors. The change is cosmetic: the body is CNC machined 6061-T6 aluminum with Mil-Spec O-ring bosses, and the anodizing also protects it against corrosion.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
