Are the coolant and drain kits included with the Air Oil Separator for VA?

No. The Air Oil Separator for VA ships with the assembled unit, four filters, a VA bracket, hoses and hardware. The AOS Coolant Add-On Kit, Verus Engineering part A0070A, and the automatic drain back kit for the FA20, part A0416A, are optional extras for owners in cold climates or who prefer not to drain the unit by hand.

Will the VA WRX separator fit a VA STI?

No. This separator comes with a bracket and hose set made for the left-hand-drive VA WRX and its FA20DIT engine. Verus Engineering builds a separate Air Oil Separator for the VA STI and its EJ257, which uses an EJ 2.5L drain kit instead of the FA20 version, so order the unit that matches the engine.

Do I need a new tune after fitting the AOS?

No. Verus Engineering designed the separator to install like an OE component with no change to the tune or to the engine setup. It sits in the crankcase ventilation path and catches oil before the air returns to the intake, and the oil it collects stays in the unit until it is drained.

What harm does crankcase oil do in a turbocharged WRX intake?

Oil vapor that reaches the intake lowers the effective octane of the charge, which raises the risk of detonation and can cost power, and it also leaves carbon deposits behind. Verus Engineering built its AOS for this one job, using four 5-micron coalescent filters, baffling and stainless mesh to remove the oil before the air reaches the intake.

How does an AOS compare with a basic catch can?

In most cases Verus Engineering steers owners toward its AOS over a basic catch can. Catch cans work, but Verus sees a proper air oil separator as the set-and-forget option that needs little attention, particularly with the optional drain back kit fitted. Its sales and brand manager RJ explains the differences in a dedicated video.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Verus Engineering Air Oil Separator for VA Subaru WRX

Verus Engineering’s Air Oil Separator for VA Subaru WRX keeps crankcase oil out of the intake of the FA20DIT, where it lowers effective octane and opens the door to detonation, lost power and carbon build-up. One billet unit serves both the crankcase vent location and the intake filter location, and four 5-micron coalescent filters, one on each inlet and outlet, work with internal baffles and stainless mesh to strip the oil out. It installs like a factory component with no change to the tune, which makes it an easy decision for a WRX that sees boost and hard driving.

Options and Finish

An optional coolant add-on kit runs hot coolant through the body to limit condensation in colder months, and an FA20 drain kit lets the unit drain back automatically instead of being emptied by hand.

Features

Internal baffling and stainless mesh behind the filters
CNC machined from 6061-T6 aluminum in Indianapolis
Anodized finish in a choice of blue, black or red

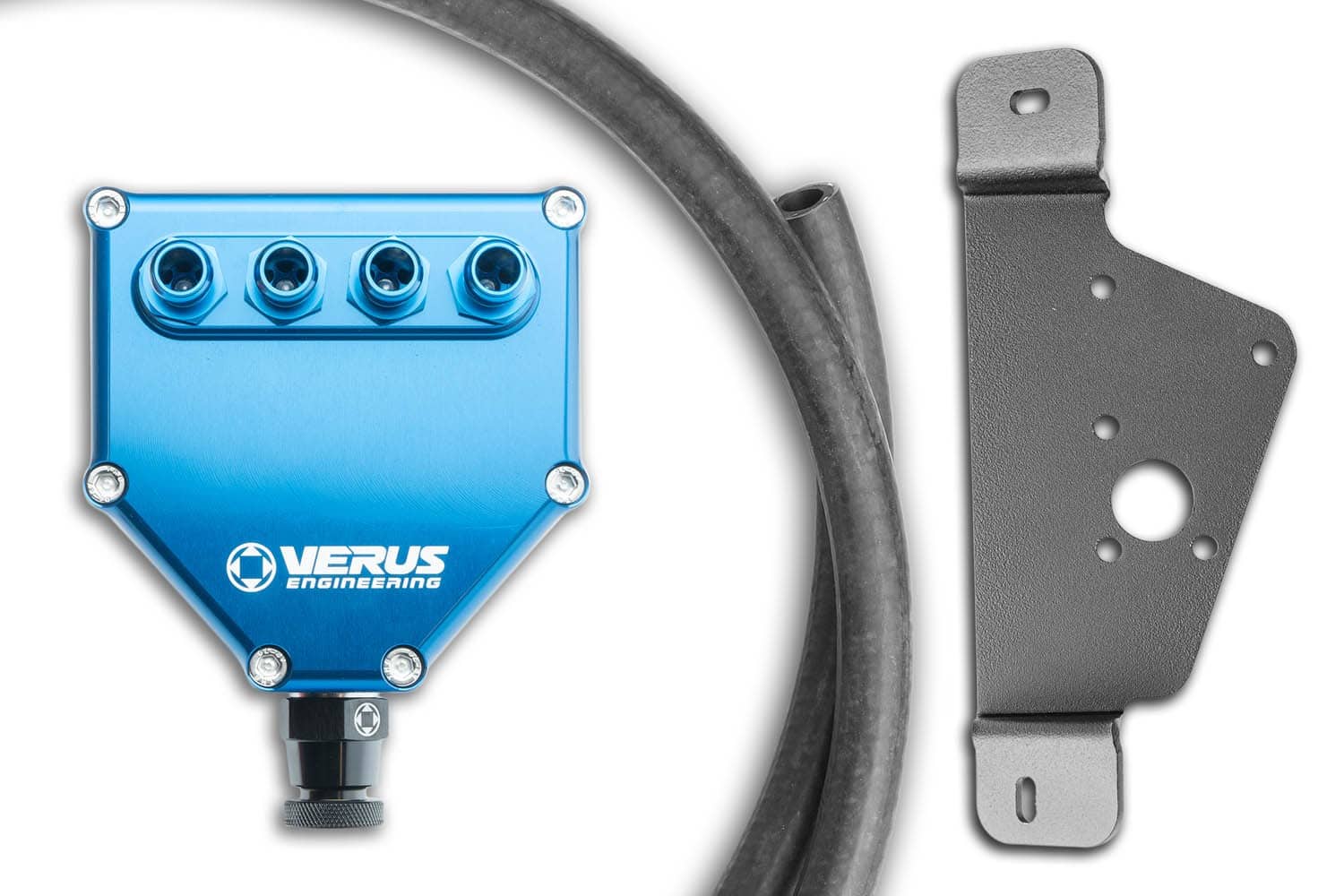

What’s Included

AOS, assembled, with internal baffling and stainless mesh
Coalescent filters (x4)
Sheet steel bracket for the VA chassis, left-hand drive only
Rubber hose in 3/4, 1/2 and 3/8 inch sizes
Hardware bag with every part for the install

Applications

Subaru WRX: VA | 2015-2021 | 2.0L FA20DIT

Notes

The AOS Coolant Add-On Kit, Verus part A0070A, and the FA20 AOS Drain Kit, Verus part A0416A, are sold separately
The mounting bracket fits left-hand-drive VA WRX models only
The Air Oil Separator for VA WRX is specific to the FA20DIT; the EJ257 STI takes the Verus Engineering Air Oil Separator for VA Subaru WRX STI
Anodized finishes may fade over time from engine bay heat; Verus publishes an install manual and install video
See every Verus Engineering part for the VA Subaru WRX
Verus covers its parts with a 1-year limited warranty against manufacturing defects

Frequently Asked Questions

Are the coolant and drain kits included with the Air Oil Separator for VA? No. The Air Oil Separator for VA ships with the assembled unit, four filters, a VA bracket, hoses and hardware. The AOS Coolant Add-On Kit, Verus Engineering part A0070A, and the automatic drain back kit for the FA20, part A0416A, are optional extras for owners in cold climates or who prefer not to drain the unit by hand.
Will the VA WRX separator fit a VA STI? No. This separator comes with a bracket and hose set made for the left-hand-drive VA WRX and its FA20DIT engine. Verus Engineering builds a separate Air Oil Separator for the VA STI and its EJ257, which uses an EJ 2.5L drain kit instead of the FA20 version, so order the unit that matches the engine.
Do I need a new tune after fitting the AOS? No. Verus Engineering designed the separator to install like an OE component with no change to the tune or to the engine setup. It sits in the crankcase ventilation path and catches oil before the air returns to the intake, and the oil it collects stays in the unit until it is drained.
What harm does crankcase oil do in a turbocharged WRX intake? Oil vapor that reaches the intake lowers the effective octane of the charge, which raises the risk of detonation and can cost power, and it also leaves carbon deposits behind. Verus Engineering built its AOS for this one job, using four 5-micron coalescent filters, baffling and stainless mesh to remove the oil before the air reaches the intake.
How does an AOS compare with a basic catch can? In most cases Verus Engineering steers owners toward its AOS over a basic catch can. Catch cans work, but Verus sees a proper air oil separator as the set-and-forget option that needs little attention, particularly with the optional drain back kit fitted. Its sales and brand manager RJ explains the differences in a dedicated video.

About Verus Engineering

Verus Engineering designs aerodynamic and performance parts in Indianapolis, Indiana. Two engineers founded it in late 2014 as Velox Motorsports and renamed it in 2017 after a trademark dispute; verus is Latin for true or complete. Each design starts from a 3D scan of the car, is developed with CFD and finite element analysis and is validated on track, across more than 20 platforms from the GR86 to the C8 Corvette.
