What is the Valvetronic Designs Exhaust System for McLaren 650S made from?

The Exhaust System for McLaren 650S and MP4-12C is built from T304 stainless steel, mandrel-bent at a full 3.0 inches and precision TIG welded at every joint, then finished in anodized gold. Valvetronic Designs backs the tubes and welds with a lifetime of ownership limited warranty against defects in workmanship or material, including penetrating rust.

Does this exhaust fit the MP4-12C as well as the 650S?

Yes. Valvetronic Designs lists fitment for the 2011-2014 McLaren MP4-12C and the 2014-2018 McLaren 650S, which share the same 3.8-liter twin-turbo V8 and the same rear packaging. One system covers both cars, so the choice at checkout is the configuration rather than the model.

What is the difference between the two configurations?

The Sport Catback System covers the rear section and weighs 20lbs. The version with Free Flow Race Front Pipes carries the system further forward at 55lbs, which adds volume and sharpens turbo response. Both share the same 3.0-inch mandrel-bent T304 construction, the same X-pipe and the same anodized gold finish.

What does the X-pipe actually do?

The X-pipe crosses the two banks mid-system so exhaust pulses balance against each other rather than fighting. That balancing is what smooths the harmonics and lifts the 3.8-liter twin-turbo into a higher, harder-edged register. It also helps flow, which the turbochargers reward with a cleaner spool.

Does it work with the factory valve control?

Yes. Valvetronic Designs builds the system around the car's own valve operation rather than a separate aftermarket controller, so the exhaust opens and closes on the logic the McLaren already uses. The drive modes behave the way the owner expects, quiet where the car is meant to be quiet and loud where it is not.

How much power does it add?

Valvetronic Designs does not publish a power figure for this system. Full 3.0-inch mandrel-bent routing means less restriction in comparison to Factory Equipment, and a twin-turbo engine generally responds well to freer flow, but owners fit this system for the sound and the throttle response rather than for a dyno number.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

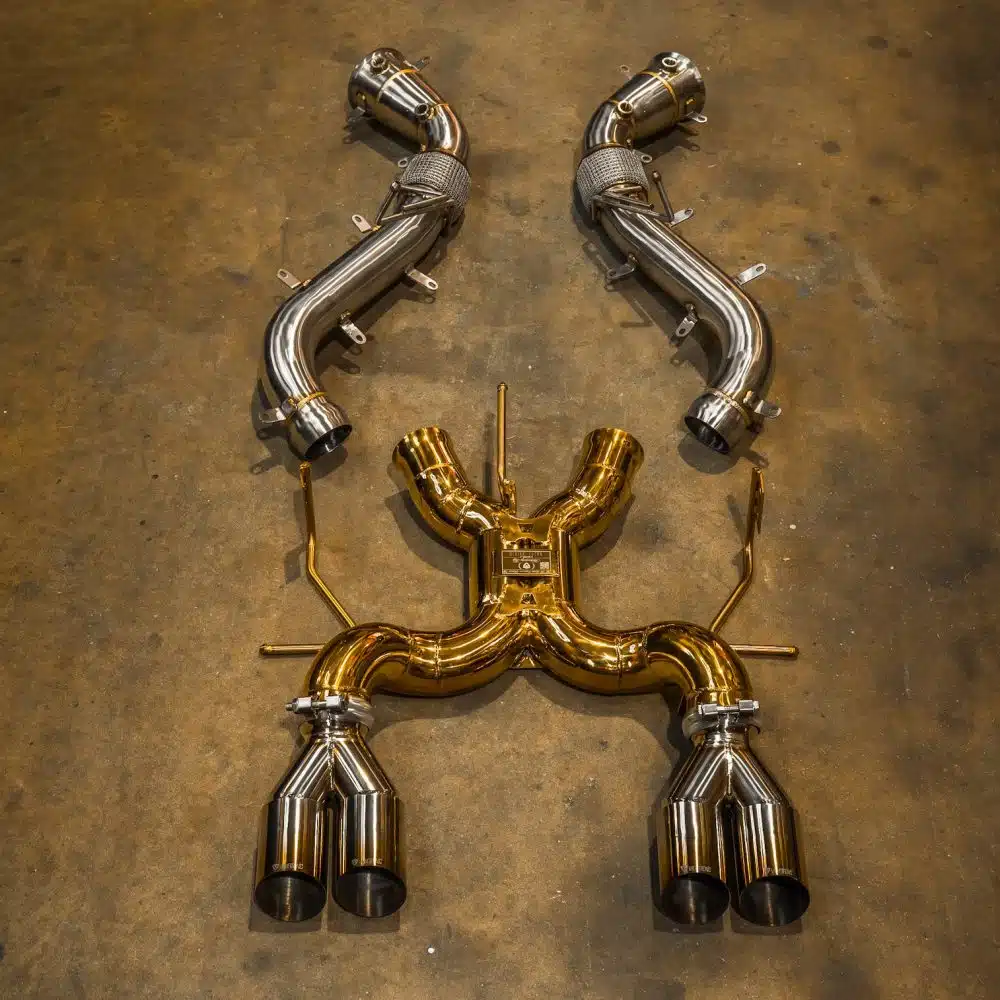

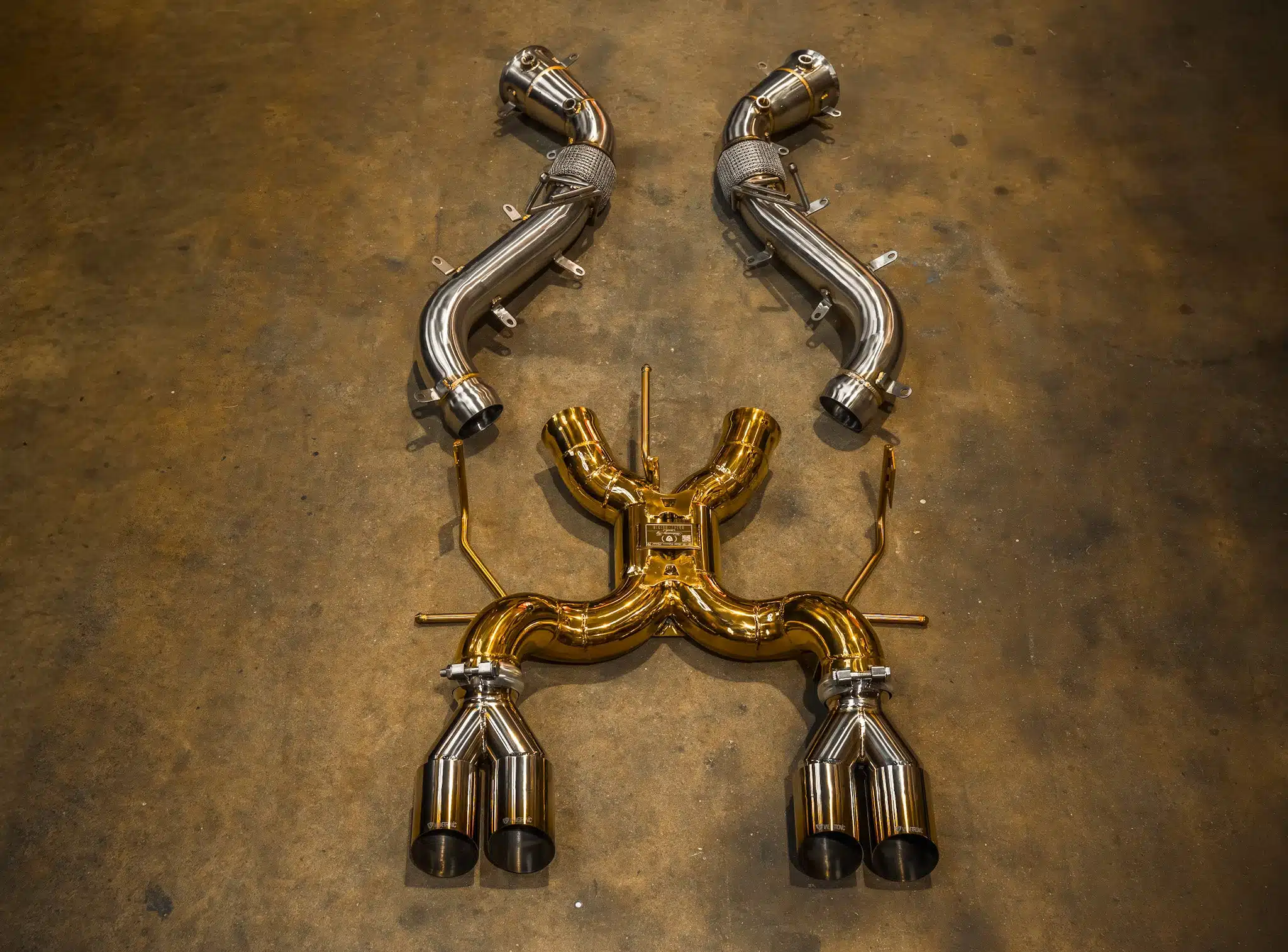

Valvetronic Designs F1 Sport Exhaust System for McLaren 650S and MP4-12C

Valvetronic Designs’ F1 Sport Exhaust System for McLaren 650S and MP4-12C settles the one complaint owners rarely say out loud: these cars go far harder than they sound. Valvetronic designs and builds every system in-house in Boyertown, Pennsylvania, and this one runs full 3.0-inch mandrel-bent tubing front to back, TIG welded at every joint and finished in anodized gold. A signature X-pipe sits at the heart of it, smoothing the harmonics and letting the 3.8-liter twin-turbo V8 find the high, hard-edged voice a mid-engined McLaren has always deserved. Valve control follows the car’s own operation, so it stays civil on a cold morning and comes alive the moment the driver asks.

Construction

The Exhaust System for McLaren 650S and MP4-12C is built from T304 stainless steel and mandrel-bent at a full 3.0 inches, so the tubing holds its diameter through every corner instead of pinching down at the bends. Every joint is precision TIG welded, and the finished system carries an anodized gold treatment that suits a car with its engine bay on display. Valvetronic Designs backs the tubes and welds with a lifetime of ownership limited warranty against defects in workmanship or material, including penetrating rust.

Design and Performance

What separates the Exhaust System for McLaren 650S and MP4-12C from a straight replacement is the X-pipe sitting mid-system, balancing pulses between the banks so the harmonics smooth out instead of clashing. That is where the sharper, more race-bred top end comes from. Full 3.0-inch routing means less restriction in comparison to Factory Equipment, which the turbochargers reward with quicker throttle response and a cleaner spool. Two configurations are offered: the Sport Catback on its own, or the same system paired with Free Flow Race Front Pipes for more volume and a further gain in response.

Features

T304 stainless steel construction with an anodized gold finish
Full 3.0-inch mandrel-bent tubing front to back
Signature X-pipe for smoother harmonics and better turbo efficiency
Precision TIG welded joints
Valve control that follows the car’s own operation, with no separate aftermarket controller
Lightweight construction
Less restriction in comparison to Factory Equipment for sharper throttle response
Sport Catback weighs 20lbs; the version with Free Flow Race Front Pipes weighs 55lbs
Lifetime of ownership limited warranty on stainless tubes and welds
3-year limited warranty on mufflers and resonators
1-year limited warranty on valves and electronics, and on the tip finish

Applications

McLaren 650S: 2014-2018 | 3.8L Twin-Turbo V8
McLaren MP4-12C: 2011-2014 | 3.8L Twin-Turbo V8

Notes

Sold as one complete exhaust system for a single vehicle; the configuration is chosen at checkout
Each Exhaust System for McLaren 650S and MP4-12C is built to order by Valvetronic Designs
Ships direct from Valvetronic Designs in Boyertown, Pennsylvania
Warranty exclusions include heat discoloration, damage from salt and road treatments, and finish damage from chemicals or misuse

Frequently Asked Questions

What is the Valvetronic Designs Exhaust System for McLaren 650S made from? The Exhaust System for McLaren 650S and MP4-12C is built from T304 stainless steel, mandrel-bent at a full 3.0 inches and precision TIG welded at every joint, then finished in anodized gold. Valvetronic Designs backs the tubes and welds with a lifetime of ownership limited warranty against defects in workmanship or material, including penetrating rust.
Does this exhaust fit the MP4-12C as well as the 650S? Yes. Valvetronic Designs lists fitment for the 2011-2014 McLaren MP4-12C and the 2014-2018 McLaren 650S, which share the same 3.8-liter twin-turbo V8 and the same rear packaging. One system covers both cars, so the choice at checkout is the configuration rather than the model.
What is the difference between the two configurations? The Sport Catback System covers the rear section and weighs 20lbs. The version with Free Flow Race Front Pipes carries the system further forward at 55lbs, which adds volume and sharpens turbo response. Both share the same 3.0-inch mandrel-bent T304 construction, the same X-pipe and the same anodized gold finish.
What does the X-pipe actually do? The X-pipe crosses the two banks mid-system so exhaust pulses balance against each other rather than fighting. That balancing is what smooths the harmonics and lifts the 3.8-liter twin-turbo into a higher, harder-edged register. It also helps flow, which the turbochargers reward with a cleaner spool.
Does it work with the factory valve control? Yes. Valvetronic Designs builds the system around the car’s own valve operation rather than a separate aftermarket controller, so the exhaust opens and closes on the logic the McLaren already uses. The drive modes behave the way the owner expects, quiet where the car is meant to be quiet and loud where it is not.
How much power does it add? Valvetronic Designs does not publish a power figure for this system. Full 3.0-inch mandrel-bent routing means less restriction in comparison to Factory Equipment, and a twin-turbo engine generally responds well to freer flow, but owners fit this system for the sound and the throttle response rather than for a dyno number.

About Valvetronic Designs

Valvetronic Designs, based in Boyertown, Pennsylvania, is a leader in high-performance exhaust systems, dedicated to innovation, precision, and enhancing the driving experience. Specializing in bespoke solutions for luxury and performance vehicles such as Lamborghini, Ferrari, and Porsche, Valvetronic combines advanced engineering with meticulous craftsmanship to deliver unparalleled sound and performance. With proprietary technologies like free-flow configurations and double X-pipe designs, their exhaust systems set new benchmarks for exotic and race-inspired tones. Every product is designed and manufactured in-house, ensuring exceptional quality and tailored customization, from fitment precision to sound profiles. Driven by a passion for excellence, Valvetronic Designs strives to create the ultimate auditory and performance experiences for automotive enthusiasts worldwide.
