Does the Ascension-RR fit non-Performance Model 3 trims?

Yes. The Unplugged Performance Ascension-RR fits all 2024 and up Model 3 Highland trims, including RWD, Long Range Dual-Motor, and Performance, delivering improved rear stability on every version.

How much downforce does the Tesla Model 3 Highland rear wing generate?

At 150mph the Ascension-RR generates 2332N (238kg) of rear downforce on its own. Combined with the full Model 3 Performance aero package, total downforce reaches 3155N (322kg) at a 46/54 front-to-rear balance, with the complete kit reaching a CL of 0.48.

Is the wing adjustable?

Yes. The Unplugged Performance Ascension-RR has a 0 degree setting for maximum efficiency and low drag, suited to spirited street driving, and a 4 degree setting for maximum output up to 238kg of rear downforce for track use.

How is the Ascension-RR different from the Ascension-R?

The Ascension-RR is the larger, higher-downforce Unplugged Performance wing, with a near full-width span, adjustable angle, and an optional Gurney flap. The Ascension-R is the smaller, more subtle wing. Both fit all 2024 and up Model 3 trims; choose the RR for maximum track downforce.

Do the finishes need clear coating?

The Unplugged Performance Ascension-RR ships in a gloss or satin base coat that shows the carbon weave and is designed to be finished with professional clear coating or paint protection film. The 5-year structural warranty excludes cosmetic degradation such as UV fade on unprotected parts.

Is the Gurney flap included with the wing?

No. The carbon Gurney flap is an optional add-on selected at checkout alongside the finish choice, not a standard inclusion. It improves airflow attachment and pressure recovery at the trailing edge for drivers who want additional rear grip on the Ascension-RR.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

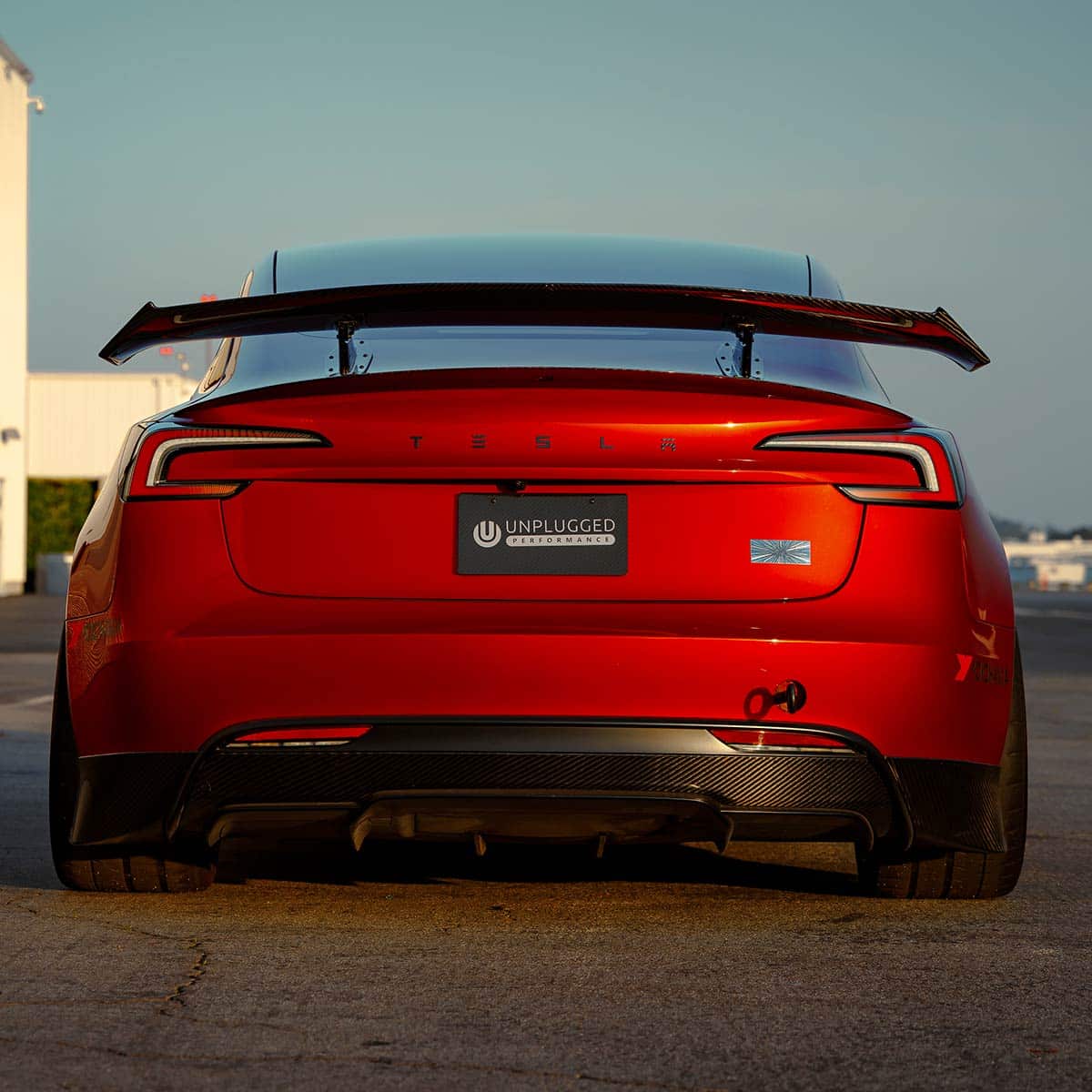

Unplugged Performance Ascension-RR Carbon Tesla Model 3 Highland Rear Wing

The Unplugged Performance Ascension-RR is a Tesla Model 3 Highland rear wing built in symmetrical 4×4 twill carbon fiber, delivering track-proven downforce for every 2024 and up Model 3 Highland trim, Performance, Long Range Dual-Motor, and RWD, without sacrificing rear window visibility or daily usability. Engineered for maximum usable downforce with a 4:1 downforce-to-drag ratio, it generates 2332N (238kg) of rear downforce on its own, or 3155N (322kg) at a 46/54 front-to-rear balance when paired with the full Model 3 Performance aero package, giving the complete kit a CL of 0.48.

Adjustable for Street and Track Use

This Tesla Model 3 Highland rear wing includes two fixed angle settings so drivers can match the wing to how they drive. The 0 degree setting delivers the most efficient, lowest-drag configuration, suited to spirited street driving and high-speed cruising. The 4 degree setting delivers maximum output for track use, adding up to 238kg of rear downforce. An optional carbon Gurney flap is available for drivers who want additional rear grip; it improves airflow attachment and increases pressure recovery at the trailing edge of the wing.

Aerodynamic Design

The Ascension-RR uses a near full-width wingspan, one of the most effective parameters for efficient downforce, with its width maximized to the vehicle envelope so it aligns with the charge port when open and stays protected by an integrated rubber bumper. The custom airfoil is inspired by NACA 6415 but reshaped specifically for Model 3 roof airflow, with a variable profile across the span to match the roof’s non-uniform airflow. A high camber profile enables strong downforce at a lower angle of attack, reducing drag and wake interference.

Placement and Structure

The wing sits as far rearward as possible, with significant overhang past the trunk edge. This reduces pressure interaction with the trunk surface, preserving net downforce, and creates a longer lever arm that increases aero-balancing effectiveness on a car that is naturally front-heavy. The carbon stands are structurally optimized for bending loads, extending up to the rear glass and mounting with 8 bolts per side for maximum stiffness and durability.

Materials

The wing and stands share the same symmetrical 4×4 twill carbon fiber construction, giving the Ascension-RR a high-end, hypercar finish along with a high stiffness-to-weight ratio built for sustained high aerodynamic loads.

Features

Track-tested functional Tesla Model 3 Highland rear wing
Adds up to 238kg of rear downforce at 150mph
4:1 downforce-to-drag ratio for meaningful downforce with minimal rear-wake disturbance
Preserves rear window visibility and everyday usability
Symmetrical 4×4 twill carbon fiber wing and stands
Optional carbon Gurney flap available for additional rear grip
Backed by a 5-year structural warranty for the original owner

Specifications

Downforce: 2332N (238kg) at 150mph
Downforce (full Performance aero package): 3155N (322kg) at a 46/54 front-to-rear balance
Coefficient of lift (complete aero kit installed): 0.48
Downforce-to-drag ratio: 4:1
Adjustability: 0° low-drag street setting, 4° maximum-downforce track setting
Material: symmetrical 4×4 twill carbon fiber, wing and stands
Mounting: 8 bolts per side
Warranty: 5-year structural, original owner

Applications

Tesla Model 3 Long Range Dual-Motor: 2024-present
Tesla Model 3 Performance: 2024-present
Tesla Model 3 RWD: 2024-present

Notes

Choose satin or gloss carbon finish, and add the optional carbon Gurney flap at checkout
This Tesla Model 3 Highland rear wing fits all 2024 and up Model 3 trims, including Performance, Long Range Dual-Motor, and RWD
Installation mounts with 8 bolts per side up to the rear glass; professional installation is recommended
Finishes are a base coat that shows the carbon weave; professional clear coating or paint protection film is recommended, and the warranty excludes cosmetic outcomes such as UV fading on unprotected parts
The Ascension-RR is the larger, higher-downforce wing above the Ascension-R; pairs with the UP Front Aero Kit and full aero package for a balanced 46/54 aero split

Frequently Asked Questions

Does the Ascension-RR fit non-Performance Model 3 trims? Yes. The Unplugged Performance Ascension-RR fits all 2024 and up Model 3 Highland trims, including RWD, Long Range Dual-Motor, and Performance, delivering improved rear stability on every version.
How much downforce does the Tesla Model 3 Highland rear wing generate? At 150mph the Ascension-RR generates 2332N (238kg) of rear downforce on its own. Combined with the full Model 3 Performance aero package, total downforce reaches 3155N (322kg) at a 46/54 front-to-rear balance, with the complete kit reaching a CL of 0.48.
Is the wing adjustable? Yes. The Unplugged Performance Ascension-RR has a 0 degree setting for maximum efficiency and low drag, suited to spirited street driving, and a 4 degree setting for maximum output up to 238kg of rear downforce for track use.
How is the Ascension-RR different from the Ascension-R? The Ascension-RR is the larger, higher-downforce Unplugged Performance wing, with a near full-width span, adjustable angle, and an optional Gurney flap. The Ascension-R is the smaller, more subtle wing. Both fit all 2024 and up Model 3 trims; choose the RR for maximum track downforce.
Do the finishes need clear coating? The Unplugged Performance Ascension-RR ships in a gloss or satin base coat that shows the carbon weave and is designed to be finished with professional clear coating or paint protection film. The 5-year structural warranty excludes cosmetic degradation such as UV fade on unprotected parts.
Is the Gurney flap included with the wing? No. The carbon Gurney flap is an optional add-on selected at checkout alongside the finish choice, not a standard inclusion. It improves airflow attachment and pressure recovery at the trailing edge for drivers who want additional rear grip on the Ascension-RR.

About Unplugged Performance

Unplugged Performance is the world’s leading Tesla-focused performance brand. Based in Hawthorne, California, UP designs, develops, and manufactures suspension, aerodynamic, wheel, and brake upgrades exclusively for the Tesla platform. Their parts are validated on the world’s fastest Teslas, including the Pikes Peak record-setting Model S Plaid and “World’s Fastest SUV” Model Y, before reaching the customer catalog.
