What does replacing rubber bushings with pillow-ball joints actually change about how the car feels?

Rubber bushings are compliant by design; they absorb some road noise and vibration but also allow the suspension geometry to move under load. Pillow-ball joints are rigid, so the geometry you align the car to is the geometry it runs under braking rather than deflecting away from it. The Top Secret front pillow-ball joint kit GT-R makes the front lower control arm's body-side connection a fixed point, which tightens steering response and removes the instability that rubber introduces under heavy braking loads.

Is this kit suitable for a street-driven R35 or is it a track-only upgrade?

It works on both but the tradeoff is worth understanding. Pillow-ball joints pass more NVH into the cabin than rubber bushings because there is no compliance to absorb road inputs. On a track-focused or dual-use R35 the stability gain under braking is worth that tradeoff. On a car used exclusively for relaxed street driving where braking loads rarely approach the threshold where rubber deflection becomes an issue, the benefit is less significant and the NVH increase more noticeable.

Does installation require removing the front lower control arm?

Yes. The bushings are on the body-mounting side of the front lower control arm, and press-fitting the pillow-ball joints requires the arm to be removed and taken to a press. This is not an in-car installation and cannot be done without the correct equipment. A workshop experienced with R35 suspension work is the right environment for this job.

Does this kit affect front alignment settings after installation?

Yes, and a full front alignment should be done after fitting. The pillow-ball joints change the compliance behavior of the front lower control arm mounting point, which can shift where the car sits relative to its previous alignment values. Set alignment on a flat surface after installation before driving the car at speed.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

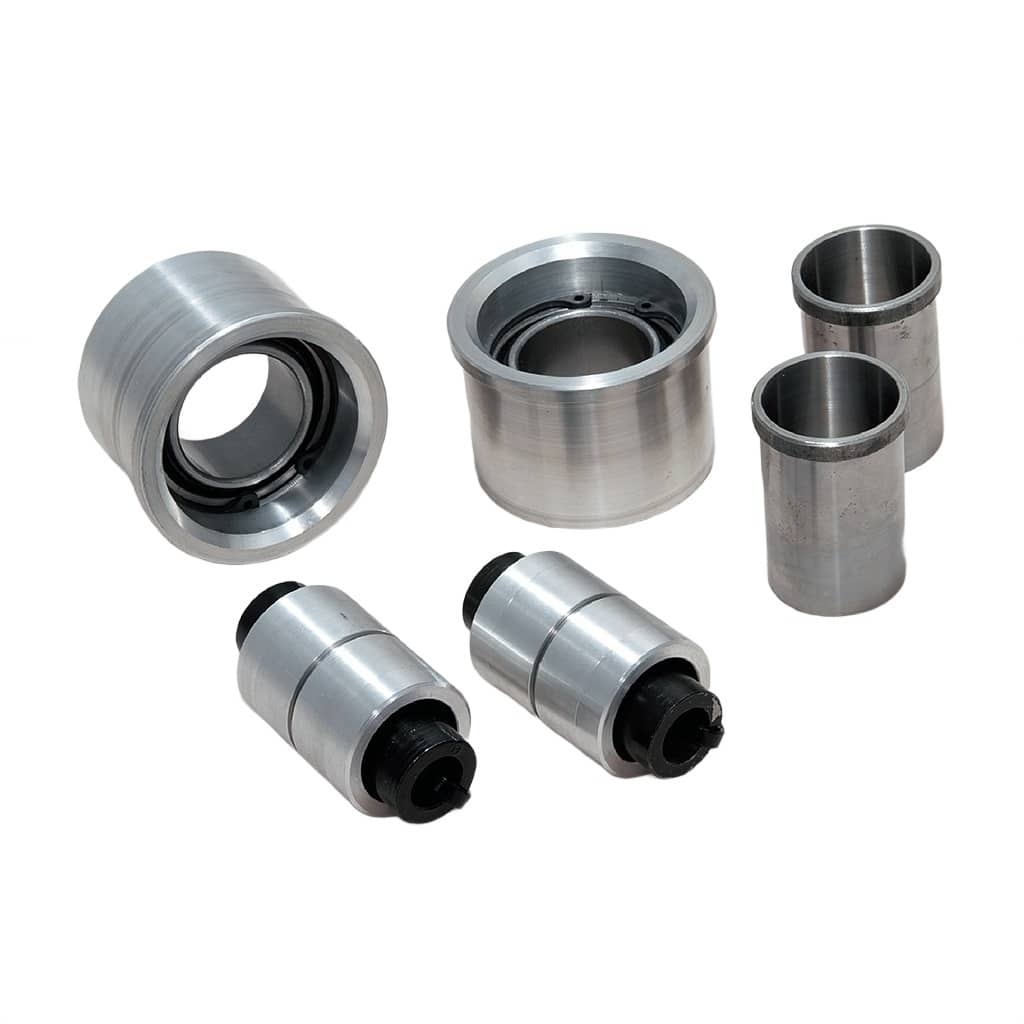

Top Secret Front Lower Pillow-Ball Joint Kit for R35 Nissan GT-R

The Top Secret front pillow-ball joint kit GT-R front lower control arm upgrade addresses a specific and well-documented problem on the R35 platform; at 1,800kg, the car puts enough load through the front lower control arm bushings under hard braking that the factory rubber deflects, pulling alignment away from its set values at exactly the moment precise geometry matters most. That momentary alignment shift is not hypothetical; it is a measurable change in the front end’s behavior that becomes harder to manage as braking forces increase and contributes to instability in a car that is already at the limit of its tires. This kit replaces the rubber bushings on the body-mounting side of the front lower control arm with pillow-ball joints on both sides, eliminating the compliance that causes the deflection and replacing it with a rigid connection that holds alignment through braking rather than yielding to it. Installation requires press-fitting with a specialized tool; this is not a bolt-on replacement and needs to be done by a workshop equipped for the job.

Features

Replaces factory rubber bushings on the body-mounting side of the front lower control arm
Pillow-ball joints eliminate bushing deflection under braking load
Holds front alignment geometry through hard braking on a 1,800kg platform
Improves front end stability and predictability under braking
Left and right included

Applications

Nissan GT-R: CBA-R35, DBA-R35, EBA-R35, 4BA-R35 | 2008-2025

Notes

Sold as a set (left and right)
Installation requires press-fitting with a specialized tool

Frequently Asked Questions

What does replacing rubber bushings with pillow-ball joints actually change about how the car feels? Rubber bushings are compliant by design; they absorb some road noise and vibration but also allow the suspension geometry to move under load. Pillow-ball joints are rigid, so the geometry you align the car to is the geometry it runs under braking rather than deflecting away from it. The Top Secret front pillow-ball joint kit GT-R makes the front lower control arm’s body-side connection a fixed point, which tightens steering response and removes the instability that rubber introduces under heavy braking loads.
Is this kit suitable for a street-driven R35 or is it a track-only upgrade? It works on both but the tradeoff is worth understanding. Pillow-ball joints pass more NVH into the cabin than rubber bushings because there is no compliance to absorb road inputs. On a track-focused or dual-use R35 the stability gain under braking is worth that tradeoff. On a car used exclusively for relaxed street driving where braking loads rarely approach the threshold where rubber deflection becomes an issue, the benefit is less significant and the NVH increase more noticeable.
Does installation require removing the front lower control arm? Yes. The bushings are on the body-mounting side of the front lower control arm, and press-fitting the pillow-ball joints requires the arm to be removed and taken to a press. This is not an in-car installation and cannot be done without the correct equipment. A workshop experienced with R35 suspension work is the right environment for this job.
Does this kit affect front alignment settings after installation? Yes, and a full front alignment should be done after fitting. The pillow-ball joints change the compliance behavior of the front lower control arm mounting point, which can shift where the car sits relative to its previous alignment values. Set alignment on a flat surface after installation before driving the car at speed.

About Top Secret

Top Secret Co., Ltd. (株式会社トップシークレット, Kabushiki-gaisha Toppu Shīkuretto) is a renowned Japanese automobile tuner and parts manufacturer, founded by automotive engineer and driver Kazuhiko “Smokey” Nagata. The company is widely recognized for its expertise in tuning, aftermarket parts, body kits, and performance engineering. Top Secret’s product range includes aero components, exterior and interior parts, engine upgrades, exhaust systems, chassis, brakes, suspension, and powertrain enhancements. In addition to its products, Top Secret is also famous for its high-speed Wangan runs, as well as its involvement in professional drifting, circuit racing, and drag racing.
