TOMEI Forged Piston Set 85.50mm for Mitsubishi 4G63

TOMEI Forged Piston Set 85.50mm for Mitsubishi 4G63

TOMEI Forged Piston Set 85.50mm for Mitsubishi 4G63 [TA202A-MT01C]

$1,200.00

IN STOCK, READY TO SHIP

-

The TOMEI Forged Piston Set 85.50 mm for the Mitsubishi 4G63 uses a high-strength forging process to handle elevated cylinder pressure, with thinner wall sections for weight reduction and minimized machining to maintain strength. It features an oval barrel skirt shaped with thermal expansion in mind, a valve recess that supports 1 mm oversized valves, and thinner piston rings to reduce friction loss.

STOCK STATUS: 1 in stock

Guaranteed Safe Checkout

SKU: TA202A-MT01C Category: Engine Parts Vehicle: MITSUBISHI, Brand: TOMEI

INQUIRE NOW

REQUEST SUPPORT

DESCRIPTION & INFO

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

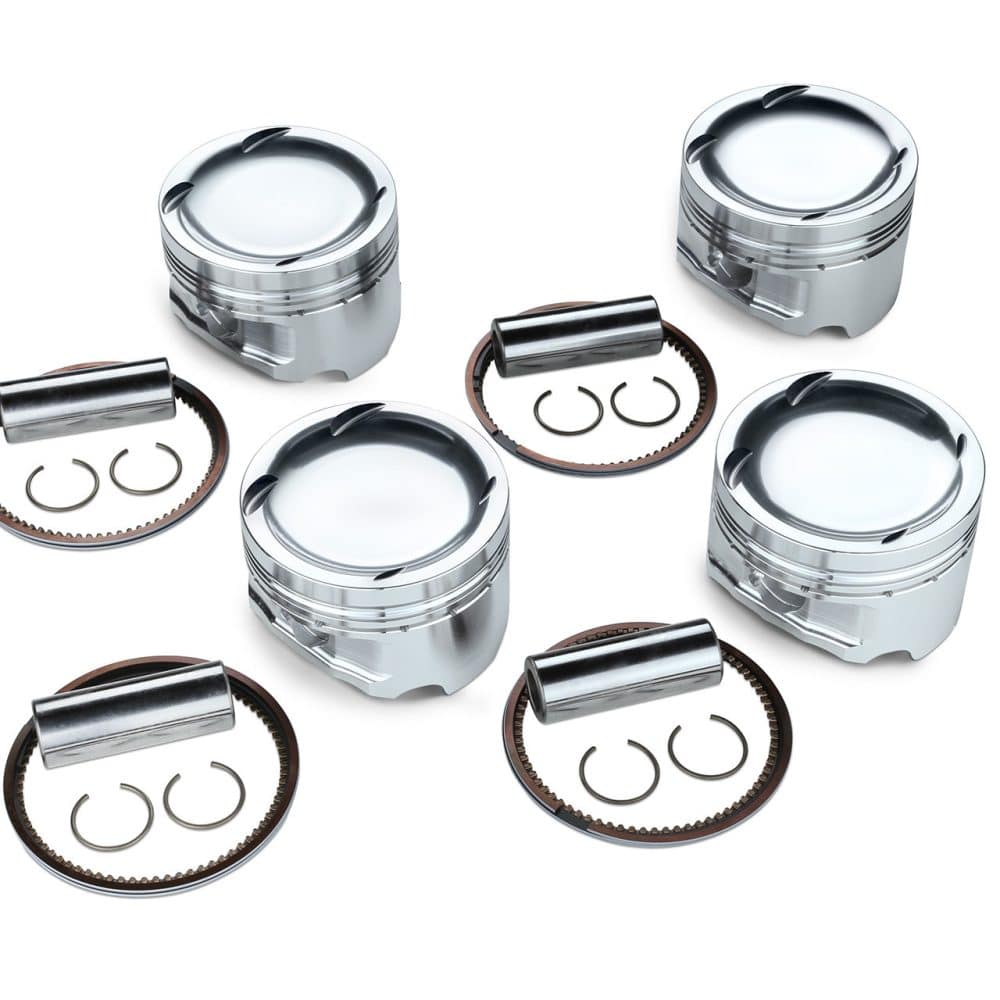

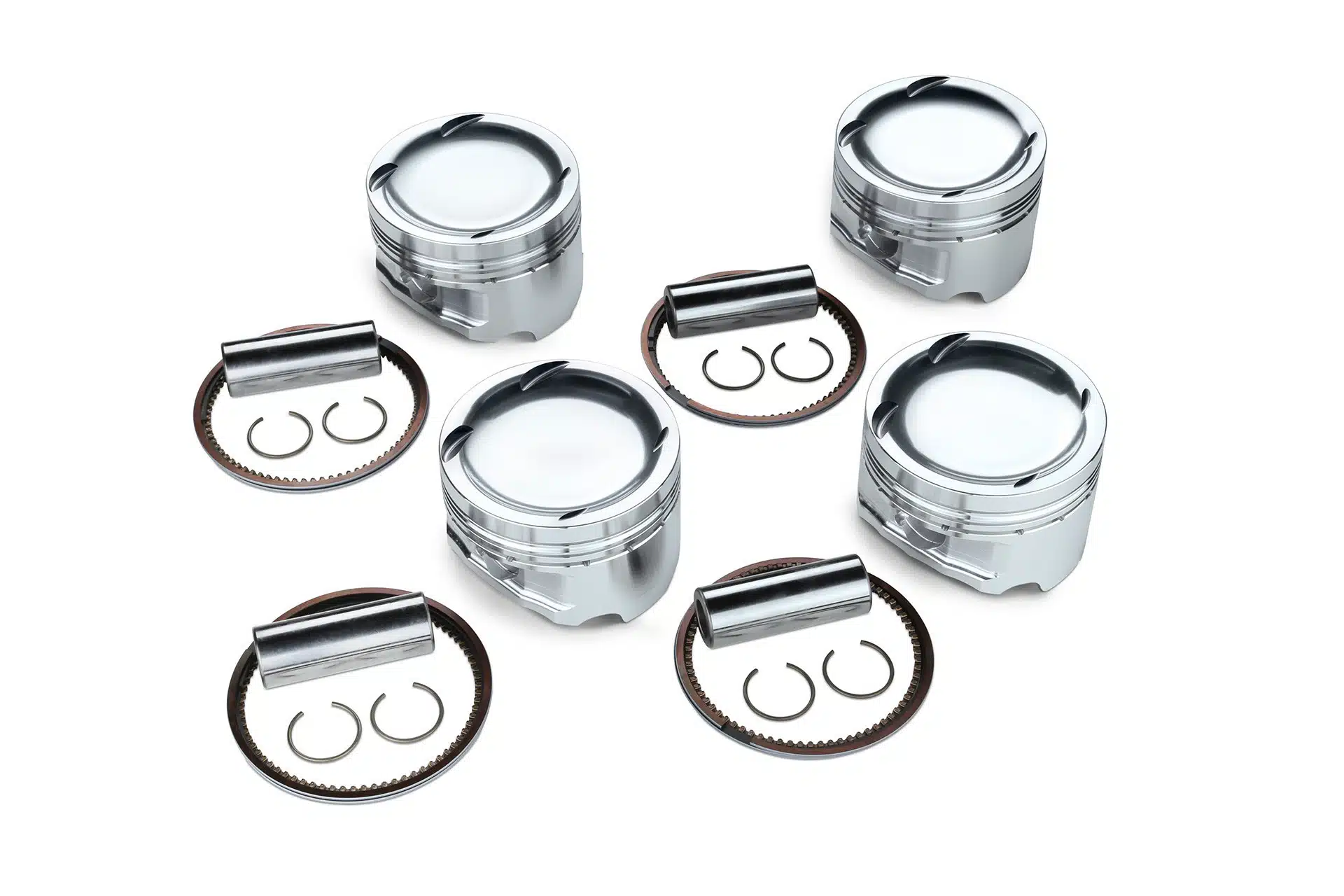

TOMEI Forged Piston Set 85.50mm for Mitsubishi 4G63

The TOMEI Forged Piston Set 85.50mm for the Mitsubishi 4G63 is built for tuned engines where cylinder pressure is higher and piston strength becomes a limiting factor. TOMEI uses a high-strength forging process instead of the cast construction common in mass-production pistons, improving strength and high-temperature durability. That added strength allows thinner wall sections for weight reduction without giving up stability. Excess material is minimized through the use of exclusive forged material, avoiding excessive machining that can reduce strength. For smooth movement and proper running clearance, the skirt uses an oval barrel shape with thermal expansion calculated into the profile. The piston recess is shaped to support the use of 1 mm oversized valves. Friction loss is reduced by thinning the piston rings, helping improve efficiency while maintaining ring seal.

Features

High-strength forging
Oversized by +0.5 over OEM
Lightweight design without compromise
Recess shaped for 1mm oversized valves
Includes pins, clips and rings

Specifications

Bore (mm): 85.50 (OEM +0.5)
Pin Diameter (mm): 22.0
Pin Length (mm): 60.0
Circlip Inner Diameter (mm): 22.0
Valve Recess: WITH
Compression Height (mm): 34.70 (OEM -0.3)
Piston Volume (cc): -14.6
Piston Weight (g): 380.9
Pin Weight (g): 121.5
Total Weight (g): 502.4
Top Ring (mm): 1.20 x 3.05
Second Ring (mm): 1.20 x 3.70
Oil Ring (mm): 2.50 x 2.85
Piston Material: A4032

Applications

Mitsubishi: 4G63

Notes

Instruction manual can be found here

About TOMEI

TOMEI is a leading innovator in automotive performance parts, renowned for its expertise in developing high-quality exhaust systems, turbo kits, and engine components. With a commitment to excellence, TOMEI sources its own raw materials and maintains complete control over the manufacturing process, ensuring superior quality and affordability. Specializing in lightweight Titanium construction and advanced engineering, TOMEI delivers products that enhance performance, durability, and sound, making them a top choice for enthusiasts and professionals in the automotive racing industry. Their dedication to precision and innovation has solidified their reputation as a trusted name in automotive performance.
