Do I need a different spring for the front of the EK Civic?

Yes. TEIN specifies 24.0 kgf/mm at the front and 16.0 kgf/mm at the rear of its Super Racing EK Civic kit, both 125 mm long with a 58 mm ID. This listing is the rear pair only, so the front needs the 24K pair as well.

Are the Racing Springs 16K 125mm progressive?

No. TEIN racing springs are linear rate, so the TEIN Racing Springs 16K 125mm hold 16.0 kgf/mm (896 lbs/in) through their working stroke. Progressive rates belong to TEIN lowering springs for factory dampers, which are a different product with a different purpose.

Will these fit a coilover other than the Super Racing kit?

TEIN only names the Super Racing EK Civic kit for this pair. Another coilover would need a 58 mm spring seat, flat-ended spring use and enough control to stay within the 52 mm maximum stroke. BA can check a specific setup before the special order is placed.

What happens if the spring is over-compressed?

TEIN warns that if the maximum allowable stroke or load is exceeded, the spring may not perform as designed and can sag, deform or break. For this pair the stated maximum stroke is 2.0 inches, or 52 mm, so setup should keep compression inside that figure.

How long does delivery take?

TEIN USA marks this spring as a special order from Japan, and the lead time varies from order to order. BA confirms timing when the order is placed. Because it is ordered specially, it cannot be cancelled or returned once the order has gone to TEIN.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

TEIN Racing Springs 16K 125mm 58mm ID (Pair)

TEIN’s Racing Springs 16K 125mm cover the rear axle of the Super Racing damper kit TEIN builds for the 1996-2000 EK Honda Civic. Each coil is rated at 16.0 kgf/mm, two thirds of the 24.0 kgf/mm TEIN asks for at the front, on the same 125 mm length and 58 mm ID. They make sense for a track Civic on coilovers with 58 mm seats, not for a commuter on stock suspension.

Built for Stroke

Racing springs from TEIN use a coil design with less material than the brand’s Standard springs. The payoff is more usable stroke and a lighter part at each rear corner. Rate is linear, so every millimeter of compression adds the same load, and the flat ends are made to sit on coilover spring seats. TEIN recommends this design for competition and motorsport use.

Features

Linear rate keeps rear spring force proportional to compression
Less coil material than a TEIN Standard spring, for added stroke
TEIN Racing Springs 16K 125mm save weight against TEIN Standard springs
Flat ends at top and bottom suit coilover spring seats
TEIN helper springs and hardware come in the same ID
Green TEIN finish

Specifications

Spring rate: 16.0 kgf/mm (896 lbs/in)
Free length: 125 mm (4.9 in)
Inner diameter: 58 mm
Type: Standard racing type
Maximum stroke: 2.0 in (52 mm)
Sold as: Pair (two identical springs)
Material tensile strength: 200 kgf/mm2

Applications

Honda Civic (rear axle with the TEIN Super Racing kit): EK | 1996-2000

Notes

Ordered specially from TEIN Japan; lead time varies, and the order cannot be cancelled or returned after it is placed
Exceeding the maximum allowable stroke or load can sag, deform or break the spring, according to TEIN
TEIN specifies this pair for the rear of the TEIN Super Racing Dampers for EK Honda Civic; the front pair is TEIN Racing Springs 24K 125mm
TEIN recommends High Load springs for Super Racing kits, yet TEIN USA offers no 58 mm High Load spring at 125 mm, so the standard racing type is supplied here

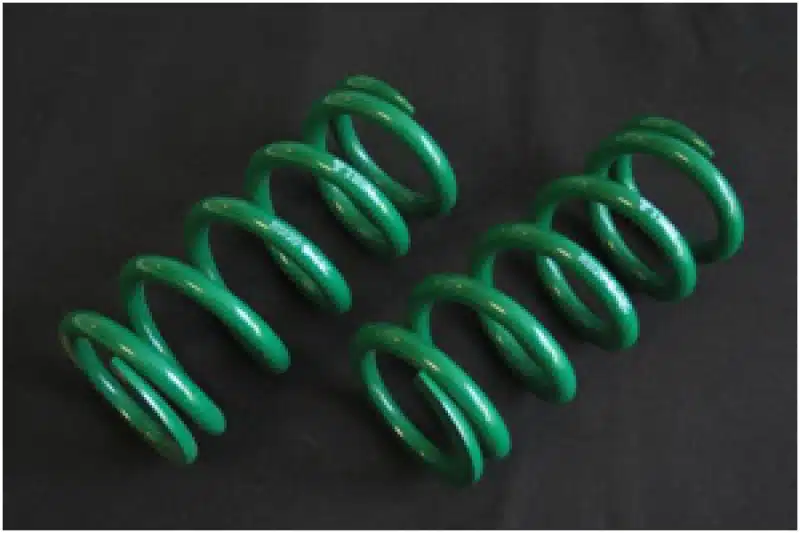

Photos are representative of the TEIN racing spring range and are not of this exact rate and length

Frequently Asked Questions

Do I need a different spring for the front of the EK Civic? Yes. TEIN specifies 24.0 kgf/mm at the front and 16.0 kgf/mm at the rear of its Super Racing EK Civic kit, both 125 mm long with a 58 mm ID. This listing is the rear pair only, so the front needs the 24K pair as well.
Are the Racing Springs 16K 125mm progressive? No. TEIN racing springs are linear rate, so the TEIN Racing Springs 16K 125mm hold 16.0 kgf/mm (896 lbs/in) through their working stroke. Progressive rates belong to TEIN lowering springs for factory dampers, which are a different product with a different purpose.
Will these fit a coilover other than the Super Racing kit? TEIN only names the Super Racing EK Civic kit for this pair. Another coilover would need a 58 mm spring seat, flat-ended spring use and enough control to stay within the 52 mm maximum stroke. BA can check a specific setup before the special order is placed.
What happens if the spring is over-compressed? TEIN warns that if the maximum allowable stroke or load is exceeded, the spring may not perform as designed and can sag, deform or break. For this pair the stated maximum stroke is 2.0 inches, or 52 mm, so setup should keep compression inside that figure.
How long does delivery take? TEIN USA marks this spring as a special order from Japan, and the lead time varies from order to order. BA confirms timing when the order is placed. Because it is ordered specially, it cannot be cancelled or returned once the order has gone to TEIN.

About TEIN

TEIN was founded in Yokohama, Japan, in 1985 by former rally mechanic Hakaru Ichino, joined soon after by driver Yoshio Fujimoto. The team reached the World Rally Championship in 1989, and in 1995 Fujimoto won the Safari Rally in a Toyota Celica GT-FOUR, the first Japanese driver to do so. TEIN launched its own dampers in 1990 and came to supply around 80 percent of the dampers in the N1 Taikyu endurance series. TEIN USA has served the Americas from Downey, California, since 2001.
