How many pairs does a GRF or GVF STI need?

Two. TEIN specifies 10.0 kgf/mm, 175 mm, 65 mm ID High Load springs at both the front and the rear of its Super Racing kit for these cars. Each order line is one pair of two springs, so a full car takes a quantity of two.

Do the Racing Springs 10K 175mm suit both GRF and GVF cars?

TEIN specifies the TEIN Racing Springs 10K 175mm for its Super Racing kit on the GRF and GVF Impreza WRX STI, 2008-2014. The springs depend on those coilover dampers, so the real question is whether the damper kit suits the car, and BA can confirm that.

Are these springs linear or progressive?

Linear. TEIN racing springs hold one rate through their stroke, 10.0 kgf/mm or 560 lbs/in here. That differs from the progressive S.Tech and H.Tech lowering springs, which TEIN designs for factory or factory-replacement dampers rather than for coilovers such as the Super Racing kit.

What is the maximum stroke?

TEIN lists 3.8 inches, or 97 mm, as the maximum stroke for this spring. According to TEIN, overstroking or overloading it means the spring may not perform as designed and risks sagging, deformation or breakage, so each corner of the STI should be set up to stay within that figure.

Is this a stock item?

No. TEIN USA marks it as a special order from Japan, so lead time varies. Because the part is ordered for you, it cannot be cancelled or returned once the order is placed, which matters when two pairs are needed for one car.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

TEIN Racing Springs 10K 175mm 65mm ID High Load (Pair)

TEIN’s Racing Springs 10K 175mm stand apart because TEIN specifies the same spring at both ends of its Super Racing kit for the 2008-2014 GRF and GVF Subaru Impreza WRX STI. That means one car takes two pairs. Each coil is a High Load spring at 10.0 kgf/mm with a 65 mm ID and 97 mm of allowable stroke. They suit an STI built for the circuit on that coilover kit and are excessive for a street car on its original springs.

Why Two Pairs

TEIN sells racing springs in pairs, and the GRF / GVF Super Racing spec calls for this rate, length and ID at all four corners, so a complete car needs two sets. Like the rest of the TEIN racing range, the coil uses less material than a Standard spring for more stroke and less weight, holds a linear rate and has flat ends for coilover seats.

Features

Linear rate holds steady through compression
Reduced-material coil design for longer stroke than TEIN Standard springs
Lower weight than TEIN Standard springs
Flat ends made to locate on coilover seats
Helper springs and hardware listed by TEIN in this ID
TEIN recommends the Racing Springs 10K 175mm for competition and motorsport use

Specifications

Spring rate: 10.0 kgf/mm (560 lbs/in)
Free length: 175 mm (6.9 in)
Inner diameter: 65 mm
Type: High Load type
Maximum stroke: 3.8 in (97 mm)
Sold as: Pair (two identical springs)
Material tensile strength: 200 kgf/mm2

Applications

Subaru Impreza WRX STI (front and rear axles with the TEIN Super Racing kit): GRF / GVF | 2008-2014

Notes

Ordered from TEIN Japan for each customer; lead times vary and the order cannot be cancelled or returned
TEIN states that a racing spring pushed past its allowable stroke or load can lose its designed performance and sag, deform or break
Specified front and rear for the TEIN Super Racing Dampers for GRF / GVF Subaru Impreza WRX STI
A GRF or GVF STI needs two pairs of this spring, one pair for each axle

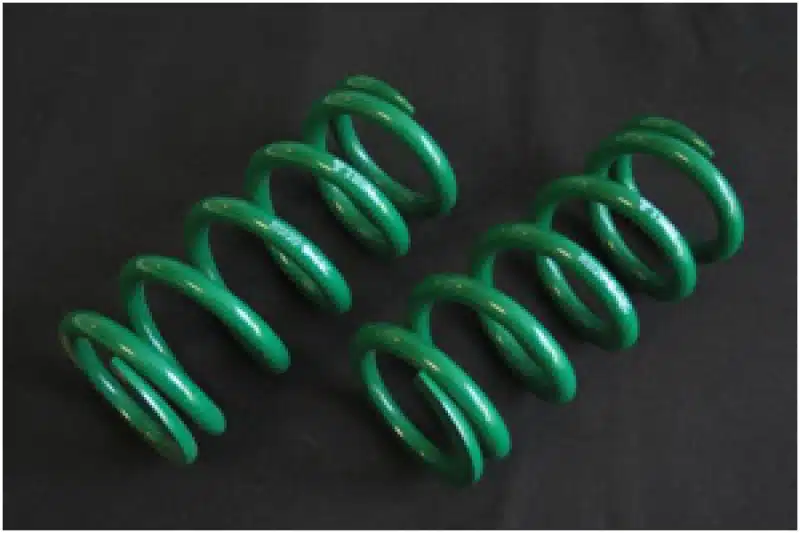

Photos are representative of the TEIN racing spring range and are not of this exact rate and length

Frequently Asked Questions

How many pairs does a GRF or GVF STI need? Two. TEIN specifies 10.0 kgf/mm, 175 mm, 65 mm ID High Load springs at both the front and the rear of its Super Racing kit for these cars. Each order line is one pair of two springs, so a full car takes a quantity of two.
Do the Racing Springs 10K 175mm suit both GRF and GVF cars? TEIN specifies the TEIN Racing Springs 10K 175mm for its Super Racing kit on the GRF and GVF Impreza WRX STI, 2008-2014. The springs depend on those coilover dampers, so the real question is whether the damper kit suits the car, and BA can confirm that.
Are these springs linear or progressive? Linear. TEIN racing springs hold one rate through their stroke, 10.0 kgf/mm or 560 lbs/in here. That differs from the progressive S.Tech and H.Tech lowering springs, which TEIN designs for factory or factory-replacement dampers rather than for coilovers such as the Super Racing kit.
What is the maximum stroke? TEIN lists 3.8 inches, or 97 mm, as the maximum stroke for this spring. According to TEIN, overstroking or overloading it means the spring may not perform as designed and risks sagging, deformation or breakage, so each corner of the STI should be set up to stay within that figure.
Is this a stock item? No. TEIN USA marks it as a special order from Japan, so lead time varies. Because the part is ordered for you, it cannot be cancelled or returned once the order is placed, which matters when two pairs are needed for one car.

About TEIN

TEIN was founded in Yokohama, Japan, in 1985 by former rally mechanic Hakaru Ichino, joined soon after by driver Yoshio Fujimoto. The team reached the World Rally Championship in 1989, and in 1995 Fujimoto won the Safari Rally in a Toyota Celica GT-FOUR, the first Japanese driver to do so. TEIN launched its own dampers in 1990 and came to supply around 80 percent of the dampers in the N1 Taikyu endurance series. TEIN USA has served the Americas from Downey, California, since 2001.
