Are springs included with this kit?

Yes, but you choose the rates. US orders require spring selection at purchase, with 20, 22 or 24 kgf/mm available at the front and 12, 14 or 16 kgf/mm at the rear. Helper springs come with the kit, and BA confirms the rates before ordering.

Is the kit too stiff for street driving?

For many owners, yes. A 22.0 kgf/mm reference front spring and a recommended drop of 1.8 to 2.6 inches suit a car that spends real time on track. TEIN does keep Mono Racing usable on the street, and the softer 20 kgf/mm front option helps.

Can damping be adjusted from the driver seat?

Not as supplied. Each damper has a 16-level knob on top that moves compression and rebound together. The kit is compatible with TEIN EDFC, sold separately, which swaps the knobs for stepping motors so the setting can be changed from inside the car.

Can the damping be revalved for my setup?

Yes. The TEIN Damping Force Customize System revalves the dampers or changes their stroke at purchase, for less than a later overhaul would cost. TEIN USA quotes a normal lead time of about two weeks from order for this service.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

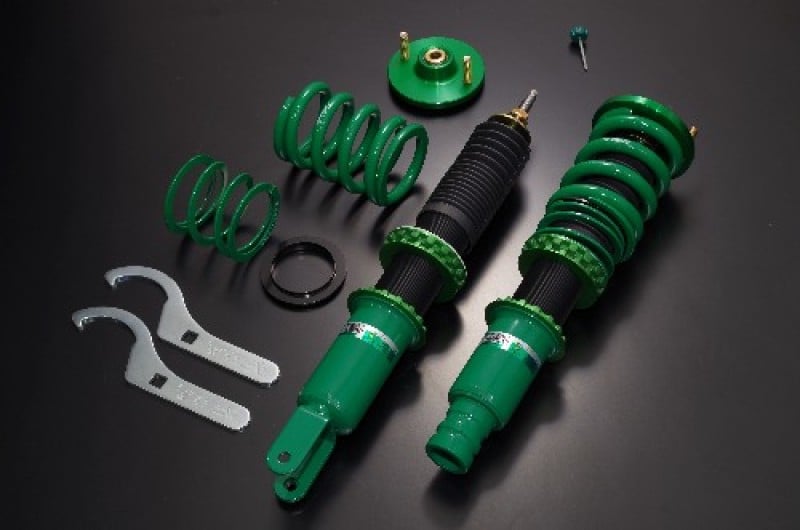

TEIN Mono Racing Coilovers for EK Honda Civic

TEIN’s Mono Racing Coilovers for EK Honda Civic bring TEIN’s circuit-focused kit to the 1996 to 2000 Civic, the 1999 to 2000 Civic Si and the Japanese-market EK4 SiR and EK9 Type R. The reference front spring is a stiff 22.0 kgf/mm, and TEIN recommends running 1.8 to 2.6 inches below stock, figures that mark this as a kit for a car built around track days. An EK used on broken streets will be happier on something gentler.

Setup and Damping

Settings come from TEIN’s flagship Super Racing damper and its motorsport data, and the mono-tube bodies keep oil and gas apart so damping stays stable on repeated hard laps. TEIN tuned the kit to hold composure at speed and curb nose dive under braking, while helper springs at both ends secure rebound stroke for steadier tyre contact.

Features

16 damping levels, compression and rebound together, set from the top of each damper
ADVANCE M.S.V. pairs a micro speed valve with a needle for a wider range
Full-length adjustment changes ride height with little effect on ride quality
Compatible with TEIN EDFC controllers, sold separately
Revalving or stroke changes available at purchase

Specifications

TEIN reference front spring: 22.0 kgf/mm (1232 lbs/in), 125 mm, 65 mm ID
TEIN reference rear spring: 14.0 kgf/mm (784 lbs/in), 130 mm, 65 mm ID
US front ride height range: -4.7 to -0.9 in (recommended -2.6 to -1.8)
US rear ride height range: -4.0 to -0.6 in (recommended -2.6 to -1.8)
Upper mounts: Pillow ball front and rear

What’s Included

Mono-tube dampers (x4)
Main springs at the selected rates (x4)
Helper springs
Pillow ball upper mounts (x4)

Applications

Honda Civic: EJ6 / EJ7 / EJ8 | 1996-2000 | 1.6L
Honda Civic Si: EM1 | 1999-2000 | 1.6L
Honda Civic SiR and Type R (Japan-market): EK4 / EK9 | 1995-2000 | 1.6L

Notes

Spring rates are picked at order from 20, 22 or 24 kgf/mm front and 12, 14 or 16 kgf/mm rear, and BA confirms the selection with you before the order goes to TEIN
Each kit is made to order by TEIN, lead times vary, and an order cannot be cancelled or returned
The TEIN Mono Racing Coilovers for EK sit above the TEIN Mono Sport Coilovers for EK Honda Civic and below the springless TEIN Super Racing Dampers for EK Honda Civic

Frequently Asked Questions

Are springs included with this kit? Yes, but you choose the rates. US orders require spring selection at purchase, with 20, 22 or 24 kgf/mm available at the front and 12, 14 or 16 kgf/mm at the rear. Helper springs come with the kit, and BA confirms the rates before ordering.
Will the Mono Racing Coilovers for EK fit my Civic? TEIN lists the Mono Racing Coilovers for EK for the 1996 to 2000 US Civic, the 1999 to 2000 Civic Si and the Japanese-market EK4 SiR and EK9 Type R. Earlier EG Civics use a different TEIN kit, so confirm your chassis code with BA.
Is the kit too stiff for street driving? For many owners, yes. A 22.0 kgf/mm reference front spring and a recommended drop of 1.8 to 2.6 inches suit a car that spends real time on track. TEIN does keep Mono Racing usable on the street, and the softer 20 kgf/mm front option helps.
Can damping be adjusted from the driver seat? Not as supplied. Each damper has a 16-level knob on top that moves compression and rebound together. The kit is compatible with TEIN EDFC, sold separately, which swaps the knobs for stepping motors so the setting can be changed from inside the car.
Can the damping be revalved for my setup? Yes. The TEIN Damping Force Customize System revalves the dampers or changes their stroke at purchase, for less than a later overhaul would cost. TEIN USA quotes a normal lead time of about two weeks from order for this service.

About TEIN

TEIN was founded in Yokohama, Japan, in 1985 by former rally mechanic Hakaru Ichino, joined soon after by driver Yoshio Fujimoto. The team reached the World Rally Championship in 1989, and in 1995 Fujimoto won the Safari Rally in a Toyota Celica GT-FOUR, the first Japanese driver to do so. TEIN launched its own dampers in 1990 and came to supply around 80 percent of the dampers in the N1 Taikyu endurance series. TEIN USA has served the Americas from Downey, California, since 2001.
