What is included in the V10 Piston Set?

Every version of the V10 Piston Set contains ten T1-spec CP pistons for the 5.2 liter V10. The Base set has no wrist pins, Stage 1 adds CP wrist pins with a .240 inch wall, and Stage 2 adds C300 wrist pins. T1 does not list rings with the set.

What is the difference between Stage 1 and Stage 2?

Only the wrist pins. Stage 1 uses CP pins with a .240 inch wall that T1 Race Development rates for 2,000 hp, and Stage 2 uses C300 pins that T1 rates for 3,000 hp. The pistons, compression ratio and pin dimensions are identical across both sets.

What compression ratio do the pistons give?

T1 Race Development lists a 12.3:1 compression ratio for the set, with a .265 inch dome height and a 1.08 inch compression height. All three versions use the same piston, so the compression ratio does not change with the choice of wrist pins.

Which engines does the set fit?

T1 lists the pistons for the Audi and Lamborghini 5.2 liter V10, with a 3.327 inch bore and 92.8 mm stroke, and sells them for the LB724 Lamborghini Huracán and 4S Audi R8. Confirm any other 5.2 liter application with Bulletproof Automotive before ordering.

Why buy the Base set without pins?

The Base set suits builders who already have wrist pins or want to source a specific pin for their rotating assembly. The pin diameter is .787 inch and the length is 2.250 inch, so any pin used needs to match those dimensions for the T1 pistons.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

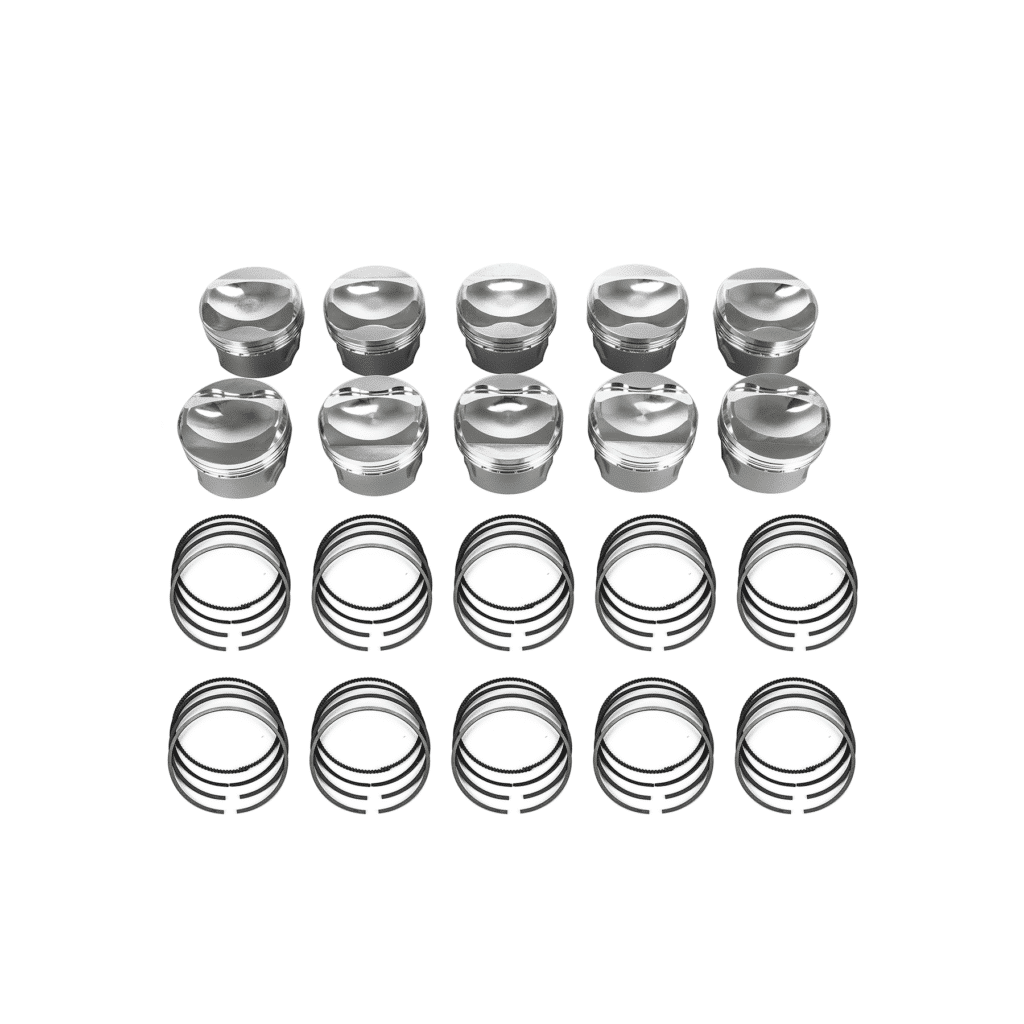

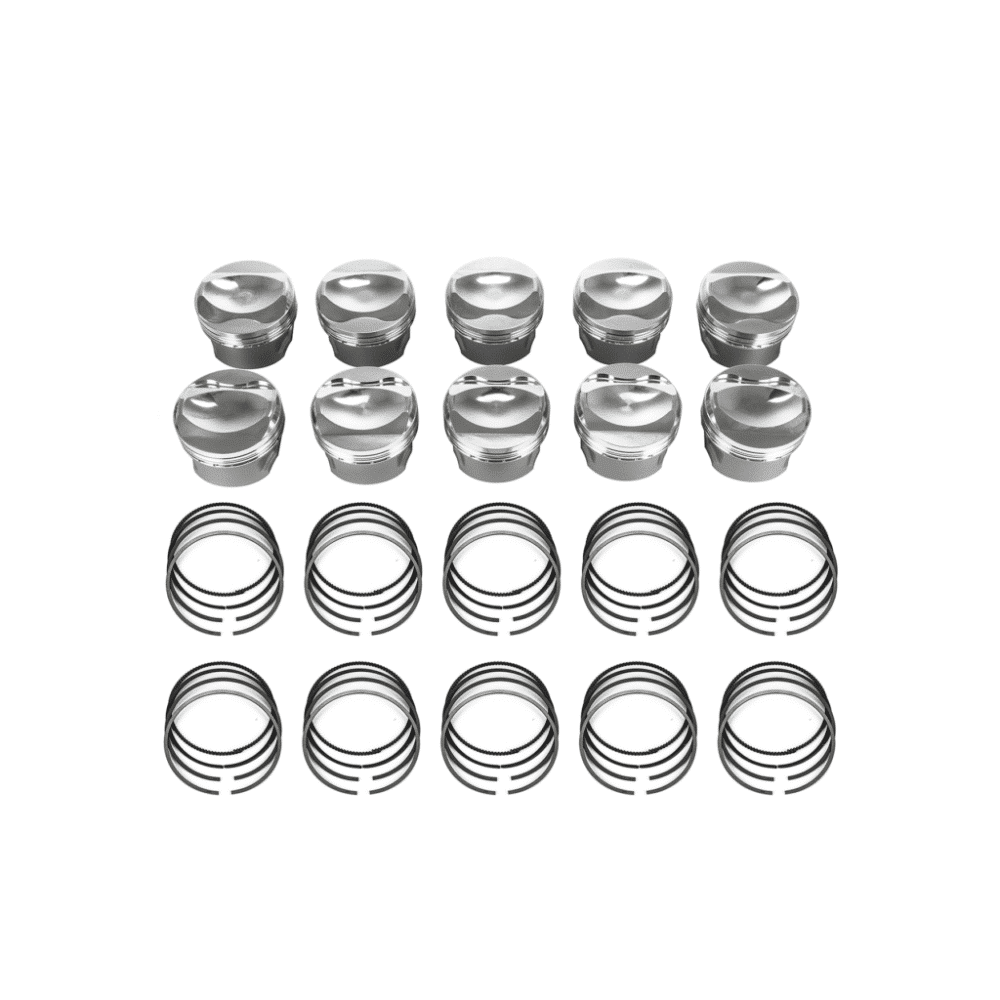

T1 Race Development V10 Piston Set for LB724 Lamborghini Huracán and 4S Audi R8

T1 Race Development’s V10 Piston Set for LB724 Lamborghini Huracán and 4S Audi R8 comprises ten T1-spec CP pistons for the Audi and Lamborghini 5.2 liter V10. All three versions share the same piston design and 12.3:1 compression ratio; they differ only in the wrist pins supplied, from none at all up to pins rated for 3,000 hp.

Choosing a Version

The Base set comes without wrist pins, for builders supplying their own. Stage 1 adds CP wrist pins with a .240 inch wall, which T1 rates for 2,000 hp. Stage 2 adds C300 wrist pins, which T1 rates for 3,000 hp, for the highest power builds. The pin diameter and length are the same across all three sets.

Design and Performance

T1 specifies the pistons with CP for the 5.2 liter V10’s 92.8 mm stroke, with a 3.327 inch bore size, a 1.08 inch compression height and a .265 inch dome. Keeping one piston across the range means a builder can choose the pin to match the power target and the rest of the rotating assembly without changing compression or dome shape.

Features

Set of ten T1-spec CP pistons
12.3:1 compression ratio
Base set without wrist pins
Stage 1 CP .240 wall pins rated by T1 for 2,000 hp
Stage 2 C300 pins rated by T1 for 3,000 hp

Specifications

Quantity: Set of 10
Compression ratio: 12.3:1
Bore: 3.327 in
Stroke: 92.8 mm
Compression height: 1.08 in
Dome height: .265 in
Dome volume: 5.600, as listed by T1
Pin diameter: .787 in
Pin length: 2.250 in

Applications

Audi R8: 4S | 2017-2023 | 5.2L V10
Lamborghini Huracán: LB724 | 2015-2024 | 5.2L V10

Notes

The Base set does not include wrist pins; Stage 1 and Stage 2 include them
T1 lists the V10 Piston Set for the Audi and Lamborghini 5.2 liter V10, so confirm other 5.2 engines with BA
Rings, rods, bearings and machine work are not listed with the set
Engine assembly and a matching calibration are needed after fitting

Frequently Asked Questions

What is included in the V10 Piston Set? Every version of the V10 Piston Set contains ten T1-spec CP pistons for the 5.2 liter V10. The Base set has no wrist pins, Stage 1 adds CP wrist pins with a .240 inch wall, and Stage 2 adds C300 wrist pins. T1 does not list rings with the set.
What is the difference between Stage 1 and Stage 2? Only the wrist pins. Stage 1 uses CP pins with a .240 inch wall that T1 Race Development rates for 2,000 hp, and Stage 2 uses C300 pins that T1 rates for 3,000 hp. The pistons, compression ratio and pin dimensions are identical across both sets.
What compression ratio do the pistons give? T1 Race Development lists a 12.3:1 compression ratio for the set, with a .265 inch dome height and a 1.08 inch compression height. All three versions use the same piston, so the compression ratio does not change with the choice of wrist pins.
Which engines does the set fit? T1 lists the pistons for the Audi and Lamborghini 5.2 liter V10, with a 3.327 inch bore and 92.8 mm stroke, and sells them for the LB724 Lamborghini Huracán and 4S Audi R8. Confirm any other 5.2 liter application with Bulletproof Automotive before ordering.
Why buy the Base set without pins? The Base set suits builders who already have wrist pins or want to source a specific pin for their rotating assembly. The pin diameter is .787 inch and the length is 2.250 inch, so any pin used needs to match those dimensions for the T1 pistons.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
