What does the M1 AWD Control Harness do?

It wires a slave MoTeC M1 ECU to the all-wheel drive system of the LB724 Huracán or 4S R8 so the ECU can replace the factory AWD controller. The T1 M1 AWD Control Harness carries the power, ground, signal and CAN wiring and a relay, plug and play.

Why replace the factory AWD controller?

The factory controller offers no adjustment of the front to rear torque split and cannot switch the car to rear-wheel drive. With the MoTeC in charge, the split can be tuned, the car can run in rear-wheel drive for tire warming or dyno work, and everything can be datalogged.

Are any extra modules needed?

No. The slave ECU reads Haldex fluid pressure and fluid temperature from the factory sensors and runs closed loop, pressure-based control on its own. T1 Race Development designed the loom so no external modules are added between the ECU and the AWD hardware.

Why is the loom so long?

The slave ECU sits in the back of the car behind the driver, while the wires it needs are beside the battery at the front. That distance calls for a loom of roughly 15 feet, built from custom cable that carries heavy gauge power and ground, light signal and CAN wiring.

What are the four extra wires for?

They form a separate 22 gauge circuit with a connector at each end, so frunk-area components can reach the ECU without another harness. T1 Race Development often uses them for intercooler water pump control and for its laser ride height kit, which needs three wires.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development M1 AWD Control Harness for LB724 Lamborghini Huracán and 4S Audi R8

T1 Race Development’s M1 AWD Control Harness for LB724 Lamborghini Huracán and 4S Audi R8 lets a slave MoTeC M1 ECU take over the all-wheel drive system from the factory controller. From the factory, a separate computer sets the front to rear torque split with no adjustment and no way to run the car in rear-wheel drive, which racers want for heating tires and tuners use on the dyno. The loom also suits a rear-wheel drive car being converted to all-wheel drive.

Design and Performance

The MoTeC M1 plug and play kit can now remove the factory AWD controller, but the slave ECU sits behind the driver while the wires it needs are beside the battery at the front, so the job calls for a loom roughly 15 feet long. T1 had custom cable made with exactly the heavy power and ground, light signal and CAN wires required, twisted where needed, in Tefzel with Raychem DR25 shrink, plus a relay. The slave ECU reads Haldex fluid pressure and temperature from the factory sensors and runs closed loop, pressure-based control with no external modules, with full datalogging.

Installation

Every wire arrives terminated except at the slave ECU end, where terminals are crimped but not populated, so the loom routes easily to the rear. Four extra 22 gauge wires, with their own connector at each end, carry frunk-area items such as intercooler water pump control and the T1 laser ride height kit.

Features

Lets a slave MoTeC M1 handle all-wheel drive control
Adjustable torque split and rear-wheel drive capability
Closed loop, pressure-based Haldex control from factory sensors
Custom cable in Tefzel wire with Raychem DR25 shrink
Four spare 22 gauge wires from the frunk to the ECU

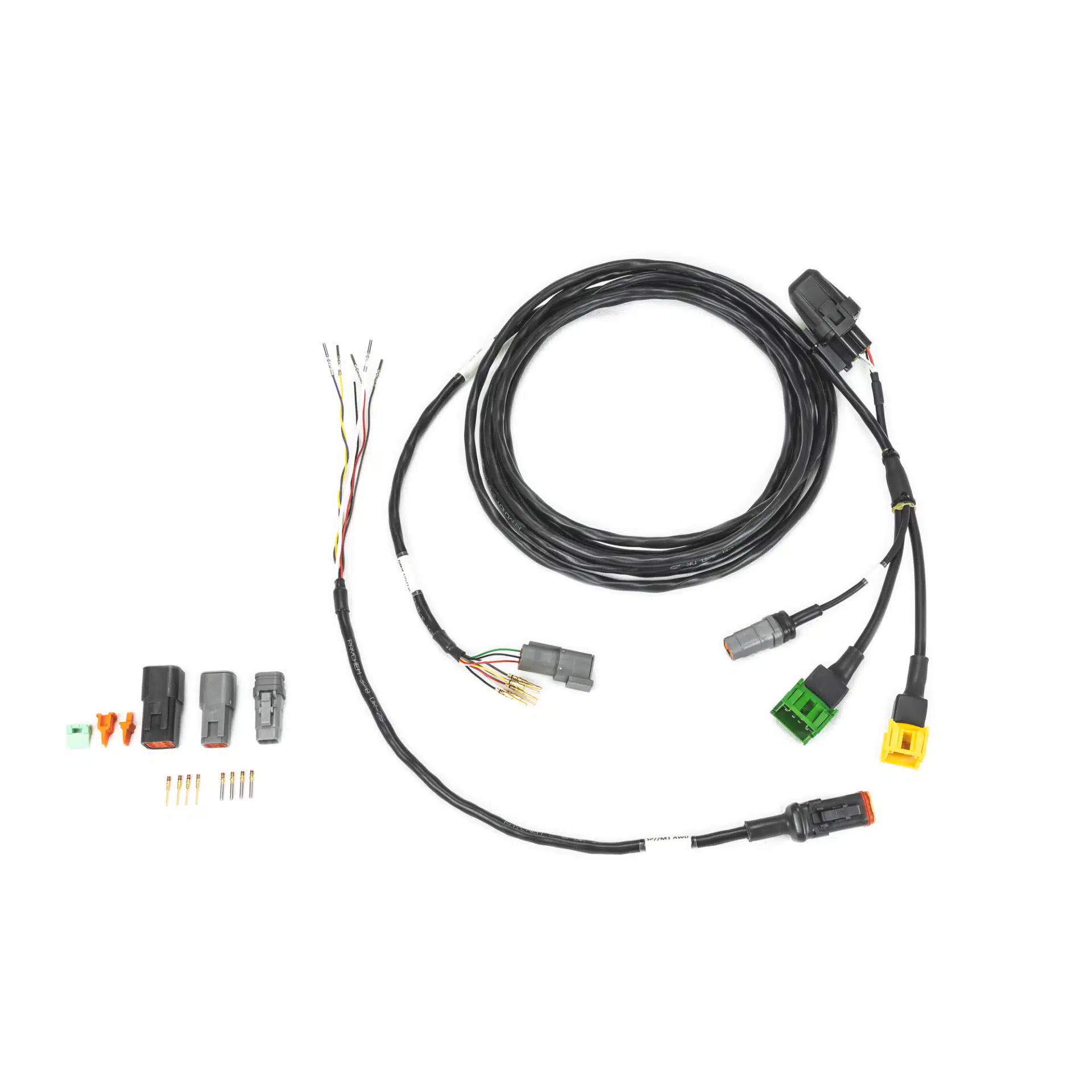

What’s Included

Roughly 15 foot AWD control loom with power, ground, signal and CAN wiring
Relay
Four-wire auxiliary circuit with a connector at each end

Applications

Audi R8: 4S | 2017-2023 | 5.2L V10
Lamborghini Huracán: LB724 | 2015-2024 | 5.2L V10

Notes

Requires a MoTeC M1 plug and play ECU kit with a slave ECU, which is not included
The M1 AWD Control Harness terminals at the slave ECU are crimped but left unpopulated for routing; the installer pins them into the Deutsch connector
T1 publishes installation instructions for the loom

Frequently Asked Questions

What does the M1 AWD Control Harness do? It wires a slave MoTeC M1 ECU to the all-wheel drive system of the LB724 Huracán or 4S R8 so the ECU can replace the factory AWD controller. The T1 M1 AWD Control Harness carries the power, ground, signal and CAN wiring and a relay, plug and play.
Why replace the factory AWD controller? The factory controller offers no adjustment of the front to rear torque split and cannot switch the car to rear-wheel drive. With the MoTeC in charge, the split can be tuned, the car can run in rear-wheel drive for tire warming or dyno work, and everything can be datalogged.
Are any extra modules needed? No. The slave ECU reads Haldex fluid pressure and fluid temperature from the factory sensors and runs closed loop, pressure-based control on its own. T1 Race Development designed the loom so no external modules are added between the ECU and the AWD hardware.
Why is the loom so long? The slave ECU sits in the back of the car behind the driver, while the wires it needs are beside the battery at the front. That distance calls for a loom of roughly 15 feet, built from custom cable that carries heavy gauge power and ground, light signal and CAN wiring.
What are the four extra wires for? They form a separate 22 gauge circuit with a connector at each end, so frunk-area components can reach the ECU without another harness. T1 Race Development often uses them for intercooler water pump control and for its laser ride height kit, which needs three wires.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
