Which stroke version of the Big Bore Piston Set do I need?

Match the T1 Big Bore Piston Set to the crankshaft. The 88 mm set suits engines on an 88 mm stroke crank, and the 94.4 mm set suits 4.1 liter stroker crankshafts such as the one in the GT1R stroker kits. Compression height and dome volume differ between the two versions.

What bore sizes are available?

T1 Race Development makes the pistons in 98.00, 98.25, 98.50, 99.00 and 100.00 mm bores. The bore is not chosen on the product page; after the order is placed, the buyer is contacted to confirm the size before the set is made.

What comes with the pistons?

The GT1R spec Pro Mod set includes piston rings and T1-spec DLC coated wrist pins. Connecting rods, bearings, sleeves and machine work are separate and are chosen with the engine builder as part of the full rotating assembly for the engine.

Do these pistons need a sleeved block?

Yes. Bores of 98 mm and larger are well past the factory VR38 bore, which means removing the factory cylinder liners and fitting aftermarket sleeves. The sleeve size, piston bore and head gasket bore all need to match, so plan them together with the engine builder.

Which head gasket should I use?

T1 Race Development makes its GT1R R35 head gasket set in several bore sizes and two standard thicknesses, with a thicker option made to order. Choose the bore and thickness with the engine builder to suit the pistons, sleeves and compression target.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

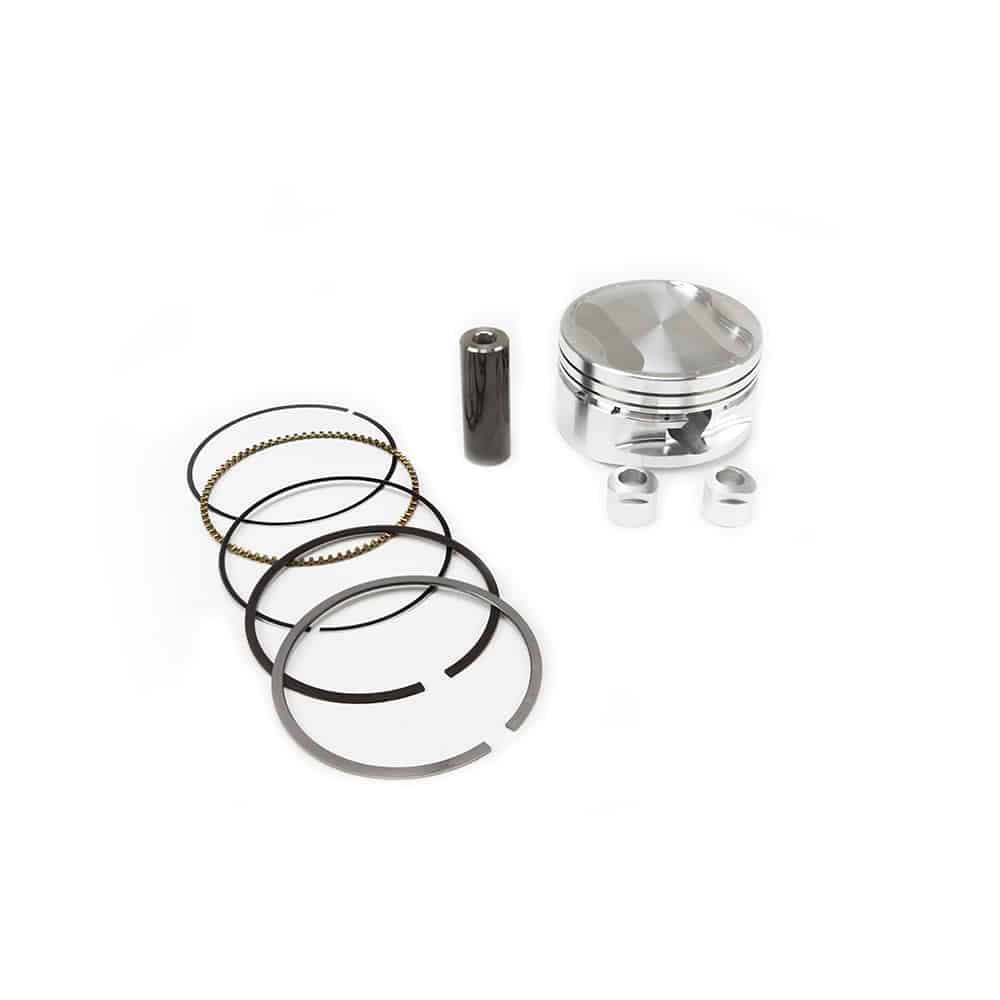

T1 Race Development GT1R Pro Mod Big Bore Piston Set for R35 Nissan GT-R

T1 Race Development’s GT1R Pro Mod Big Bore Piston Set for R35 Nissan GT-R is the GT1R spec piston T1 builds for VR38 engines bored well past the factory size, supplied with rings and T1-spec DLC wrist pins. It is made for two crankshaft strokes, 88 mm and 94.4 mm, and in five bore sizes from 98 mm to 100 mm, with the bore confirmed after the order is placed.

Choosing a Version

Pick the stroke that matches the crankshaft in the build. The 88 mm stroke set uses a 1.35 compression height and a +4.1 cc dome, and the 94.4 mm set, for 4.1 liter stroker crankshafts, uses a 1.23 compression height and a +1.0 cc dome. Both are available in 98.00, 98.25, 98.50, 99.00 and 100.00 mm bores.

Building a Big Bore VR38

Bores this size mean the factory cylinder liners come out and the block is sleeved, so the pistons are chosen alongside the sleeve size, the head gaskets and the rest of the rotating assembly. T1 makes its GT1R head gaskets in matching bore sizes.

Features

GT1R spec Pro Mod big bore pistons
Rings and T1-spec DLC wrist pins included
88 mm or 94.4 mm stroke versions
Five bore sizes from 98.00 to 100.00 mm

Specifications

88 mm stroke compression height: 1.35
88 mm stroke dome volume: +4.1 cc
94.4 mm stroke compression height: 1.23
94.4 mm stroke dome volume: +1.0 cc
Bore options: 98.00, 98.25, 98.50, 99.00 and 100.00 mm
Wrist pins: T1-spec DLC

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Bore size is confirmed after ordering; T1 contacts the buyer through BA for the bore before the Big Bore Piston Set is made
These bores require a sleeved block; machining is the engine builder’s work
Match the head gaskets to the bore with the T1 Race Development GT1R Head Gasket Set (GT1R HG)

Frequently Asked Questions

Which stroke version of the Big Bore Piston Set do I need? Match the T1 Big Bore Piston Set to the crankshaft. The 88 mm set suits engines on an 88 mm stroke crank, and the 94.4 mm set suits 4.1 liter stroker crankshafts such as the one in the GT1R stroker kits. Compression height and dome volume differ between the two versions.
What bore sizes are available? T1 Race Development makes the pistons in 98.00, 98.25, 98.50, 99.00 and 100.00 mm bores. The bore is not chosen on the product page; after the order is placed, the buyer is contacted to confirm the size before the set is made.
What comes with the pistons? The GT1R spec Pro Mod set includes piston rings and T1-spec DLC coated wrist pins. Connecting rods, bearings, sleeves and machine work are separate and are chosen with the engine builder as part of the full rotating assembly for the engine.
Do these pistons need a sleeved block? Yes. Bores of 98 mm and larger are well past the factory VR38 bore, which means removing the factory cylinder liners and fitting aftermarket sleeves. The sleeve size, piston bore and head gasket bore all need to match, so plan them together with the engine builder.
Which head gasket should I use? T1 Race Development makes its GT1R R35 head gasket set in several bore sizes and two standard thicknesses, with a thicker option made to order. Choose the bore and thickness with the engine builder to suit the pistons, sleeves and compression target.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
