What intake manifold does the Full Length 12-Injector Fuel System need?

It is designed for an R35 fitted with the AMS or the Boost Logic 12-injector intake manifold, each of which carries a second bank of six injectors. The T1 Full Length 12-Injector Fuel System supplies the rails and crossover plumbing for that layout. Cars keeping the factory manifold suit the 6-injector versions.

Why choose full length lines over the factory fuel lines?

T1 Race Development recommends its OEM line systems for cars under roughly 1,400 wheel horsepower on ethanol, because those kits reuse the factory lines. The full length kit removes them and runs -08AN feed and return lines from the tank, so it is the version to choose when a build is aimed past that point.

Are injectors included with this T1 fuel system?

No. T1 Race Development offers Injector Dynamics ID1050-XDS, ID1300-XDS, ID1750-XDS and ID2600-XDS injectors with US-Denso plug and play connectors as separate purchases. The secondary injection harness that drives the second bank is also separate, and it works with standalone ECUs such as MoTeC, Syvecs and Pro EFI.

What filter protects the injectors in this kit?

The kit includes the Injector Dynamics F1250 filter and its bracket, mounted off the factory brake line manifold in the passenger front fenderwell. It meets the Bosch OE specification for fuel injector filtration, which matters because large XDS injectors are some of the most expensive parts in a big power fuel system.

Who should install the T1 complete fuel system?

T1 Race Development advises that fuel system work be done by a qualified mechanic on a cool engine. The factory lines come out of the chassis first, and T1 publishes a full installation guide. Removing the battery, battery tray and passenger front fender liner makes routing the new lines much easier.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development GT1R Full Length 12-Injector Fuel System for R35 Nissan GT-R

T1 Race Development’s GT1R Full Length 12-Injector Fuel System for R35 Nissan GT-R is the second generation of T1’s Complete Fuel Solution for cars on a 12-injector intake manifold from AMS or Boost Logic, and it replaces every factory fuel line between the tank and the engine. T1 has been the sales and support side of Injector Dynamics from the start, and the kit shows it: -08AN feed and return lines, filtration to Bosch’s injector standard, and plumbing that arrives labeled and ready to route.

Design and Performance

Ethanol power needs far more fuel than the factory lines were built to carry. The full length kit runs -08AN feed and return lines from the tank along the underside of the car on GT1R fuel line clamps to the engine bay. There the secondary rail becomes the first rail in the system, the banks cross over in the center valley, and a Fore F2i regulator mounts to the firewall. Every line is labeled and heat-sleeved where needed.

Features

Full length -08AN feed and return lines in place of the factory lines
GT1R fuel rails with a center valley crossover
Fore F2i fuel pressure regulator with firewall bracket
Injector Dynamics F1250 filter meeting the Bosch OE injector filtration specification
Built for the AMS or Boost Logic 12-injector intake manifold

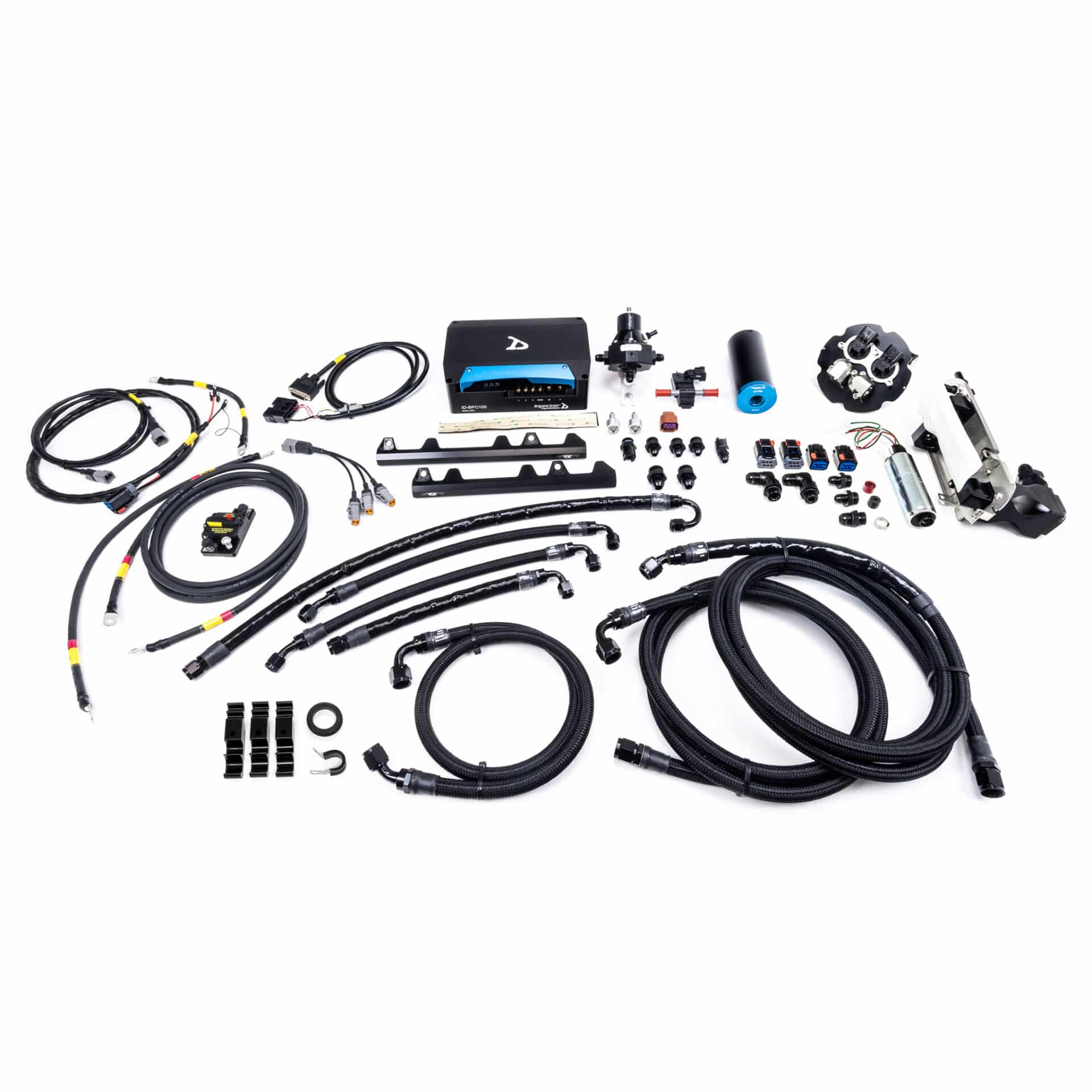

What’s Included

GT1R fuel rails and GT1R Gen 2 flex fuel kit
Fore F2i regulator and firewall bracket
Injector Dynamics F1250 filter and bracket
Plug and play fuel pump wiring harness
All fuel lines, -08AN feed and return, with grommets and GT1R fuel line clamps

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Requires the AMS or Boost Logic 12-injector intake manifold, which is not included
Injectors are not included; T1 offers Injector Dynamics XDS injectors with US-Denso plug and play connectors for both banks
The GT1R fuel pressure sensor kit, the Gen 2 flex fuel electronics and the T1 Race Development GT1R Secondary Injection Harness (GT1R Secondary Injection Harness) are sold separately
The Full Length 12-Injector Fuel System is T1 part number 02.01.03

Frequently Asked Questions

What intake manifold does the Full Length 12-Injector Fuel System need? It is designed for an R35 fitted with the AMS or the Boost Logic 12-injector intake manifold, each of which carries a second bank of six injectors. The T1 Full Length 12-Injector Fuel System supplies the rails and crossover plumbing for that layout. Cars keeping the factory manifold suit the 6-injector versions.
Why choose full length lines over the factory fuel lines? T1 Race Development recommends its OEM line systems for cars under roughly 1,400 wheel horsepower on ethanol, because those kits reuse the factory lines. The full length kit removes them and runs -08AN feed and return lines from the tank, so it is the version to choose when a build is aimed past that point.
Are injectors included with this T1 fuel system? No. T1 Race Development offers Injector Dynamics ID1050-XDS, ID1300-XDS, ID1750-XDS and ID2600-XDS injectors with US-Denso plug and play connectors as separate purchases. The secondary injection harness that drives the second bank is also separate, and it works with standalone ECUs such as MoTeC, Syvecs and Pro EFI.
What filter protects the injectors in this kit? The kit includes the Injector Dynamics F1250 filter and its bracket, mounted off the factory brake line manifold in the passenger front fenderwell. It meets the Bosch OE specification for fuel injector filtration, which matters because large XDS injectors are some of the most expensive parts in a big power fuel system.
Who should install the T1 complete fuel system? T1 Race Development advises that fuel system work be done by a qualified mechanic on a cool engine. The factory lines come out of the chassis first, and T1 publishes a full installation guide. Removing the battery, battery tray and passenger front fender liner makes routing the new lines much easier.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
