Does the Fuel Filter Kit for R35 include the PTS sensor?

No. The standard T1 Fuel Filter Kit for R35 does not include the Injector Dynamics PTS pressure and temperature sensor or the GT1R fuel rail adapter, and T1 Race Development offers both separately. The kit contains the F750 filter, the mounting plate and hardware, the factory feed line adapter and line, and the passenger rail feed line.

How fine does the Injector Dynamics F750 filter?

Injector Dynamics rates the F750 at 87 percent capture efficiency at 5 microns and 100 percent at 35 microns, which meets the Bosch specification for electronic fuel injector protection. Nominal flow is 750 liters per hour at 1.1 psi of pressure drop, rising to 1,000 liters per hour at 1.9 psi.

When should the F750 element be replaced?

The F750 carries a differential pressure indicator that shows when the element is loading up, so replacement follows condition rather than a fixed mileage. Injector Dynamics states the element holds roughly five grams of contaminant at 750 liters per hour, and a Schrader valve on the housing allows pressure checks and draining before service.

Is the F750 filter compatible with E85?

Yes. Injector Dynamics describes the F750 as compatible with all known fuels, which covers pump gasoline and ethanol blends such as E85. That makes it a sound partner for a GT-R running flex fuel, where the larger fuel volumes ethanol demands also increase the flow passing through the filter.

Why add an external fuel filter to an R35 fuel system?

Aftermarket pumps and large injectors move far more fuel than the factory system, and contamination that a stock injector tolerates can wear or stick a high-flow injector. An external F750 adds filtration that meets the Bosch injector protection specification, with a visible indicator, so the condition of the fuel reaching the rails is never a guess.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development GT1R F750 Fuel Filter Kit for R35 Nissan GT-R

T1 Race Development’s GT1R F750 Fuel Filter Kit for R35 Nissan GT-R fits Injector Dynamics’ F750 filter to the GT-R with the bracket, adapter and lines worked out in advance. Injector Dynamics rates the F750 at 750 liters per hour with just 1.1 psi of pressure drop, and its element captures 87 percent of particles at 5 microns and every particle at 35, which meets Bosch’s specification for protecting electronic fuel injectors. On a car running large injectors and high-flow pumps, that is inexpensive protection for some of the most costly parts in the fuel system.

Design and Performance

T1 supplies the filter with a mounting plate and hardware, an adapter and line that join the factory feed line, and a line that feeds the passenger-side fuel rail, so the filter sits in the path of all of the fuel heading for the rails. The F750 itself uses a spin-on housing with a safety latch, a Schrader valve for checking pressure or draining, and a differential pressure indicator that shows when the element is ready for replacement.

Features

Injector Dynamics F750 filter meeting the Bosch injector protection specification
Spin-on element housing with a safety latch
Differential pressure indicator for element condition
Schrader valve for pressure checks and draining
Compatible with all known fuels, per Injector Dynamics

Specifications

Nominal flow: 750 l/h at 1.1 psi pressure drop
High flow: 1,000 l/h at 1.9 psi pressure drop
Filtration: 87 percent at 5 microns, 100 percent at 35 microns
Maximum pressure: 145 psi (10 bar)
Ports: SAE -8 O-ring boss
Filter weight: 700 g

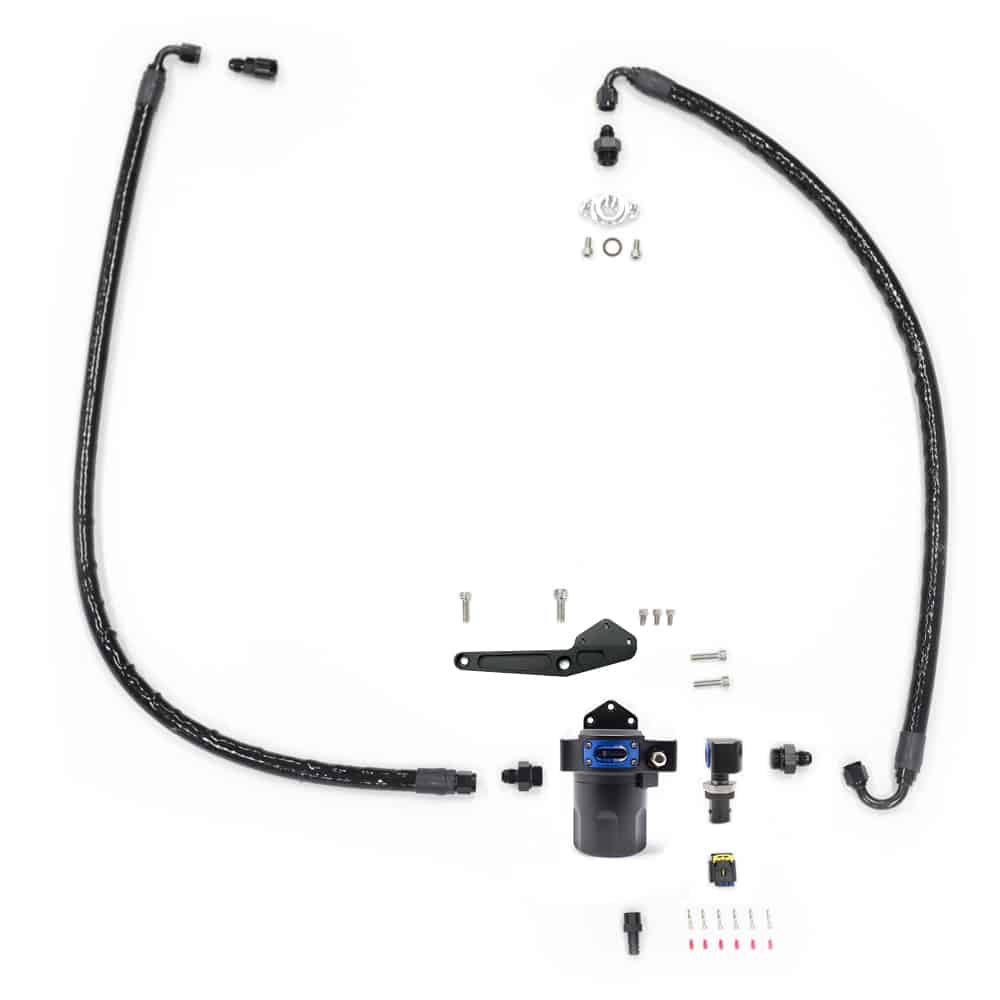

What’s Included

Injector Dynamics F750 fuel filter
Mounting plate and hardware
Factory feed line adapter and line
Line to feed the passenger-side fuel rail

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

The GT1R fuel rail adapter and the Injector Dynamics PTS sensor are not included; T1 offers both separately
The Fuel Filter Kit for R35 is aimed at GT-Rs running upgraded pumps and injectors, where fuel flow runs far beyond factory levels

Frequently Asked Questions

Does the Fuel Filter Kit for R35 include the PTS sensor? No. The standard T1 Fuel Filter Kit for R35 does not include the Injector Dynamics PTS pressure and temperature sensor or the GT1R fuel rail adapter, and T1 Race Development offers both separately. The kit contains the F750 filter, the mounting plate and hardware, the factory feed line adapter and line, and the passenger rail feed line.
How fine does the Injector Dynamics F750 filter? Injector Dynamics rates the F750 at 87 percent capture efficiency at 5 microns and 100 percent at 35 microns, which meets the Bosch specification for electronic fuel injector protection. Nominal flow is 750 liters per hour at 1.1 psi of pressure drop, rising to 1,000 liters per hour at 1.9 psi.
When should the F750 element be replaced? The F750 carries a differential pressure indicator that shows when the element is loading up, so replacement follows condition rather than a fixed mileage. Injector Dynamics states the element holds roughly five grams of contaminant at 750 liters per hour, and a Schrader valve on the housing allows pressure checks and draining before service.
Is the F750 filter compatible with E85? Yes. Injector Dynamics describes the F750 as compatible with all known fuels, which covers pump gasoline and ethanol blends such as E85. That makes it a sound partner for a GT-R running flex fuel, where the larger fuel volumes ethanol demands also increase the flow passing through the filter.
Why add an external fuel filter to an R35 fuel system? Aftermarket pumps and large injectors move far more fuel than the factory system, and contamination that a stock injector tolerates can wear or stick a high-flow injector. An external F750 adds filtration that meets the Bosch injector protection specification, with a visible indicator, so the condition of the fuel reaching the rails is never a guess.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
