What does the Coolant Pressure Sensor Kit include?

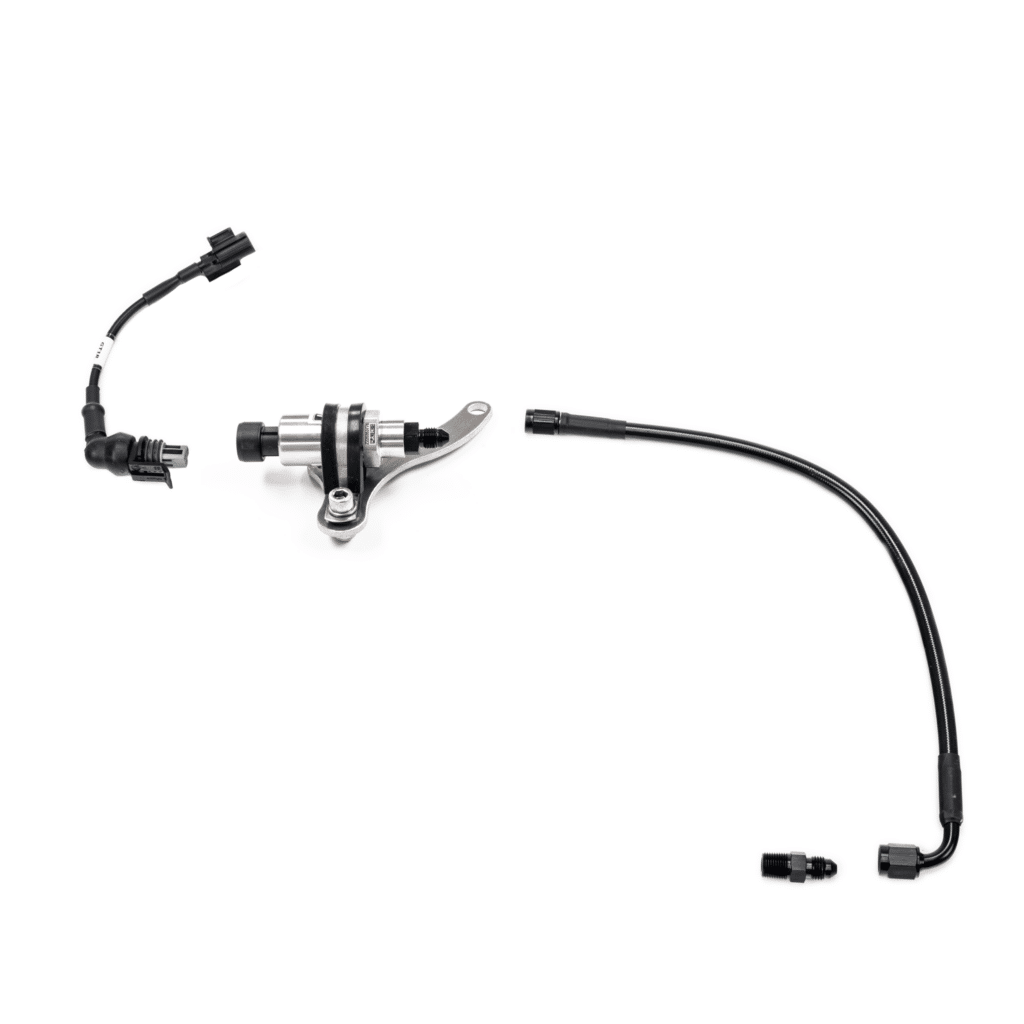

The T1 Coolant Pressure Sensor Kit includes a Honeywell 150 psig pressure sensor, a plug and play harness to the factory power steering connector, a mounting bracket and all other necessary hardware for the R35 GT-R. Nothing needs to be sourced separately to fit it.

Why monitor coolant pressure?

On a high boost engine, coolant pressure rising beyond normal can indicate combustion gas entering the cooling system, an early warning of head sealing problems. Logging it gives the tuner and owner a chance to act before temperature or coolant loss shows the issue.

Does installation involve any modification?

Yes. The coolant fill neck has to be tapped to accept the sensor. Everything else is bolt-on, with a bracket for the sensor and a plug and play harness that connects to the factory power steering connector, so no factory wiring is cut.

Will my ECU read it automatically?

No. The sensor channel has to be set up in the engine management or dash by the tuner, using the calibration for the Honeywell 150 psig sensor. T1 Race Development displays coolant pressure in its MoTeC C127 dash layout for the R35.

What pressure range does the sensor cover?

The Honeywell sensor in the kit is rated to 150 psig. That leaves plenty of range above the pressure a healthy cooling system runs, so an abnormal rise is easy to see in the log or on a dash gauge once the tuner has set up the channel.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development GT1R Coolant Pressure Sensor Kit for R35 Nissan GT-R

T1 Race Development’s GT1R Coolant Pressure Sensor Kit for R35 Nissan GT-R adds a coolant pressure reading to a built VR38, using a Honeywell 150 psig sensor, a mounting bracket and a plug and play harness that connects to the factory power steering connector. The sensor installs in the coolant fill neck, which is tapped for it, and every other piece of hardware is in the box.

Design and Performance

Coolant pressure is one of the channels worth watching on a high boost engine. A reading that climbs beyond normal can show combustion gas getting into the cooling system, an early sign of head sealing trouble, long before temperature alone would show a problem. T1’s MoTeC C127 dash layout for the R35 gives coolant pressure a bar gauge on the main screen alongside fuel and oil pressure.

Installation

The coolant fill neck is tapped to take the sensor, the bracket holds it securely, and the harness plugs into the factory power steering connector, so no wiring has to be cut. The channel then needs to be set up in the engine management or dash by the tuner.

Features

Honeywell 150 psig pressure sensor
Plug and play harness to the OEM power steering connector
Mounting bracket and all hardware included
Mounts in the coolant fill neck

What’s Included

Honeywell 150 psig pressure sensor
Plug and play harness to the OEM power steering connector
Mounting bracket
All other necessary hardware

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

Installation requires tapping the coolant fill neck for the sensor
The engine management or dash must be configured to read the Coolant Pressure Sensor Kit; that setup is the tuner’s work
On MoTeC C127 builds, coolant pressure appears in T1’s dash layout used with the T1 Race Development GT1R MoTeC C127 PNP Harness

Frequently Asked Questions

What does the Coolant Pressure Sensor Kit include? The T1 Coolant Pressure Sensor Kit includes a Honeywell 150 psig pressure sensor, a plug and play harness to the factory power steering connector, a mounting bracket and all other necessary hardware for the R35 GT-R. Nothing needs to be sourced separately to fit it.
Why monitor coolant pressure? On a high boost engine, coolant pressure rising beyond normal can indicate combustion gas entering the cooling system, an early warning of head sealing problems. Logging it gives the tuner and owner a chance to act before temperature or coolant loss shows the issue.
Does installation involve any modification? Yes. The coolant fill neck has to be tapped to accept the sensor. Everything else is bolt-on, with a bracket for the sensor and a plug and play harness that connects to the factory power steering connector, so no factory wiring is cut.
Will my ECU read it automatically? No. The sensor channel has to be set up in the engine management or dash by the tuner, using the calibration for the Honeywell 150 psig sensor. T1 Race Development displays coolant pressure in its MoTeC C127 dash layout for the R35.
What pressure range does the sensor cover? The Honeywell sensor in the kit is rated to 150 psig. That leaves plenty of range above the pressure a healthy cooling system runs, so an abnormal rise is easy to see in the log or on a dash gauge once the tuner has set up the channel.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
