Why does the R35 VR38DETT need a deeper oil pan?

Above about 7,500 rpm the VR38DETT develops heavy windage that aerates the oil, and high G loads push oil away from the factory pickup. In both cases the pump draws air instead of oil. The deeper GT1R CNC pan and repositioned pickup from T1 Race Development keep the pump fed on high-rpm, high-grip builds.

How much oil capacity does the Oil Pan for R35 add?

The T1 Oil Pan for R35 adds 1.5 quarts of capacity over the factory pan. T1 Race Development reached that figure by increasing the depth of the pan and optimising the pickup location, which also places the pickup where it stays submerged under hard acceleration and cornering.

Can the GT1R oil pan be installed with the engine in the car?

Yes. T1 Race Development confirms the pan can be fitted with the engine in place. The rear pan bolts sit close to the subframe and are easiest to reach with a low-profile quarter-inch drive swivel 10 mm socket, and only the first layer of the plastic underpanel is trimmed for clearance.

Is a CNC wet sump pan an alternative to a dry sump?

For most builds, yes. A dry sump prevents oil starvation, but converting the VR38DETT is a large and expensive job. T1 Race Development designed the GT1R CNC pan and pickup adaptor as a practical alternative that addresses windage and high-G oil movement while keeping the factory wet sump layout. A dedicated race engine may still justify a full dry sump.

What comes in the GT1R CNC oil pan kit?

The kit contains the GT1R CNC oil pan, a CNC oil pickup adaptor and all of the new hardware needed for installation. The pickup adaptor replaces the factory gasket with an o-ring on each end, which T1 Race Development chose for better sealing and an easier install.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

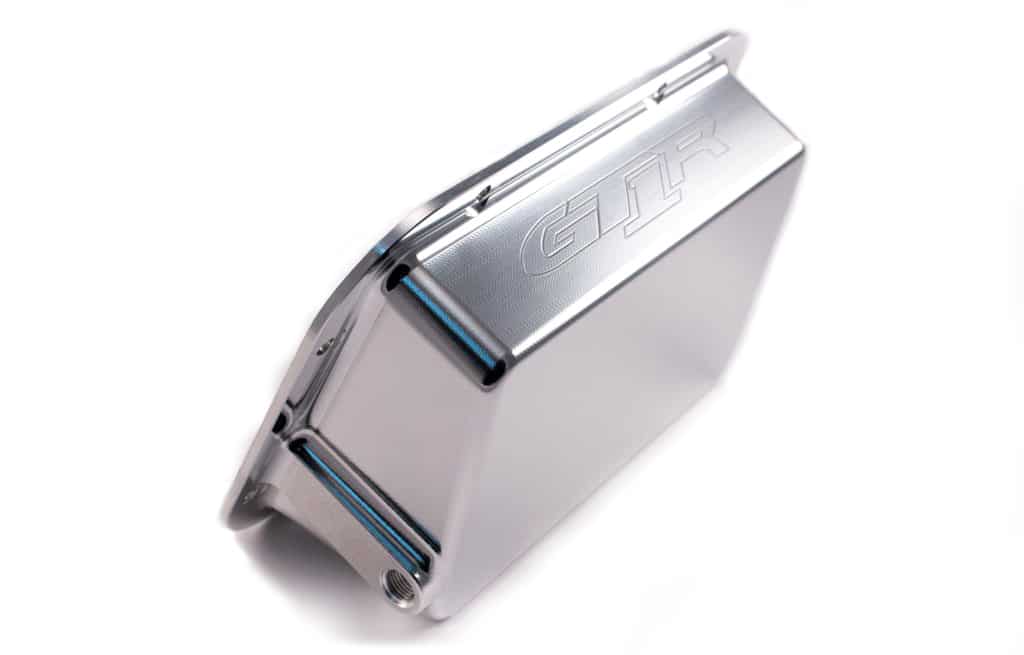

T1 Race Development GT1R CNC Engine Oil Pan for R35 Nissan GT-R

T1 Race Development’s GT1R CNC Engine Oil Pan for R35 Nissan GT-R deals with two oiling problems the VR38DETT only reveals once it is pushed hard: windage above 7,500 rpm that whips air into the oil, and high-G acceleration that pulls oil away from the pickup. Either way the pump swallows air instead of oil, and an oil pump fed air is how engines are lost. A dry sump would solve both, but converting the VR38 is a large and expensive job, so T1 kept the factory wet sump layout and machined a deeper pan around a better-placed pickup.

Development and Testing

Development started in early 2015 with a run of sheet metal samples before the design moved to a CNC machined piece. Deepening the pan and optimising the pickup location added 1.5 quarts of capacity and put the pickup where it stays covered under hard acceleration. T1 logged oil pressure at high rpm before and after on two of its own cars.

Installation

The pan goes on with the engine still in the car. Only the first layer of the two-layer plastic underpanel is trimmed, so the lower layer still covers the pan, and the rear pan bolts, which sit close to the subframe, are easiest with a low-profile 1/4-inch drive swivel 10 mm socket.

Features

CNC machined wet sump pan, deeper than the factory part
1.5 quarts of added oil capacity
Repositioned pickup that stays submerged under high-G acceleration
CNC oil pickup adaptor sealed by an o-ring at each end
Installs with the engine in the car

What’s Included

GT1R CNC engine oil pan
GT1R CNC oil pickup adaptor
All new mounting hardware

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

The Oil Pan for R35 keeps the factory wet sump system, giving most street and track builds the oil control they need for far less than a dry sump
The first layer of the two-layer factory underpanel is trimmed to clear the deeper pan

Frequently Asked Questions

Why does the R35 VR38DETT need a deeper oil pan? Above about 7,500 rpm the VR38DETT develops heavy windage that aerates the oil, and high G loads push oil away from the factory pickup. In both cases the pump draws air instead of oil. The deeper GT1R CNC pan and repositioned pickup from T1 Race Development keep the pump fed on high-rpm, high-grip builds.
How much oil capacity does the Oil Pan for R35 add? The T1 Oil Pan for R35 adds 1.5 quarts of capacity over the factory pan. T1 Race Development reached that figure by increasing the depth of the pan and optimising the pickup location, which also places the pickup where it stays submerged under hard acceleration and cornering.
Can the GT1R oil pan be installed with the engine in the car? Yes. T1 Race Development confirms the pan can be fitted with the engine in place. The rear pan bolts sit close to the subframe and are easiest to reach with a low-profile quarter-inch drive swivel 10 mm socket, and only the first layer of the plastic underpanel is trimmed for clearance.
Is a CNC wet sump pan an alternative to a dry sump? For most builds, yes. A dry sump prevents oil starvation, but converting the VR38DETT is a large and expensive job. T1 Race Development designed the GT1R CNC pan and pickup adaptor as a practical alternative that addresses windage and high-G oil movement while keeping the factory wet sump layout. A dedicated race engine may still justify a full dry sump.
What comes in the GT1R CNC oil pan kit? The kit contains the GT1R CNC oil pan, a CNC oil pickup adaptor and all of the new hardware needed for installation. The pickup adaptor replaces the factory gasket with an o-ring on each end, which T1 Race Development chose for better sealing and an easier install.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
