Does the 12-Injector Engine Bay Fuel System include a fuel pump?

No. The T1 12-Injector Engine Bay Fuel System covers only the engine bay, from the factory feed line to the factory return line. It suits owners who already run a fuel pump hanger and pump that can support their power target. The complete T1 kits add the FPS1100 pump and GT1R E5LM hanger.

Which intake manifolds does it fit?

It is laid out for the AMS 12-injector and the Boost Logic 12-injector intake manifolds for the R35 Nissan GT-R, which carry a second bank of six injectors. A GT-R keeping the factory intake manifold and six injectors should use the T1 6-injector engine bay kit instead.

What power level is the kit recommended for?

T1 Race Development recommends its OEM line fuel systems for builds under 1,400 wheel horsepower on ethanol, because fuel still travels through the factory feed and return lines under the car. Builds aiming higher should look at the T1 full length systems, which replace those lines with -08AN feed and return lines.

Can a fuel pressure sensor be added?

Yes. T1 Race Development offers two optional sensors for this kit. The Injector Dynamics PTS installs on the outlet of the F750 filter and reports pressure and temperature, and the GT1R fuel pressure sensor kit installs on the Fore regulator. Neither is included, so add one if the ECU will log fuel pressure.

Does the kit include flex fuel hardware?

Yes. The GT1R Gen 2 flex fuel kit is included and fits into the engine bay plumbing alongside the rails and regulator. On its full length system T1 Race Development sells the Gen 2 flex fuel electronics separately, so check with Bulletproof Automotive which flex fuel parts a given car still needs before ordering.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

T1 Race Development GT1R 12-Injector Engine Bay Fuel System for R35 Nissan GT-R

T1 Race Development’s GT1R 12-Injector Engine Bay Fuel System for R35 Nissan GT-R is the under-hood half of T1’s second generation Complete Fuel Solution, offered on its own for owners who already have a fuel pump hanger they are happy with. It plumbs an AMS or Boost Logic 12-injector intake manifold from the factory feed line to the factory return line, with every rail, line, fitting and regulator chosen by T1 to work as a set.

Design and Performance

Fuel enters through an Injector Dynamics F750 filter, which meets the Bosch OE specification for fuel injector filtration, then feeds GT1R rails for both injector banks. A Fore F2i regulator controls pressure and returns to the factory line, and the GT1R Gen 2 flex fuel kit is built into the plumbing. Every line is labeled for installation and heat-sleeved where needed. Because the factory lines remain in the circuit, T1 recommends this kit for builds under 1,400 wheel horsepower on ethanol.

Features

Designed for the AMS or Boost Logic 12-injector intake manifold
Fittings to mate to the factory feed and return lines
Injector Dynamics F750 filter meeting the Bosch OE injector filtration specification
Fore F2i fuel pressure regulator
Lines labeled for installation and heat-sleeved where needed

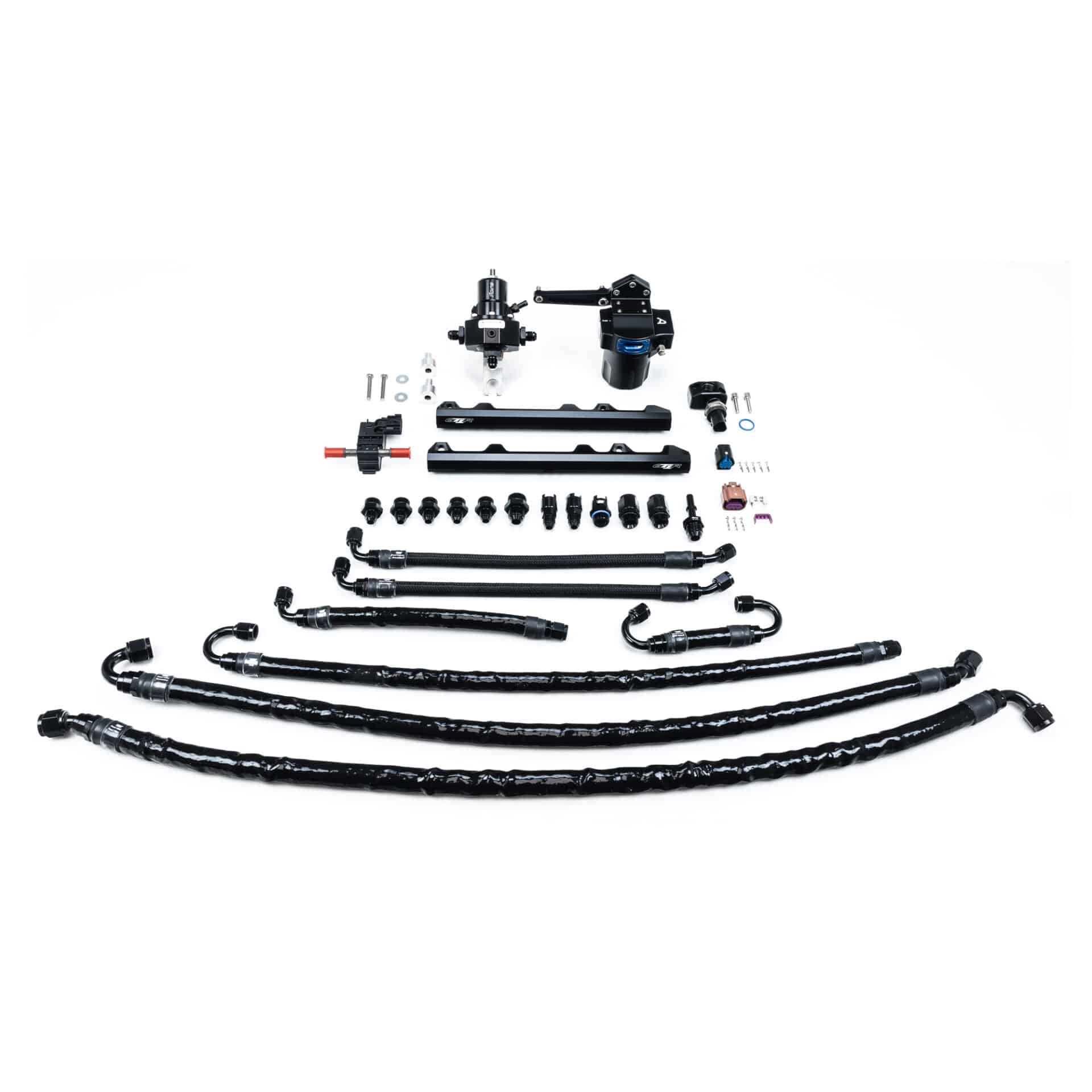

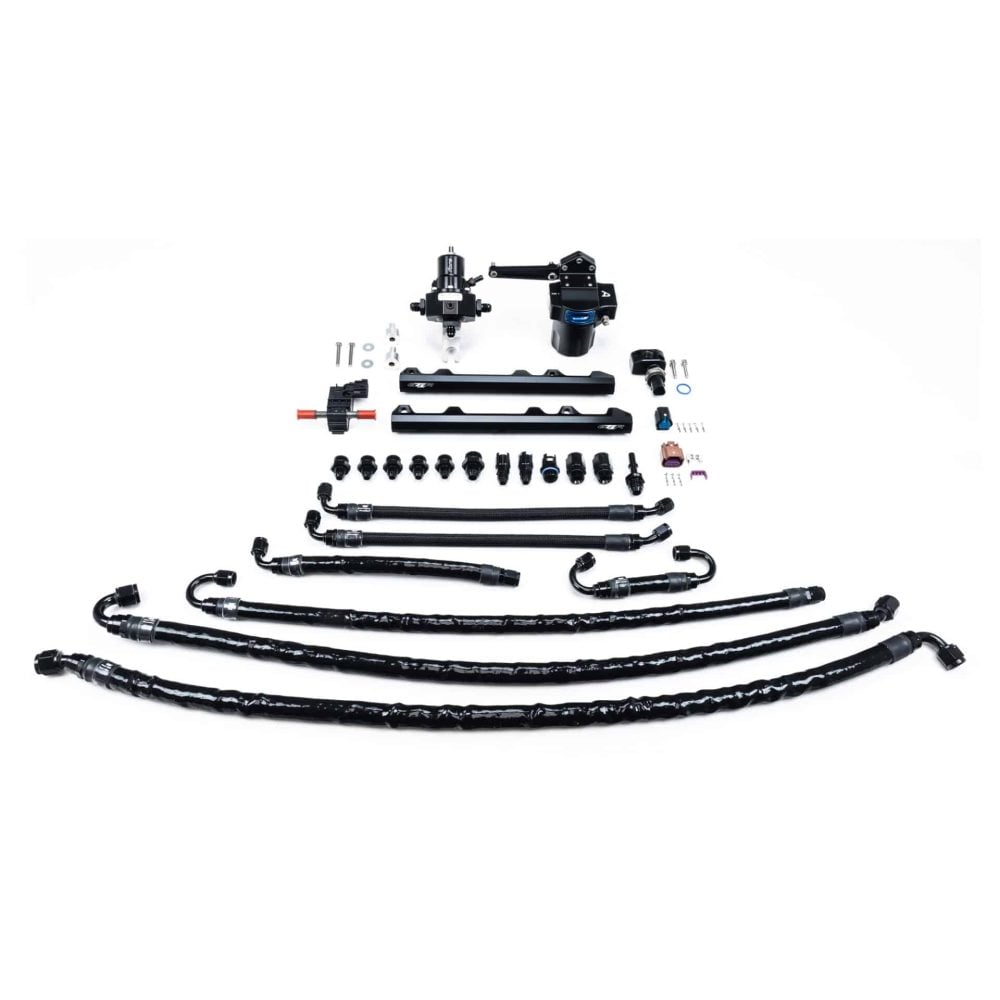

What’s Included

GT1R fuel rails
Fore F2i fuel pressure regulator
GT1R Gen 2 flex fuel kit
Injector Dynamics F750 fuel filter
Every engine bay fuel line, with fittings for the factory feed and return lines

Applications

Nissan GT-R: R35 | 2009-2024 | 3.8L VR38DETT V6

Notes

No fuel pump or hanger is included; for a complete system, see the T1 Race Development GT1R OEM Line 12-Injector Fuel System (T1 02.01.01-1)
Injectors and the T1 Race Development GT1R Secondary Injection Harness (GT1R Secondary Injection Harness) are sold separately
The 12-Injector Engine Bay Fuel System accepts an optional Injector Dynamics PTS on the F750 outlet or a GT1R fuel pressure sensor kit on the regulator
T1 part number 02.01.02

Frequently Asked Questions

Does the 12-Injector Engine Bay Fuel System include a fuel pump? No. The T1 12-Injector Engine Bay Fuel System covers only the engine bay, from the factory feed line to the factory return line. It suits owners who already run a fuel pump hanger and pump that can support their power target. The complete T1 kits add the FPS1100 pump and GT1R E5LM hanger.
Which intake manifolds does it fit? It is laid out for the AMS 12-injector and the Boost Logic 12-injector intake manifolds for the R35 Nissan GT-R, which carry a second bank of six injectors. A GT-R keeping the factory intake manifold and six injectors should use the T1 6-injector engine bay kit instead.
What power level is the kit recommended for? T1 Race Development recommends its OEM line fuel systems for builds under 1,400 wheel horsepower on ethanol, because fuel still travels through the factory feed and return lines under the car. Builds aiming higher should look at the T1 full length systems, which replace those lines with -08AN feed and return lines.
Can a fuel pressure sensor be added? Yes. T1 Race Development offers two optional sensors for this kit. The Injector Dynamics PTS installs on the outlet of the F750 filter and reports pressure and temperature, and the GT1R fuel pressure sensor kit installs on the Fore regulator. Neither is included, so add one if the ECU will log fuel pressure.
Does the kit include flex fuel hardware? Yes. The GT1R Gen 2 flex fuel kit is included and fits into the engine bay plumbing alongside the rails and regulator. On its full length system T1 Race Development sells the Gen 2 flex fuel electronics separately, so check with Bulletproof Automotive which flex fuel parts a given car still needs before ordering.

About T1 Race Development

T1 Race Development was founded in Texas in 2005 by Tony Palo, whose 2000 Acura Integra GSR became the first eight-second front-wheel-drive street car before the shop turned its attention to the Nissan GT-R. T1 went on to become the first to exceed 230 mph in the half mile in a GT-R and the first to make 2,400 whp from the VR38DETT, and it now develops engines, drivetrain parts and complete builds for the R35 GT-R, Lamborghini Huracan and Audi R8.
