Does the Venturi Throttle Body for FK7 also fit the newer FL1?

Yes. Spoon registers the venturi throttle body for FK7 hatchbacks, FC1 sedans and the eleventh-generation FL1 hatchback with the 1.5 litre turbo, manual or CVT. The same part therefore serves owners who move from one generation to the next. The 2.0 litre naturally aspirated Civic is not included.

Why does a turbo engine benefit from a bigger throttle?

Spoon argues that the 1.5 turbo is an engine with excellent intake efficiency, so lowering resistance anywhere in the path still pays off. A wider butterfly adds flow area, and the smoother passage raises the speed of the incoming air, which Spoon credits with better response as well as more output.

Is any cutting or drilling needed?

No. Spoon builds the part on the factory throttle body, so it bolts to the existing intake and accepts the original connector without changes to the car. Honda designed a strong intake layout for this engine, and Spoon kept it intact rather than replacing it. Plan on about an hour.

Will the engine computer accept it?

Spoon names no ECU change for this part. A tuned car should have its calibration reviewed after fitting, since a tuner will want the airflow model to reflect the larger opening. On an untuned car, clear any stored codes and confirm a steady idle and smooth light-throttle driving on the first run.

How big is the change in real terms?

The inlet goes from 57.0 mm to 59.0 mm and the butterfly from 50.0 mm to 52.0 mm, so the gains in flow area are 7.1 and 8.2 percent. Spoon publishes no dyno result, so the benefit is best judged as sharper response and extra headroom for a tuned engine.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

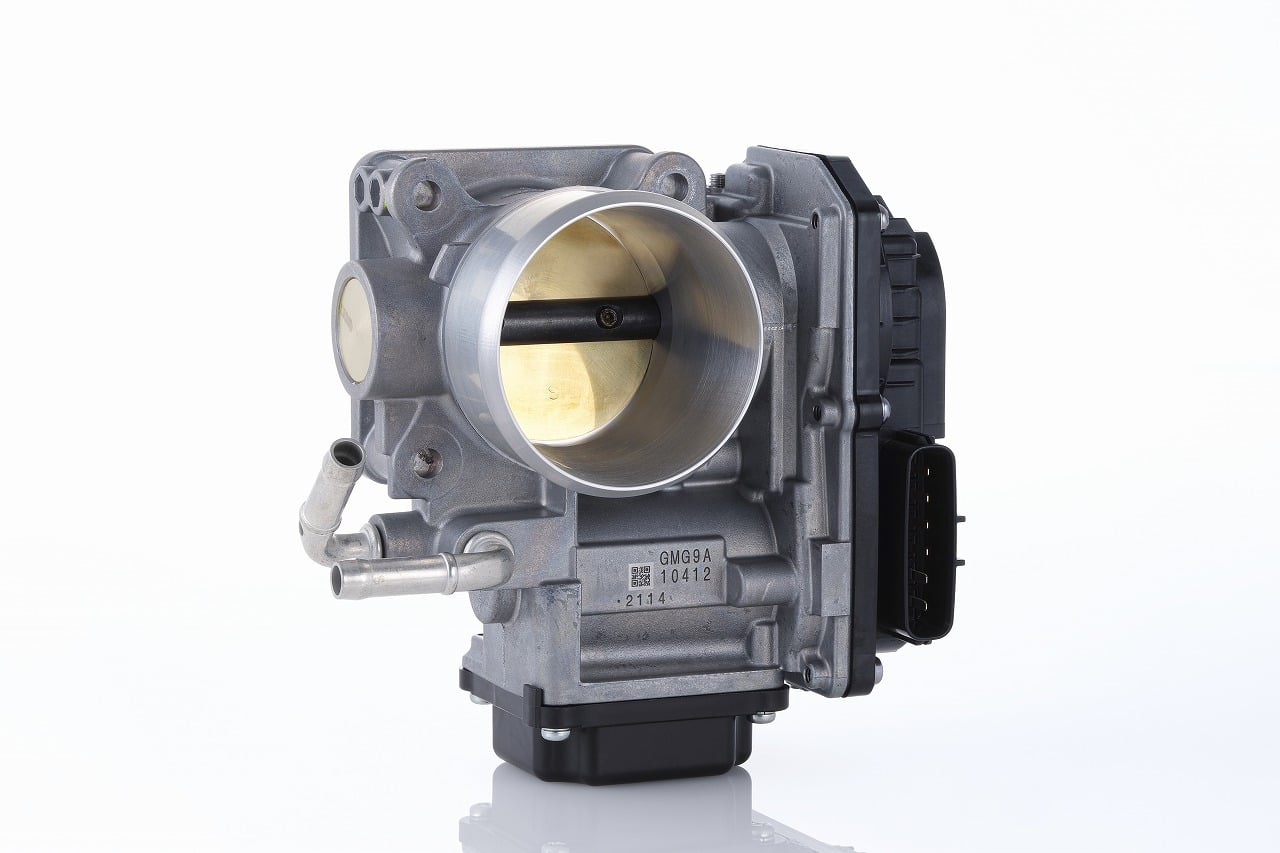

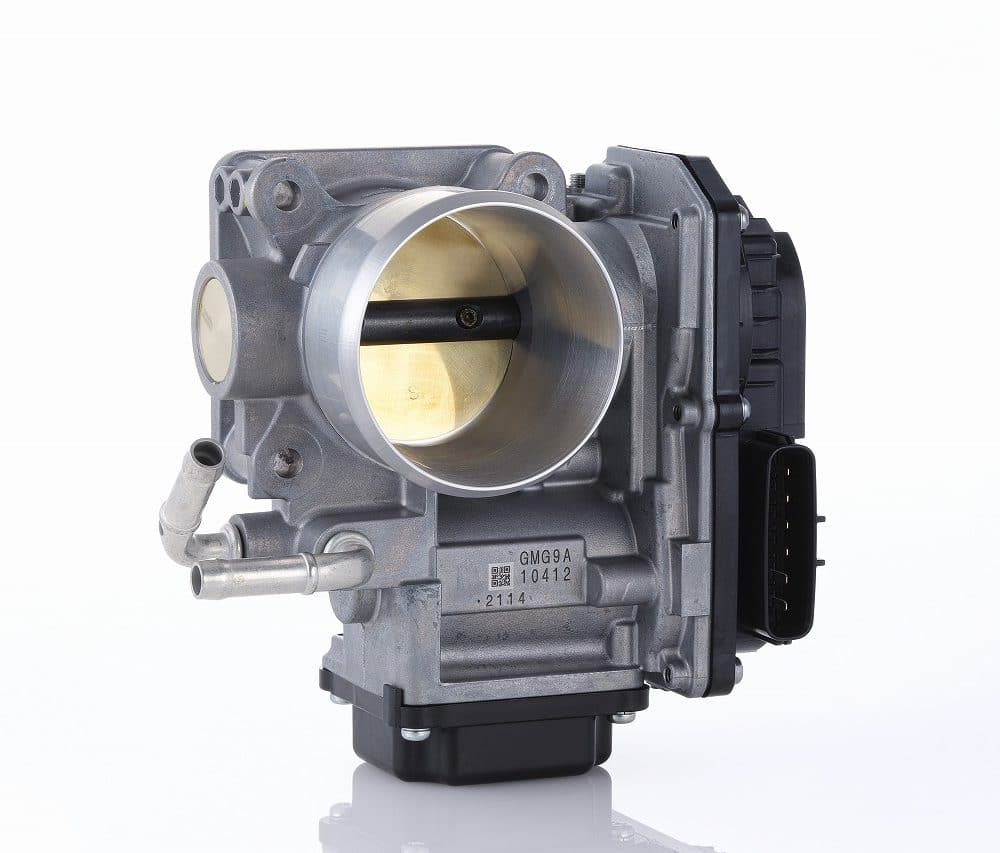

Spoon Sports Venturi Throttle Body for FK7 / FL1 / FC1 Honda Civic

The Spoon Sports Venturi Throttle Body for FK7, FL1 and FC1 Honda Civic started from an idea Spoon carried over from decades of naturally aspirated tuning: a turbo engine is, in effect, a highly efficient engine that still gains from getting more air into the cylinders with less resistance. Spoon begins with the factory throttle body of the 1.5-litre turbo and enlarges it, taking the inlet from 57.0 mm to 59.0 mm and the butterfly from 50.0 mm to 52.0 mm, increases in flow area of 7.1 and 8.2 percent. The internal surface is refined to cut flow resistance, which raises air speed and sharpens response. Because it keeps the factory body, nothing on the car is cut or modified. It suits an owner tuning a 1.5T hatchback or sedan; on a car that will never see more boost, the change is subtle.

Features

Built on the factory throttle body of the 1.5 turbo
Wider inlet and butterfly for more flow area
Refined internal surface for lower resistance
Quicker throttle response from higher air speed
No modification to the car required

Specifications

Inlet diameter: 59.0 mm, stock 57.0 mm
Inlet area increase: 7.1 percent
Butterfly diameter: 52.0 mm, stock 50.0 mm
Butterfly area increase: 8.2 percent
Base: factory throttle body

Applications

Honda Civic Hatchback: FK7 | 2017-2021 | 1.5L L15B turbo
Honda Civic Hatchback: FL1 | 2022-present | 1.5L L15B turbo
Honda Civic Sedan: FC1 | 2016-2021 | 1.5L L15B turbo

Notes

Spoon registers the Venturi Throttle Body for FK7, FL1 and FC1 cars with the 1.5-litre turbo only; Civic models with the naturally aspirated 2.0-litre engine are not covered
Spoon lists manual and CVT cars, including the 2024 FL1 RS

Frequently Asked Questions

Does the Venturi Throttle Body for FK7 also fit the newer FL1? Yes. Spoon registers the venturi throttle body for FK7 hatchbacks, FC1 sedans and the eleventh-generation FL1 hatchback with the 1.5 litre turbo, manual or CVT. The same part therefore serves owners who move from one generation to the next. The 2.0 litre naturally aspirated Civic is not included.
Why does a turbo engine benefit from a bigger throttle? Spoon argues that the 1.5 turbo is an engine with excellent intake efficiency, so lowering resistance anywhere in the path still pays off. A wider butterfly adds flow area, and the smoother passage raises the speed of the incoming air, which Spoon credits with better response as well as more output.
Is any cutting or drilling needed? No. Spoon builds the part on the factory throttle body, so it bolts to the existing intake and accepts the original connector without changes to the car. Honda designed a strong intake layout for this engine, and Spoon kept it intact rather than replacing it. Plan on about an hour.
Will the engine computer accept it? Spoon names no ECU change for this part. A tuned car should have its calibration reviewed after fitting, since a tuner will want the airflow model to reflect the larger opening. On an untuned car, clear any stored codes and confirm a steady idle and smooth light-throttle driving on the first run.
How big is the change in real terms? The inlet goes from 57.0 mm to 59.0 mm and the butterfly from 50.0 mm to 52.0 mm, so the gains in flow area are 7.1 and 8.2 percent. Spoon publishes no dyno result, so the benefit is best judged as sharper response and extra headroom for a tuned engine.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
