What does 1.75-way mean on the LSD Kit for AP1?

It describes how the differential locks in each direction. The LSD Kit for AP1 locks under power and keeps a large share of that effect on deceleration, more than a 1.5-way unit and less than a 2-way. Spoon chose 1.75-way only for the S2000, where stability while braking into a corner matters on a rear-drive car.

Will the differential make noise?

Yes, it can. Spoon notes that a mechanical limited-slip differential may produce drag noise from the driven wheels, operating noise from its internal gears and some vibration, mostly in tight, slow turns such as parking. These sounds are part of how a clutch-type unit works rather than a sign of a fault.

What initial torque is it set to?

Spoon ships the kit at an initial torque of 9 to 9.5 kgf-m, measured with the unit cold. That preload keeps the differential working at small throttle openings and on corner entry, and it falls gradually as the internal plates wear, which is the point at which an overhaul is due.

Is it a good choice for a street S2000?

It depends on how the car is used. On a car that sees track days or hard canyon driving, the Spoon unit gives more consistent traction and stability than a road-biased differential. On an S2000 driven gently, the noise of a mechanical unit may outweigh the gain, and the factory differential is the better match.

What is included and who should fit it?

The kit includes the differential unit and its side bearings, and Spoon lists it at 8 kg. Fitting it means removing the differential from the car, rebuilding it around the new limited-slip unit and setting bearing preload and gear backlash, so it is work for a drivetrain specialist rather than a home garage.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

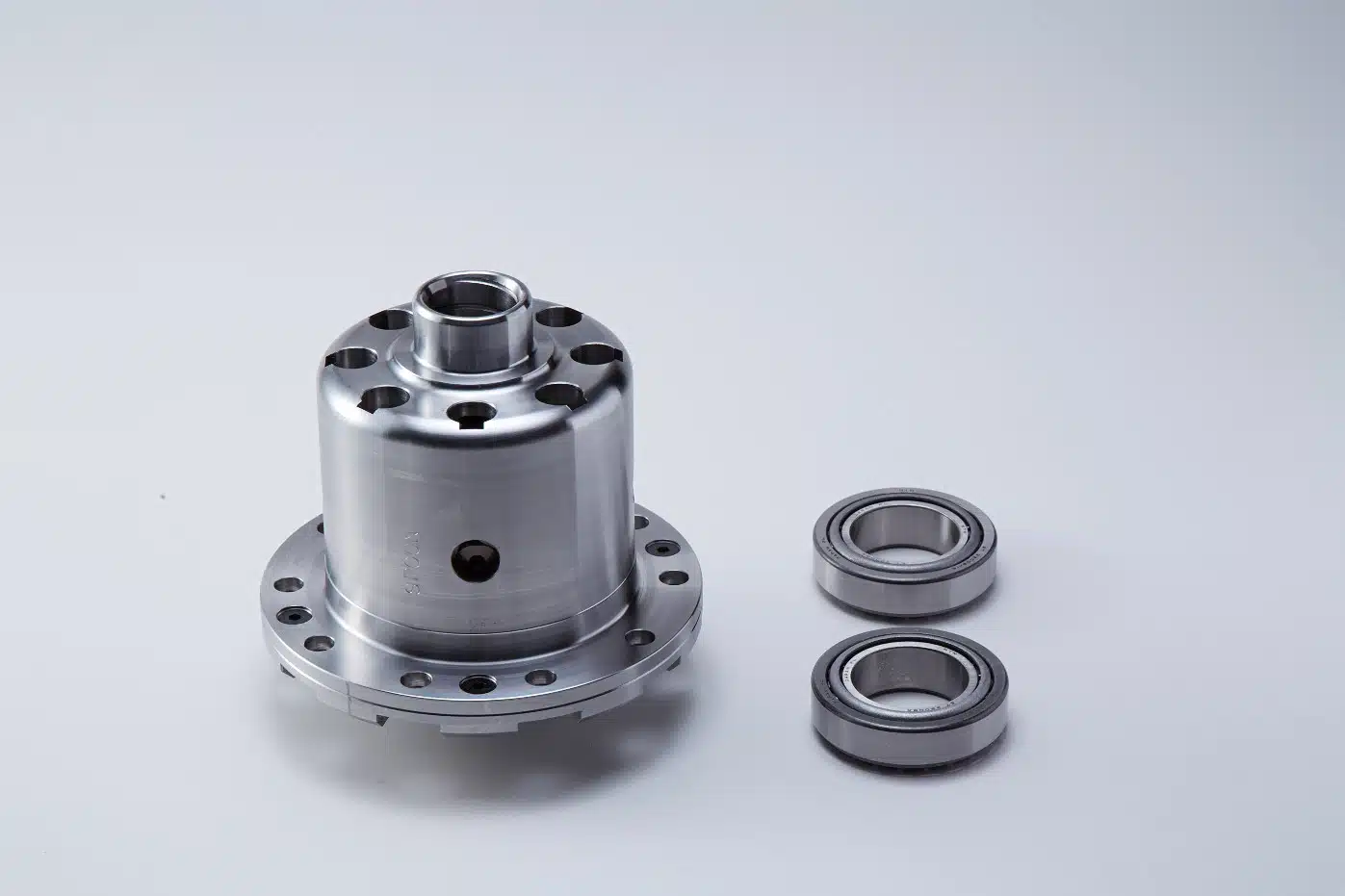

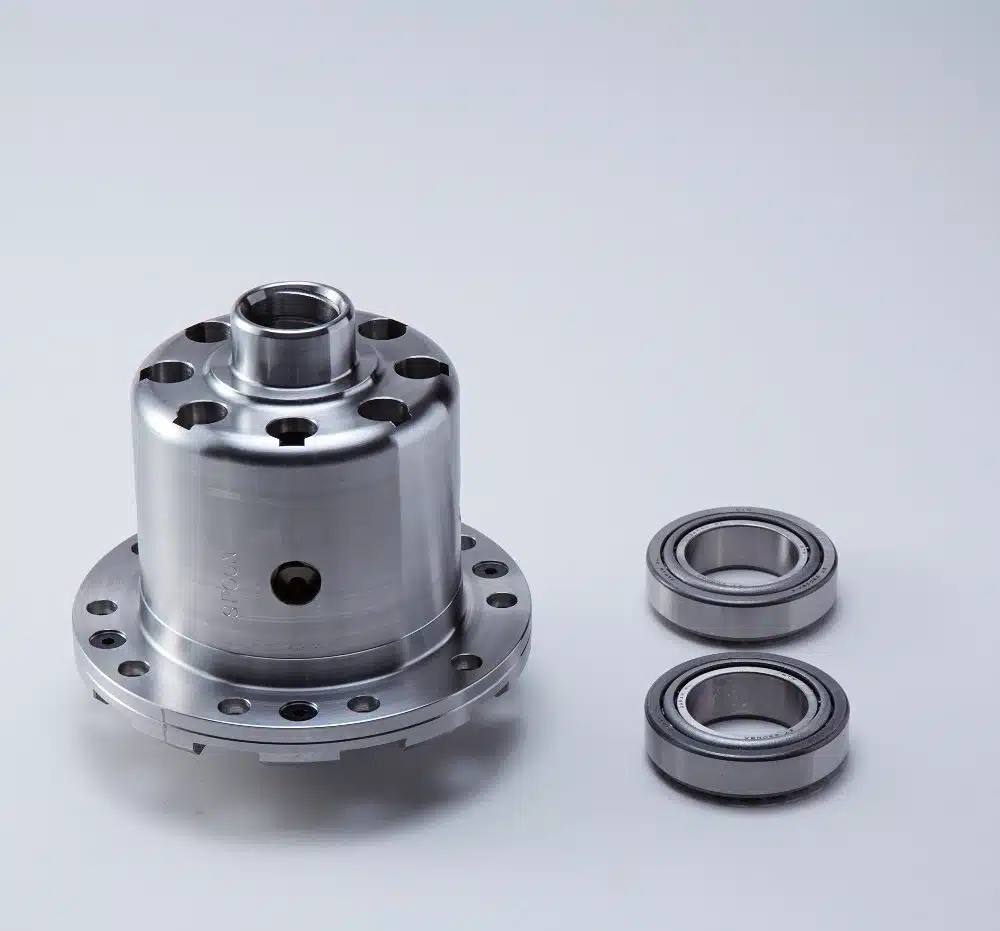

Spoon Sports LSD Kit for AP1 / AP2 Honda S2000

The Spoon Sports LSD Kit for AP1 and AP2 Honda S2000 is the one Spoon differential set to 1.75-way, a ramp choice made for the rear-drive S2000 rather than the 1.5-way used on its front-drive kits. Spoon’s reasoning starts with load. Through a corner or under hard acceleration the two rear tires never carry equal weight, and a conventional differential sends torque toward the lighter one, which unsettles the car on the brakes and blunts drive on the exit. A mechanical limited-slip unit senses the difference in speed and torque between the wheels and restricts it, so traction reaches the road. The 1.75-way setting adds substantial locking on deceleration, helping the S2000 hold its line when the driver brakes or lifts into a turn. Spoon ships it at an initial torque of 9 to 9.5 kgf-m measured cold and designed it to be straightforward to assemble and maintain. It belongs in an S2000 driven at a circuit; owners who rarely push the car will mostly notice the chatter a mechanical diff brings.

Features

Mechanical 1.75-way locking for the rear-drive S2000
Initial torque of 9 to 9.5 kgf-m cold at delivery
Designed for straightforward assembly and maintenance
Steadier braking into corners and stronger drive out of them
Side bearings supplied

Specifications

Type: mechanical limited-slip differential
Locking: 1.75-way
Initial torque: 9 to 9.5 kgf-m, cold
Listed weight: 8 kg
Box size: 24 x 24 x 21 cm

What’s Included

Spoon LSD unit
Side bearings

Applications

Honda S2000: AP1 | 1999-2005 | 2.0L F20C
Honda S2000: AP2 | 2005-2009 | 2.2L F22C

Notes

Mechanical limited-slip differentials can produce tire drag in tight turns, internal gear noise and vibration; this is normal for the design
The Spoon Sports LSD Overhaul Set for AP1 services this kit when it needs a rebuild
Installation requires rebuilding the differential around the new unit and should be done by a drivetrain specialist
Go Tuning sells the LSD Kit for AP1 for 2000-2009 US cars

Frequently Asked Questions

What does 1.75-way mean on the LSD Kit for AP1? It describes how the differential locks in each direction. The LSD Kit for AP1 locks under power and keeps a large share of that effect on deceleration, more than a 1.5-way unit and less than a 2-way. Spoon chose 1.75-way only for the S2000, where stability while braking into a corner matters on a rear-drive car.
Will the differential make noise? Yes, it can. Spoon notes that a mechanical limited-slip differential may produce drag noise from the driven wheels, operating noise from its internal gears and some vibration, mostly in tight, slow turns such as parking. These sounds are part of how a clutch-type unit works rather than a sign of a fault.
What initial torque is it set to? Spoon ships the kit at an initial torque of 9 to 9.5 kgf-m, measured with the unit cold. That preload keeps the differential working at small throttle openings and on corner entry, and it falls gradually as the internal plates wear, which is the point at which an overhaul is due.
Is it a good choice for a street S2000? It depends on how the car is used. On a car that sees track days or hard canyon driving, the Spoon unit gives more consistent traction and stability than a road-biased differential. On an S2000 driven gently, the noise of a mechanical unit may outweigh the gain, and the factory differential is the better match.
What is included and who should fit it? The kit includes the differential unit and its side bearings, and Spoon lists it at 8 kg. Fitting it means removing the differential from the car, rebuilding it around the new limited-slip unit and setting bearing preload and gear backlash, so it is work for a drivetrain specialist rather than a home garage.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
