Does the High Camshaft and ECU Kit fit a CVT CR-Z?

No. Spoon states plainly that the high camshaft and ECU kit is for manual cars only and is not compatible with automatic transmissions, which on the CR-Z means the CVT. It is registered for the early ZF1-100 series manual car, so a CVT owner should not order it.

What does the factory system do at low revs?

To save fuel, the CR-Z uses VTEC to hold one of the two intake valves in each cylinder nearly closed at low engine speed, relying on the electric motor for extra pull. The High Camshaft and ECU Kit keeps both valves opening, so the engine itself breathes fully from idle.

Will fuel economy suffer?

Spoon does not publish economy figures, but the factory system exists to save fuel, so some loss should be expected, especially in town. In exchange, the engine responds more crisply at low revs and pulls through to a 7,000 rpm limit. A driver who mainly cruises on the highway will notice the change least.

Does it fit a US CR-Z?

Spoon registers the early ZF1 manual car built up to August 2012, which corresponds to the first US model years. Go Tuning, the sole US distributor for Spoon, lists the kit for 2010 to 2016 cars, but the later updated cars fall outside the Spoon registration, so BA will confirm before shipping an order for one.

Is the work suitable for a home mechanic?

Only for an experienced one. The job means opening the valvetrain, swapping the intake camshaft and rocker parts, renewing seals and checking valve clearances, then having the engine computer reprogrammed. A Honda specialist will do it faster and can confirm the hybrid system shows no warnings after the change.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

Spoon Sports High Camshaft and ECU Kit for ZF1 Honda CR-Z

The Spoon Sports High Camshaft and ECU Kit for ZF1 Honda CR-Z undoes the economy compromise in the hybrid coupe’s 1.5-litre engine. At low revs the factory VTEC system idles one of the two intake valves in each cylinder to save fuel, leaving the motor assist to cover the shortfall. Spoon’s camshaft and rocker arm, derived from the parts it developed for the Fit, keep both intake valves working all the time, which Spoon says lifts low-end power and torque. The kit comes with a matched calibration that sets the rev limit at 7,000 rpm and the VTEC changeover at 5,300 rpm. It suits an owner who bought the CR-Z for the manual gearbox and wants it to feel like a Honda sports car; anyone chasing the best fuel economy should leave the car as Honda built it.

How the Kit Works

The kit replaces the intake camshaft, rocker arm and rocker shaft, with new seals, and Spoon rewrites the CR-Z engine computer to suit the new valve timing. The hardware is based on proven Spoon Fit components, so the design has a long service record behind it.

Features

Both intake valves active at all engine speeds
Camshaft and rocker arm based on Spoon Fit parts
Calibration with a 7,000 rpm rev limit
VTEC changeover set at 5,300 rpm
Speed limiter removed in the Spoon calibration

Specifications

Rev limit: 7,000 rpm
VTEC changeover: 5,300 rpm
Speed limiter: removed
Transmission: 6-speed manual only
Chassis: ZF1-100 series

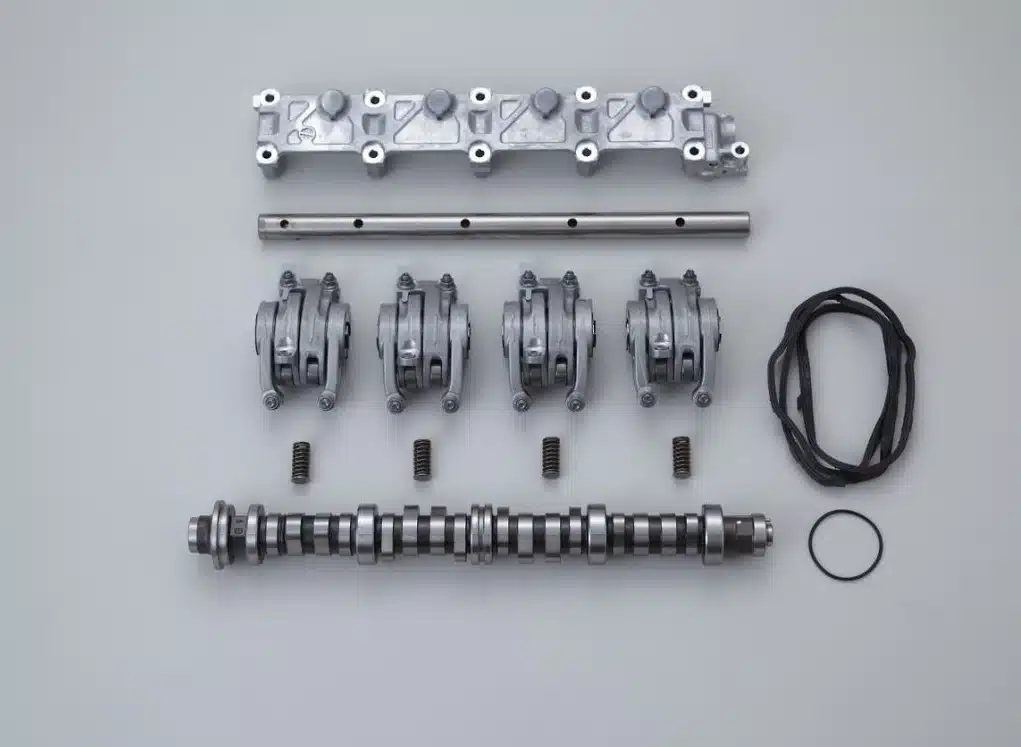

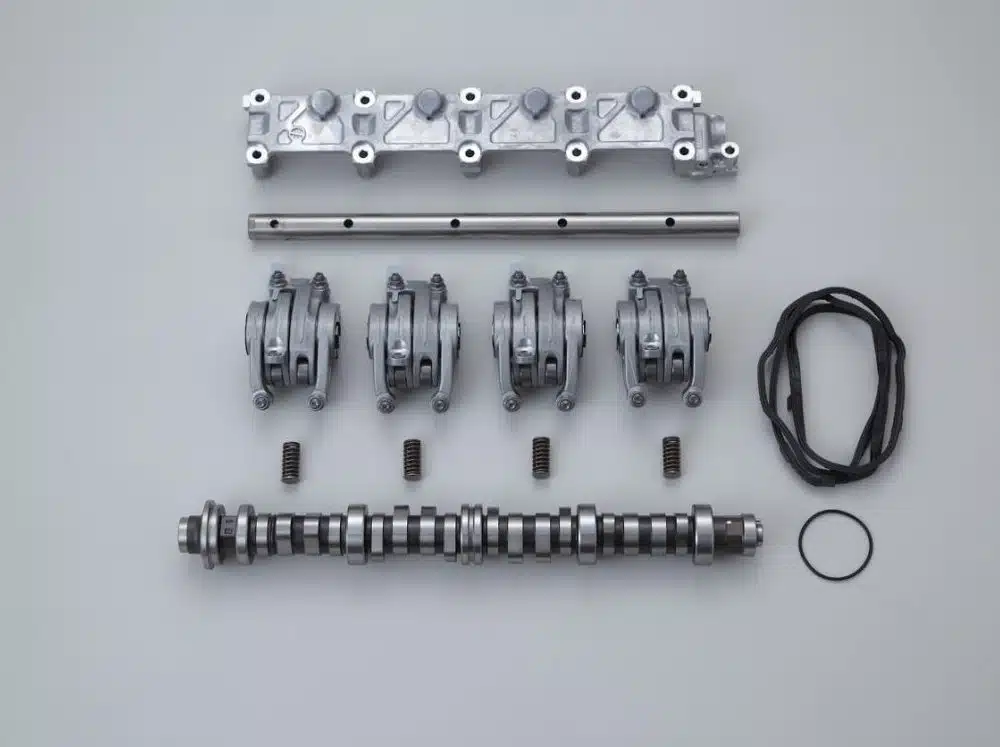

What’s Included

Camshaft
Rocker arm
Rocker shaft
Seals
Spoon ECU calibration

Applications

Honda CR-Z: ZF1 | 2010-2012 | 1.5L LEA hybrid

Notes

Spoon registers the High Camshaft and ECU Kit for the early ZF1-100 series CR-Z with the 6-speed manual, built up to August 2012; the ZF2 and the CVT car are not covered
Spoon rewrites the existing engine computer of the car rather than supplying a separate unit; BA will confirm how the reprogramming is arranged
Professional installation is recommended, as the work involves the valvetrain

Frequently Asked Questions

Does the High Camshaft and ECU Kit fit a CVT CR-Z? No. Spoon states plainly that the high camshaft and ECU kit is for manual cars only and is not compatible with automatic transmissions, which on the CR-Z means the CVT. It is registered for the early ZF1-100 series manual car, so a CVT owner should not order it.
What does the factory system do at low revs? To save fuel, the CR-Z uses VTEC to hold one of the two intake valves in each cylinder nearly closed at low engine speed, relying on the electric motor for extra pull. The High Camshaft and ECU Kit keeps both valves opening, so the engine itself breathes fully from idle.
Will fuel economy suffer? Spoon does not publish economy figures, but the factory system exists to save fuel, so some loss should be expected, especially in town. In exchange, the engine responds more crisply at low revs and pulls through to a 7,000 rpm limit. A driver who mainly cruises on the highway will notice the change least.
Does it fit a US CR-Z? Spoon registers the early ZF1 manual car built up to August 2012, which corresponds to the first US model years. Go Tuning, the sole US distributor for Spoon, lists the kit for 2010 to 2016 cars, but the later updated cars fall outside the Spoon registration, so BA will confirm before shipping an order for one.
Is the work suitable for a home mechanic? Only for an experienced one. The job means opening the valvetrain, swapping the intake camshaft and rocker parts, renewing seals and checking valve clearances, then having the engine computer reprogrammed. A Honda specialist will do it faster and can confirm the hybrid system shows no warnings after the change.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
