Why does one Exhaust Pipe-B for DC5 also fit the EP3?

Spoon registers the Exhaust Pipe-B for DC5 for the EP3 Civic Type R as well, each with the K20A and 6-speed manual, and Go Tuning lists it for the RSX and Civic. Spoon does not explain the shared fit, but the single part number means one pipe serves either car.

Does it work with the stock muffler?

Yes. The rear flange is made to the factory standard, so the original muffler bolts straight on. Spoon pitches the pipe as half of a system with its own tail silencer, saying the pair is lighter and stronger in power and torque, but no figures are given and the stock muffler remains a valid partner.

What does moving the silencer forward achieve?

Spoon explains that exhaust gas is hotter closer to the engine, and a silencer working on hotter gas quiets the exhaust more effectively. Placing it as far forward as possible also steadies exhaust pressure, which Spoon says raises exhaust efficiency, the main reason it gives for the design.

Is it a DIY installation?

It can be, for an experienced home mechanic with a lift. The pipe is listed at 9 kg and arrives in a box 177 cm long, so handling it alone under a car on jack stands is awkward. It joins the front section and rear muffler at standard flanges, and new gaskets at both joints are a good idea.

Does it fit the US Civic Si and RSX?

Yes. Go Tuning, the sole US distributor for Spoon, sells this pipe for the RSX and the Civic Si, listing model years from 2002 to 2006. In Japan, Spoon registers it for the DC5 Integra Type R and the EP3 Civic Type R, both with the K20A and 6-speed manual.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

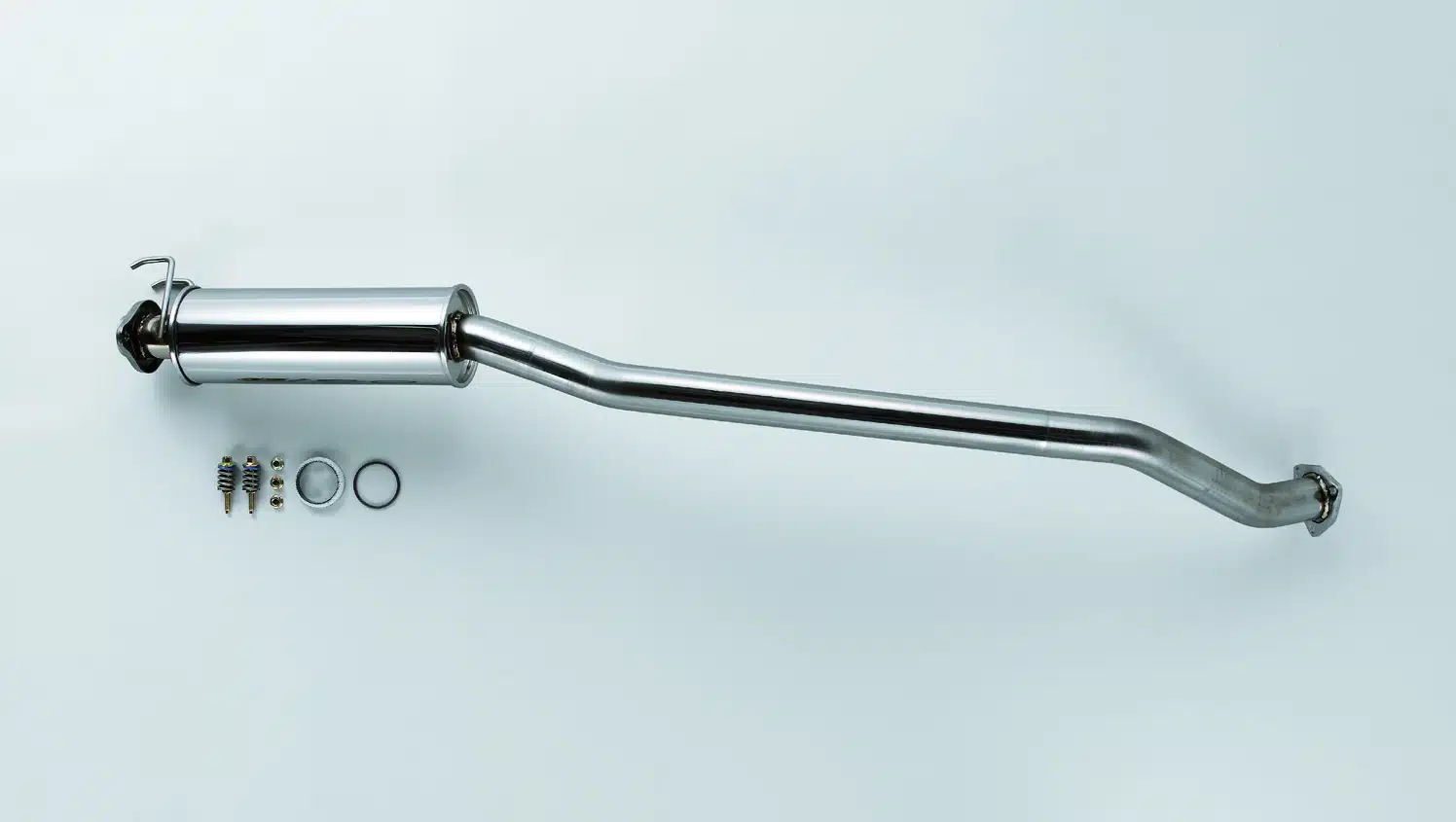

Spoon Sports Exhaust Pipe-B for DC5 Honda Integra Type R and EP3 Civic Type R

Spoon Sports’ Exhaust Pipe-B for DC5 Integra Type R and EP3 Civic Type R is one part number for two K20A cars, a mid pipe that runs between the front section and the tail silencer on either chassis. Spoon’s approach starts with the silencer built into the pipe: it sits as far forward as the layout permits, where the gas is hottest and silencing works best. That placement also stabilizes exhaust pressure, which Spoon credits with better exhaust efficiency. Combined with a Spoon tail silencer, Spoon says the system is lighter and makes more power and torque; with the factory muffler it still bolts up, because the rear flange follows the factory standard. Listed at 9 kg and shipped in a box 177 cm long, it is a part for an owner building a complete Spoon exhaust rather than a quick sound upgrade.

Features

One part number shared by the DC5 and EP3
Integral silencer placed as far forward as possible
Steadier exhaust pressure and better efficiency, per Spoon
Factory-standard flange accepts the stock rear muffler
Listed at 9 kg

Applications

Honda Civic Type R / Civic Si: EP3 | 2001-2005 | 2.0L K20A
Honda Integra Type R / Acura RSX: DC5 | 2001-2006 | 2.0L K20A

Notes

Go Tuning, the sole US distributor for Spoon, sells this pipe for the Acura RSX and the US EP3 Civic Si
The Exhaust Pipe-B for DC5 and EP3 is the mid pipe only; the front section and tail silencer are separate
Spoon tail silencers for the DC5 and EP3 are sold separately

Frequently Asked Questions

Why does one Exhaust Pipe-B for DC5 also fit the EP3? Spoon registers the Exhaust Pipe-B for DC5 for the EP3 Civic Type R as well, each with the K20A and 6-speed manual, and Go Tuning lists it for the RSX and Civic. Spoon does not explain the shared fit, but the single part number means one pipe serves either car.
Does it work with the stock muffler? Yes. The rear flange is made to the factory standard, so the original muffler bolts straight on. Spoon pitches the pipe as half of a system with its own tail silencer, saying the pair is lighter and stronger in power and torque, but no figures are given and the stock muffler remains a valid partner.
What does moving the silencer forward achieve? Spoon explains that exhaust gas is hotter closer to the engine, and a silencer working on hotter gas quiets the exhaust more effectively. Placing it as far forward as possible also steadies exhaust pressure, which Spoon says raises exhaust efficiency, the main reason it gives for the design.
Is it a DIY installation? It can be, for an experienced home mechanic with a lift. The pipe is listed at 9 kg and arrives in a box 177 cm long, so handling it alone under a car on jack stands is awkward. It joins the front section and rear muffler at standard flanges, and new gaskets at both joints are a good idea.
Does it fit the US Civic Si and RSX? Yes. Go Tuning, the sole US distributor for Spoon, sells this pipe for the RSX and the Civic Si, listing model years from 2002 to 2006. In Japan, Spoon registers it for the DC5 Integra Type R and the EP3 Civic Type R, both with the K20A and 6-speed manual.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
