What supporting parts does the Big Turbocharger Kit for FK8 require?

Spoon names three. The Hondata Fuel System Upgrade is mandatory because the factory system cannot keep up, a higher-capacity clutch is needed for the torque, and the engine must be calibrated on the car. The big turbocharger kit for FK8 includes its gaskets, but none of the supporting parts are sold by BA.

How much power did Spoon gain?

Spoon recorded about 100 ps and 15 kgf-m more than stock on its demonstration FK8, which also carried a Spoon N1 muffler, Spoon air cleaner, the Hondata fuel system, an aftermarket intercooler and a replacement front pipe, tuned on the car. A car with a different specification will produce different numbers.

Why choose an MHI turbo?

MHI already supplies the turbocharger Honda fits to the FK8, so Spoon could keep the factory housing shape and mounting while changing what matters inside. Larger, CFD-optimised wheels raise flow, and because inertia is kept in check, Spoon says response improves.

Will the car lose low-speed torque?

Spoon says no. Its aim was more torque in the low and middle rev ranges as well as more power at high speed, and it sized the wheels to avoid sacrificing low-speed response. The larger turbine wheel also lowers exhaust back pressure, which helps the engine breathe at high revs.

Does it fit US FK8 cars?

Yes. The US Civic Type R from the 2017 to 2021 model years is the FK8 with the same K20C engine and 6-speed manual that Spoon registers. The kit has the same requirements on a US car: the Hondata fuel system, an uprated clutch and a calibration set up by a tuner.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

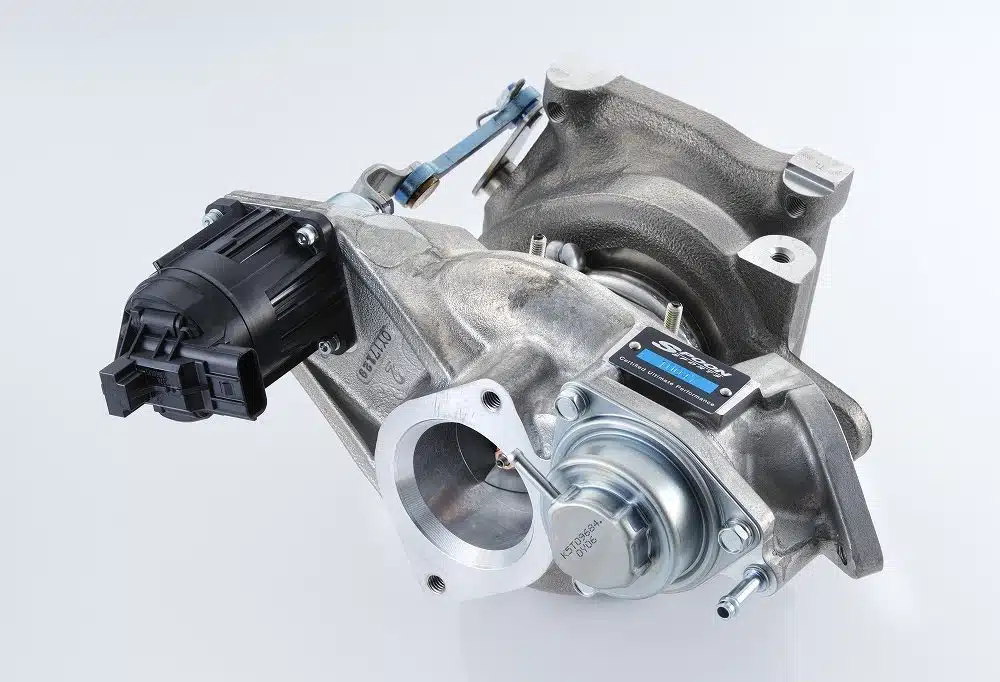

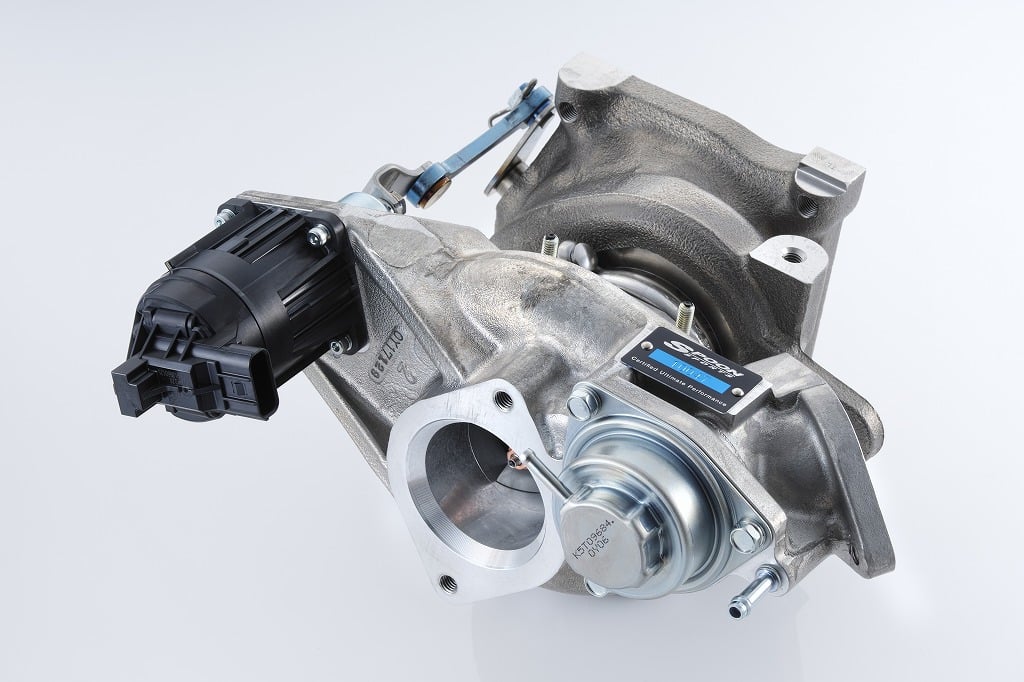

Spoon Sports Big Turbocharger Kit for FK8 Honda Civic Type R

The Spoon Sports Big Turbocharger Kit for FK8 Honda Civic Type R is the result of years of Spoon work on the K20C, starting the day the FK8 went on sale. Using Hondata FlashPro, Spoon optimised boost, ignition timing and fuelling with a safe margin and found about 40 ps over stock from calibration alone. To go further, with more midrange torque and more power at high speed, it needed a bigger turbocharger. Spoon chose MHI, which supplies the factory FK8 turbo, and used CFD analysis to reshape the compressor and turbine blades. The compressor wheel grows from 58 mm to 65 mm and the turbine wheel from 47 mm to 52 mm, raising flow while limiting inertia, cutting exhaust pressure and sharpening response. The housing keeps the factory shape, so it bolts on without machining. This is a serious build part, not a first modification.

Features

MHI turbocharger from the supplier of the factory unit
Compressor wheel enlarged from 58 mm to 65 mm
Turbine wheel enlarged from 47 mm to 52 mm
Blade shapes refined with CFD analysis
Housing in the factory shape for a bolt-on fit

Specifications

Turbocharger: MHI, Spoon specification
Compressor wheel: 65 mm, stock 58 mm
Turbine wheel: 52 mm, stock 47 mm
Listed weight: 10 kg
Gaskets: included
Transmission: 6-speed manual

Applications

Honda Civic Type R: FK8 | 2017-2021 | 2.0L K20C1 turbo

Notes

The Hondata Fuel System Upgrade is required: Spoon says the factory fuel system cannot supply enough fuel for the extra output, and the Hondata package of injectors, higher fuel pump capacity and software raises fuel delivery by 24 percent
A higher-capacity clutch and a calibration set up on the car are also required; none of these parts are sold by BA
Spoon measured about 100 ps and 15 kgf-m over stock on its FK8 demonstration car with the Big Turbocharger Kit for FK8, a Spoon N1 muffler, a Spoon air cleaner, the Hondata fuel system, an aftermarket intercooler, a replacement front pipe and on-car tuning

Frequently Asked Questions

What supporting parts does the Big Turbocharger Kit for FK8 require? Spoon names three. The Hondata Fuel System Upgrade is mandatory because the factory system cannot keep up, a higher-capacity clutch is needed for the torque, and the engine must be calibrated on the car. The big turbocharger kit for FK8 includes its gaskets, but none of the supporting parts are sold by BA.
How much power did Spoon gain? Spoon recorded about 100 ps and 15 kgf-m more than stock on its demonstration FK8, which also carried a Spoon N1 muffler, Spoon air cleaner, the Hondata fuel system, an aftermarket intercooler and a replacement front pipe, tuned on the car. A car with a different specification will produce different numbers.
Why choose an MHI turbo? MHI already supplies the turbocharger Honda fits to the FK8, so Spoon could keep the factory housing shape and mounting while changing what matters inside. Larger, CFD-optimised wheels raise flow, and because inertia is kept in check, Spoon says response improves.
Will the car lose low-speed torque? Spoon says no. Its aim was more torque in the low and middle rev ranges as well as more power at high speed, and it sized the wheels to avoid sacrificing low-speed response. The larger turbine wheel also lowers exhaust back pressure, which helps the engine breathe at high revs.
Does it fit US FK8 cars? Yes. The US Civic Type R from the 2017 to 2021 model years is the FK8 with the same K20C engine and 6-speed manual that Spoon registers. The kit has the same requirements on a US car: the Hondata fuel system, an uprated clutch and a calibration set up by a tuner.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
