Is the Baffle Oil Pan for DC2 a new pan or a modified used one?

It is new. Spoon builds the Baffle Oil Pan for DC2 from a brand-new genuine Honda oil pan and fits its own baffle plate inside, so there is no core to send and no history of dents or corrosion to worry about. The finished pan replaces the factory sump directly.

Do I need it for street driving?

No. On a road car with factory tires the standard pan copes with normal driving. The Spoon pan earns its place when the car sees circuit days on sticky tires, where sustained high cornering loads push oil away from the pickup and risk a pressure drop on a B16B or B18C.

Does it fit the US Acura Integra?

Yes, for the Type R. Spoon registers the pan for the B18C Type R engine, and the US Integra Type R carries its own version of that engine. Spoon does not list the B18B or the other US Integra engines, so BA treats this pan as a Type R part and recommends it for B18C Type R builds.

Is a gasket included?

Yes. Spoon includes the oil pan gasket, so the pan can go on as soon as the old one is off and the block flange is clean. Plan for fresh oil and a new filter at the same time, as the engine has to be drained to remove the factory pan anyway.

What does the install involve?

Drain the oil, unbolt the factory pan and clean the block flange, then fit the Spoon pan with the supplied gasket and tighten the bolts evenly to the Honda figure. Refill with fresh oil and check for leaks after a heat cycle. Any competent home mechanic with stands or a lift can do it.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

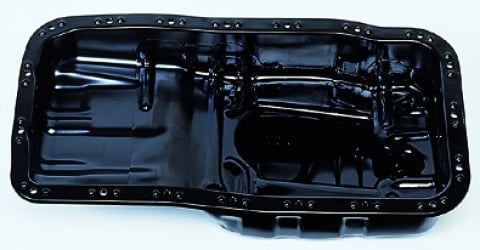

Spoon Sports Baffle Oil Pan for DC2 / DB8 Honda Integra Type R and EK9 Civic Type R

The Spoon Sports Baffle Oil Pan for DC2 / DB8 Integra Type R and EK9 Civic Type R is inexpensive insurance for the B18C and B16B engines that made these cars circuit favorites. Spoon starts with a brand-new Honda oil pan and adds a baffle plate designed for the job, so oil stays around the pickup when sustained cornering, braking and acceleration try to throw it to one side of the sump. Without that control, oil pressure can dip and the pump can draw air, and on a high-revving VTEC engine a few seconds of either can end in a rebuild. Spoon registers the pan for the race base and standard versions of all three cars, lists it at 3 kg, and includes the oil pan gasket. On a road car on factory tires it is more than the engine needs; once the car runs semi-slick tires and a stiffer setup, it belongs on the parts list before the first session.

Features

New genuine Honda oil pan as the base
Spoon-designed baffle plate added
Controls oil surge under high cornering, braking and acceleration loads
Guards against oil pressure loss and air ingestion at the pickup
Oil pan gasket included

What’s Included

Baffle oil pan
Oil pan gasket

Applications

Honda Civic Type R: EK9 | 1997-2000 | 1.6L B16B
Honda Integra Type R / Acura Integra: DC2 | 1995-2001 | 1.8L B18C
Honda Integra Type R 4-door: DB8 | 1995-2001 | 1.8L B18C

Notes

Spoon registers the Type R engines only: the B18C in the DC2 and DB8, and the B16B in the EK9; other B-series engines are not listed
The DB8 is the JDM 4-door Integra Type R, a body style not sold in the US
The Baffle Oil Pan for DC2 is sold as one pan with gasket; engine oil and filter are not included

Frequently Asked Questions

Is the Baffle Oil Pan for DC2 a new pan or a modified used one? It is new. Spoon builds the Baffle Oil Pan for DC2 from a brand-new genuine Honda oil pan and fits its own baffle plate inside, so there is no core to send and no history of dents or corrosion to worry about. The finished pan replaces the factory sump directly.
Do I need it for street driving? No. On a road car with factory tires the standard pan copes with normal driving. The Spoon pan earns its place when the car sees circuit days on sticky tires, where sustained high cornering loads push oil away from the pickup and risk a pressure drop on a B16B or B18C.
Does it fit the US Acura Integra? Yes, for the Type R. Spoon registers the pan for the B18C Type R engine, and the US Integra Type R carries its own version of that engine. Spoon does not list the B18B or the other US Integra engines, so BA treats this pan as a Type R part and recommends it for B18C Type R builds.
Is a gasket included? Yes. Spoon includes the oil pan gasket, so the pan can go on as soon as the old one is off and the block flange is clean. Plan for fresh oil and a new filter at the same time, as the engine has to be drained to remove the factory pan anyway.
What does the install involve? Drain the oil, unbolt the factory pan and clean the block flange, then fit the Spoon pan with the supplied gasket and tighten the bolts evenly to the Honda figure. Refill with fresh oil and check for leaks after a heat cycle. Any competent home mechanic with stands or a lift can do it.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
