Is a radiator cap included with the Aluminum Radiator for FD2?

No. Unlike the Spoon radiators for some earlier Hondas, the Aluminum Radiator for FD2 ships without a cap. Reuse the factory cap if it is in good condition, or fit a new one, and order the required Spoon SEP hoses and fresh coolant at the same time.

Why does Spoon recommend a sports ECU?

A larger radiator only helps if the fan and coolant flow are managed to use it. Spoon recommends a sports ECU with revised fan control, along with a thermostat, so the fan engages at a temperature suited to track driving and the K20A stays in its ideal range for longer sessions.

Are the SEP hoses really necessary?

Yes. Spoon lists them as required. At high rpm the water pump can draw a standard radiator hose flat, restricting flow at exactly the moment cooling matters. The thick-walled Spoon SEP hoses keep their shape, so the radiator receives full flow throughout a session.

Will the air conditioning still work?

Yes. The radiator is designed to fit with the air conditioning installed, so the condenser remains in place and the FD2 keeps its comfort on the road. That makes the upgrade practical for a sedan that is driven to the circuit, used hard there and driven home again.

Does it fit both FD2 production periods?

Yes. Spoon lists it for sedans made between March 2007 and September 2008 and for the revised cars made from September 2008 until August 2010. Every FD2 Spoon registers has the K20A and the 6-speed manual, so a single part number suits all of them.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

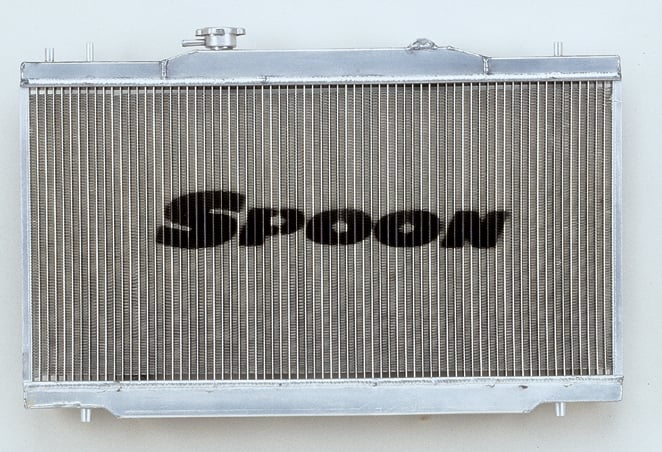

Spoon Sports Aluminum Radiator for FD2 Honda Civic Type R

The Spoon Sports Aluminum Radiator for FD2 Civic Type R differs from the earlier Spoon radiators in one important way: on the FD2, Spoon pairs the bigger core with engine management rather than a thermo switch. The radiator itself follows the familiar Spoon recipe of an all-aluminum, two-row core 35 mm thick in the factory outline, compatible with air conditioning and rated by Spoon at about 40 percent more cooling. To make full use of it, Spoon recommends a sports ECU with revised fan control together with a thermostat, so fan and coolant flow are matched to the extra capacity. No radiator cap is supplied, so the factory cap or a new one goes on. Spoon SEP radiator hoses are required, as on the other Spoon radiators of this type, to stop the hoses collapsing at high rpm. For an FD2 that sees circuit days it is the right upgrade; a road-only sedan does not need it.

Features

All-aluminum two-row core, 35 mm thick
Factory outline for direct fitment
Air conditioning compatible
About 40 percent more cooling, per Spoon
Listed weight of 7.6 kg

Specifications

Material: Aluminum throughout
Core: Two-row
Core thickness: 35 mm
Cooling improvement: About 40 percent over stock, Spoon figure
Listed weight: 7.6 kg
Radiator cap: Not included

Applications

Honda Civic Type R: FD2 | 2007-2010 | 2.0L K20A

Notes

No radiator cap is included with the Aluminum Radiator for FD2
Spoon SEP radiator hoses are required and sold separately
Spoon recommends a sports ECU with revised fan control and a thermostat; neither is included

Frequently Asked Questions

Is a radiator cap included with the Aluminum Radiator for FD2? No. Unlike the Spoon radiators for some earlier Hondas, the Aluminum Radiator for FD2 ships without a cap. Reuse the factory cap if it is in good condition, or fit a new one, and order the required Spoon SEP hoses and fresh coolant at the same time.
Why does Spoon recommend a sports ECU? A larger radiator only helps if the fan and coolant flow are managed to use it. Spoon recommends a sports ECU with revised fan control, along with a thermostat, so the fan engages at a temperature suited to track driving and the K20A stays in its ideal range for longer sessions.
Are the SEP hoses really necessary? Yes. Spoon lists them as required. At high rpm the water pump can draw a standard radiator hose flat, restricting flow at exactly the moment cooling matters. The thick-walled Spoon SEP hoses keep their shape, so the radiator receives full flow throughout a session.
Will the air conditioning still work? Yes. The radiator is designed to fit with the air conditioning installed, so the condenser remains in place and the FD2 keeps its comfort on the road. That makes the upgrade practical for a sedan that is driven to the circuit, used hard there and driven home again.
Does it fit both FD2 production periods? Yes. Spoon lists it for sedans made between March 2007 and September 2008 and for the revised cars made from September 2008 until August 2010. Every FD2 Spoon registers has the K20A and the 6-speed manual, so a single part number suits all of them.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
