Does the Aluminum Radiator for DC5 fit the Acura RSX?

Yes. The RSX is the US version of the DC5 body, and the Aluminum Radiator for DC5 keeps the shape of the factory radiator, so it suits US cars as well as the JDM Integra Type R that Spoon registers. The Spoon SEP hoses are still required on either version of the car.

Does it fit the facelifted DC5?

Yes. Spoon registers the radiator for the early DC5 built from July 2001 and the updated car built from September 2004 to 2006, both with the K20A and 6-speed manual. One part number covers the whole production run, so there is no need to match the radiator to a particular year.

What do the SEP hoses do?

They hold their shape under suction. At high rpm the water pump pulls hard on the hoses, and a standard hose can collapse and cling to itself, choking coolant flow. Spoon makes its SEP hoses thick-walled to prevent that, which is why it lists them as a requirement for this radiator.

Can the air conditioning stay in place?

Yes. Spoon builds the radiator to work with the air conditioning installed, so the condenser remains and the car stays usable every day. That keeps the DC5 comfortable in summer traffic on the way to and from the circuit, with no compromise in the cooling gain Spoon quotes.

Is installation straightforward?

Yes, for anyone who has replaced a radiator before. Drain the coolant, remove the factory radiator and hoses, fit the Spoon radiator and SEP hoses, then refill and bleed the system carefully so no air pockets remain. It is also a good moment to fit the recommended thermostat.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

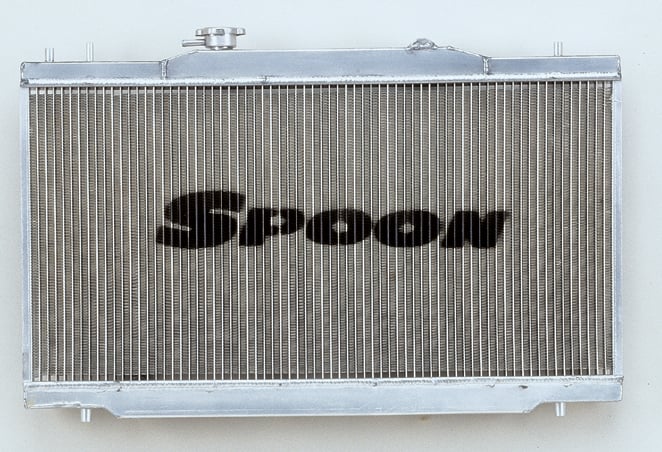

Spoon Sports Aluminum Radiator for DC5 Honda Integra Type R

The Spoon Sports Aluminum Radiator for DC5 Integra Type R suits a car that tends to be driven exactly as Honda intended, hard and at high revs, which is when the factory cooling system starts to run out of margin on a warm track day. Spoon keeps the original shape but rebuilds the radiator in aluminum with two rows and a 35 mm core, and puts the cooling gain at about 40 percent. The air conditioning can stay, a Spoon radiator cap is included, and Spoon registers it for both the early DC5 from 2001 and the facelifted car from 2004. The one non-negotiable is the hose set: Spoon requires its SEP radiator hoses so the water pump cannot draw the hoses flat at high rpm. Pair it with the thermo switch and thermostat Spoon recommends, and the K20A has the reserve it needs for long sessions.

Features

Two-row radiator built entirely from aluminum
35 mm core within the original outline
About 40 percent more cooling according to Spoon
Compatible with the factory air conditioning
Spoon radiator cap supplied

Specifications

Material: Aluminum throughout
Core: Two-row
Core thickness: 35 mm
Cooling improvement: About 40 percent over stock, Spoon figure
Listed weight: 7.3 kg
Radiator cap: Spoon cap included

Applications

Honda Integra Type R / Acura RSX: DC5 | 2001-2006 | 2.0L K20A

Notes

SEP radiator hoses from Spoon must be used with the Aluminum Radiator for DC5; they are sold separately
Spoon recommends adding its thermo switch and thermostat; neither is included
Coolant is not included

Frequently Asked Questions

Does the Aluminum Radiator for DC5 fit the Acura RSX? Yes. The RSX is the US version of the DC5 body, and the Aluminum Radiator for DC5 keeps the shape of the factory radiator, so it suits US cars as well as the JDM Integra Type R that Spoon registers. The Spoon SEP hoses are still required on either version of the car.
Does it fit the facelifted DC5? Yes. Spoon registers the radiator for the early DC5 built from July 2001 and the updated car built from September 2004 to 2006, both with the K20A and 6-speed manual. One part number covers the whole production run, so there is no need to match the radiator to a particular year.
What do the SEP hoses do? They hold their shape under suction. At high rpm the water pump pulls hard on the hoses, and a standard hose can collapse and cling to itself, choking coolant flow. Spoon makes its SEP hoses thick-walled to prevent that, which is why it lists them as a requirement for this radiator.
Can the air conditioning stay in place? Yes. Spoon builds the radiator to work with the air conditioning installed, so the condenser remains and the car stays usable every day. That keeps the DC5 comfortable in summer traffic on the way to and from the circuit, with no compromise in the cooling gain Spoon quotes.
Is installation straightforward? Yes, for anyone who has replaced a radiator before. Drain the coolant, remove the factory radiator and hoses, fit the Spoon radiator and SEP hoses, then refill and bleed the system carefully so no air pockets remain. It is also a good moment to fit the recommended thermostat.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
