Does the 4in2 Exhaust Manifold for DC5 fit the Acura RSX Type S?

Spoon registers the 4in2 Exhaust Manifold for DC5 only on the Japanese Integra Type R and the EP3 Civic Type R with the K20A. Go Tuning sells it for the DC5 and EP3 from 2002 to 2006, but neither source names the RSX Type S engine, so BA will confirm a US car with the distributor first.

Is it the same part for the Integra and the Civic?

Yes. The DC5 Integra Type R and the EP3 Civic Type R use the same K20A engine with a 6-speed manual, and Spoon lists one part number for both across 2001 to 2006. There is no separate Civic version to choose between.

Should I buy the Spoon 2in1 section as well?

For most owners, no. Spoon says the factory 2in1 is well designed and keeps a broad torque band, so replacing it gains nothing on the street. Spoon recommends its own 2in1 only for circuit cars that spend their time at high rpm.

Why does Spoon favour a 4-2-1 design?

Naturally aspirated Honda engines make relatively little torque low in the rev range. A 4-2-1 layout supports that range better than a short collector, which is why Spoon builds this manifold to merge into two pipes and then hand over to the factory 2in1 rather than to a single collector.

Does the car need a tune?

No. No tune or supporting part is listed for this manifold by Spoon or Go Tuning, and it runs with the factory engine management. Spoon publishes no power figures, so BA does not claim a horsepower gain. A later tune remains possible, but the part does not depend on one.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

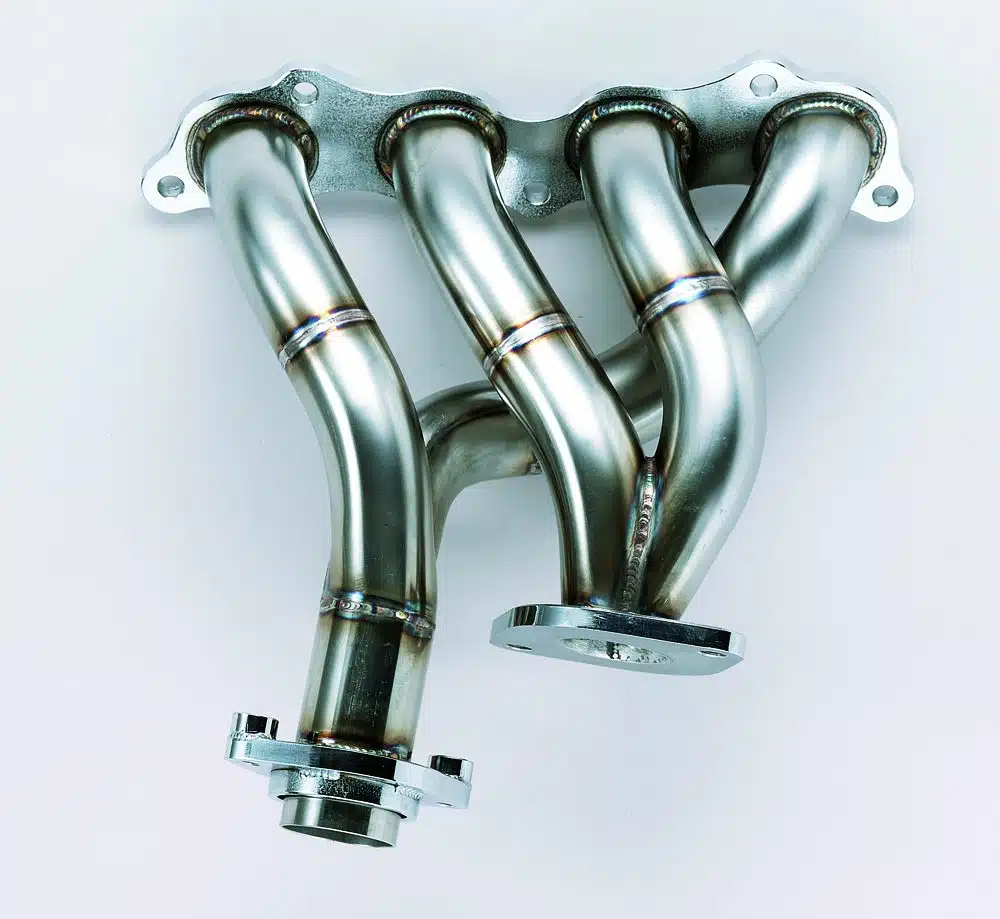

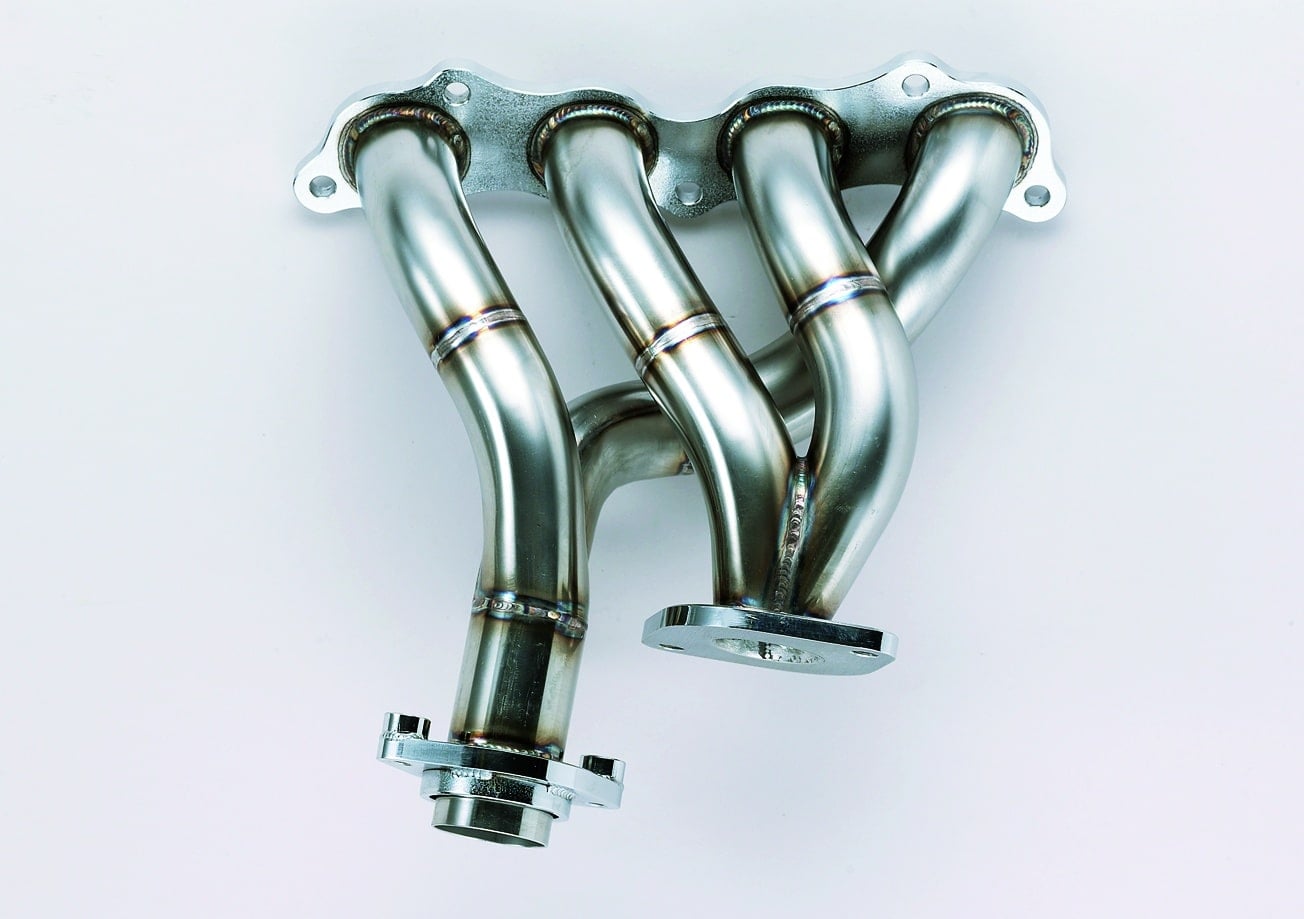

Spoon Sports 4in2 Exhaust Manifold for DC5 Honda Integra Type R and EP3 Civic Type R

The Spoon Sports 4in2 Exhaust Manifold for DC5 Integra Type R and EP3 Civic Type R fits both of the early K20A Type Rs, since the two cars share the same 2.0L engine. It is the primary half of a 4-2-1 system: four pipes merge into two, and the factory 2in1 section carries on from there. Spoon recommends that pairing from its own testing, because naturally aspirated Hondas are light on low-speed torque and the production 2in1 is cleverly built inside, holding a wide torque band. Spoon does sell its own 2in1 for these cars, yet it advises that the swap pays off only for circuit cars that live at high rpm. Every Spoon exhaust manifold is joined to its flange with an insert method that leaves no step at the port, then TIG welded by hand, and the lighter part eases load on the front axle. For a DC5 or EP3 that sees fast road driving and occasional track days, this manifold with the factory 2in1 is the combination Spoon would choose.

Features

Shared fitment across the K20A Integra and Civic Type R
Four primaries merging into two for a 4-2-1 layout
Step-free joint at each exhaust port
TIG welded and hand assembled
Reduced weight over the front axle

Applications

Honda Civic Type R: EP3 | 2001-2005 | 2.0L K20A
Honda Integra Type R: DC5 | 2001-2006 | 2.0L K20A

Notes

Spoon registers the 4in2 Exhaust Manifold for DC5 on the Integra Type R and EP3 Civic Type R with the K20A; the US Acura RSX and EP3 Civic Si carry the K20A2 and K20A3 and are not on its list
The manifold joins the factory 2in1 section; the Spoon 2in1 for these cars is sold separately and meant for circuit use
Spoon lists the manifold at 5 kg

Frequently Asked Questions

Does the 4in2 Exhaust Manifold for DC5 fit the Acura RSX Type S? Spoon registers the 4in2 Exhaust Manifold for DC5 only on the Japanese Integra Type R and the EP3 Civic Type R with the K20A. Go Tuning sells it for the DC5 and EP3 from 2002 to 2006, but neither source names the RSX Type S engine, so BA will confirm a US car with the distributor first.
Is it the same part for the Integra and the Civic? Yes. The DC5 Integra Type R and the EP3 Civic Type R use the same K20A engine with a 6-speed manual, and Spoon lists one part number for both across 2001 to 2006. There is no separate Civic version to choose between.
Should I buy the Spoon 2in1 section as well? For most owners, no. Spoon says the factory 2in1 is well designed and keeps a broad torque band, so replacing it gains nothing on the street. Spoon recommends its own 2in1 only for circuit cars that spend their time at high rpm.
Why does Spoon favour a 4-2-1 design? Naturally aspirated Honda engines make relatively little torque low in the rev range. A 4-2-1 layout supports that range better than a short collector, which is why Spoon builds this manifold to merge into two pipes and then hand over to the factory 2in1 rather than to a single collector.
Does the car need a tune? No. No tune or supporting part is listed for this manifold by Spoon or Go Tuning, and it runs with the factory engine management. Spoon publishes no power figures, so BA does not claim a horsepower gain. A later tune remains possible, but the part does not depend on one.

About Spoon Sports

Spoon Sports was founded in 1988 in Suginami, Tokyo, by Tatsuru Ichishima, a former Honda race car tester and driver, with backing from Honda and Mugen. The company has raced Hondas from its first season, when Ichishima’s own Civic became the first Civic to enter the Japan Touring Car Championship, and its Type One workshop, opened in 2001, services and tunes the cars its parts are developed on. Spoon builds engine, drivetrain, exhaust, chassis and aero parts for Honda models and proves them on circuits and in endurance racing, including the 25 Hours of Thunderhill.
