What is the difference between the SPL ELT 996 and the SPL ELC 996?

The ELT 996 locks the rear toe arm eccentric only; it does not address the camber eccentric at the rear lower control arm. The ELC 996 locks the camber eccentric only; it does not address the toe eccentric. The SPL EL 996 combined kit covers both positions in a single purchase. Choose the ELT 996 if the toe eccentric is the only position that needs attention; choose the combined EL 996 if both positions need to be locked.

Should I buy the ELT 996 separately or the RTAEL 996 bundle?

If the SPL RTA 996 adjustable rear toe arms are also being installed on the same build, the SPL RTAEL 996 bundle includes both the toe arms and the eccentric lockout hardware in a single purchase; it is generally the more efficient choice for those installing both. The ELT 996 standalone kit is the right choice for builds that already have adjustable toe arms installed and only need the lockout hardware.

Why would rear toe slip specifically be a problem on a 996 or 997 that doesn't track heavily?

Rear toe eccentric slip is primarily a track concern because the sustained high lateral loads required to overcome the eccentric friction are most commonly reached on track. However, on a significantly lowered 996 or 997 with aggressive alignment targets and performance tires, sustained hard cornering on public roads can also generate enough lateral force to move the eccentric over time. Any 996 or 997 running near-race alignment on street tires in an autocross or performance driving environment is also a candidate for the lockout.

How does this kit work alongside the SPL RTA 996 adjustable toe arms?

The adjustable toe arm and the eccentric lockout are two separate solutions to two separate problems at the same position. The SPL RTA 996 adjustable toe arm provides an extended adjustment range and eliminates rubber bushing deflection at the arm itself. The ELT 996 lockout eliminates the factory eccentric bolt at the subframe connection, which is the hardware that slips under load regardless of what arm is installed. For the most complete rear toe solution, both are needed; which is why the RTAEL 996 bundle exists.

Does this kit require a full rear alignment after installation?

Yes. Removing the factory toe eccentric and installing the lockout plates fixes the toe arm position mechanically at whatever angle the arm is in at installation. A full rear alignment using the adjustable toe arms is required before the lockout hardware is torqued down to confirm rear toe is at the desired target value.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

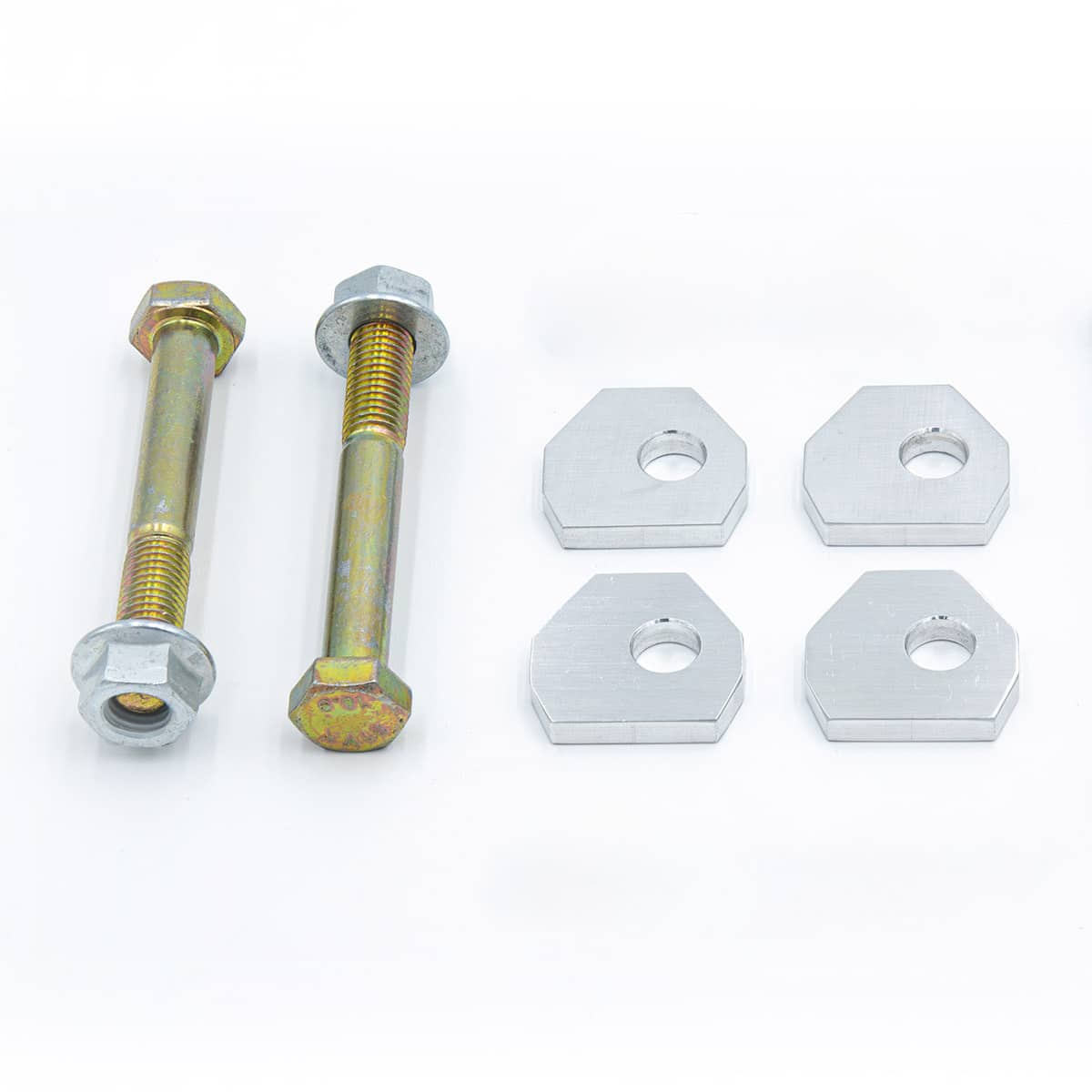

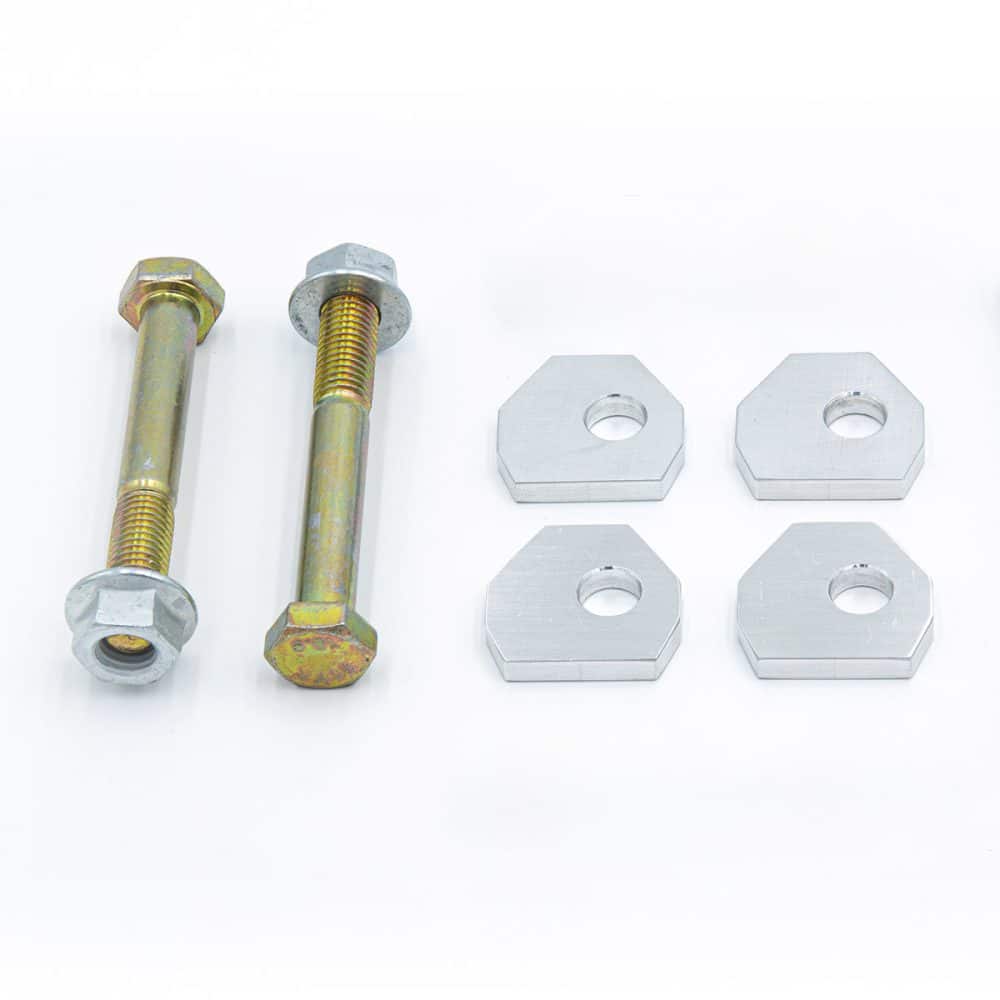

SPL Parts Rear Toe Eccentric Lockout Kit for 99x Porsche 911

Rear toe is one of the more sensitive handling variables on the 996 and 997; a small amount of toe-in adds rear stability under trail braking and at corner entry, while toe change mid-session introduces unpredictability that is difficult to diagnose. The factory toe eccentric bolt at the rear toe arm relies on friction to hold its position. Under sustained high cornering loads on track, that friction can be overcome; the eccentric rotates, the toe arm connection angle changes, and the rear toe moves away from the value the car was aligned to. Handling consistency degrades without an obvious mechanical reason. The SPL ELT 996 toe eccentric lockout kit eliminates that failure mode at the rear toe arm position. CNC-machined 6061-T6 aluminum lockout plates replace the factory toe eccentric hardware at both rear corners, and class 10.9 metric bolts with lock nuts create mechanically fixed connections at the rear toe arm that cannot rotate under any load the 996 or 997 generates on track. The toe set at the alignment rack holds through every session until it is deliberately changed with an adjustable toe arm.

Features

Eliminates the rear toe arm eccentric; mechanically prevents toe position change under sustained cornering load
CNC-machined 6061-T6 aluminum lockout plates; precise dimensional fit to OEM toe eccentric position
Class 10.9 metric hardware; cannot rotate under track cornering loads
Toe eccentric position only; does not address the rear camber eccentric; the SPL ELC 996 covers camber separately, or the SPL EL 996 combined kit covers both positions

Specifications

Material: 6061-T6 aluminum
Hardware: Class 10.9 metric
Replaces: OEM rear eccentric bolts
Required: Adjustable arms must be used to retain alignment range
Origin: Made in the USA

Applications

Porsche 911 Carrera: 996, 997 | 1999-2012
Porsche 911 Carrera S: 997 | 2005-2012
Porsche 911 Carrera 4: 996, 997 | 1999-2012
Porsche 911 Carrera 4S: 996, 997 | 2002-2012
Porsche 911 Targa: 996 | 2002-2005
Porsche 911 Targa 4: 997 | 2006-2012
Porsche 911 Targa 4S: 997 | 2006-2012
Porsche 911 Turbo: 996, 997 | 2001-2012
Porsche 911 Turbo S: 997 | 2010-2012
Porsche 911 GT3: 996, 997 | 1999-2012
Porsche 911 GT3 RS: 996, 997 | 2004-2012
Porsche 911 GT2: 996, 997 | 2002-2012
Porsche 911 GT2 RS: 997 | 2010-2012

Notes

SPL components are made-to-order in the USA; build time will be confirmed at the time of order

Frequently Asked Questions

What is the difference between the SPL ELT 996 and the SPL ELC 996? The ELT 996 locks the rear toe arm eccentric only; it does not address the camber eccentric at the rear lower control arm. The ELC 996 locks the camber eccentric only; it does not address the toe eccentric. The SPL EL 996 combined kit covers both positions in a single purchase. Choose the ELT 996 if the toe eccentric is the only position that needs attention; choose the combined EL 996 if both positions need to be locked.
Should I buy the ELT 996 separately or the RTAEL 996 bundle? If the SPL RTA 996 adjustable rear toe arms are also being installed on the same build, the SPL RTAEL 996 bundle includes both the toe arms and the eccentric lockout hardware in a single purchase; it is generally the more efficient choice for those installing both. The ELT 996 standalone kit is the right choice for builds that already have adjustable toe arms installed and only need the lockout hardware.
Why would rear toe slip specifically be a problem on a 996 or 997 that doesn’t track heavily? Rear toe eccentric slip is primarily a track concern because the sustained high lateral loads required to overcome the eccentric friction are most commonly reached on track. However, on a significantly lowered 996 or 997 with aggressive alignment targets and performance tires, sustained hard cornering on public roads can also generate enough lateral force to move the eccentric over time. Any 996 or 997 running near-race alignment on street tires in an autocross or performance driving environment is also a candidate for the lockout.
How does this kit work alongside the SPL RTA 996 adjustable toe arms? The adjustable toe arm and the eccentric lockout are two separate solutions to two separate problems at the same position. The SPL RTA 996 adjustable toe arm provides an extended adjustment range and eliminates rubber bushing deflection at the arm itself. The ELT 996 lockout eliminates the factory eccentric bolt at the subframe connection, which is the hardware that slips under load regardless of what arm is installed. For the most complete rear toe solution, both are needed; which is why the RTAEL 996 bundle exists.
Does this kit require a full rear alignment after installation? Yes. Removing the factory toe eccentric and installing the lockout plates fixes the toe arm position mechanically at whatever angle the arm is in at installation. A full rear alignment using the adjustable toe arms is required before the lockout hardware is torqued down to confirm rear toe is at the desired target value.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
