What is the difference between the SPL EL F8X, the SPL ELT F8X, and the SPL ELC F8X?

These are three separate lockout kits addressing different eccentric bolt positions on the F8X and G8X. The EL F8X is the combined kit that eliminates both the rear toe arm and rear camber arm eccentric bolts in a single purchase. The ELT F8X covers only the rear toe arm eccentric. The ELC F8X covers only the rear camber arm eccentric. For builds addressing both positions simultaneously, the EL F8X combined kit is more efficient and typically more cost-effective than purchasing the toe and camber kits separately.

Does this kit require both adjustable toe arms and adjustable camber arms?

Yes, and both are hard requirements. Removing the factory eccentric at the toe arm position eliminates the factory toe adjustment mechanism; without adjustable rear toe arms, toe cannot be set after installation. Removing the factory eccentric at the camber arm position eliminates the factory camber adjustment mechanism; without adjustable rear upper camber arms, camber cannot be set after installation. SPL Parts recommends the SPL RTA F8X for rear toe and the SPL RUA F8X for rear camber; both are sold separately and should be installed before or at the same time as this lockout kit.

Does the SPL EL F8X fit the G8X generation as well as the F8X?

Yes. One part number covers both the F8X generation (2014-2021 M2, M3, M4) and the G8X generation (2021+ M2, M3, M4). The rear eccentric bolt configuration is consistent across both generations at both the toe and camber arm positions.

Why does running the RTA F8X toe arm without the eccentric lockout still leave a problem on track?

An adjustable toe arm extends the adjustment range and eliminates rubber bushing deflection at the arm itself. However, the factory eccentric bolt at the subframe connection point remains in place and can still rotate under sustained high cornering loads, shifting toe mid-session regardless of whether the arm has been upgraded. The EL F8X lockout hardware addresses that specific failure point; the eccentric is replaced with a mechanically fixed connection that cannot rotate. The adjustable arm and the lockout are two separate solutions to two separate problems; both are needed for a complete rear alignment stability solution on track.

What hardware is included in the SPL EL F8X kit?

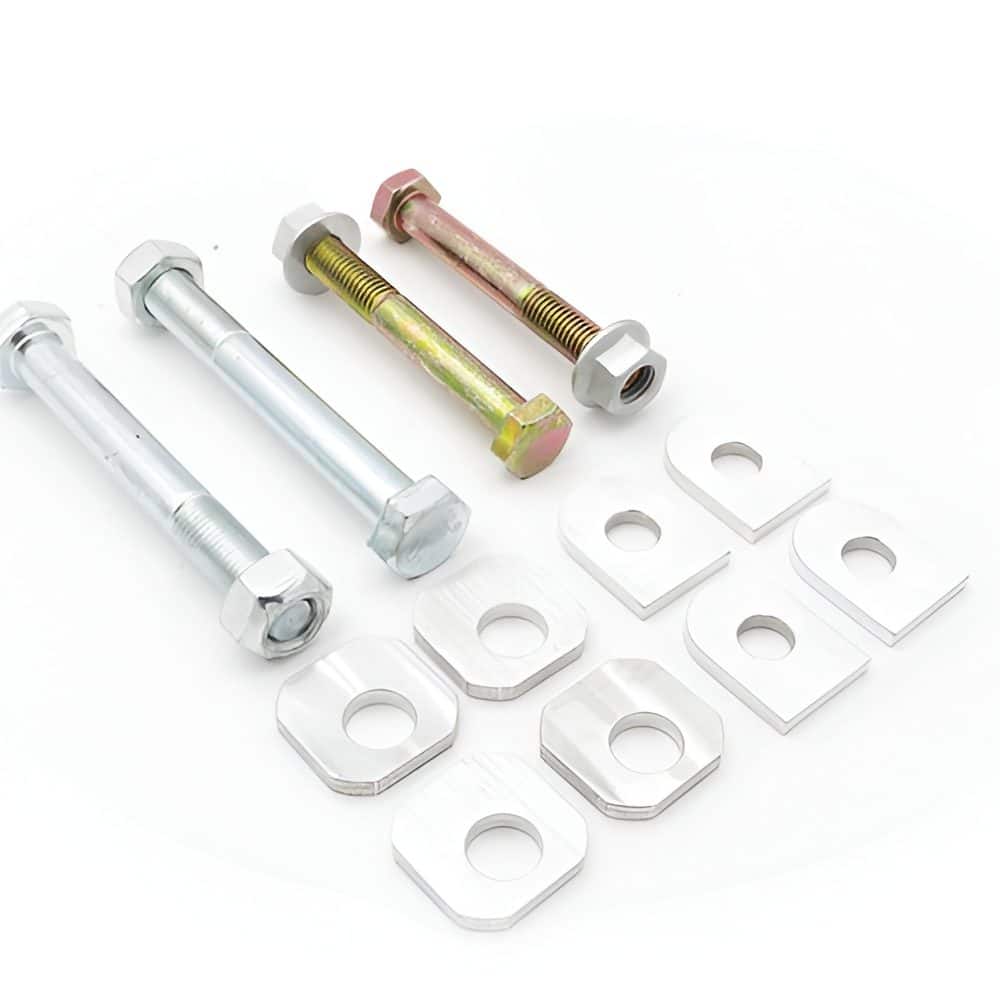

The kit includes CNC-machined 6061-T6 aluminum lockout plates, zinc-plated grade 10.9 bolts, lock nuts, and washers for both rear toe arm and rear camber arm positions at both rear corners. It is sold as a complete one-car kit. Part number: SPL EL F8X.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

SPL Parts Rear Camber and Toe Eccentric Lockout Kit for F8x / G8x BMW M2 / M3 / M4

The rear suspension on the BMW F2x and F3x connects to the rear knuckle through a number of separate bushing positions; each one a potential deflection point under hard cornering, braking, and acceleration. The traction arm knuckle bushing is the rubber interface between the rear traction arm and the rear knuckle itself, and it is one of the positions that gets overlooked in builds that address trailing arm bushings and toe/camber arm bushings without going the full distance. Under high lateral and longitudinal loads, rubber at this location compresses and allows the traction arm to move relative to the knuckle; the wheel position shifts, geometry changes dynamically, and the rear suspension behaves less precisely than the alignment targeted. The SPL Parts RKB F3X replaces that rubber with the largest FK Teflon-lined spherical bearing that will physically fit in this location. The decision to use the largest possible bearing is a deliberate one; a larger bearing distributes the same load over more surface area, reduces specific loading on the bearing and housing, and provides greater longevity and lower NVH than a smaller bearing carrying the same forces through a tighter interface. The 6061-T6 aluminum housing is CNC-machined to +/- .001-inch tolerance, the same precision standard SPL applies across their full bushing lineup; this ensures the bearing seats accurately in the knuckle and holds dimensional stability through thermal cycling and sustained suspension loading.

Features

Combined kit; eliminates both rear toe arm and rear camber arm eccentric bolts at both rear corners in a single purchase
CNC-machined 6061-T6 aluminum lockout plates; precision-machined to SPL Parts’ tolerances
Zinc-plated grade 10.9 bolts and lock nuts; significantly stronger than factory hardware; mechanically prevent rotation under sustained high cornering load
Both positions locked simultaneously; the most complete eccentric lockout solution for the F8x and G8x rear suspension in one kit
More cost-effective than purchasing the SPL ELT F8X and SPL ELC F8X separately for builds addressing both positions

Specifications

Material: 6061-T6 aluminum
Hardware: Class 10.9 metric
Replaces: OEM rear eccentric bolts
Required: Adjustable arms must be used to retain alignment range
Origin: Made in the USA

Applications

BMW M2: F87, G87 | 2016-present
BMW M3: F80, G80, G81 | 2014-present
BMW M4: F82, G82, G83 | 2014-present

Notes

All hardware included
SPL components are made-to-order in the USA; build time will be confirmed at the time of order.

Frequently Asked Questions

What is the difference between the SPL EL F8X, the SPL ELT F8X, and the SPL ELC F8X? These are three separate lockout kits addressing different eccentric bolt positions on the F8x and G8x. The EL F8X is the combined kit that eliminates both the rear toe arm and rear camber arm eccentric bolts in a single purchase. The ELT F8X covers only the rear toe arm eccentric. The ELC F8X covers only the rear camber arm eccentric. For builds addressing both positions simultaneously, the EL F8X combined kit is more efficient and typically more cost-effective than purchasing the toe and camber kits separately.
Does this kit require both adjustable toe arms and adjustable camber arms? Yes, and both are hard requirements. Removing the factory eccentric at the toe arm position eliminates the factory toe adjustment mechanism; without adjustable rear toe arms, toe cannot be set after installation. Removing the factory eccentric at the camber arm position eliminates the factory camber adjustment mechanism; without adjustable rear upper camber arms, camber cannot be set after installation. SPL Parts recommends the SPL RTA F8X for rear toe and the SPL RUA F8X for rear camber; both are sold separately and should be installed before or at the same time as this lockout kit.
Does the SPL EL F8X fit the G8x generation as well as the F8x? Yes. One part number covers both the F8x generation and the G8x generation. The rear eccentric bolt configuration is consistent across both generations at both the toe and camber arm positions.
Why does running the RTA F8X toe arm without the eccentric lockout still leave a problem on track? An adjustable toe arm extends the adjustment range and eliminates rubber bushing deflection at the arm itself. However, the factory eccentric bolt at the subframe connection point remains in place and can still rotate under sustained high cornering loads, shifting toe mid-session regardless of whether the arm has been upgraded. The EL F8X lockout hardware addresses that specific failure point; the eccentric is replaced with a mechanically fixed connection that cannot rotate. The adjustable arm and the lockout are two separate solutions to two separate problems; both are needed for a complete rear alignment stability solution on track.
What hardware is included in the SPL EL F8X kit? The kit includes CNC-machined 6061-T6 aluminum lockout plates, zinc-plated grade 10.9 bolts, lock nuts, and washers for both rear toe arm and rear camber arm positions at both rear corners. It is sold as a complete one-car kit. Part number: SPL EL F8X.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
