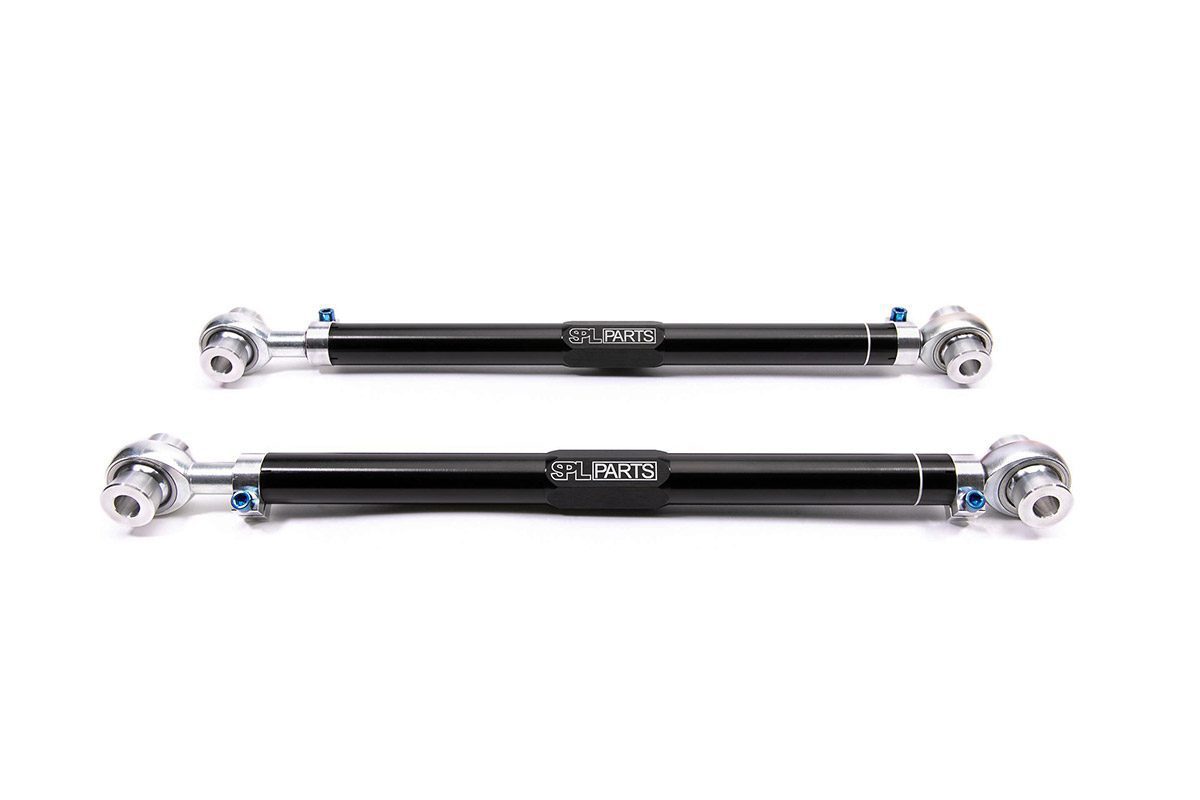

SPL Parts Adjustable Rear Toe Links for G2X / G42 BMW and A90 / A91 Toyota Supra GR

SPL Parts Adjustable Rear Toe Links for G2X / G42 BMW and A90 / A91 Toyota Supra GR

SPL Parts’ Rear Toe Arms (RTA) for the 2020+ Toyota Supra and BMW G2X enhance stability and response by eliminating bushing deflection while providing an extended range of rear toe adjustment, crucial for lowered vehicles or performance alignments. Even minor changes in ride height and camber impact toe settings, and the wide range of adjustment offered by SPL Parts allows for maximum grip on track cars and improved tire life on street cars. The OEM rear toe arms use an eccentric bolt and washer for adjustments, lacking the precision and range that SPL Parts’ rear toe links deliver. Featuring black anodized and gun-drilled 2024 aluminum main links and a 360-degree Rotating Clamp design, these components enable quick and precise adjustments. The Rotating Clamps are secured with blue anodized titanium socket head cap screws for easy access adjustments, further reducing unsprung weight without sacrificing strength.

The FK spherical bearings and rod ends, produced in Connecticut, incorporate a Teflon liner to ensure quiet operation, reduce friction, and allow smooth articulation while eliminating bushing deflection under load. This self-lubricating and self-cleaning liner enhances reliability for both street and track applications. The PTFE liner, chemically bonded to the inner diameter of the race, offers a high load-carrying capacity and improved dynamic wear characteristics. With an operating temperature range from -65º to 325ºF, it provides robust reliability under demanding conditions.

Manufacturing and R&D

• USA sourced materials with certification ensure SPL products are built with the best materials.
• CNC machining by local machine shops with years of high tech machining experience, to meet exacting tolerances.
• TIG welding is performed by local professional welders with years of experience, to ensure the highest quality welds for maximum strength.
• All parts are hand fitted to ensure good fit and smooth threading. Anti-seize and 3M internal panel coating applied where necessary for protection.
• In-house research and development. Because SPL designs and uses the products, they can provide total support to their customers.
• Spherical bearings with teflon liners, are self cleaning and self lubricating, providing high performance and long life.
• Innovative adjuster design, provides quicker alignments and proper bearing centering. Tight thread tolerances for precision.
• Made with pride in USA by skilled machinists / welders, using quality materials and finishes, innovative designs and R&D.

Features

• Gun drilled 2024 aluminum links to reduce unsprung weight
• Blue anodized titanium socket head cap screws
• 6061-T6 aluminum rotating clamp design
• Low friction 3 piece teflon lined FK Heim joints / rod ends
• Sold as a pair
• Made in the USA

Applications

• BMW 218i: G42 (2022+)
• BMW 220i: G42 (2021+)
• BMW 230i: G42 (2021+)
• BMW 318i: G20, G21 (2020+)
• BMW 320i: G20, G21 (2019+)
• BMW 330i: G20, G21 (2019+)
• BMW 420i: G22, G23 (2021+)
• BMW 430i: G22, G23 (2021+)
• BMW M240i: G42 (2021+)
• BMW M340i: G20, G21 (2019+)
• BMW M440i: G22, G23 (2021+)
• BMW Z4: G29 (2019+)
• Toyota GR Supra: A90, A91 (2020+)

Notes

• Instruction manual

About SPL Parts

From full racing to high-performance street applications, SPL Parts’ suspension products offer adjustability and enhanced performance for custom alignment needs. Their commitment to top-quality construction and innovative features has made SPL Parts the choice of leading race teams, as well as consumers seeking the best alignment solutions for their high-performance street vehicles.
