Why do lowered E36 and E46 BMWs need adjustable rear camber arms?

The factory rear camber adjustment on the E36 and E46 uses an eccentric bolt with a limited travel range that was designed for stock ride height. When the car is lowered, the rear suspension geometry changes and the rear camber moves toward negative beyond what the factory eccentric can correct back to a neutral alignment. Running with excess negative camber causes premature outer shoulder wear on performance tires and reduces rear grip balance. The SPL RLL E36 extends the adjustment range to bring camber back to the optimal target for the car's ride height; whether that's a street alignment or an aggressive track setup.

How does the 360-degree rotating clamp system work, and why is it better than jam nuts?

The 360-degree rotating clamp locks the arm at its set camber position when tightened with a single 3/16-inch allen key. On a conventional jam-nut adjustable arm, setting camber requires holding the bearing in the desired orientation with one hand while threading and torquing a jam nut with the other, often on a cramped alignment rack with the car at ride height. The rotating clamp does the same job in one step, without a second tool or person, and is consistently easier to adjust and more repeatable than jam-nut designs.

Is there a torque specification I should be aware of during installation?

Yes, and this is important. Some earlier versions of the SPL installation instructions listed an incorrect torque specification of 122 ft-lbs for the inner and outer mounting bolts. The correct torque is the factory-recommended 81 ft-lbs. Always use the current revision of the installation instructions, available via the Dropbox link provided on this product page.

Do the FK rod ends in these arms require maintenance or lubrication?

No. The three-piece FK rod ends use a Teflon liner that is chemically bonded to the inner diameter of the race. This liner provides self-lubrication and eliminates the need for periodic greasing. The liner operates reliably from -65°F to 325°F, covering the full temperature range of sustained track use and cold-weather street driving without degradation.

Do these arms also eliminate rear camber deflection under load?

Yes. Replacing the factory rubber-bushed camber arm with the SPL RLL E36 eliminates bushing deflection at the camber arm position. The factory rubber compresses under cornering and braking loads, which allows the rear camber to change dynamically during a corner. The FK spherical rod ends articulate freely without deflecting, so the camber set at the alignment rack holds its position under load, improving rear suspension predictability and consistency at the limit.

Description

Additional Info

Shipping policy

BP PRICING DIFFERENCE

Reviews

Product Inquiry

Description

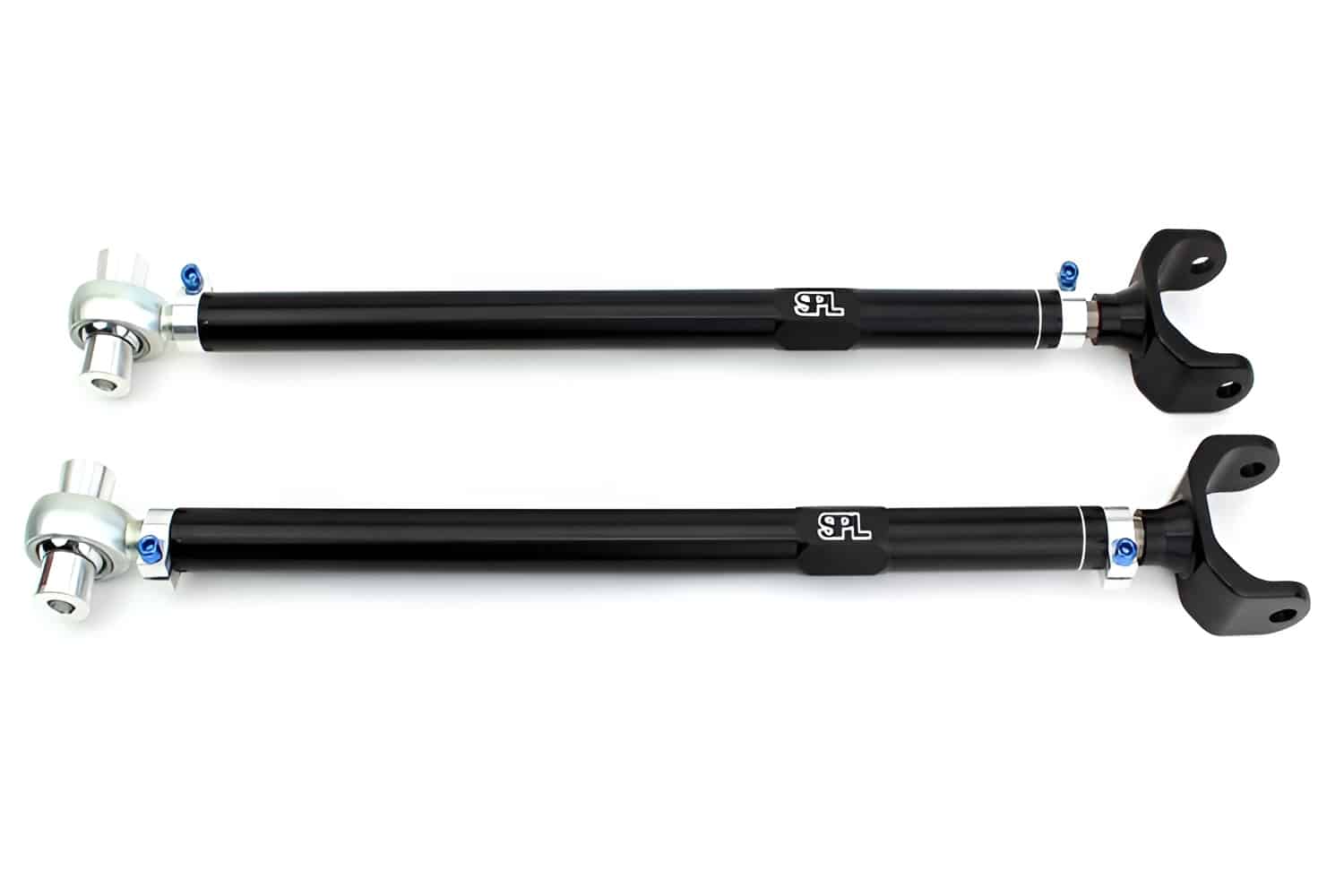

SPL Parts Adjustable Rear Camber Links for E36 / E46 BMW 3 Series and E30 BMW Z1 Roadster

The SPL Parts RLL E36 rear camber arms provide the adjustment range that the factory eccentric cannot reach, through a design built around SPL’s 360-degree rotating clamp system. Gun-drilled 6061-T6 aluminum center links, clamps, and clevises make up the structural core of the arm; gun-drilling removes weight from material that doesn’t contribute to strength, a manufacturing detail that reduces unsprung mass without compromising the arm’s load rating. Blue anodized titanium socket head cap screws complete the hardware picture, shaving additional weight with a material that maintains clamping strength. Shops that have tested the full range of adjustable camber arms for the E36 and E46 consistently find these the best solution; easier to adjust than competing designs and with higher-quality joints for longer service life. The adjustment process is the clearest differentiator from conventional jam-nut arms. The 360-degree rotating clamp locks the alignment setting with a single 3/16-inch allen key; no second wrench, no holding the bearing in position while torquing, no frustration. Set the camber on the alignment rack, lock the clamp. Done. The three-piece FK rod ends manufactured in Connecticut use a Teflon liner chemically bonded to the inner race diameter for quiet, low-friction articulation through the full suspension travel range. Operating temperature range is -65°F to 325°F; reliable for both street and sustained track use without maintenance.

Features

Extended rear camber adjustment range beyond the factory eccentric bolt; necessary for lowered E36 and E46 builds to reach proper negative camber targets
Gun-drilled 6061-T6 aluminum center links, clamps, and clevises; gun-drilling removes material weight without reducing structural strength
SPL exclusive 360-degree rotating clamp system; locks camber setting with a single 3/16-inch allen key; no jam nuts, no second wrench required
Blue anodized titanium socket head cap screws; further reduces unsprung weight without compromising clamp strength
Three-piece FK rod ends manufactured in Connecticut; Teflon liner chemically bonded to inner race; quiet, low-friction articulation with zero bushing deflection under load
Teflon liner operating temperature range: -65°F to 325°F; suitable for street and sustained track use
Eliminates bushing deflection at the camber arm position; rear geometry holds its set value under cornering and braking loads
Increases rear suspension stability and predictability compared to factory rubber-bushed camber arms
Reduces outer rear tire shoulder wear on lowered cars by bringing camber into proper range
Made in the USA

Specifications

Body Material: 2024-T351 aluminum (gun-drilled, black anodized)
Heim Joints: PTFE-lined FK USA spherical bearings
Toe Adjustment: Wide range, past OEM eccentric limits
Bumpsteer Adjustment: Yes — fine spacers included
Origin: Made in the USA

Applications

BMW 330d: E46 | 2001-2007
BMW 318d: E46 | 1999-2007
BMW 320d: E46 | 1999-2007
BMW 316i: E36, E46 | 1990-2007
BMW 318i: E36, E46 | 1990-2007
BMW 320i: E36, E46 | 1990-2007
BMW 323i: E36, E46 | 1995-2001
BMW 325i: E36, E46 | 1990-2007
BMW 328i: E36, E46 | 1995-2000
BMW 330i: E46 | 2001-2007
BMW 318is: E36 | 1992-1999
BMW 318ti: E36 | 1995-1999
BMW 325xi: E46 | 2001-2007
BMW 330xi: E46 | 2001-2007
BMW M3: E36, E46 | 1992-2007
BMW Z1: E30 | 1988-1991

Notes

Installation Instructions
SPL components are made-to-order in the USA; build time will be confirmed at the time of order\

Frequently Asked Questions

Why do lowered E36 and E46 BMWs need adjustable rear camber arms? The factory rear camber adjustment on the E36 and E46 uses an eccentric bolt with a limited travel range that was designed for stock ride height. When the car is lowered, the rear suspension geometry changes and the rear camber moves toward negative beyond what the factory eccentric can correct back to a neutral alignment. Running with excess negative camber causes premature outer shoulder wear on performance tires and reduces rear grip balance. The SPL RLL E36 extends the adjustment range to bring camber back to the optimal target for the car’s ride height; whether that’s a street alignment or an aggressive track setup.
How does the 360-degree rotating clamp system work, and why is it better than jam nuts? The 360-degree rotating clamp locks the arm at its set camber position when tightened with a single 3/16-inch allen key. On a conventional jam-nut adjustable arm, setting camber requires holding the bearing in the desired orientation with one hand while threading and torquing a jam nut with the other, often on a cramped alignment rack with the car at ride height. The rotating clamp does the same job in one step, without a second tool or person. Shops that have compared this system against other adjustable camber arms for the E36 and E46 consistently find it easier to adjust and more consistent to set repeatedly.
Is there a torque specification I should be aware of during installation? Yes, and this is important. Some earlier versions of the SPL installation instructions listed an incorrect torque specification of 122 ft-lbs for the inner and outer mounting bolts. The correct torque is the factory-recommended 81 ft-lbs. Always use the current revision of the installation instructions, available via the Dropbox link provided on this product page.
Do the FK rod ends in these arms require maintenance or lubrication? No. The three-piece FK rod ends use a Teflon liner that is chemically bonded to the inner diameter of the race. This liner provides self-lubrication and eliminates the need for periodic greasing. The liner operates reliably from -65°F to 325°F, covering the full temperature range of sustained track use and cold-weather street driving without degradation.
Do these arms also eliminate rear camber deflection under load? Yes. Replacing the factory rubber-bushed camber arm with the SPL RLL E36 eliminates bushing deflection at the camber arm position. The factory rubber compresses under cornering and braking loads, which allows the rear camber to change dynamically during a corner. The FK spherical rod ends articulate freely without deflecting, so the camber set at the alignment rack holds its position under load, improving rear suspension predictability and consistency at the limit.

About SPL Parts

SPL Parts is a USA-based manufacturer of high-performance suspension components engineered for both professional racing and demanding street applications. Built on the core principles of strength, lightweight construction, low friction, and precision, SPL Parts products deliver the adjustability and alignment performance required by top race teams and discerning enthusiasts alike. Every component is produced using USA-sourced, certified materials and machined by experienced local shops to exacting tolerances. Professional TIG welders ensure maximum weld integrity, while each part is hand-fitted and treated with anti-seize and 3M internal panel coating for lasting protection. SPL Parts conducts all research and development in-house, allowing the team to leverage firsthand product knowledge and deliver unmatched customer support. Their suspension components feature innovative adjuster designs for quicker, more precise alignments, and utilize spherical bearings with Teflon liners that are self-cleaning, self-lubricating, and built for long service life. From concept to assembly, SPL Parts is made with pride in the USA by skilled machinists and welders who are committed to quality, innovation, and performance.
